ZIR50T Professional 3-axis High-precise FOC Program with Powerful 50mm Thermal Imager Camera
Description

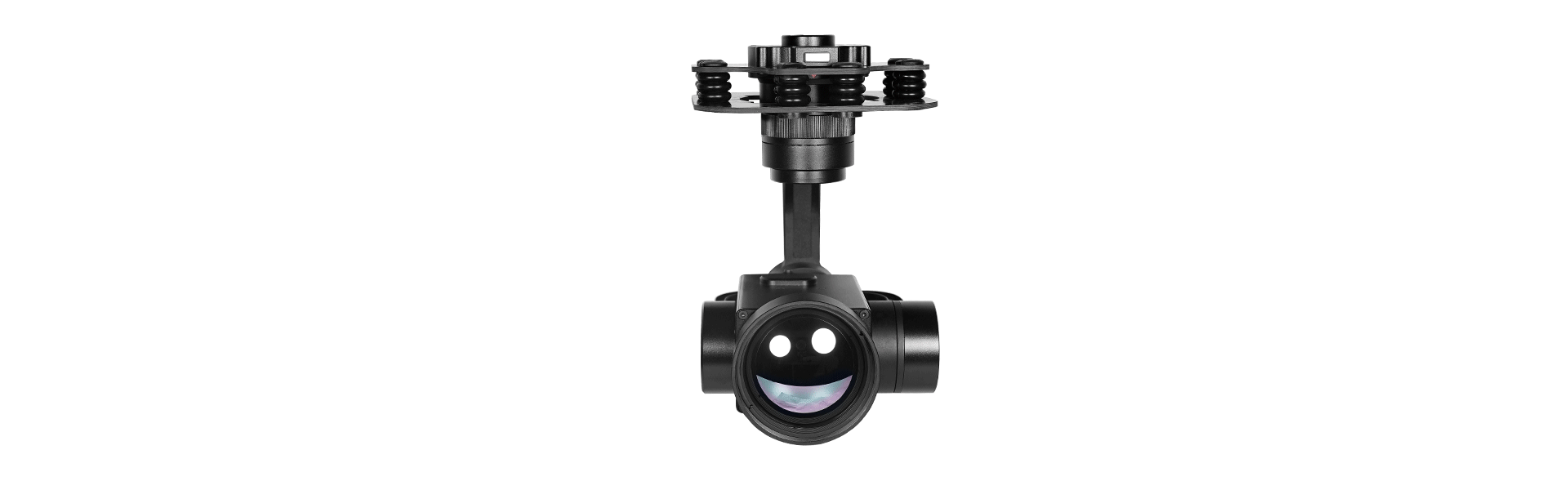

Professional 3-axis High-precise FOC Program

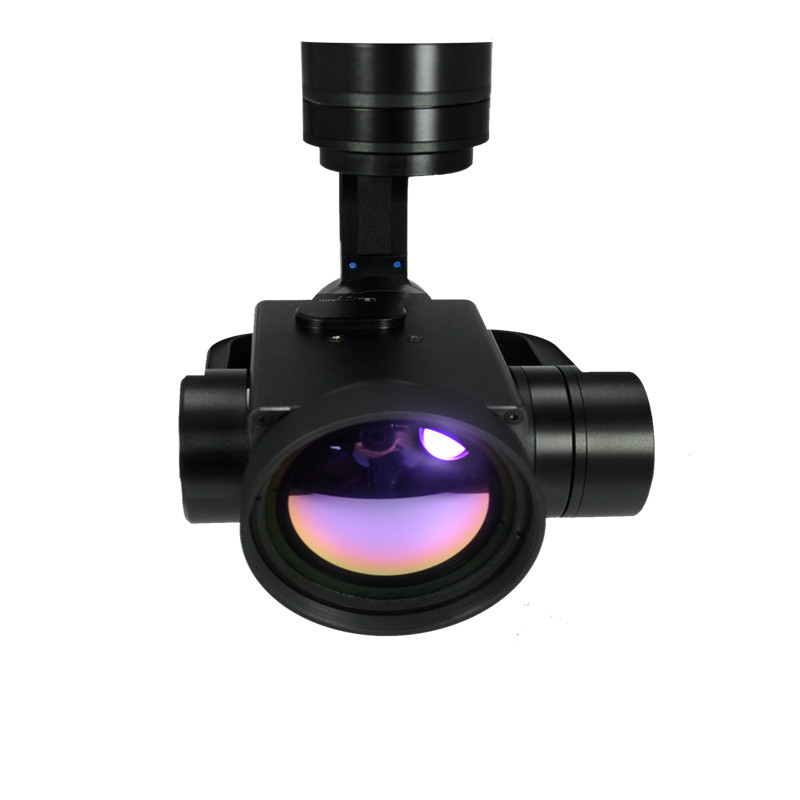

The thermal imaging camera lens size of ZIR50T is 50mm. It has just one infrared camera. There are 3 color palette to choose, white, iron red, pseudo color. ZIR50T is a pinpoint-precision professional 3-axis gimbal which features high stability, small size, light weight and low power consumption. The 3-axis gimbal based on FOC motor control technology, adopts pinpoint-precision encoder in each motor. Z-IR50 supports PWM control, S.BUS contral and serial command control, suitable for close range remote control or remote data command control.
The speed of ZIR50T gimbal is adjustable, LOW speed mode is used for large zoom range, the control will be more accurate; Fast speed mode is used for small zooming range, which makes the gimbal control sensitive and quick. Also the one-key to center function will allow the gimbal return to initial position automatically and rapidly.

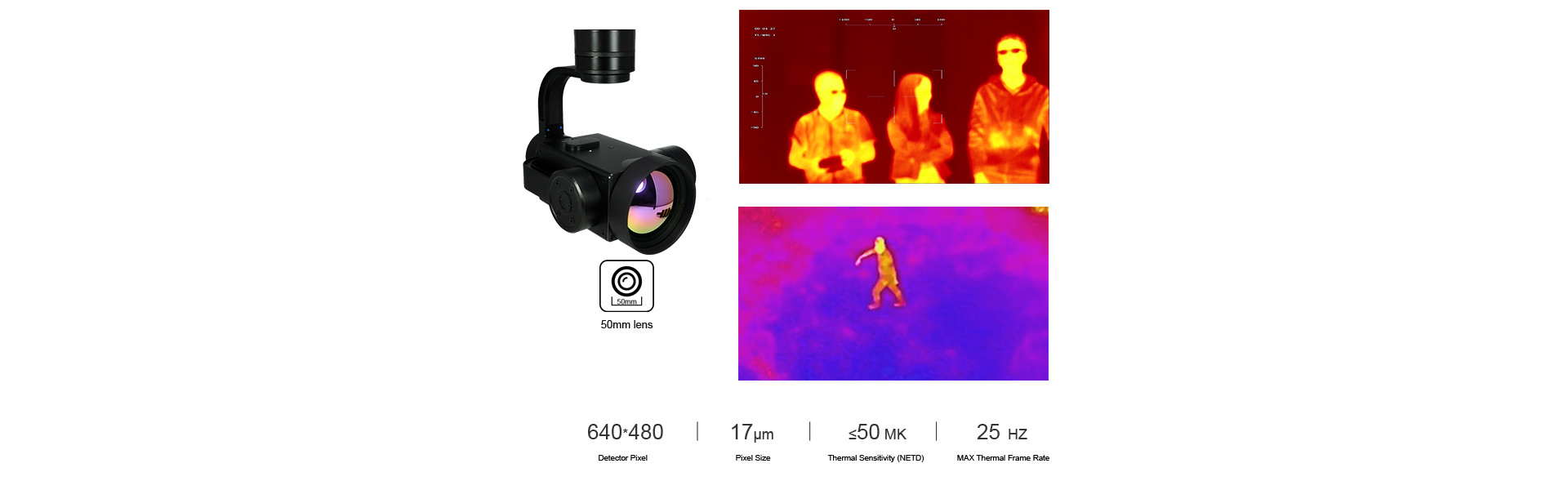

Powerful 50mm Thermal Imager
Integrated French ULIX high-precision uncooled long wave (8μm ~14μm) with 50mm lens thermal image sensor, ZIR50T can record and transmit thermal image and visible images at the same time. See the unseen. ULIX thermal sensors reveal details invisible to the naked eye by making subtle differences in temperature visible. This new view on the world can reveal when equipment or buildings are damaged, the location of lost people and much more.

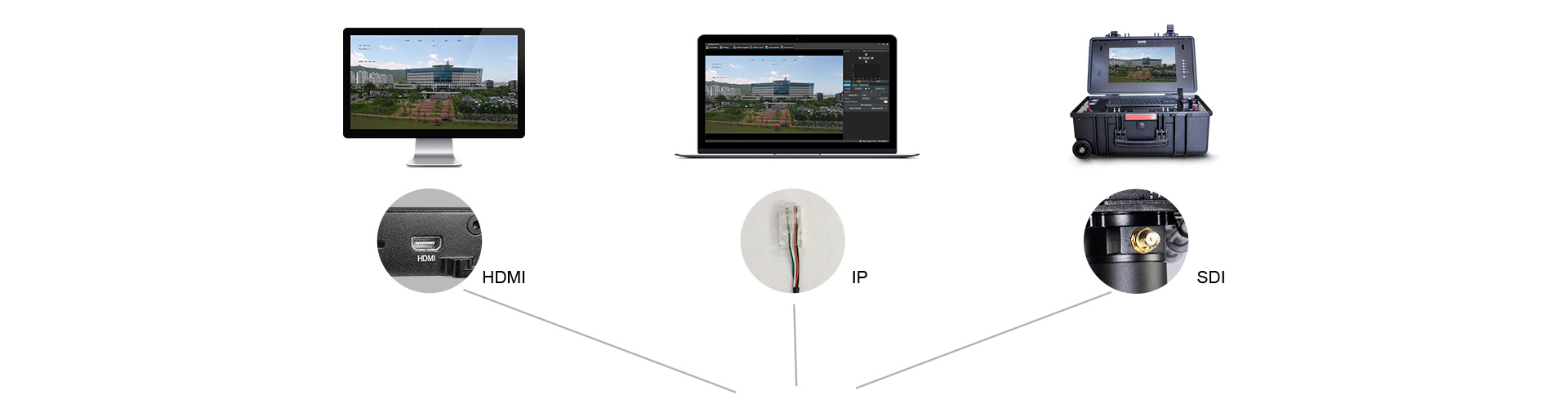

Multi Output Methods Optional
ZIR50T supports both HDMI output, Ethernet/IP output and SDI output. HDMI and output are 1080p, Ethernet output default as 720p and record is 1080p. IP output and SDI output versions will support 360degree enless pan.

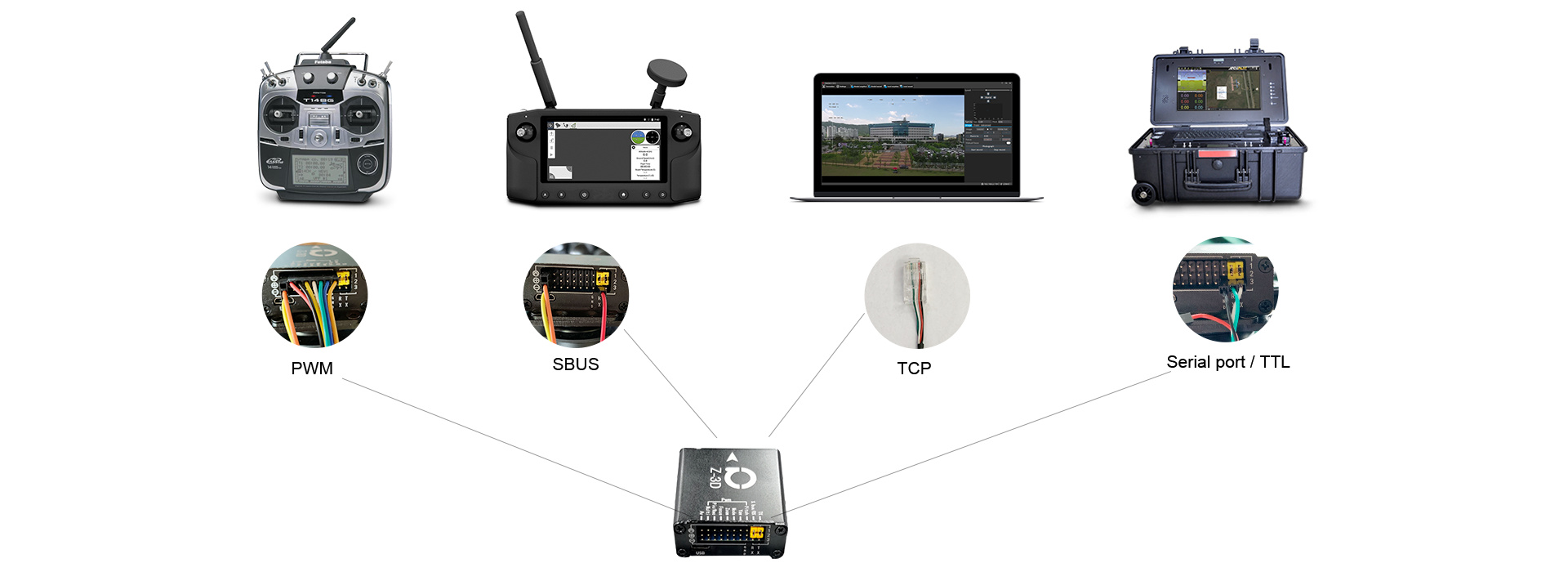

Multi Control Methods
Default PWM and Serial port TTL control, SBUS is optional, IP output version also support TCP control via ethernet cable. With Viewpro software Viewlink you can fulfill IP output, TTL control and TCP contorl.

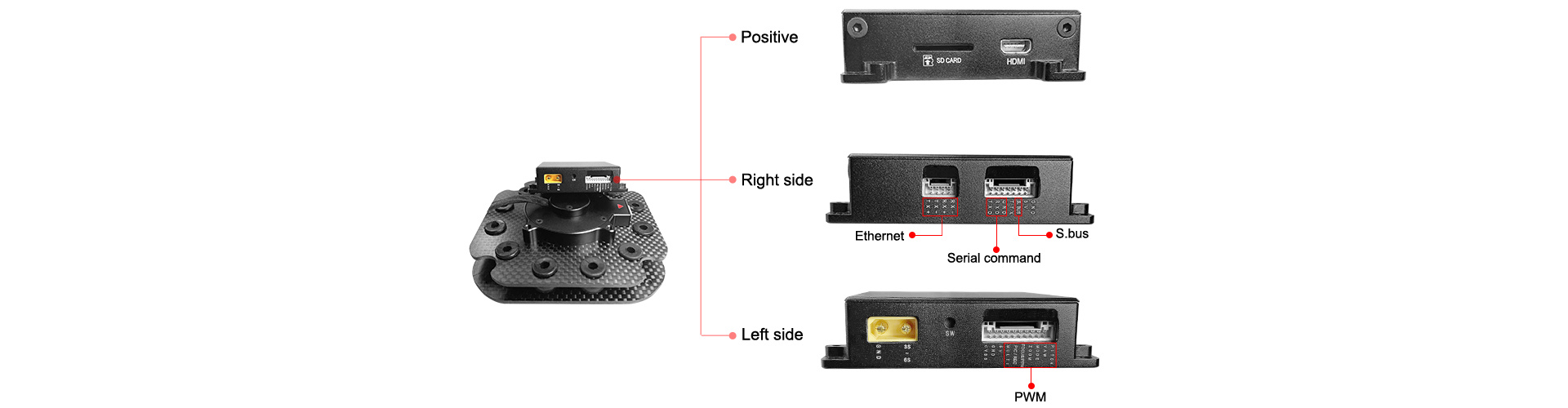

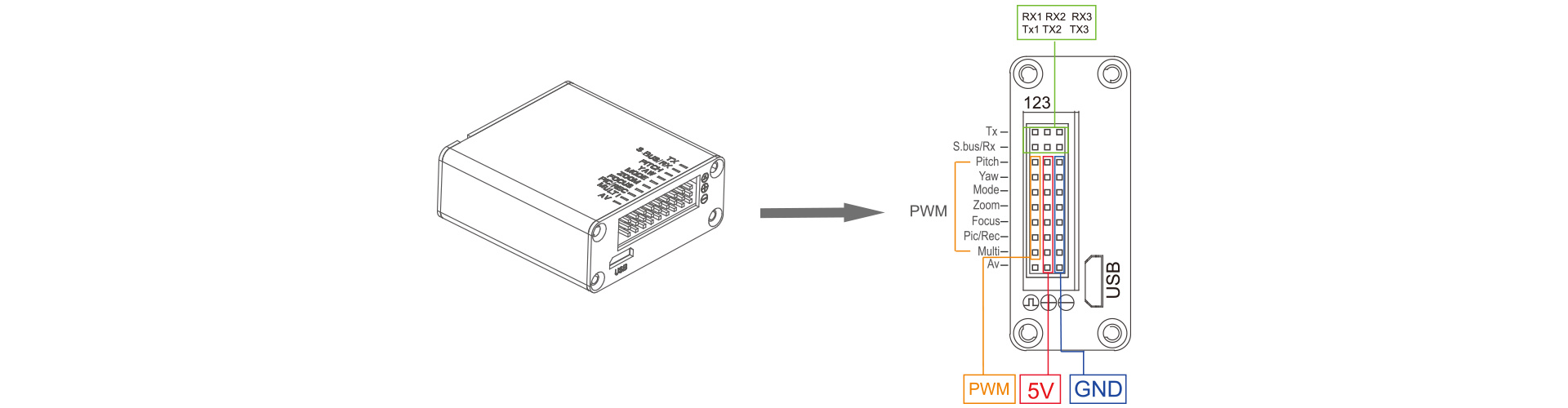

Control box signal interfaces:
Compatible with Viewport
ZIR50T is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play.
For more information about Viewport, please check below video instruction:
Application
Mainly supply in law enforcement, fire-fighting, power tower and pipeline inspection, search and rescue etc. A wide range of monitoring and searching is required in an emergency to quickly transfer the situation, improve response efficiency and reduce casualties.

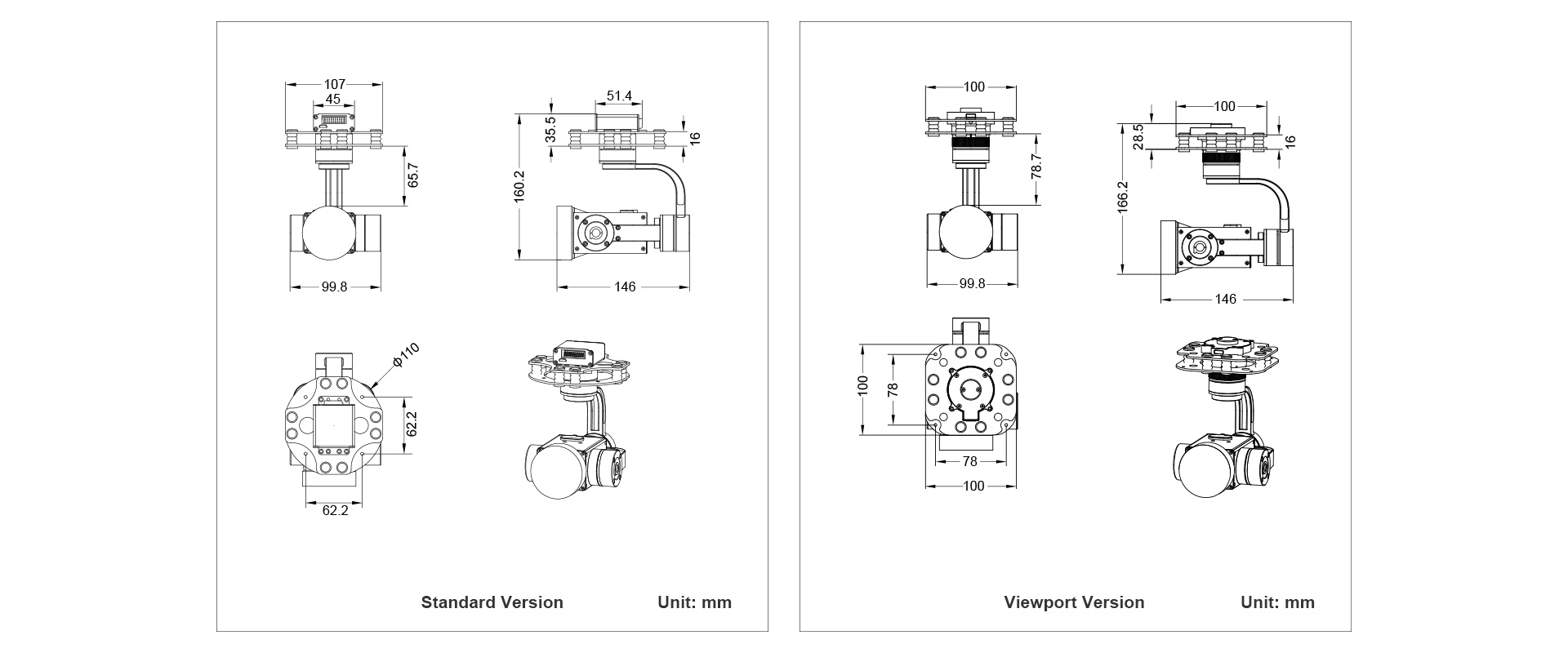

Dimention
Specification
| Working voltage | 16V |
|---|---|
| Input voltage | 4S ~ 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 370~1000mA @ 12V |
| Working environment temp. | -20℃ ~ +60℃ |
| Output | micro HDMI(1080P 60fps) / IP (RTSP/UDP 720p/1080p 25fps/30fps) / Skyport (DJI version) |
| Local-storage | TF card (Up to 128G, class 10, FAT32 or ex FAT format) |
| Picture storage format in TF card | JPG(1920*1080) |
| Video storage format in TF card | MP4 (1080P 30fps) |
| Card reading online | SMB read / HTTP read |
| Control method | PWM / TTL / S.BUS / TCP(IP output) / DJI Pilot (DJI version)/UDP(IP output version) |
| Geotagging | Support, display time and GPS coordinate in picture exif |
| Mechanical Range | Pitch/Tilt: ±120°, Roll: ±70°, Yaw/Pan: ±300° / ±360°*N (IP / SDI / Skyport version) |
|---|---|
| Controllable Range | Pitch/Tilt: -45°～115°, Yaw/Pan: ±290° / ±360°*N (IP / SDI / Skyport version) |
| Vibration angle | Pitch/Roll: ±0.02°, Yaw：±0.02° |
| One-key to center | √ |
| Focus Length | 50mm |
|---|---|
| Horizontal FOV | 12.4 |
| Vertical FOV | 9.3 |
| Diagonal FOV | 15.5 |
| Detective Distance (Man: 1.8x0.5m) | 1471 meters |
| Recognize Distance (Man: 1.8x0.5m) | 368 meters |
| Verified Distance (Man: 1.8x0.5m) | 184 meters |
| Detective Distance (Car: 4.2x1.8m) | 4510 meters |
| Recognize Distance (Car: 4.2x1.8m) | 1127 meters |
| Verified Distance (Car: 4.2x1.8m) | 564 meters |
| Working mode | Uncooled long wave (8μm~14μm) thermal imager |
| Detector pixel | 640*480 |
| Pixel pitch | 17μm |
| Focusing method | Athermal prime lens |
| Emissivity correction | 0.01~1 |
| NETD | ≤50mK (@25℃) |
| MRTD | ≤650mK (@characteristic frequency) |
| Image enhancement | Auto adjust image brightness and contrast ratio |
| Color palette | White, iron red, pseudo color |
| Auto Non-uniform correction | Yes (no shutter) |
| Digital zoom | 1x ~ 4x |
| Sync correct time | Yes |
| Thermometry type | Temperature bar (psudo color display) max temp, min temp, FOV center temp (Optional) |
| Temperature warning | 0℃~120℃ (For thermometry version only) |
| Update rate of deviation pixel | 50Hz |
|---|---|
| Output delay of deviation pixel | 5ms |
| Minimum object size | 32*32 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | ±48 pixel/frame |
| Object memory time | 100 frames (4s) |
| N.W. | 819g (Viewport version) |
|---|---|
| Product meas. | 146*99.8*160.2mm(including control box)/146*99.8*166.2mm(Viewport version) |
| Accessories | 1pc gimbal camera device, screws, copper cylinders, damping balls, damping boards, 1pc USB to TTL cable / Hight quality plastic box with foam cushion |
| G.W. | 2411g |
| Package meas. | 300*250*200mm |
