Specification
| Working voltage | 16V |
|---|---|
| Input voltage | 4S ~ 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 900~1500mA @ 16V |
| Working environment temp. | -20℃ ~ +60℃ |

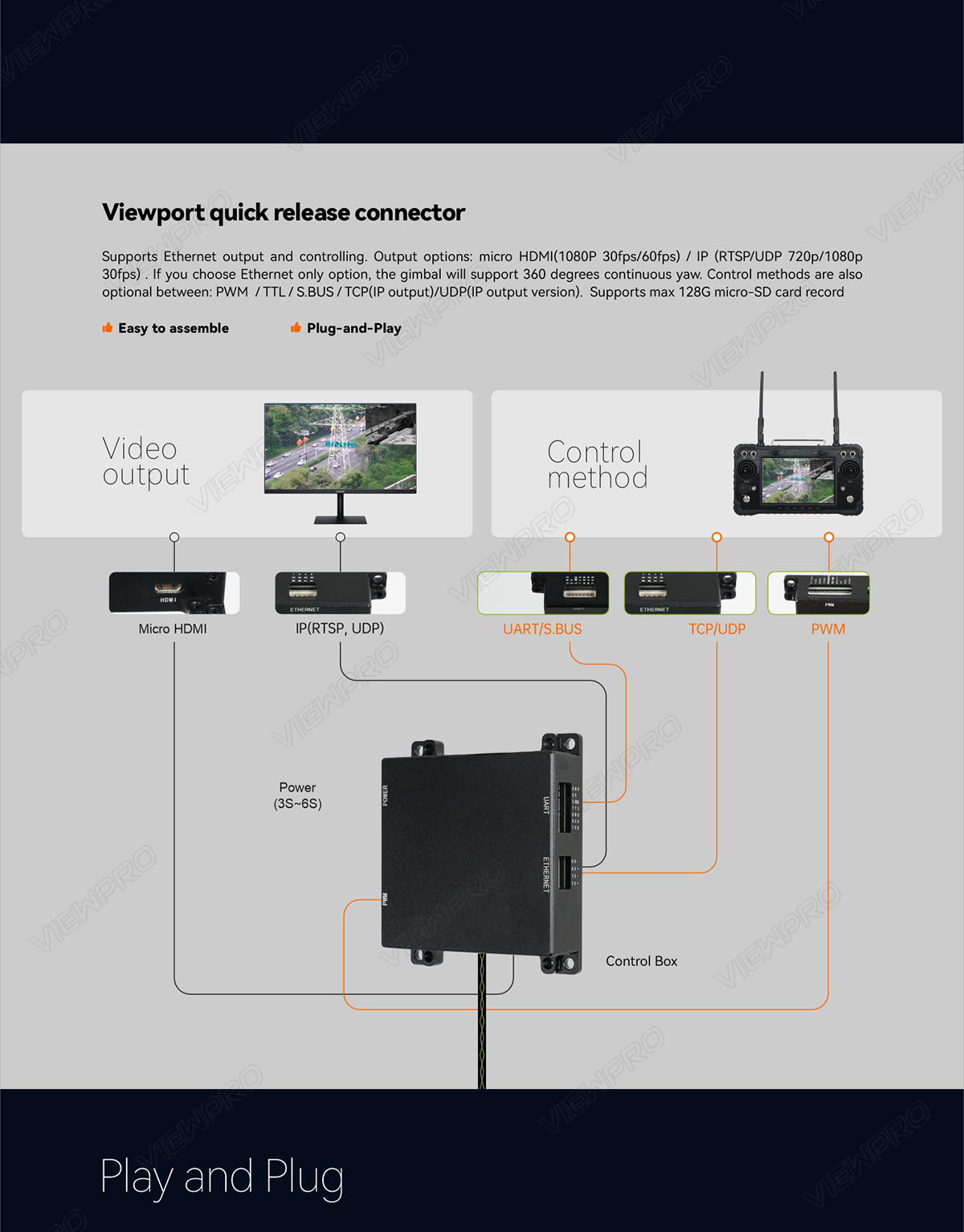

| Output | micro HDMI(1080P 30fps/60fps) / IP (RTSP/UDP 720p/1080p 30fps) |
| Local-storage | TF card (Up to 128G, class 10, FAT32 or ex FAT format) |
| Photo storage format | JPG(1920*1080) |
| Video storage format | MP4 (1080P 30fps) |
| Card reading online | HTTP read pictures |
| Control method | PWM / TTL / S.BUS / TCP(IP output)/UDP(IP output version) |

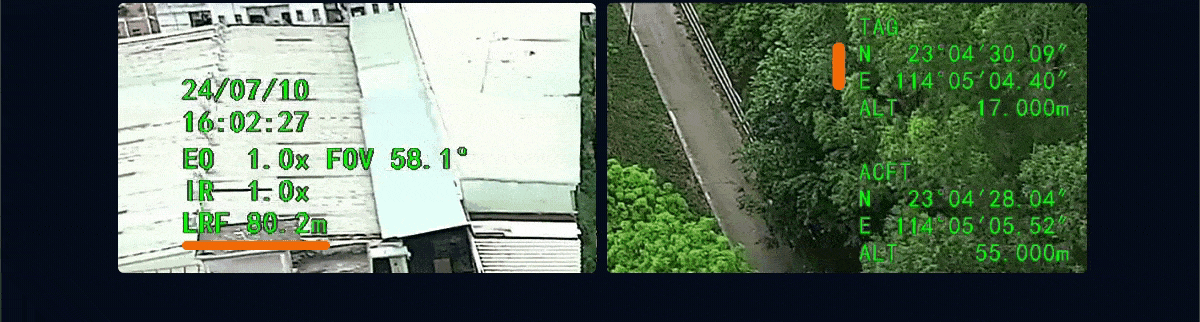

| Geotagging | Support, display time and GPS coordinate in picture exif |
| Mechanical Range | Pitch/Tilt:-40°～100°, Roll: ±70°, Yaw/Pan: ±300° / ±360°*N (IP output version) |
|---|---|
| Controllable Range | Pitch/Tilt: -35°～95°, Yaw/Pan: ±290° / ±360°*N (IP output version) |
| Vibration angle | Pitch/Roll: ±0.02°, Yaw：±0.02° |
| One-key to center | √ |
| Imager Sensor | 1/1.8 Type STARVIS CMOS Sensor |
|---|---|
| Picture quality | 4.17MP |
| Lens optical zoom | 30x, f=6.5~162.5mm, F1.6 to F4.8 |
| Digital zoom | 12x (max. 432x with StableZoom) |
| Min object distance | 100 mm (Wide end), 1200 mm (Tele end) |
| Horizontal viewing angle | 58.1°(wide end) ~ 2.3°(tele end) |
| Sync system | Internal |
| Image S/N | 50 dB (Weight On) |

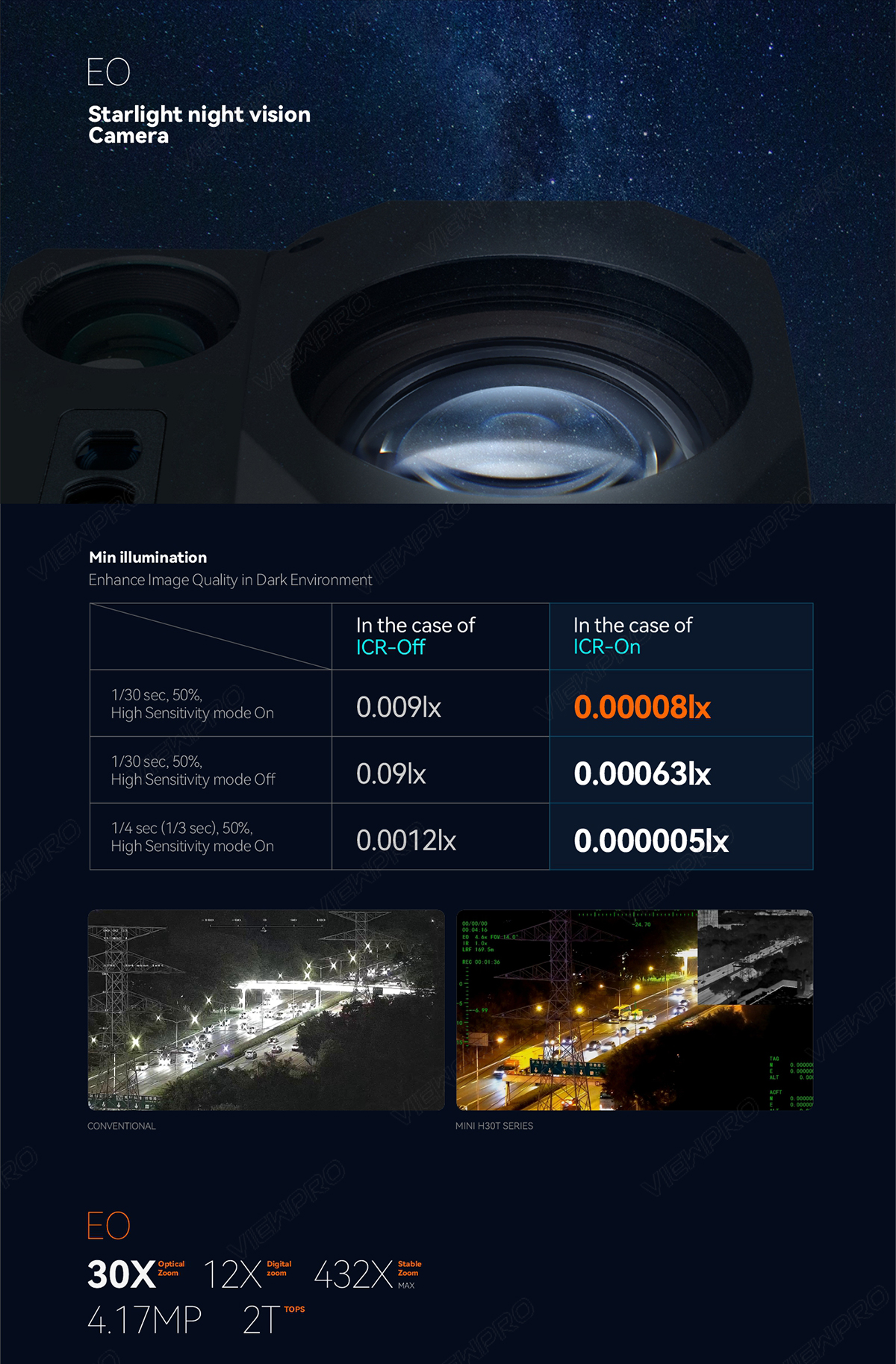

| Min illumination | In the case of ICR-Off: (Typical value) 0.009 lx (1/30 sec, 50%, High Sensitivity mode On) | 0.09 lx (1/30 sec, 50%, High Sensitivity mode Off) | 0.0012 lx (1/4 sec, 1/3 sec, 50%, High Sensitivity mode On) | 0.012 lx (1/4 sec, 1/3 sec, 50%, High Sensitivity mode Off) |
| In the case of ICR-On: 0.00008 lx (1/30 sec, 50%, High Sensitivity mode On) | 0.00063 lx (1/30 sec, 50%, High Sensitivity mode Off) | 0.000005 lx (1/4 sec, 1/3 sec, 30%, High Sensitivity mode On) | |
| High Sensitivity mode On/Off | Off |
| Recommended illumination | 100 lx to 100,000 lx |
| Gain | Auto/Manual (0 to 50.0 dB (0 to 28 step)) |
| Max. Gain Limit (10.7 to 50.0 dB (6 to 28 step)) | |
| White balance | Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto) |
| Wide Dynamic Range Mode | On/Off |
| Shutter speed | 1/1 sec to 1/10000 sec (22 steps) |
| Backlight compensation On/Off | Off |
| Image Stabilizer On/Off/Hold | Off |
| ICR On/Off | Off |
| Aperture control | 16 steps |
| Noise Reduction | On/Off (level 5 to 1 / Off, 6 steps) |
| Defog | On/Off (low, mid, high) |

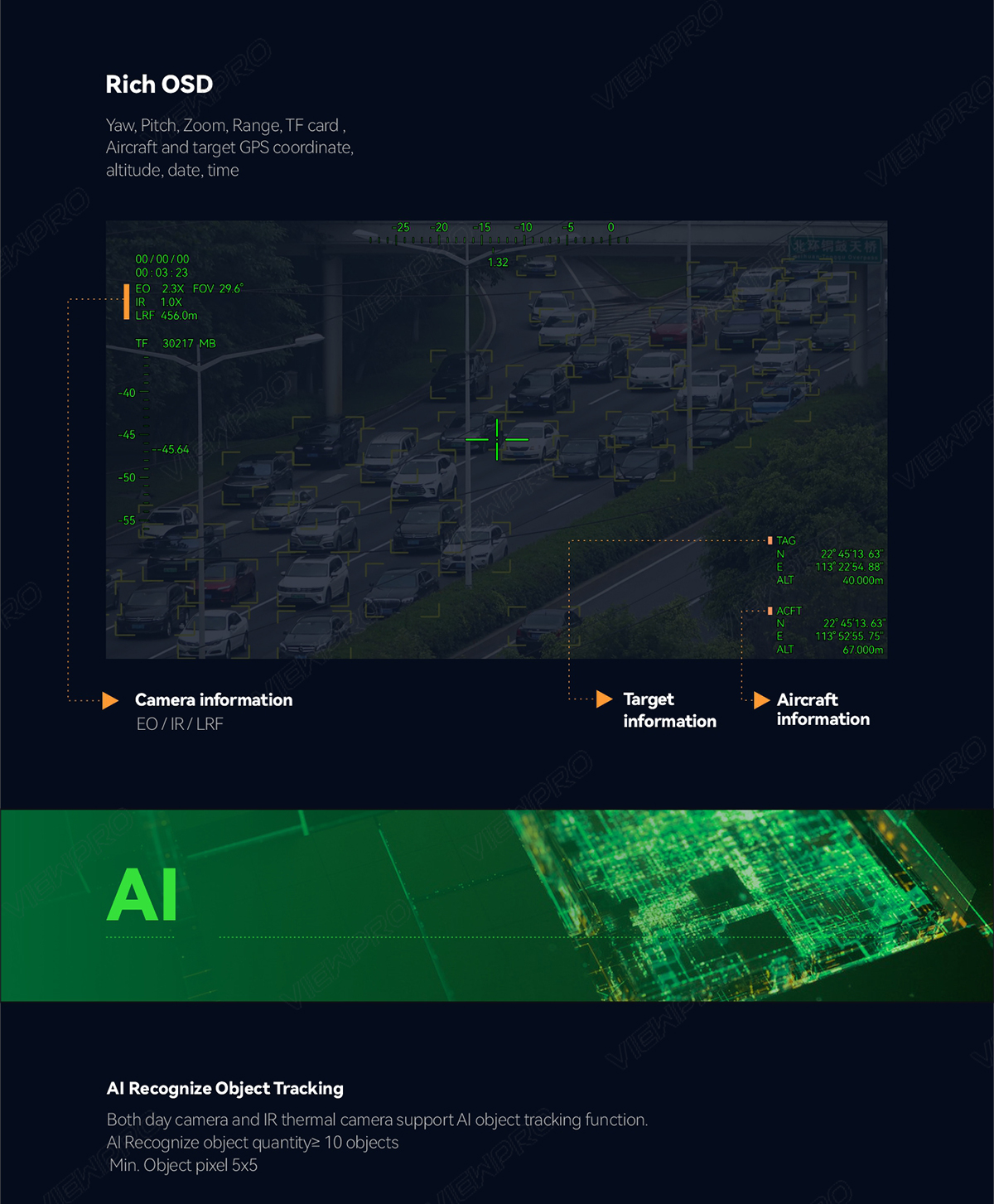

| OSD | Yes |
| Focus Length | 19mm |
|---|---|
| Coating Film | DLC |
| Horizontal FOV | 22.9° |
| Vertical FOV | 18.4° |
| Diagonal FOV | 29.0° |

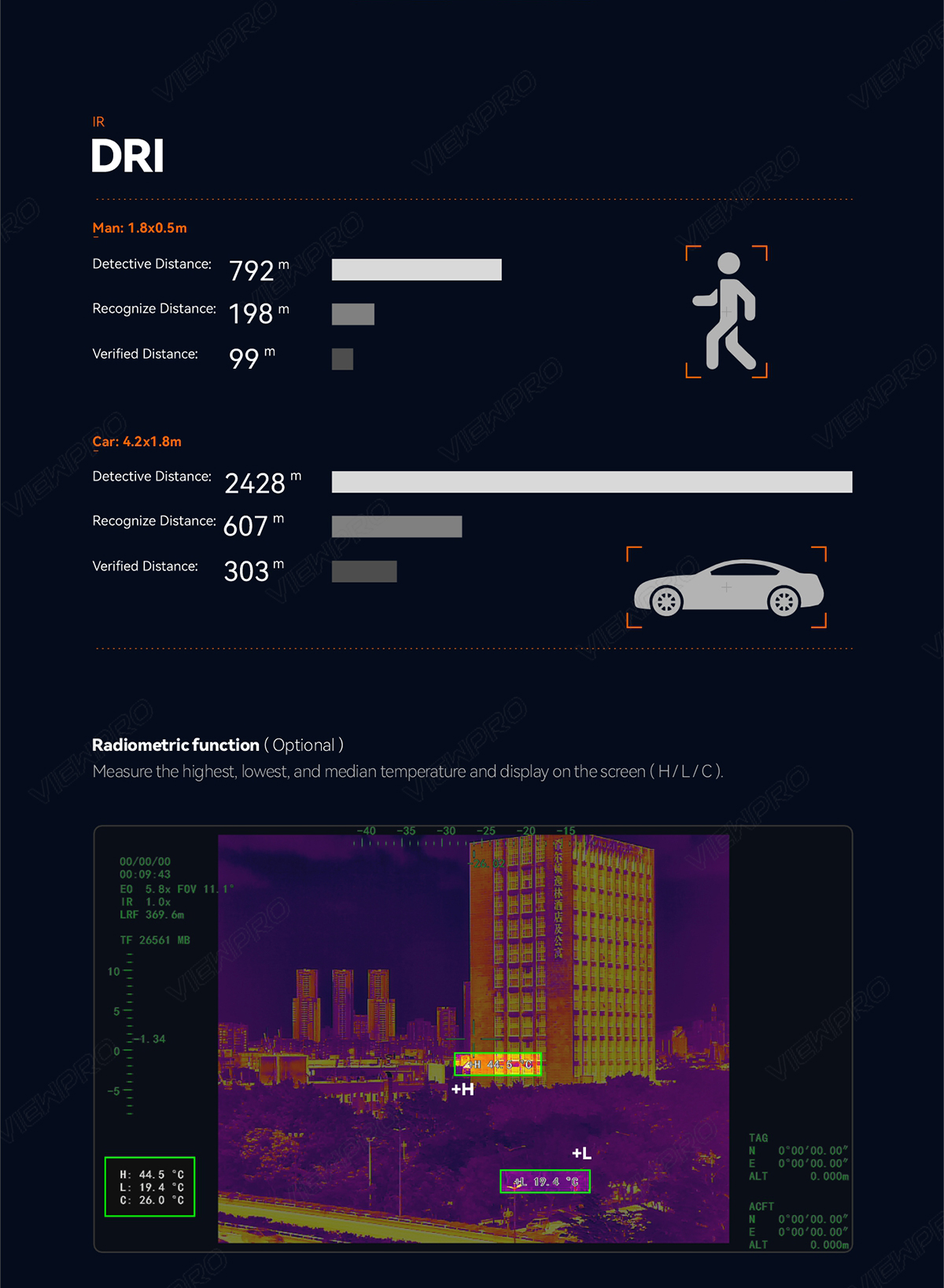

| Detective Distance (Man: 1.8x0.5m) | 792 meters |
| Recognize Distance (Man: 1.8x0.5m) | 198 meters |
| Verified Distance (Man: 1.8x0.5m) | 99 meters |
| Detective Distance (Car: 4.2x1.8m) | 2428 meters |
| Recognize Distance (Car: 4.2x1.8m) | 607 meters |
| Verified Distance (Car: 4.2x1.8m) | 303 meters |

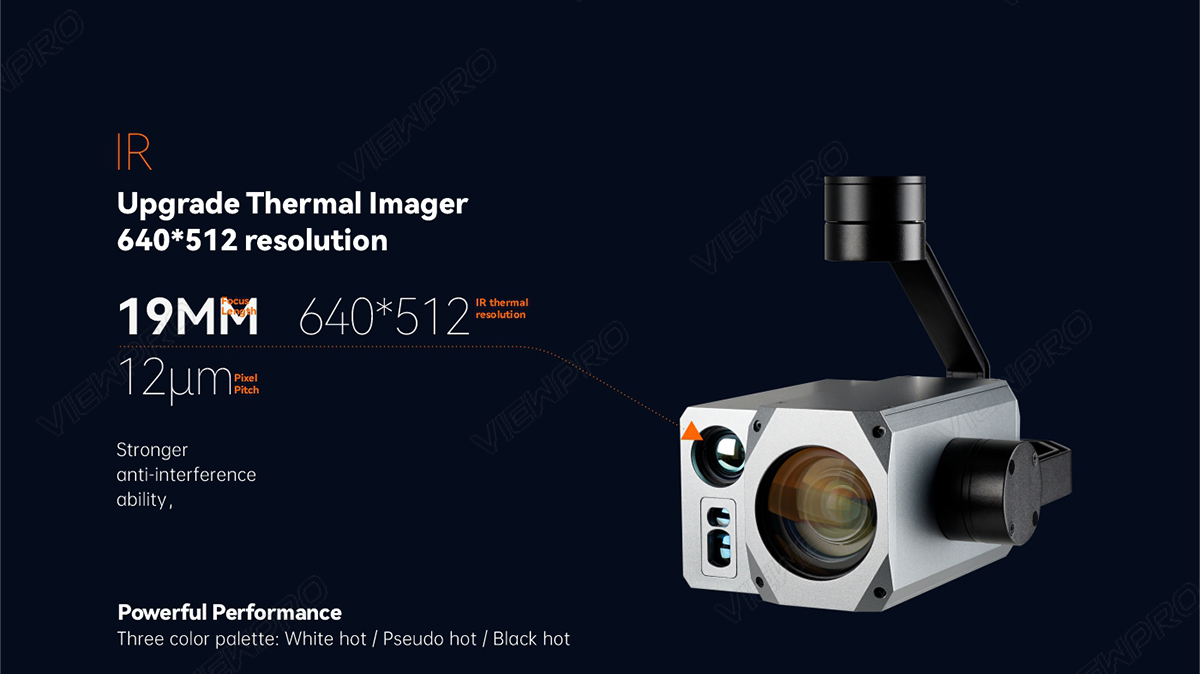

| Working mode | Uncooled VOx long wave (8μm~14μm) thermal imager |
| Detector pixel | 640*512 |
| Pixel pitch | 12μm |
| Focusing method | Athermal prime lens |
| NETD | ≤50mK@F1.0 @25℃ |

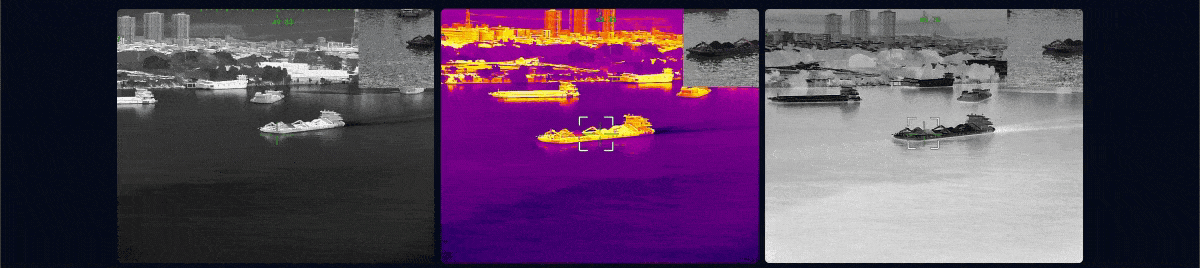

| Color palette | White hot, black hot, pseudo color |
| Digital zoom | 1x ~ 8x |
| Sync correct time | Yes |
| Update rate of deviation pixel | 30Hz |
|---|---|
| Output delay of deviation pixel | <30ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 16*16 pixel |
| Maximum object size | 256*256 pixel |

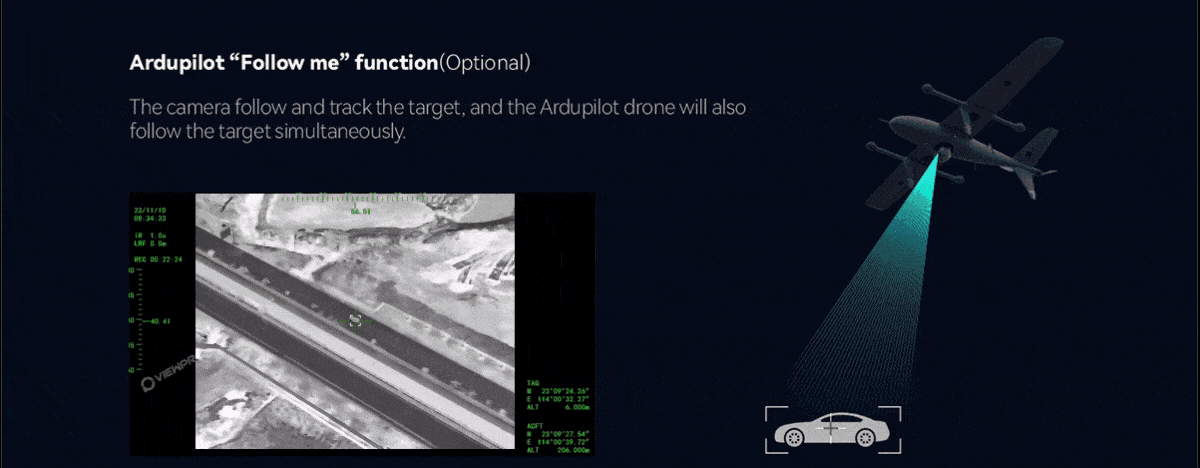

| Tracking speed | ±48 pixel/frame |
| Object memory time | 100 frames |

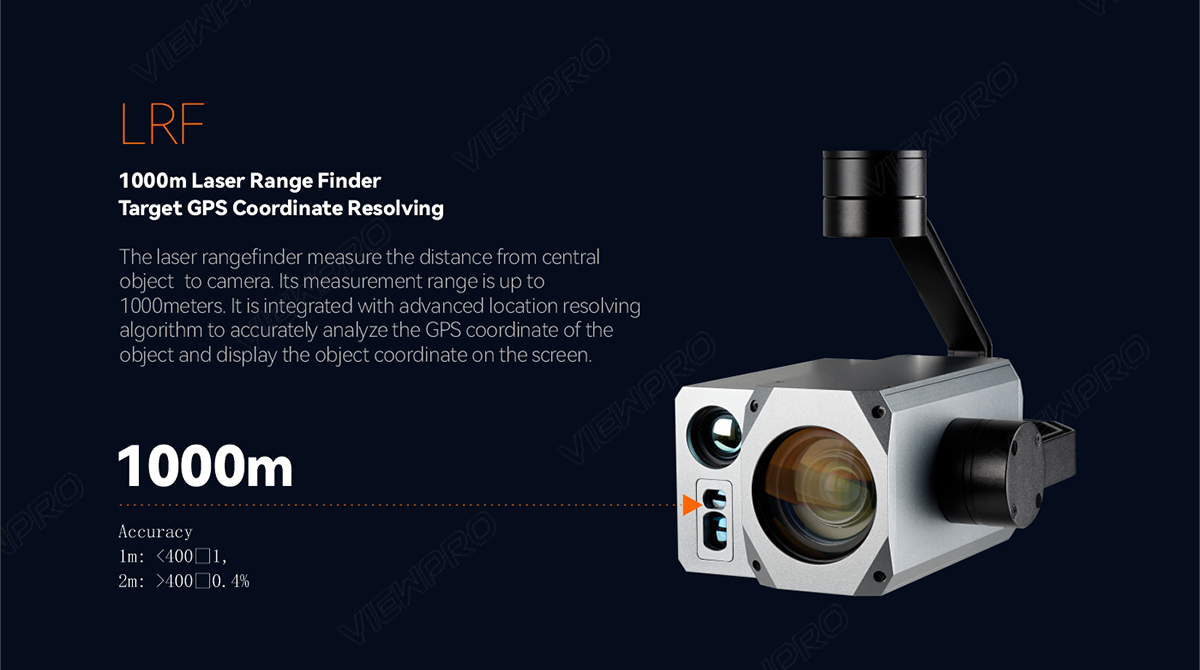

| Range | 5~1000 meters |
|---|---|
| Accuracy | 1m: <400±1; 2m: >400±0.4% |
| Light Beam | 905nm pulse laser |
| Divergent Angle | 12 mrad |
| Laser pulse frequency | 0.1--1Hz |
| Location Resolving | Latitude and longitude of target |
| Ranefinder | Target distance measuring |

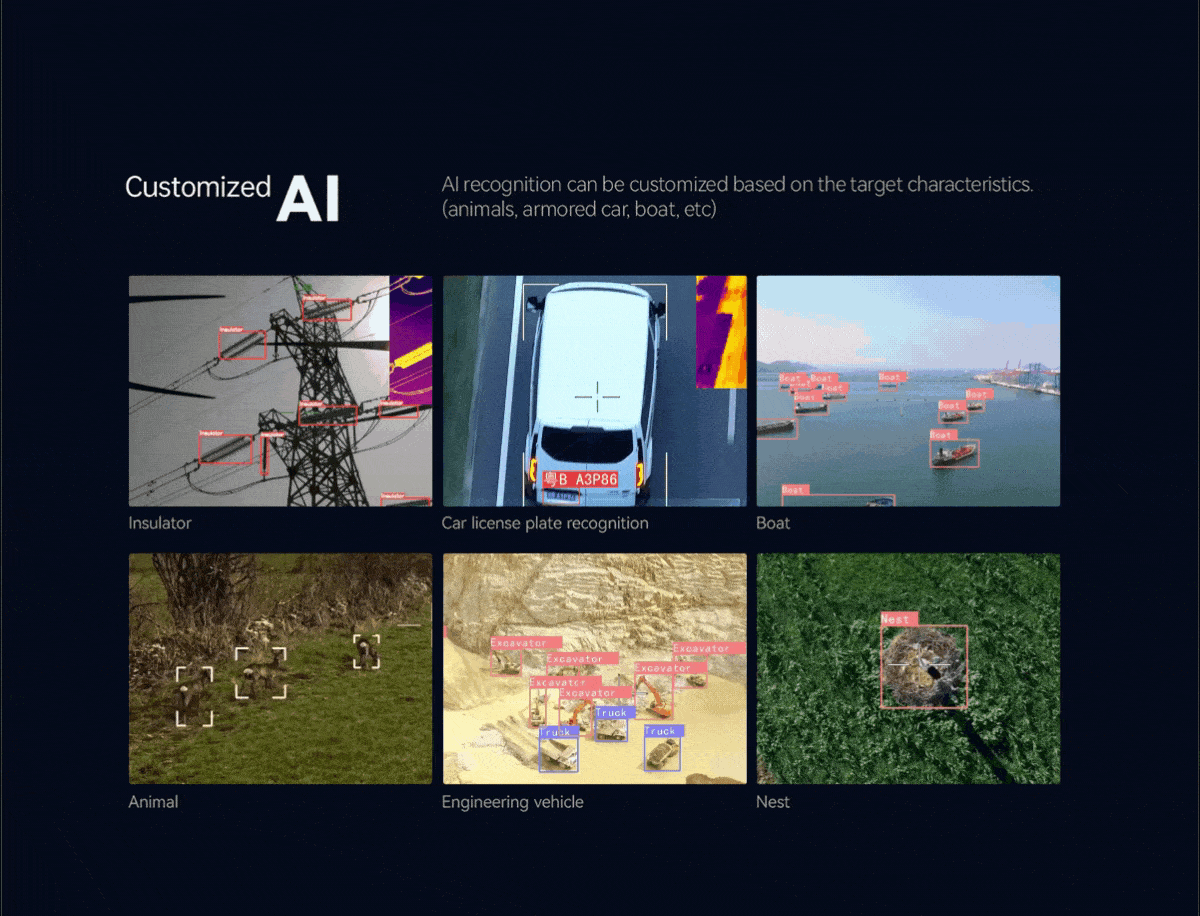

| TOPS | 2T |
|---|---|

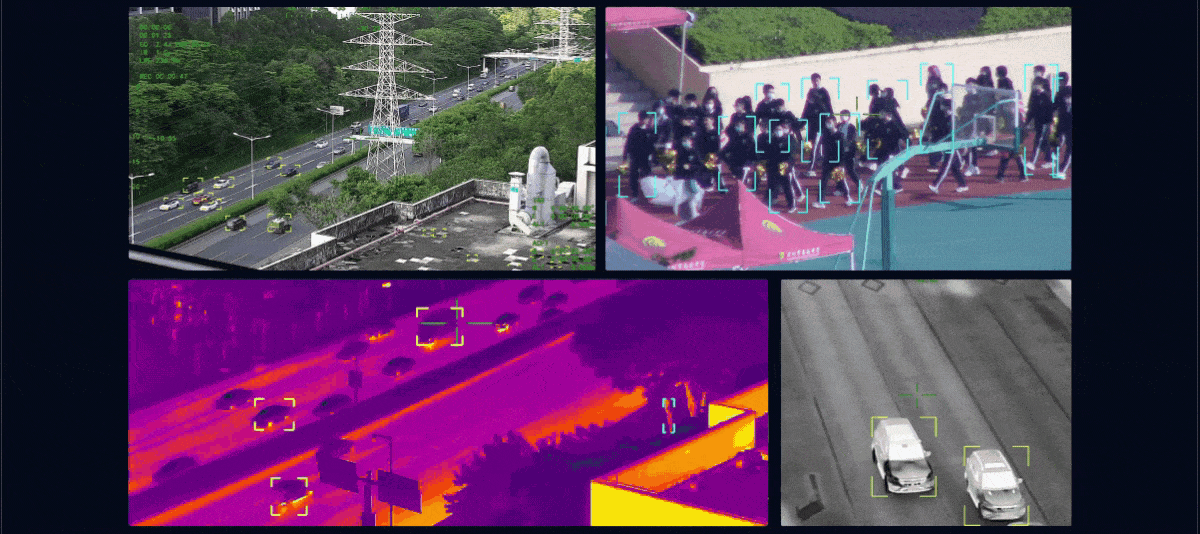

| Targets type | Car and human |
| Simultaneous detection quantity | ≥ 10 targets |
| Min contrast ratio | 5% |
| Min target size | 5×5 pixel |
| Car detection rate | ≥85% |
| False alarm rate | ≤10% |
| N.W. | 1120g (Viewport Version) |
|---|---|

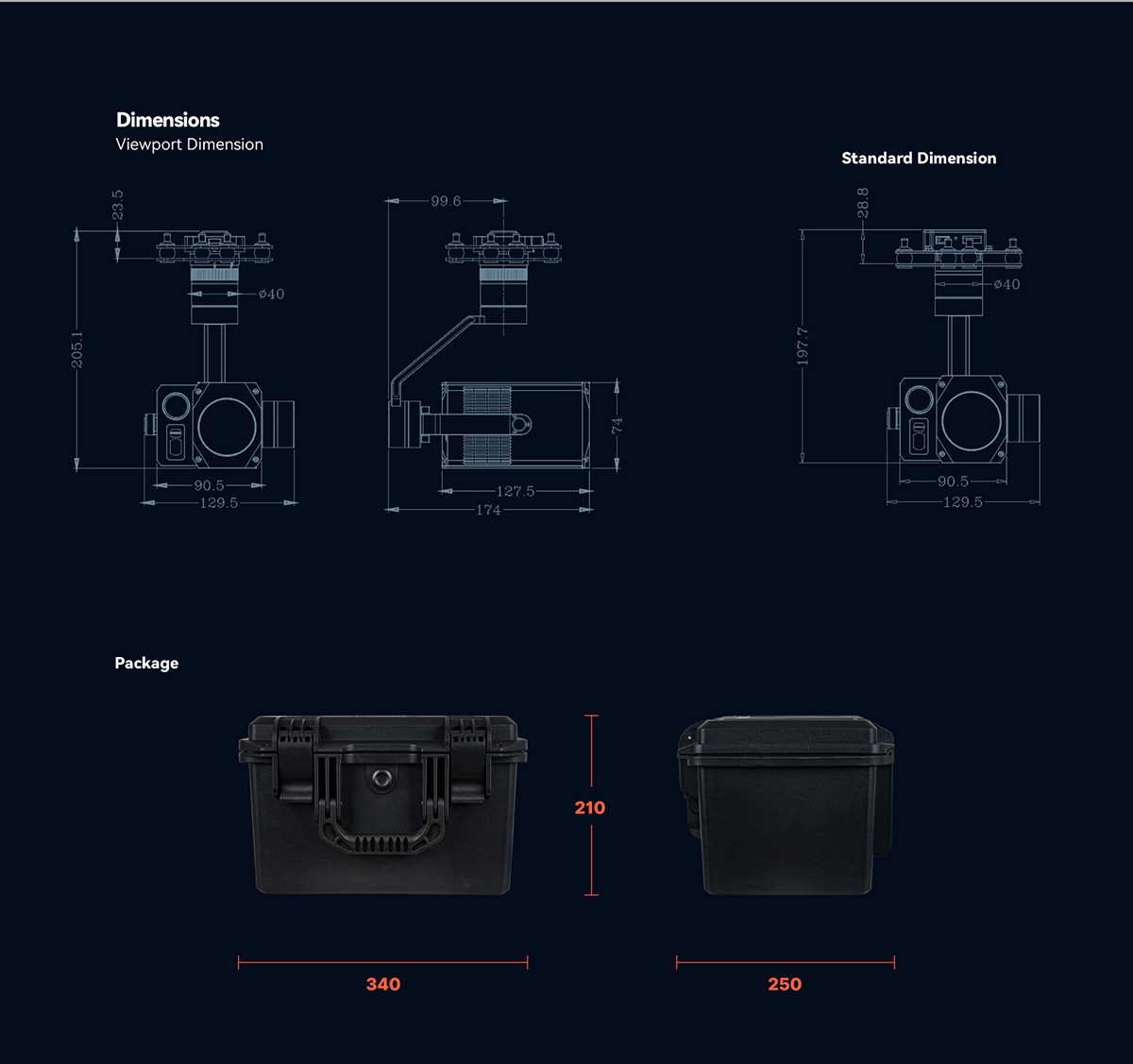

| Product meas. | 173.5*128.7*198.9mm / 173.5*128.7*204.6mm (Viewport Version) |

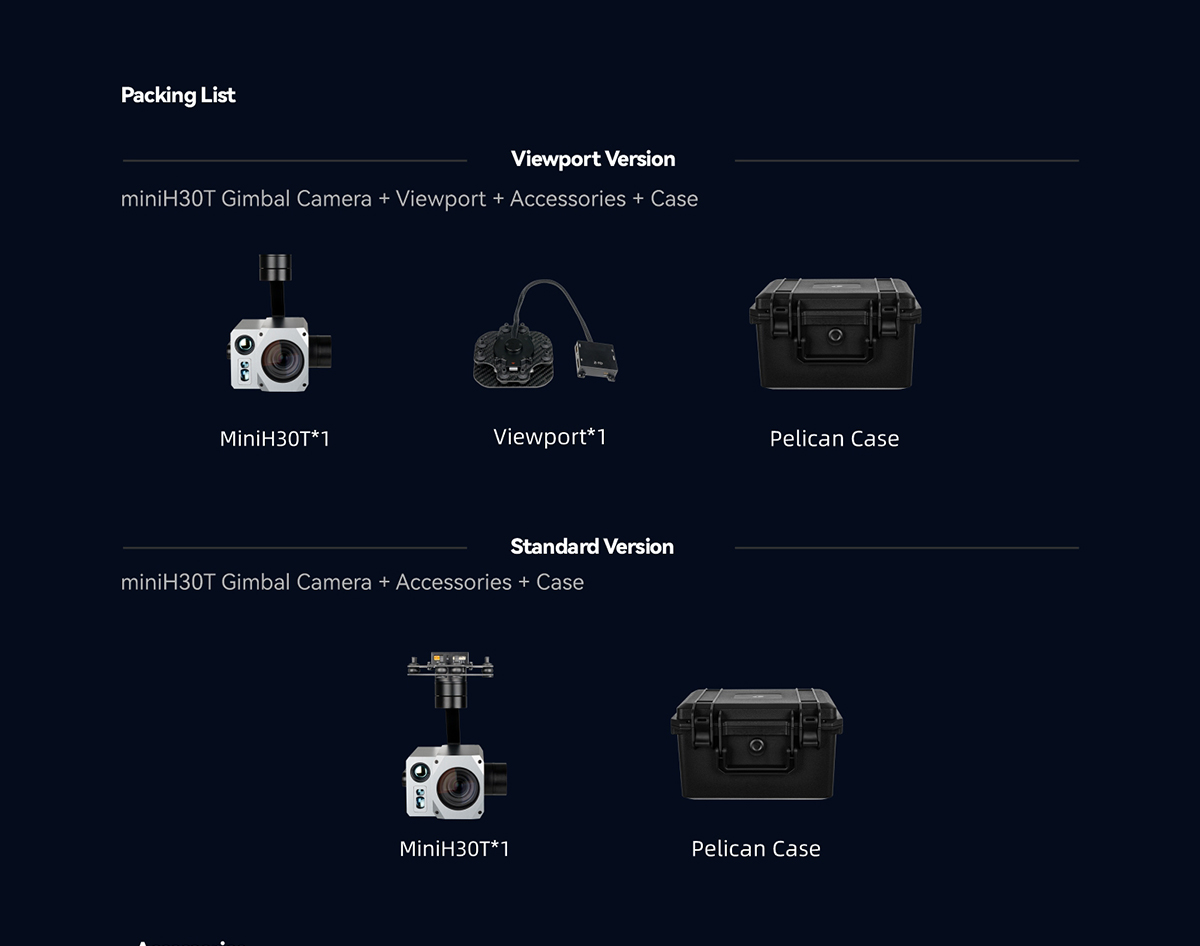

| Accessories | 1pc gimbal camera device, screws, copper cylinders, damping balls, damping boards, 1pc USB to TTL cable / Hight quality plastic box with foam cushion |
| G.W. | 2840g |
| Package meas. | 350*300*250mm |
