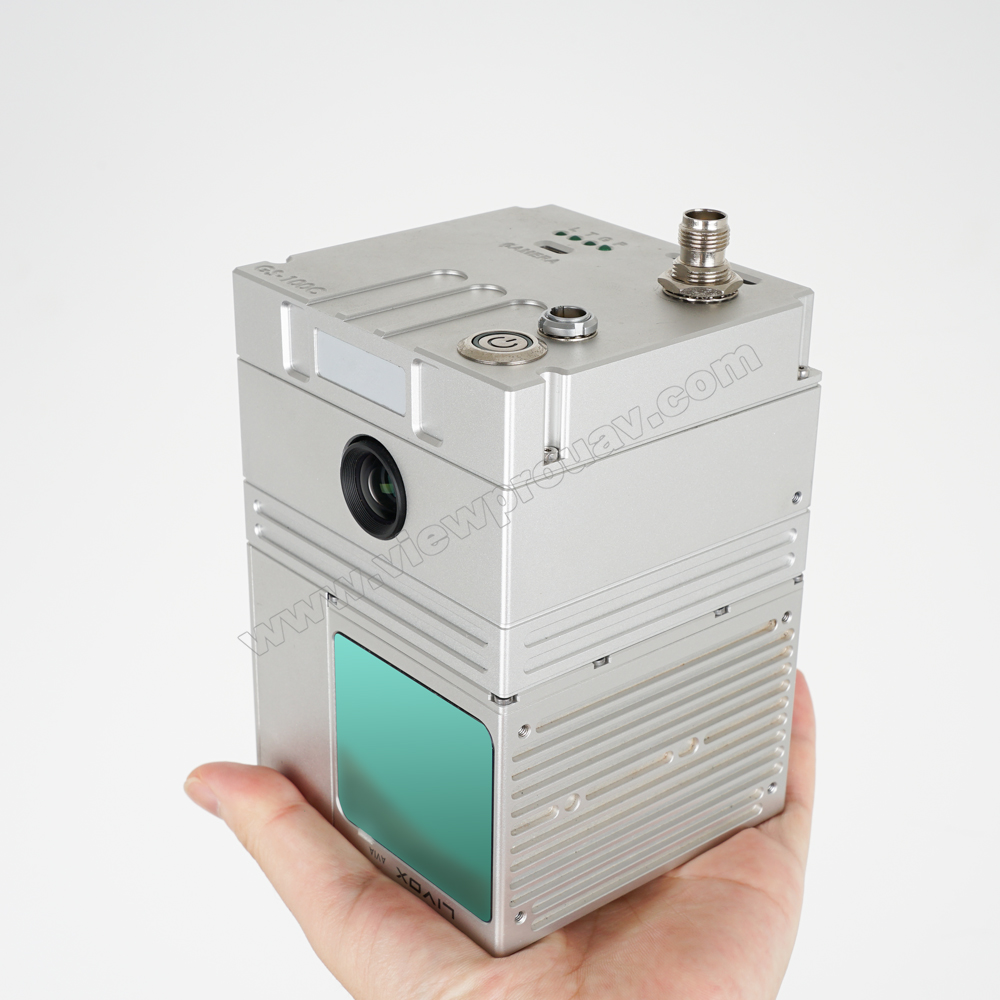

GS-100C UAV Laser Lidar Scanning System with 24MP Camera for Drone 3D Mapping and Surveying

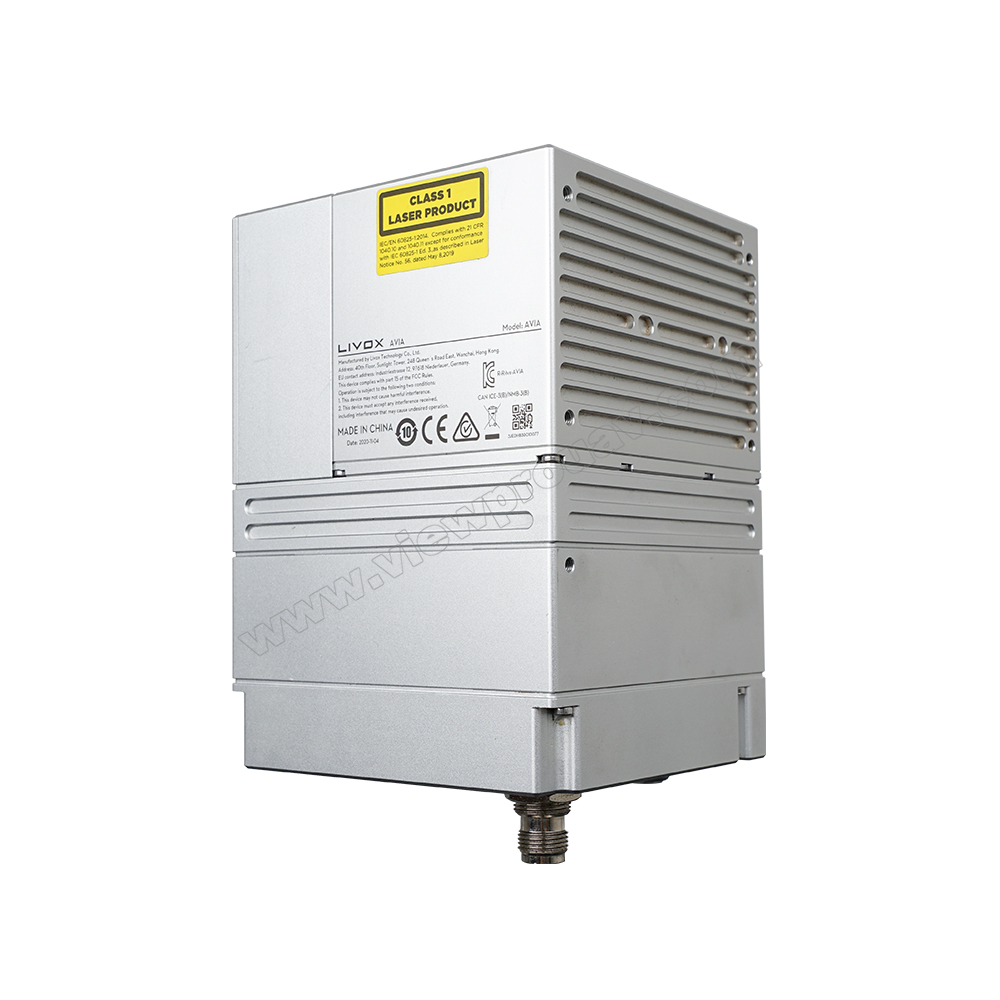

GS-100C LiDAR scanning system integrates with Livox new generation laser scanner, GNSS satellite precise position system, INS (inertial navigation system) and Sony A6000 24mp camera which is a compact LIDAR point cloud data acquisition system to enable real-time,dynamic and massive collection of high-precision point cloud data and image information.

Technical Details

Description

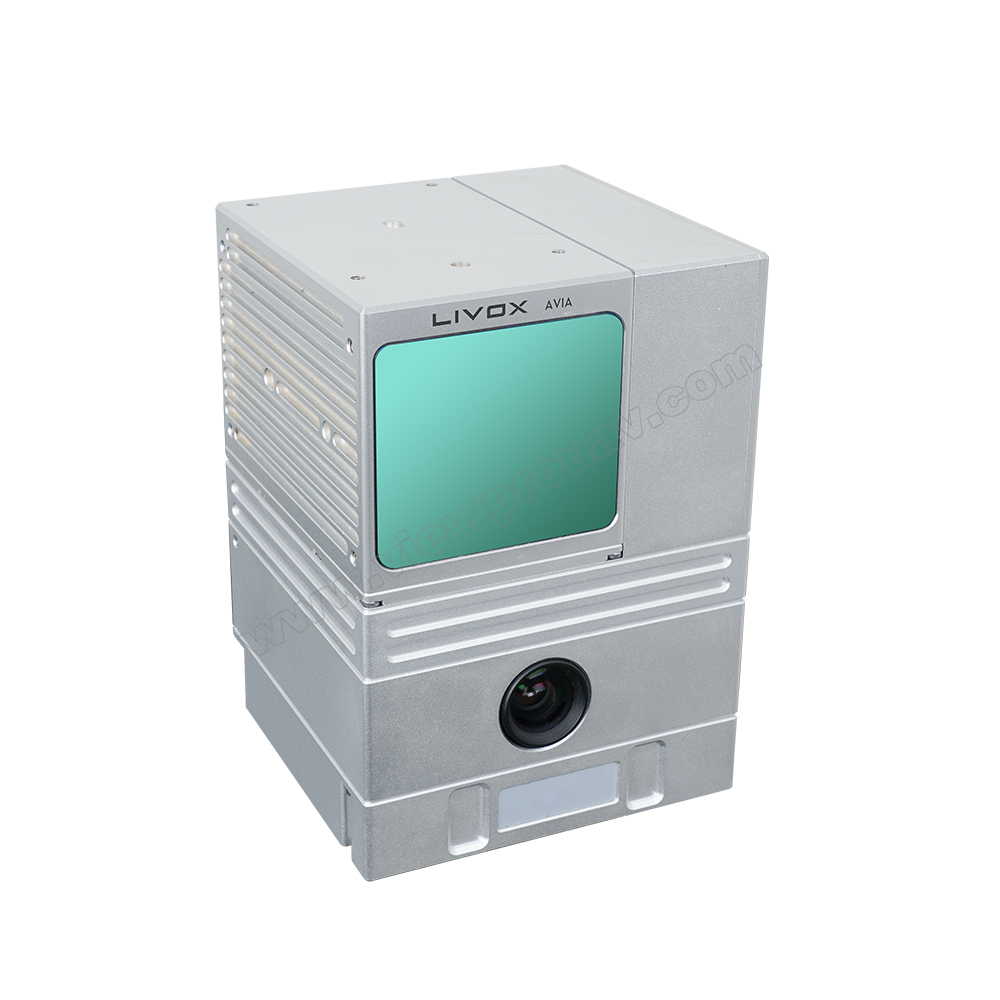

GS-100C UAV LiDAR System

High Precision GNSS, IMU INS & 24MP Surveying Camera

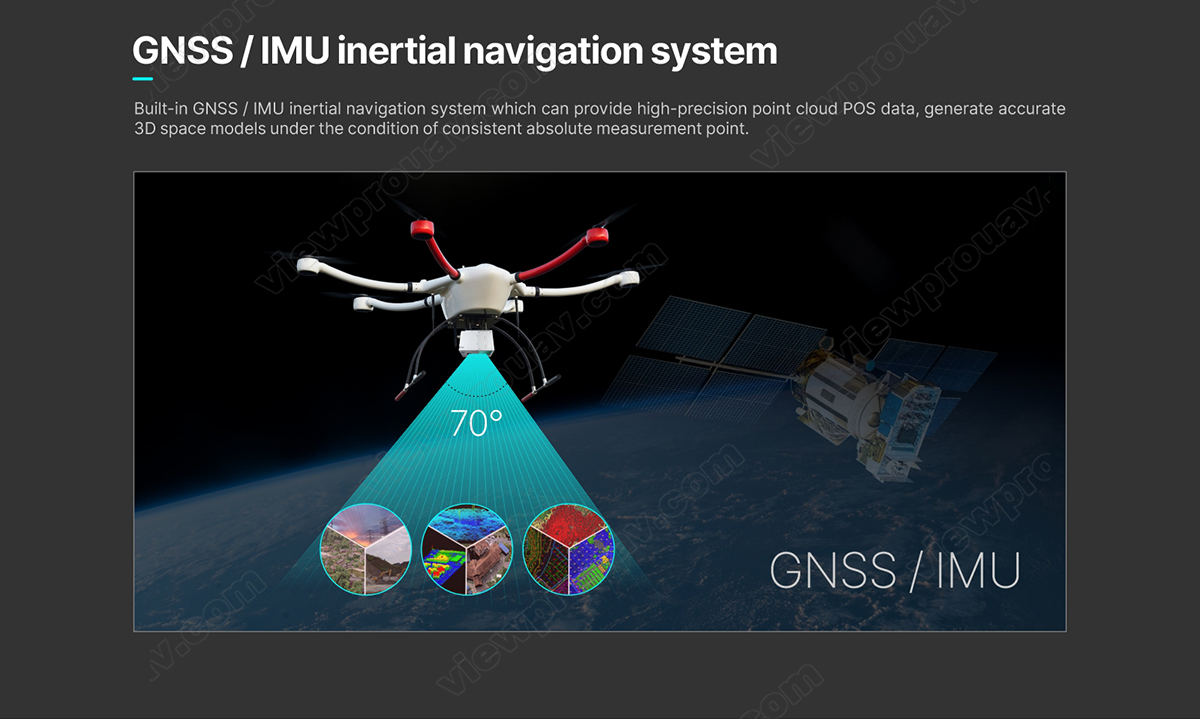

The feature of **high precision GNSS position** and **IMU INS** ensure GS-100C active and real-time perception of the environment, dynamic spatial position relationship of objects and also generate accurate **3D space models** under the condition of consistent absolute measurement point.

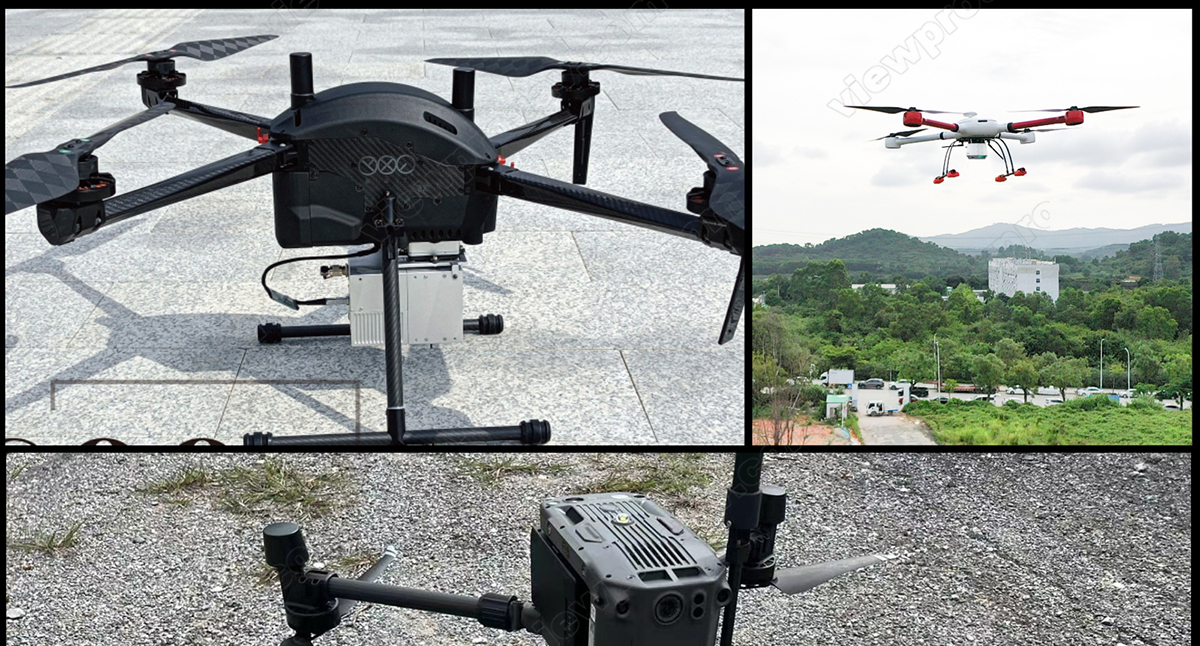

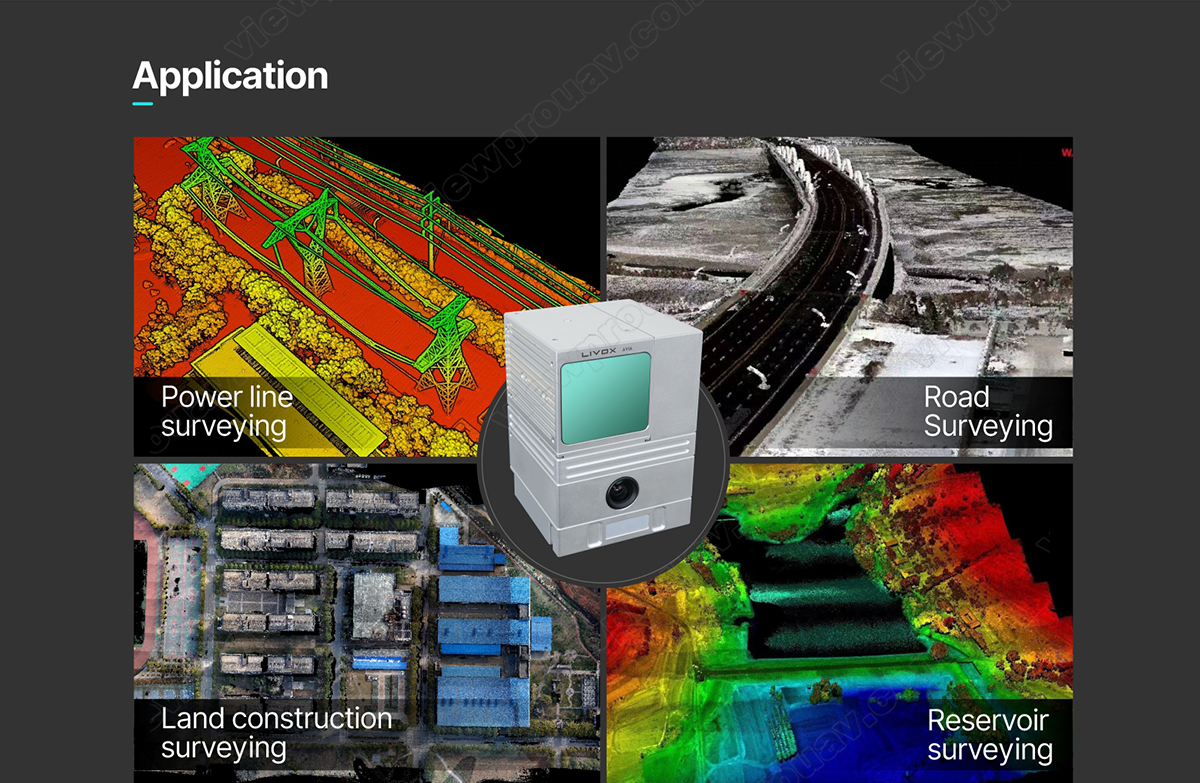

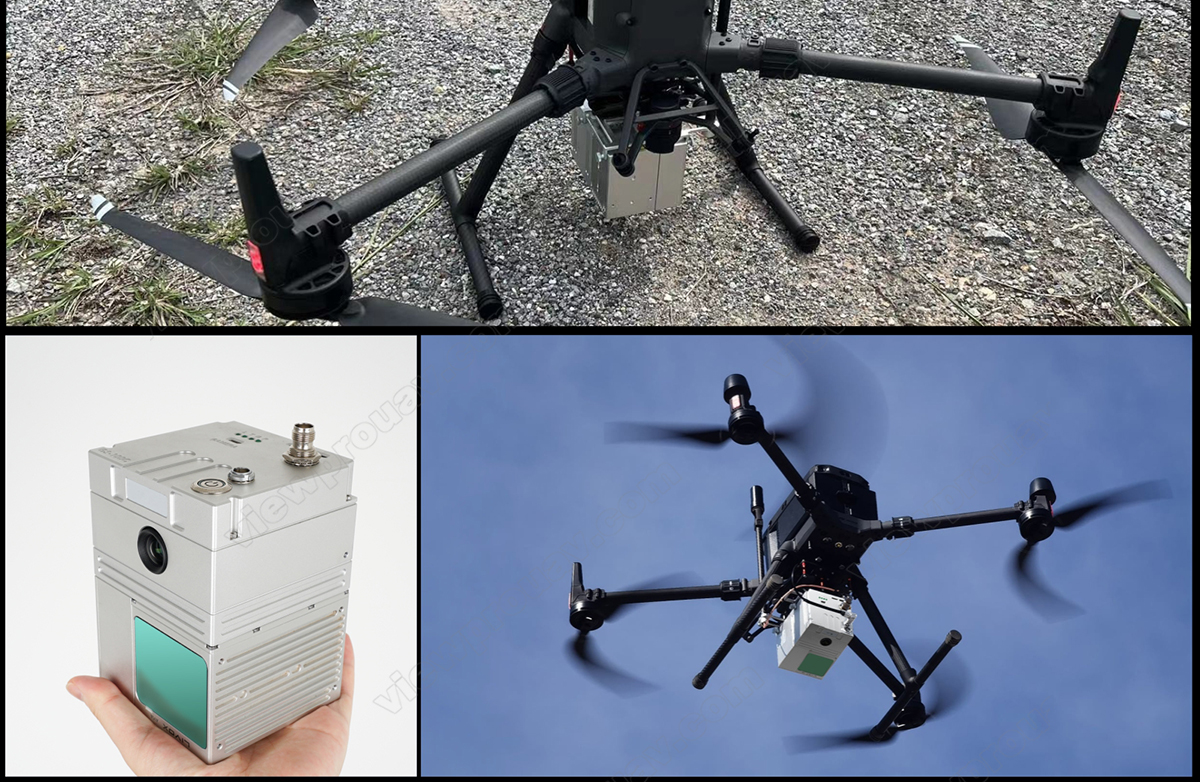

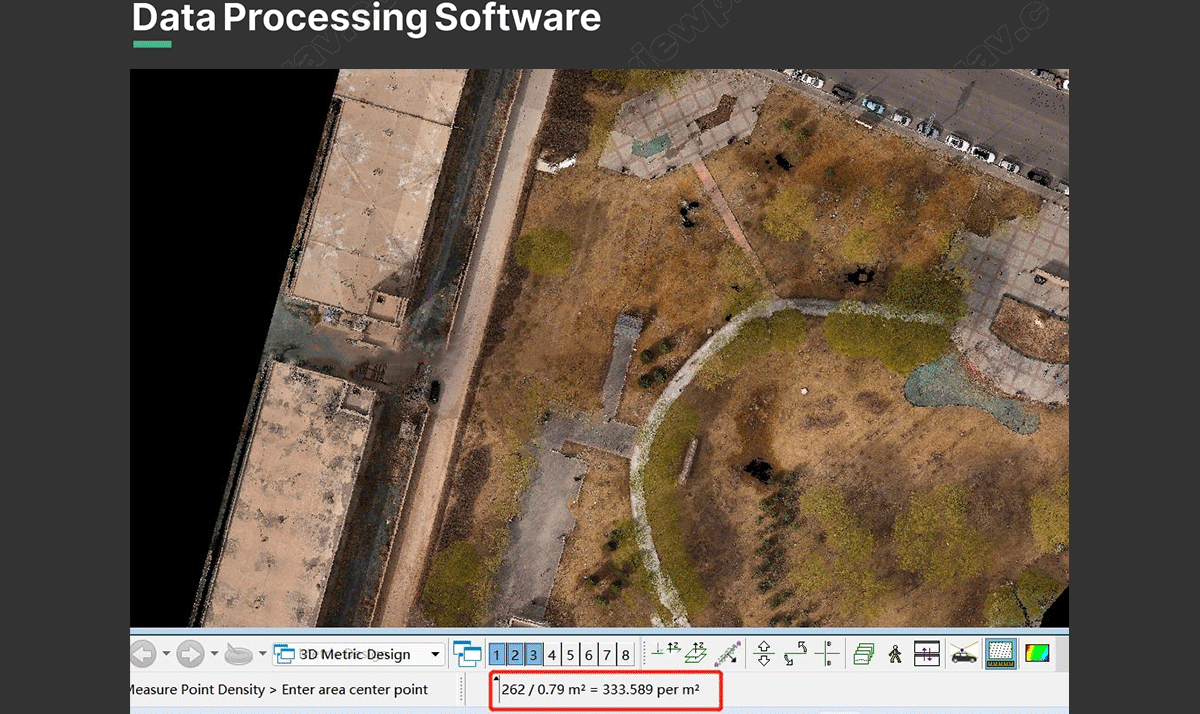

Features with light-weight (only **1.05kg**), fast data processing speed, it can be integrated with various multicopter to quick obtain the 3D position and attribute information of the object in the mission area. Through the data processing software, it will generate the digital image such as **DEM, DOM (Sony A6000 24MP surveying camera), DSM, DRG, DLG**. Which can be widely used in the **Digital city construction**, **river and soil research**, **Land survey**, **Forestry and Agriculture analysis**.


Product Images and Diagrams


Specification

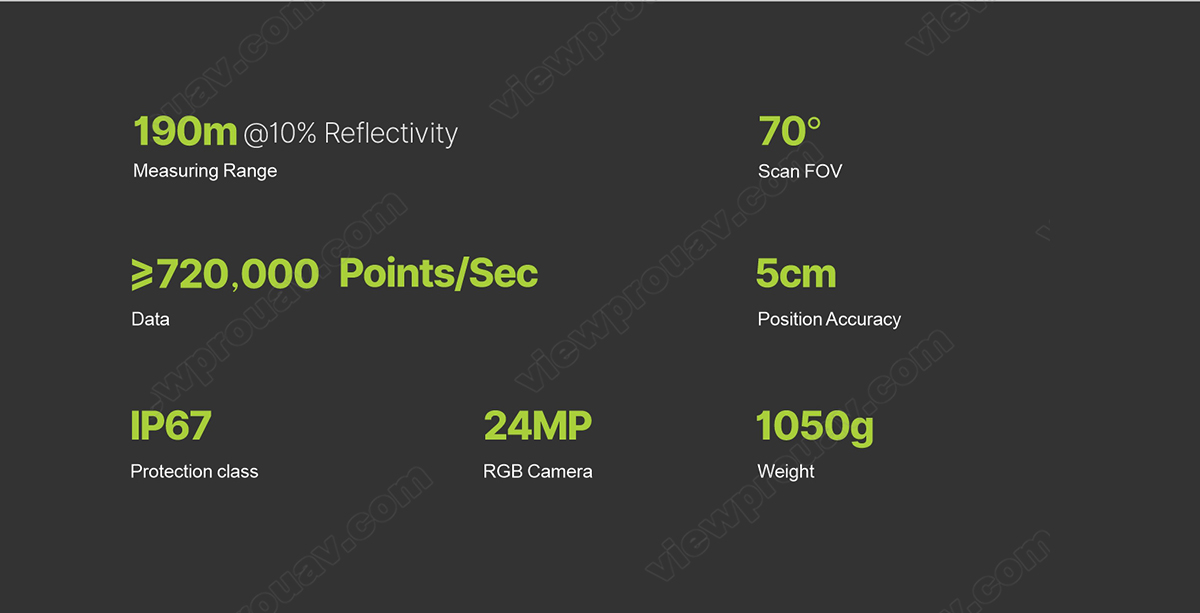

Model: GS-100C Item Parameter

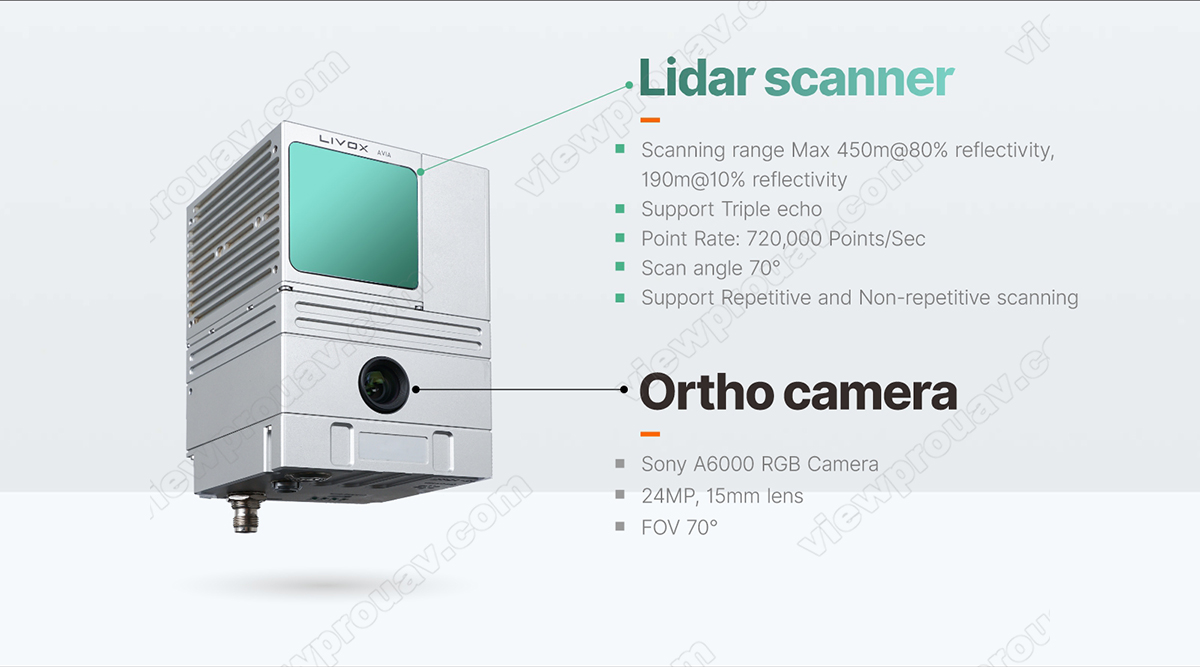

Laser Scanner Measuring Range 190m@10% reflectivity
Laser Class 905nm Class1 (IEC 60825-1:2014)
Laser Line Number Equivalent to 64-beam
FOV 70° the circular view
Range Accuracy (1σ @ 20m) 2 cm
Data Triple echo, **720,000 Points/Sec**
Camera FOV 70°
Resolution **24MP**
Focus length (mm) 15mm
POS Update Frequency 200HZ
Pitch /Roll Accuracy **0.015°**
Heading Accuracy **0.040°**
Position Accuracy ≤0.05m
GNSS Signal Type GPS L1/L2/L5, GLONASS L1/L2, BDS B1/B2/B3, GAL E1/E5a/E5b
System Parameter Accuracy **≤10cm@110m**
Weight **1050g**
Working Temperature -20°~+55°

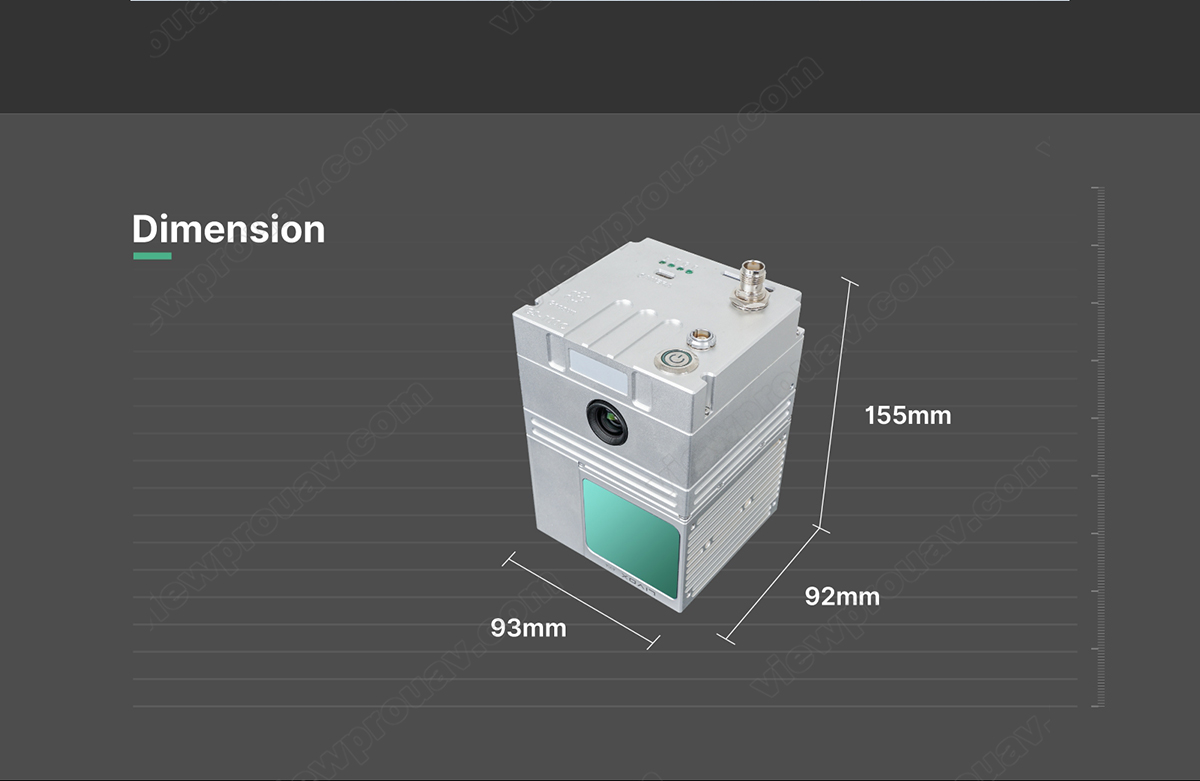

Dimension 15.5*9.2*9.3cm
Storage Internal 64 GB, Max support 128GB TF card
Carrying Platform Multicopter with 10m/s flight speed

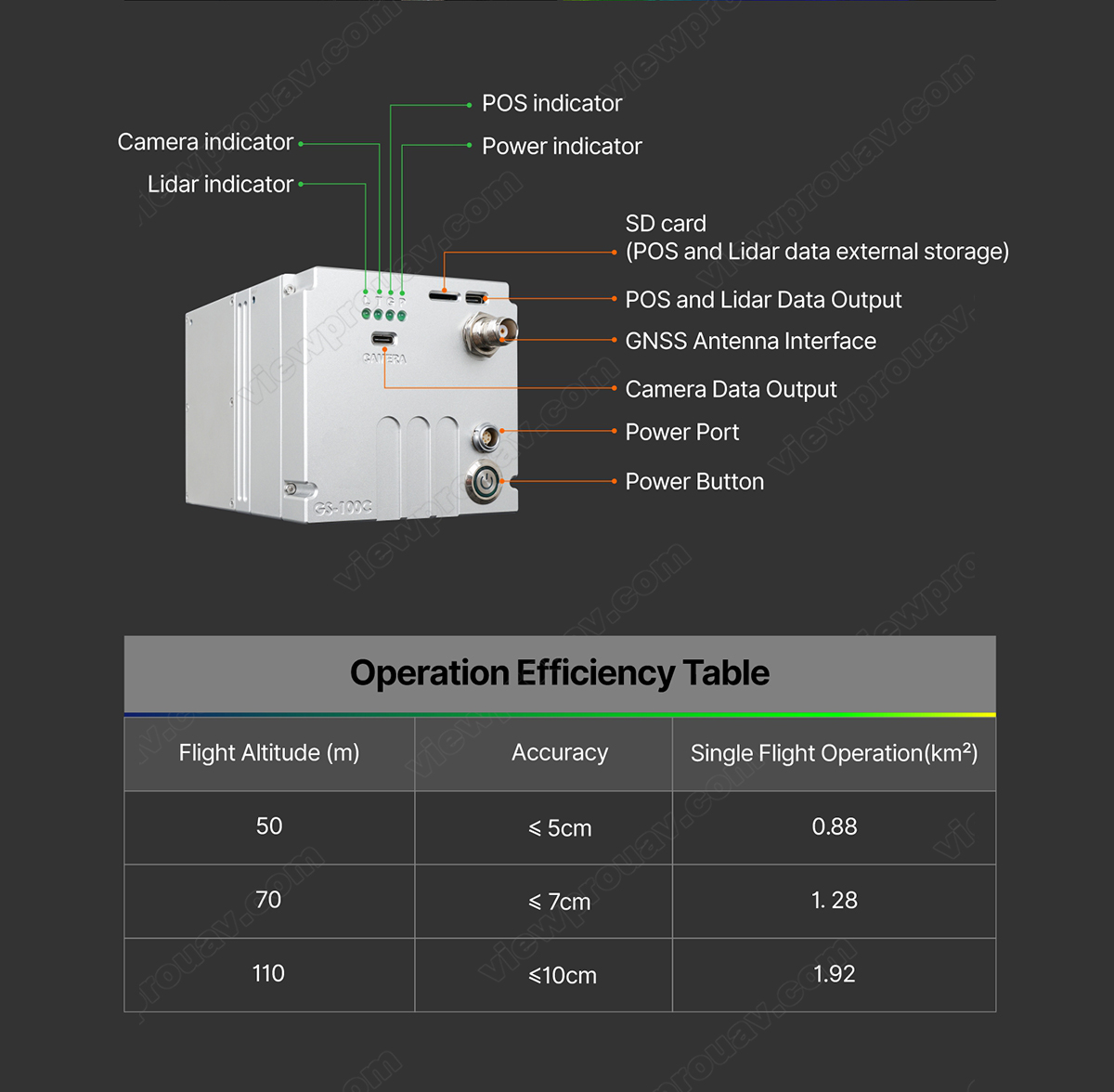

Operation Efficiency Table

Flight Altitude (m) Accuracy Single Flight Operation(km²)
50 ≤5cm 0.88
70 ≤7cm 1.28
110 ≤10cm 1.92
