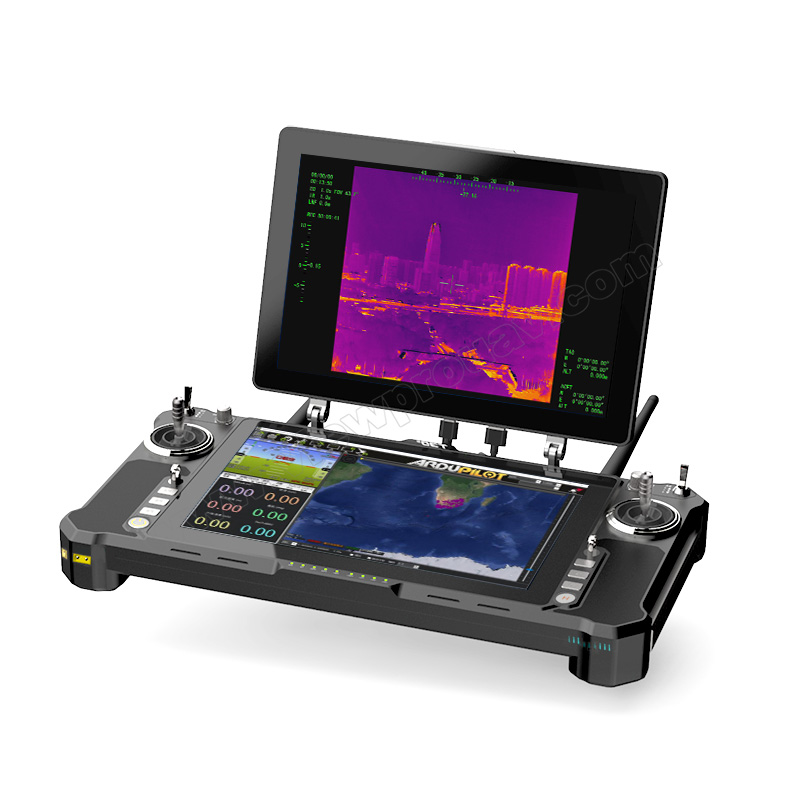

VXH30S High-quality Dual Screens Ground Control Station for Drone

VXH30S is a high quality dual-screen hand-held ground control station that is highly integrated, easy operation, multichannel adjustable, dual SBUS independent output, support multi external output interface, which is widely used in industry drone control and data transmission.

Teknik Detaylar

Description

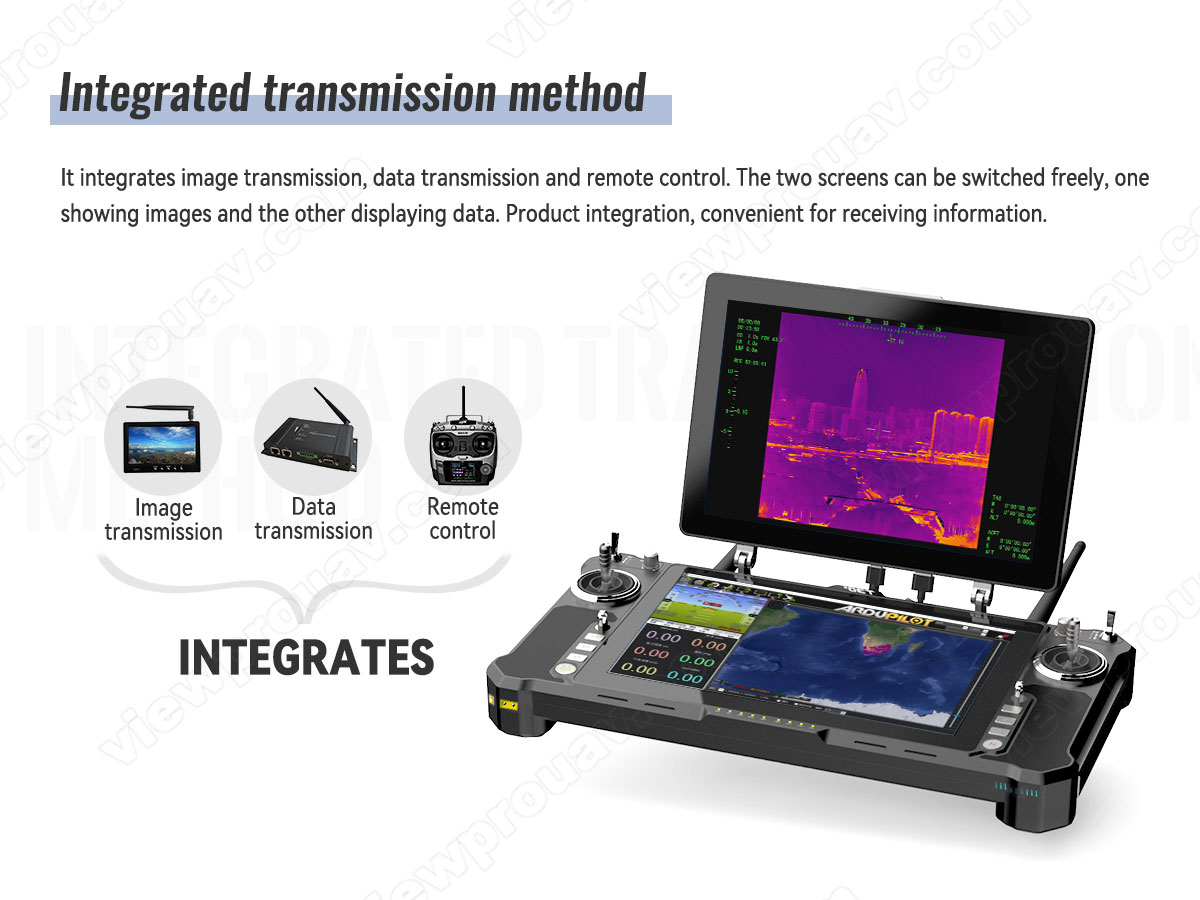

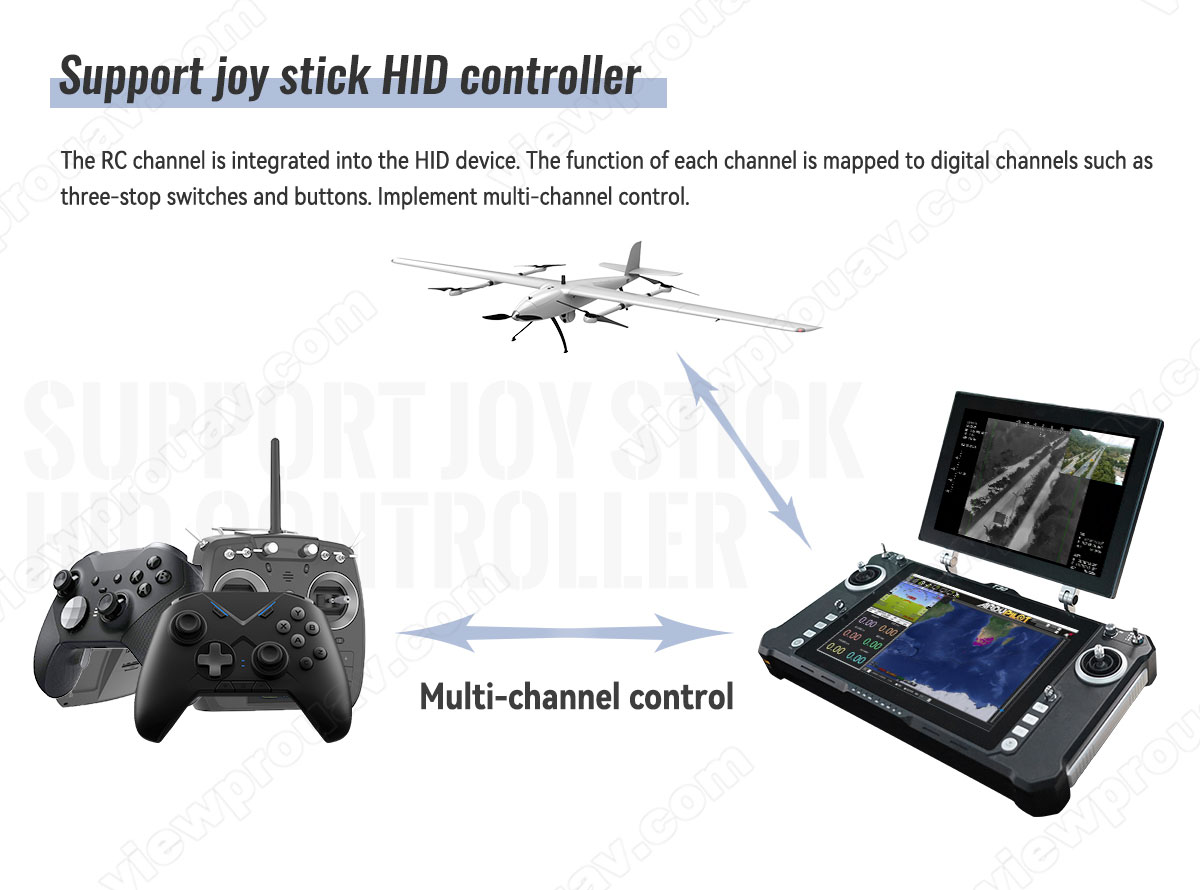

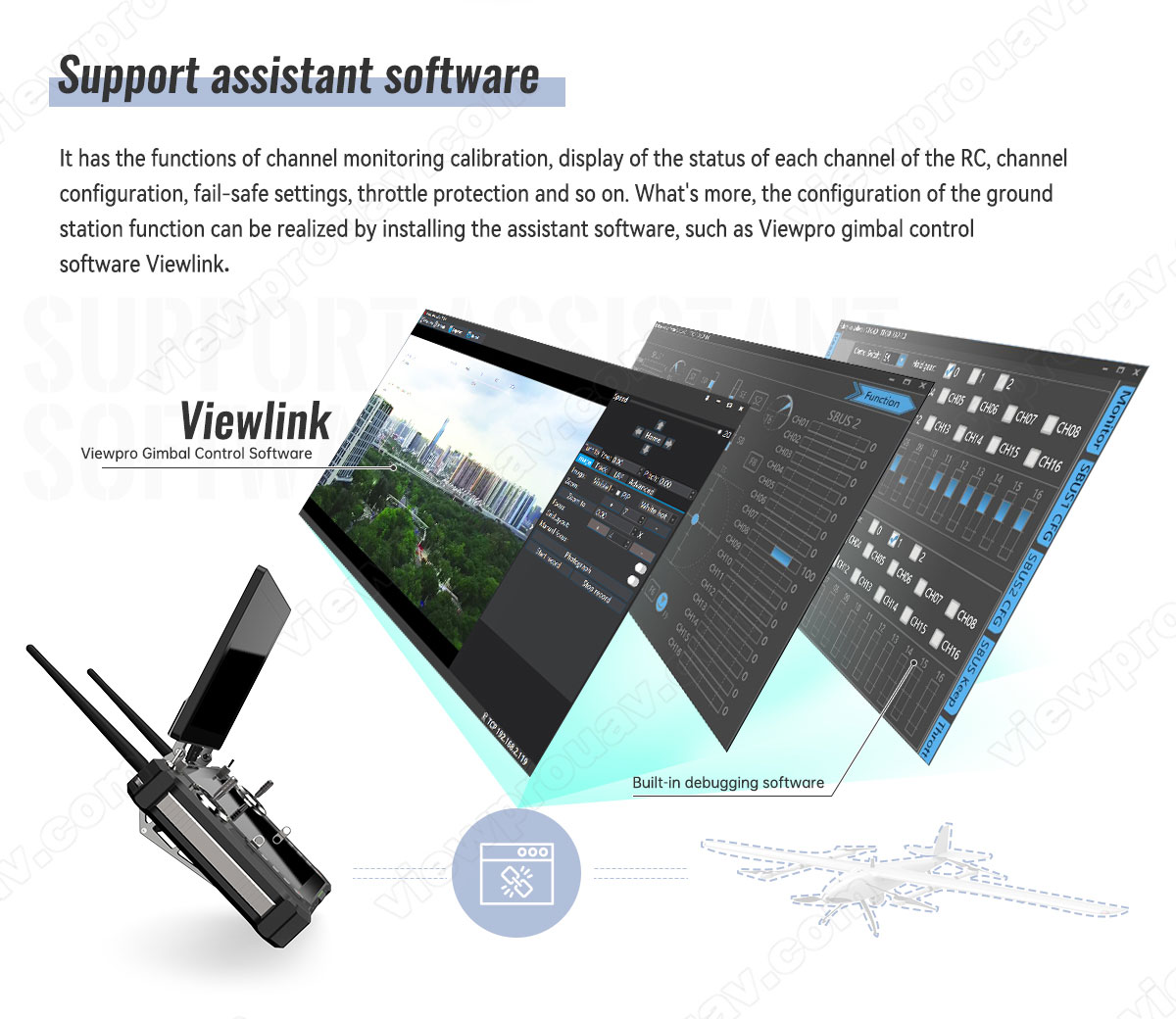

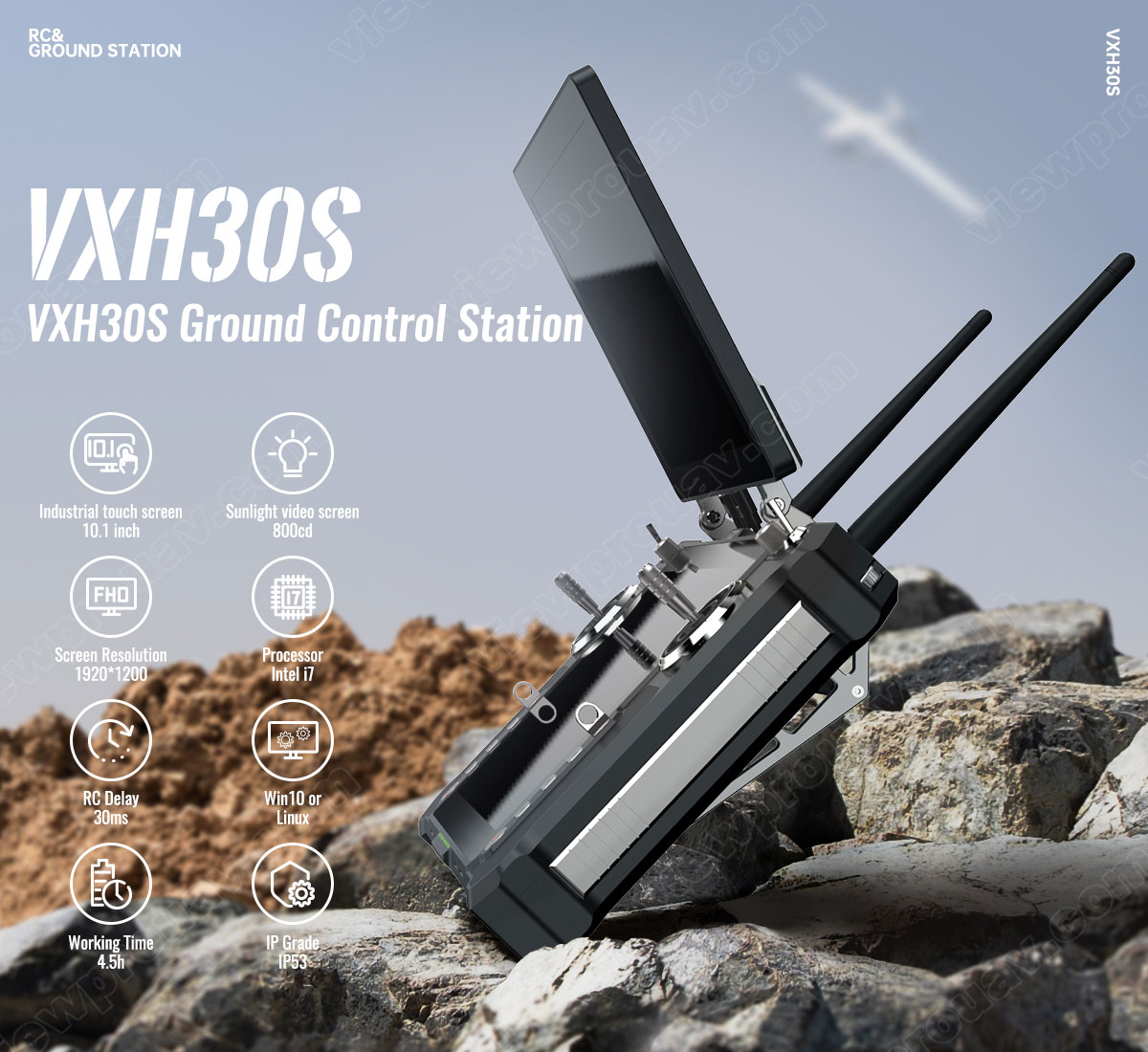

VXH30S Ground Station View 1 VXH30S Ground Station View 1 VXH30S Ground Station View 2 VXH30S Ground Station View 3 VXH30S Ground Station View 4 VXH30S Ground Station View 5 VXH30S Ground Station View 6 VXH30S Ground Station View 7 VXH30S Ground Station View 8 VXH30S Ground Station View 9

Specification

Parameter Value
Model No.VXH30S
CPUIntel i7 6200U
Operation SystemWin10 or Linux

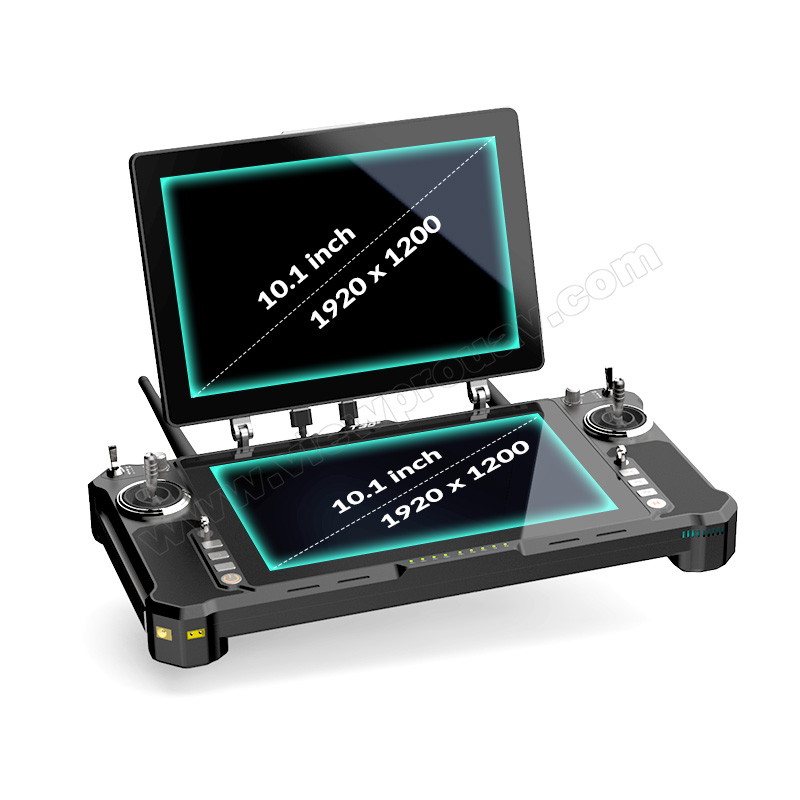

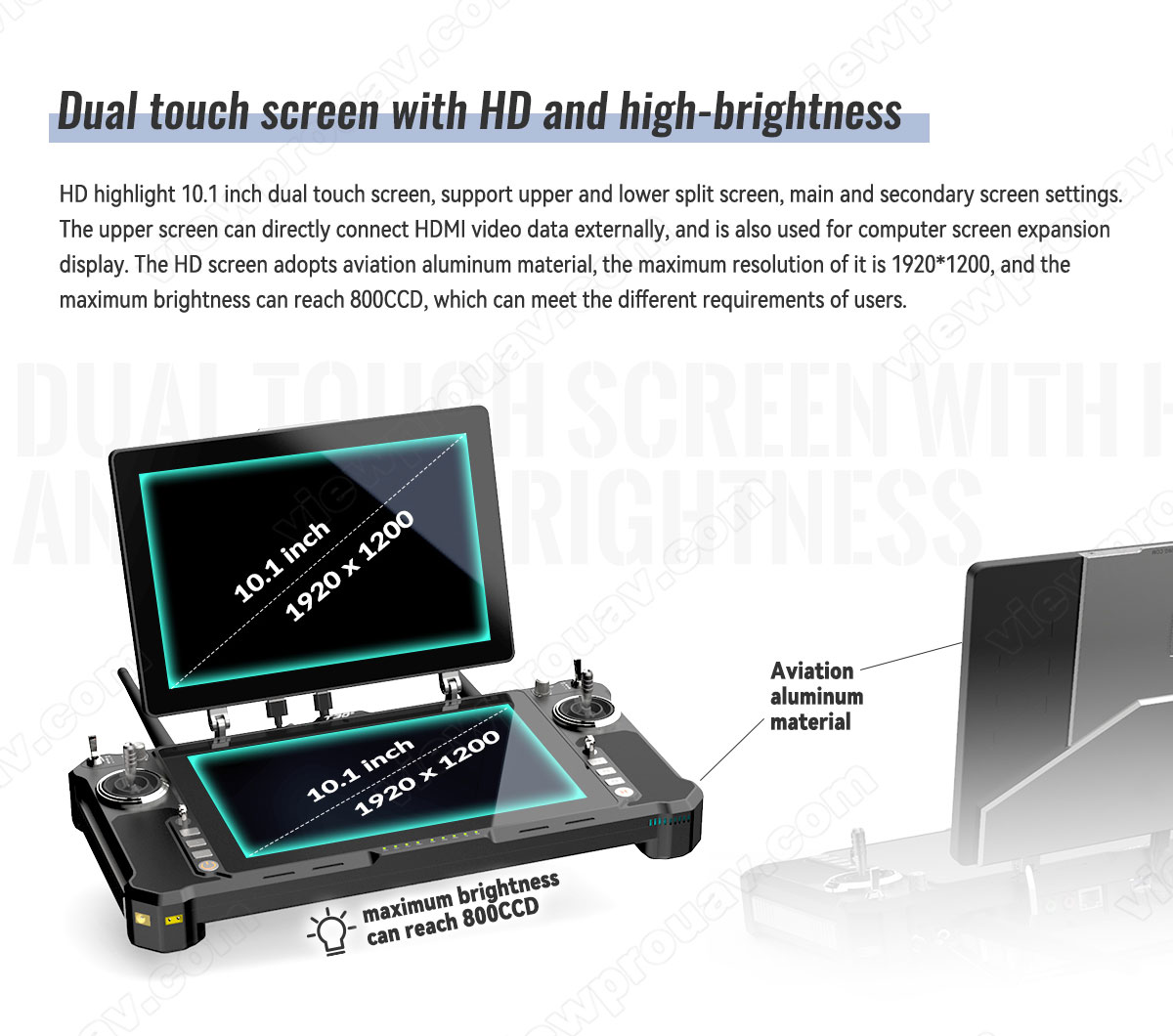

Dual Screen Size**10.1" + 10.1"**
Definition1920*1200
Channel23
SBUS2
Wireless NetworkWIFI + Bluetooth
Antenna4db
Endurance**4.5h**
Battery12.6V
IP Rating**IP53**
Weight**3.2kg**

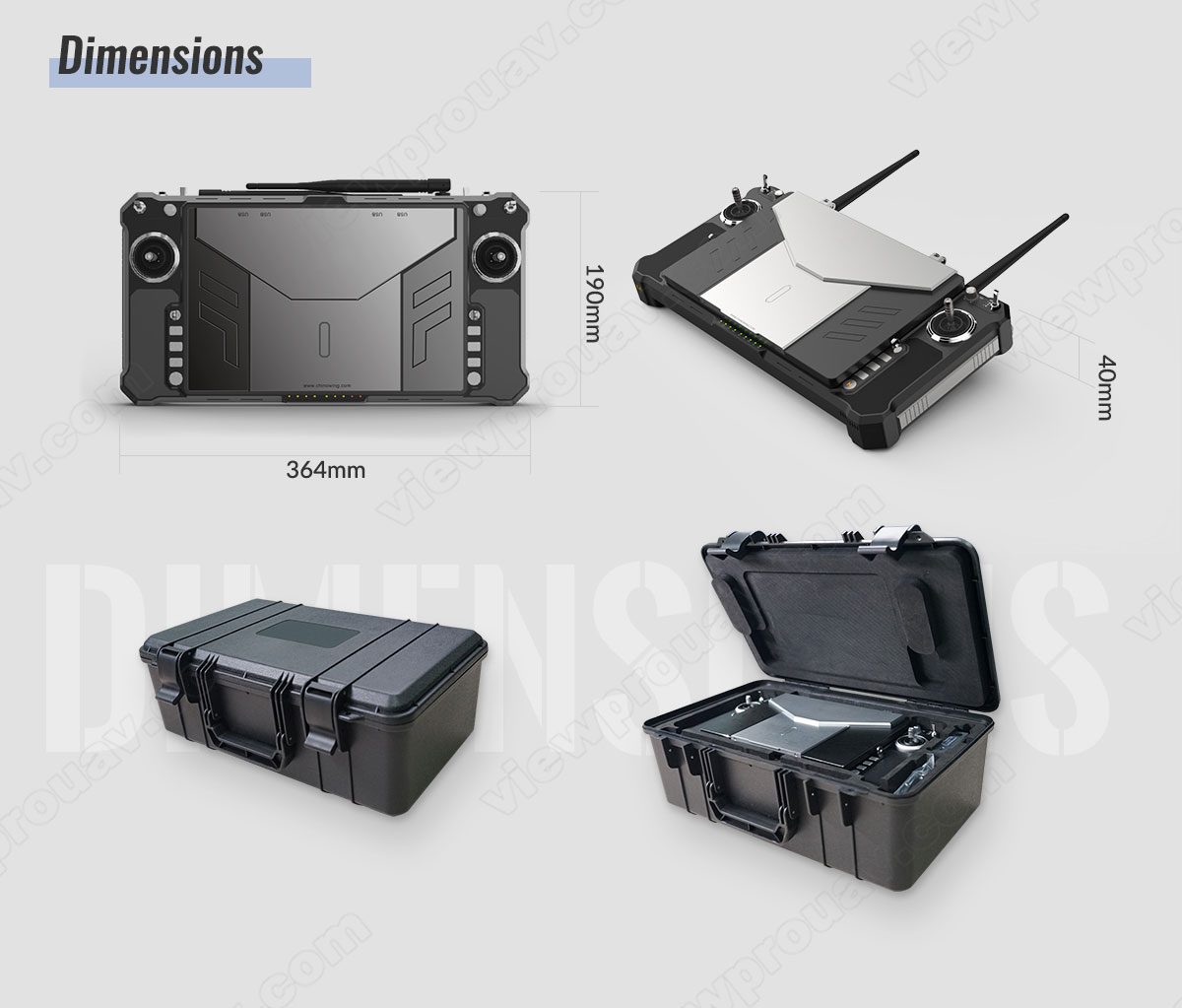

Dimension36.4*19*9.5cm
Video & Data Link**10km / 15km Optional**
External Expansion Port LAN, USB3.0, HDMI, VGA, TTL, RS232, RS485, RS422
