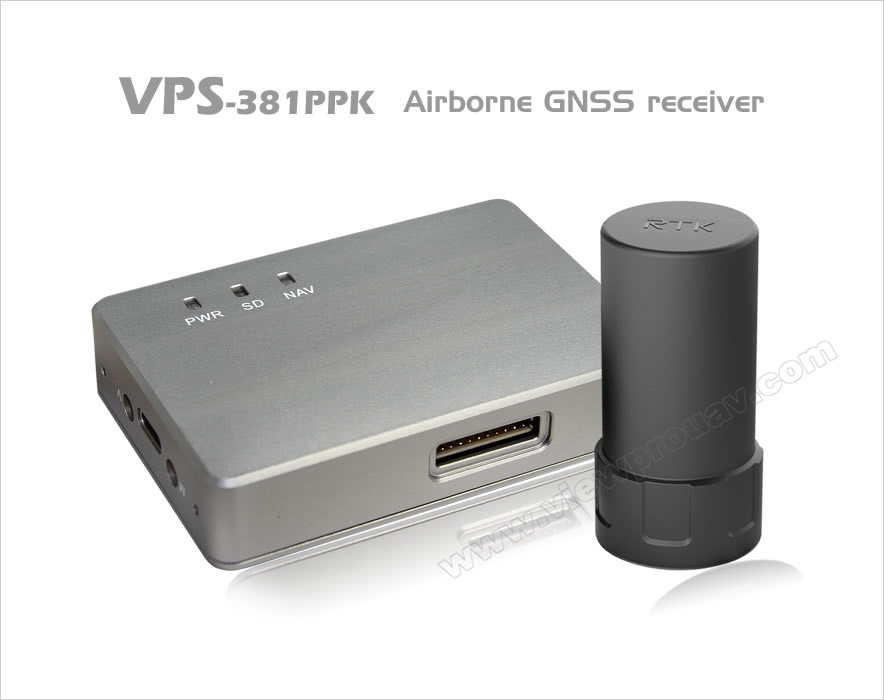

VPS -381 PPK airborne GNSS receiver aerial surveying and mapping RTK PPK 2in1

Teknik Detaylar

Description

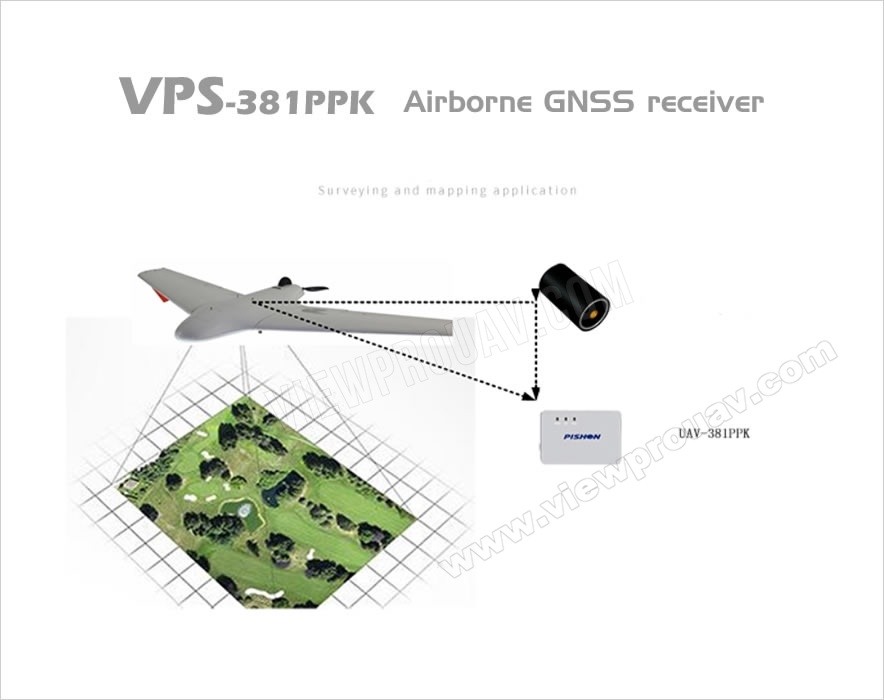

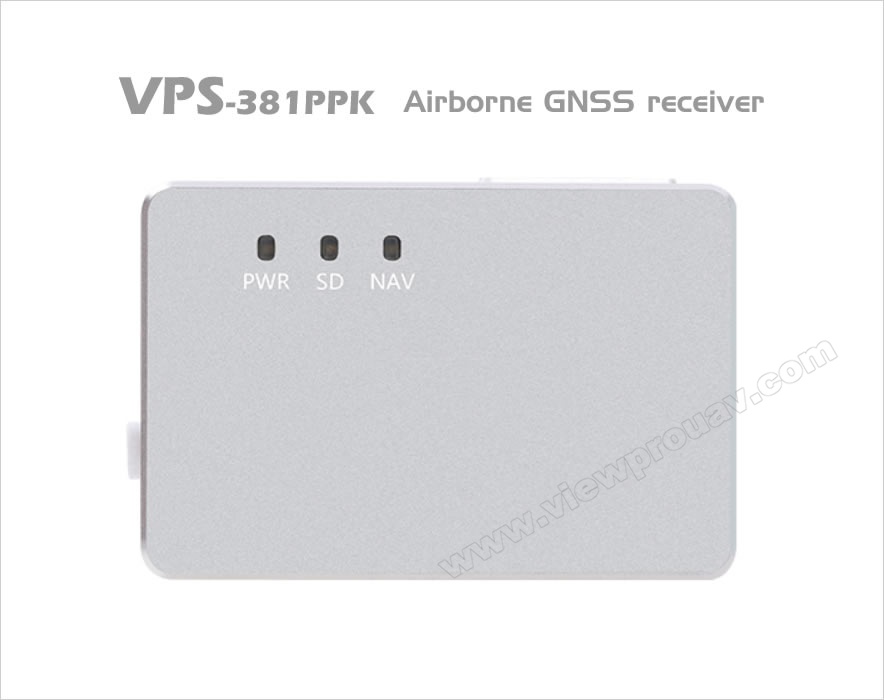

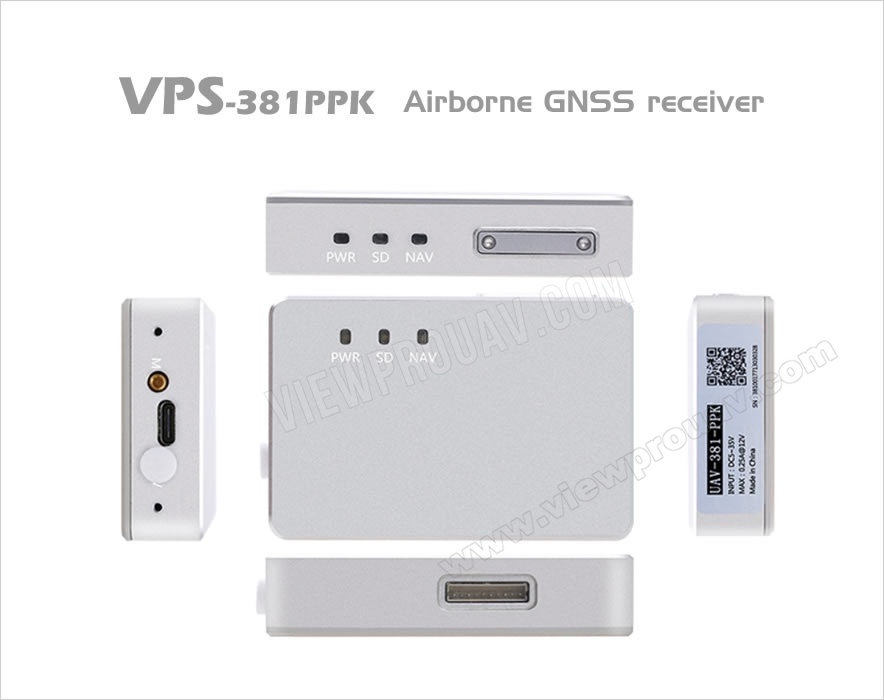

A-POS View 1 A-POS View 2 A-POS View 3 A-POS View 4 A-POS View 5 A-POS View 6

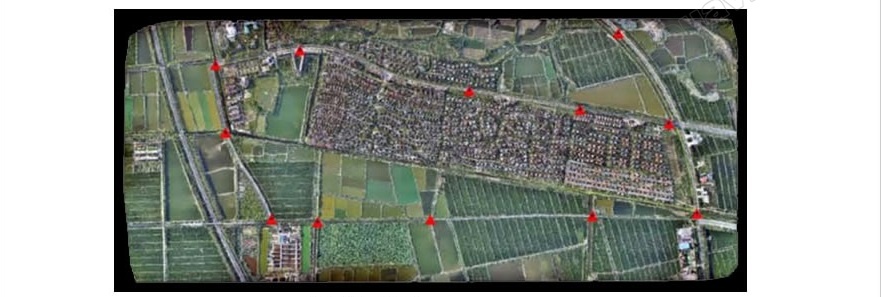

Detection Point Distribution

Detection point distribution diagram

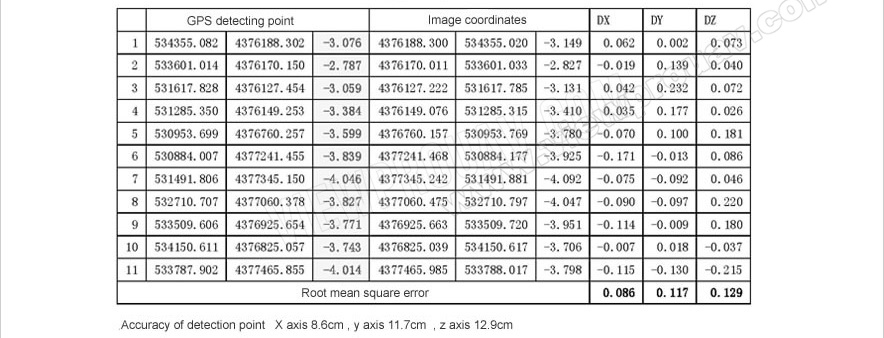

Control strip participates in the calculation

Control strip calculation diagram

Control strip not participates in the calculation

Control strip no calculation diagram

Specification

Category Parameter
GNSS parametersTrack channelsChannels: **220**
BDS: B1:B2
GPS: L1:L2
GLONASS: G1:G2
Position AccuracyCentimeter-level positioning
CPU and memoryCPUARM 32-bit Cortex-M3 CPU
SD card**8GB** (Maximum memory is **32GB**)
Power**2.2W**
Update rate5Hz (Maximum rate is **20Hz**)
InterfaceIndicator light3 power LED indicators
Data read-write status / GNSS signal strength
Type-EPower input, serial communication
EVENT MARK Signal trigger
Antenna InterfacelMMEX External antenna interface
Micro SD1 micro SD card slot
Extension interface10 pin Data extension interface
SizeLength**76mm**
Width**51.5mm**
Height**17mm**
Weight**77g**
Work environmentWorking Temperature-40℃~75℃
Storage Temperature-40℃~85℃
