VOM-42 42MP Mapping Camera for Large Area Aerial Survey

VOM-42 is a 42MP 1” full-frame mapping camera that is lightweight (less than 230g including a lens) and designed for mapping and surveying.

Teknik Detaylar

Description

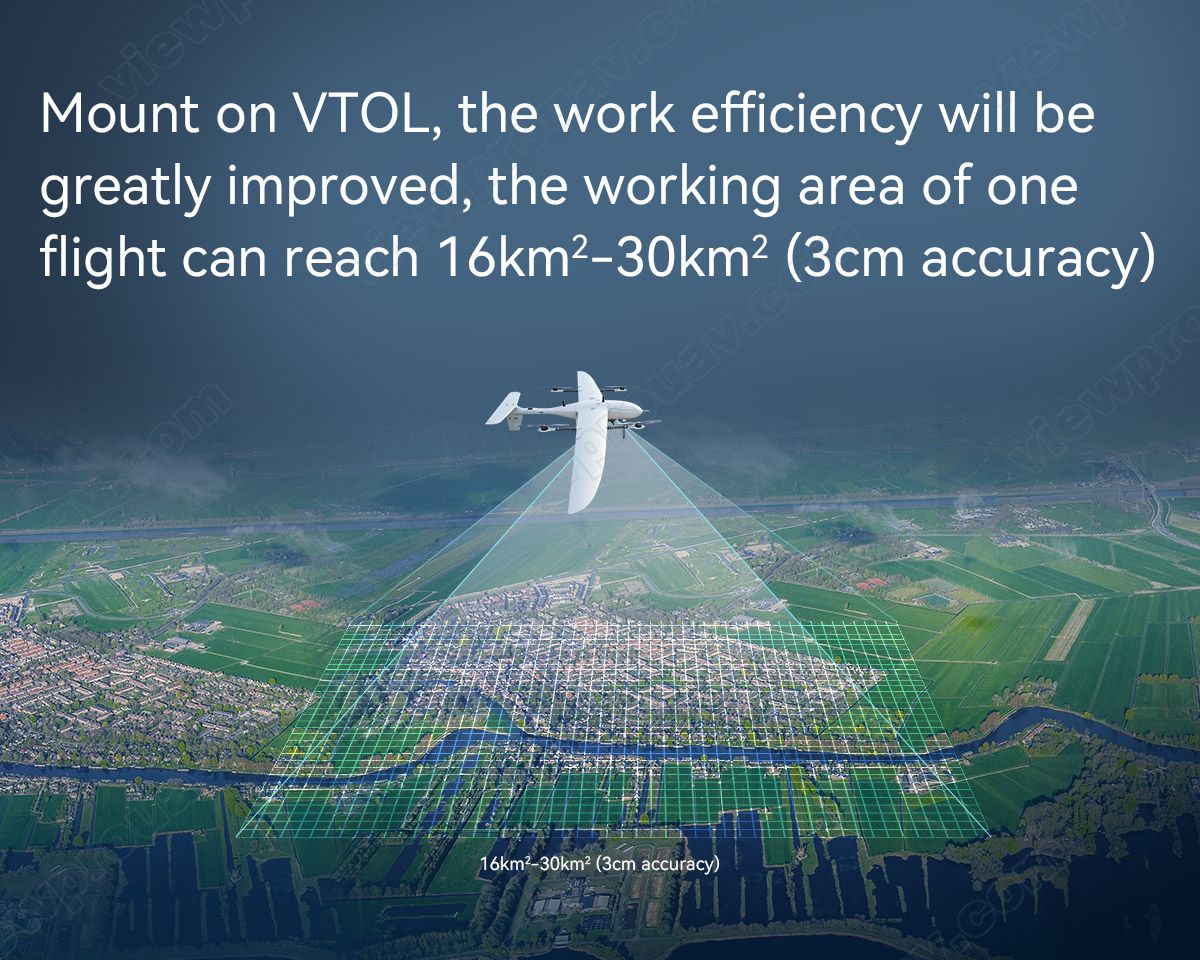

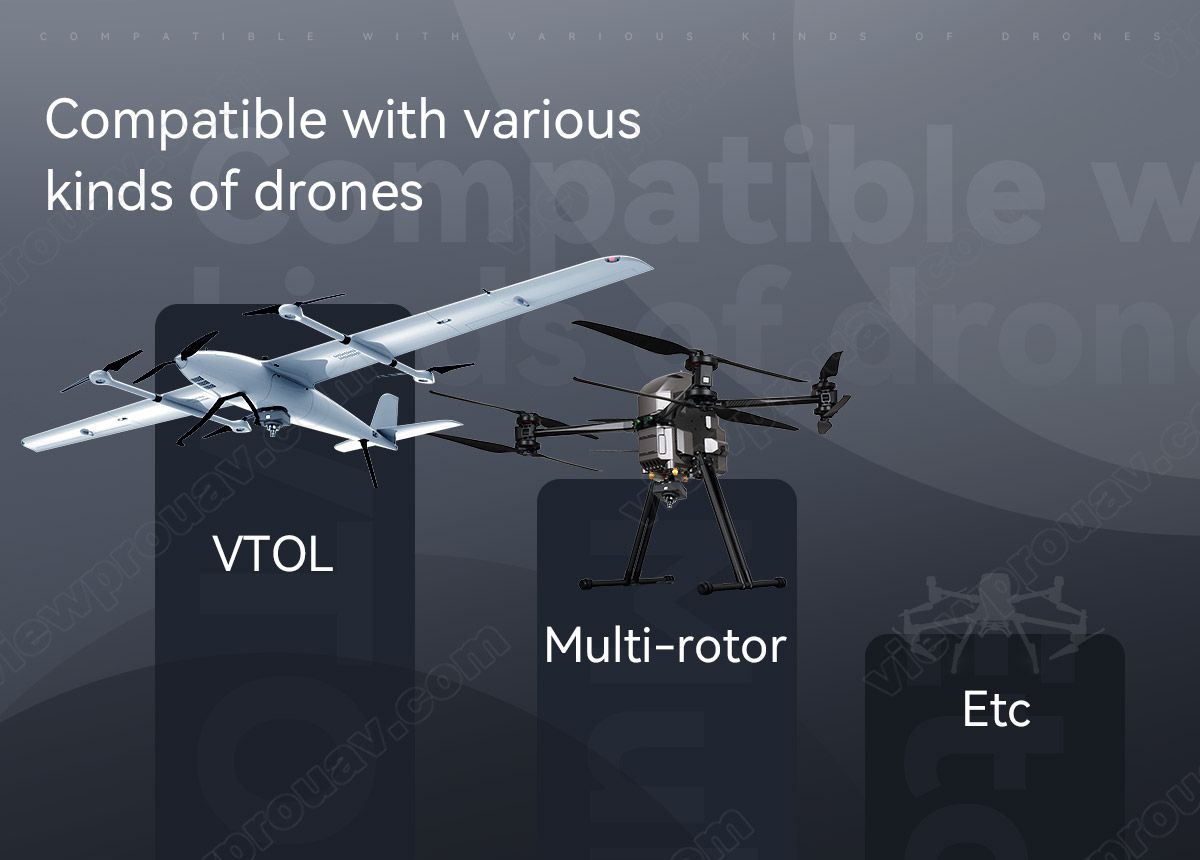

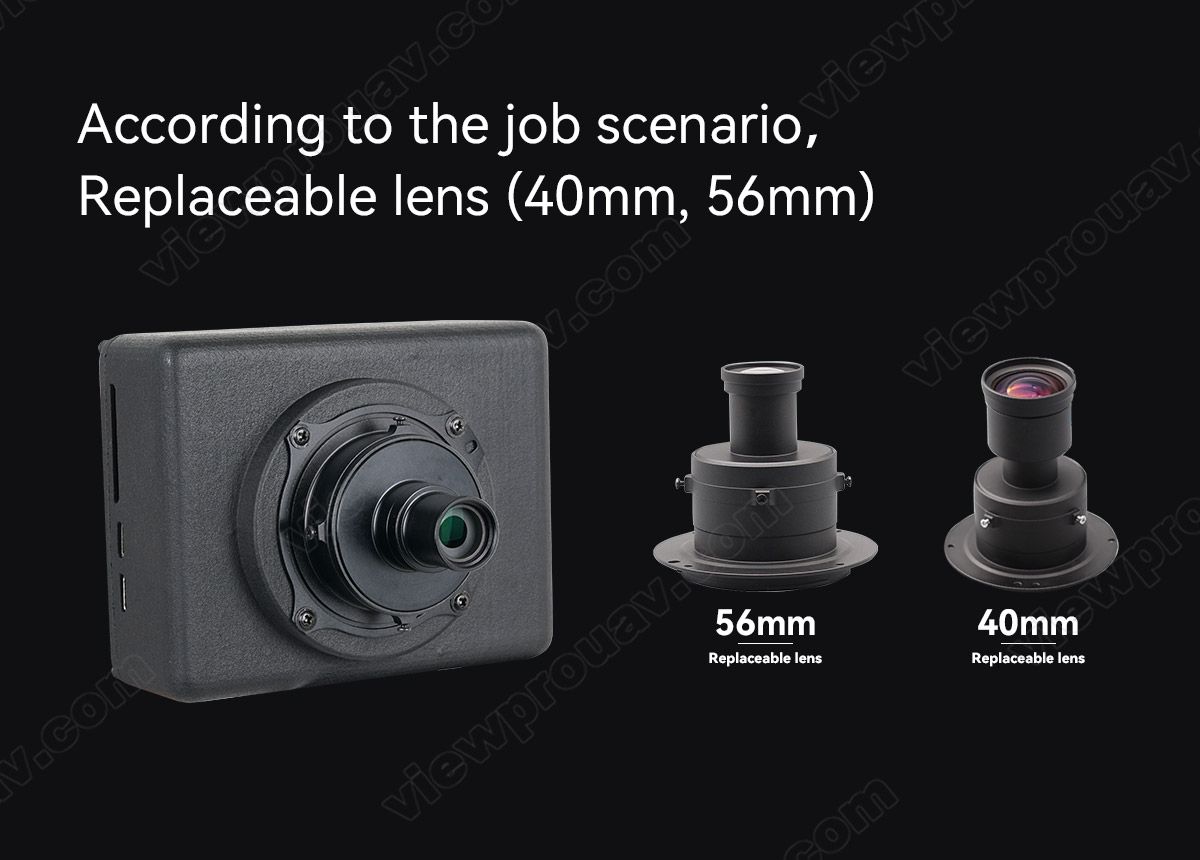

With **1” full frame sensor**, VOM-42 mapping camera adopts **relay trigger**, with **hot shoe feedback**, which can trigger the **PPK module** for accurate mapping. The camera lens is interchangeable, both **40mm and 56mm lenses** are available, which can be replaced according to the task scene. The camera supports up to **128G** TF card. It can be installed on various rotary-wing drones and VTOLs for **mapping and surveying operations**.

Product Images and Diagrams

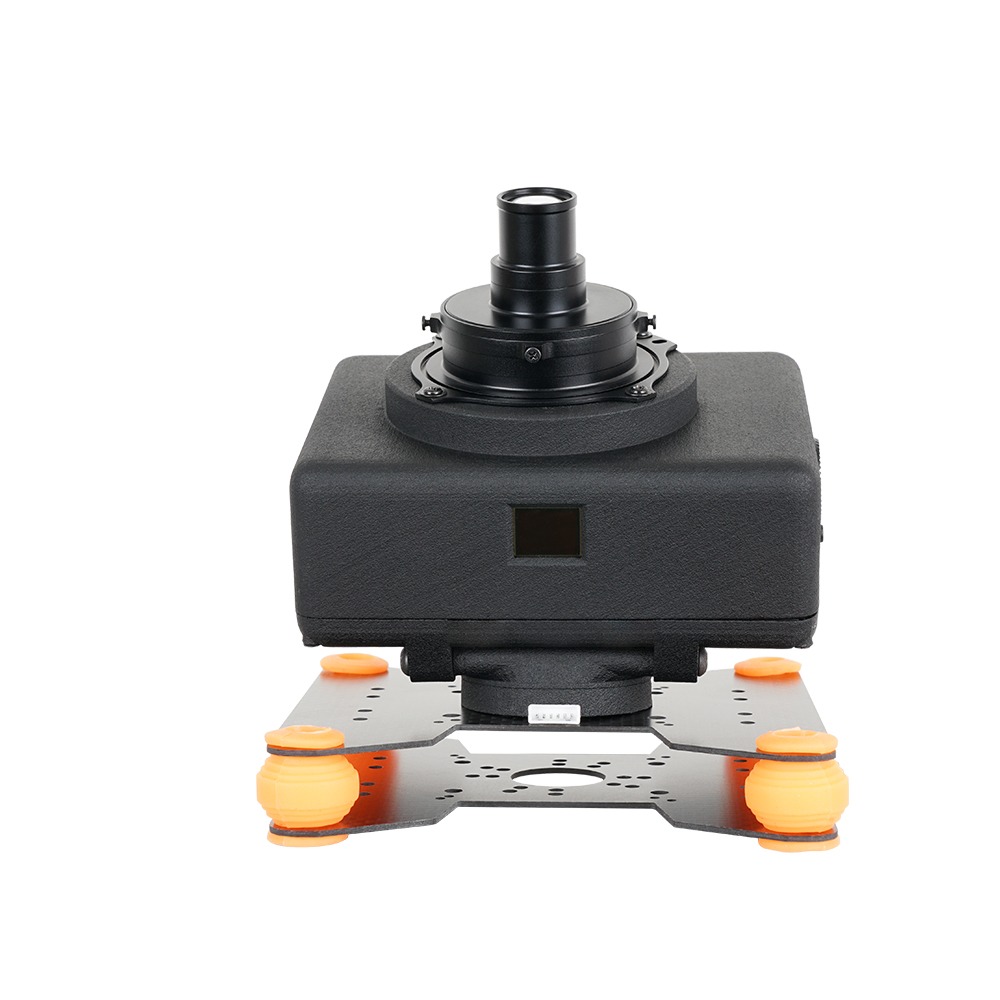

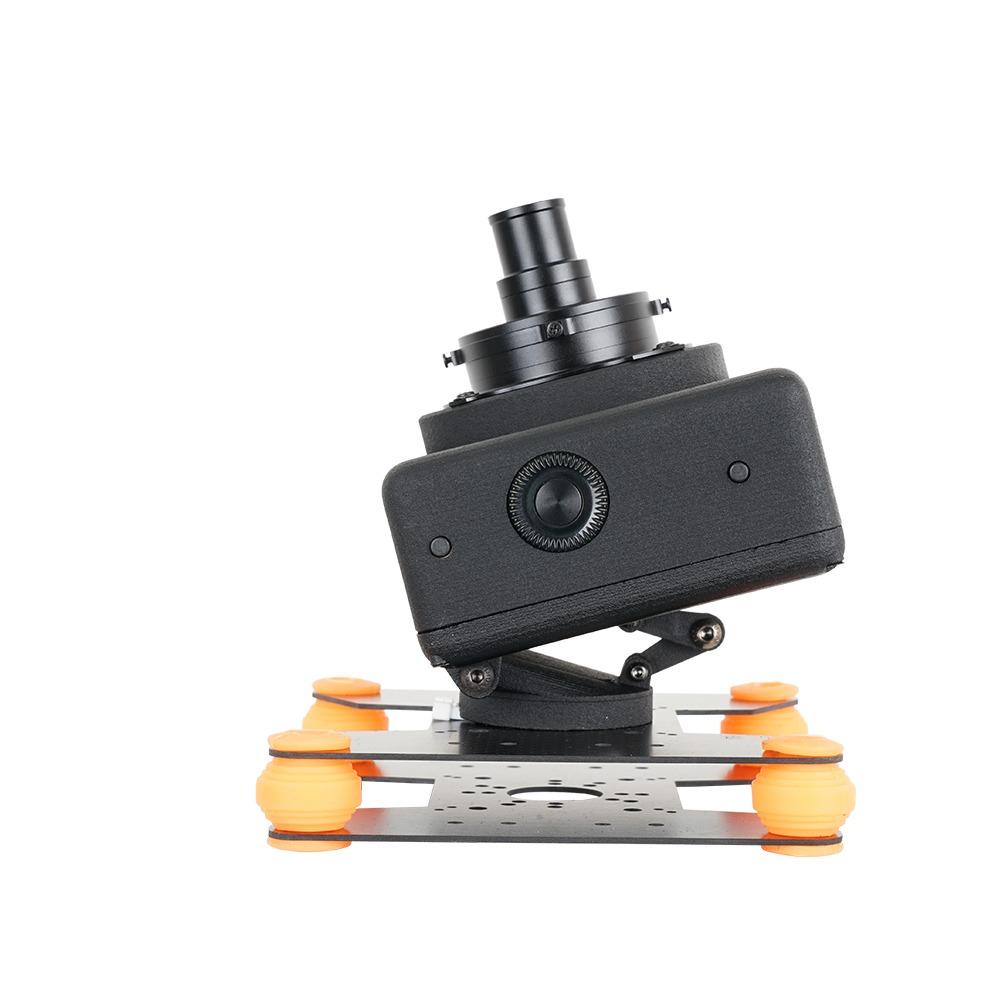

VOM-42 Installation View 1 VOM-42 Installation View 1 VOM-42 Installation View 2 VOM-42 Detail View 3 VOM-42 Detail View 4 VOM-42 Detail View 5 VOM-42 Interface 6 VOM-42 Interface 7 VOM-42 Side View 8 VOM-42 Setup 9

Specification

Parameter Value
ModelVOM-42
Single lens pixel42MP
Pixel size4.5μm
Minimum camera interval≥1s

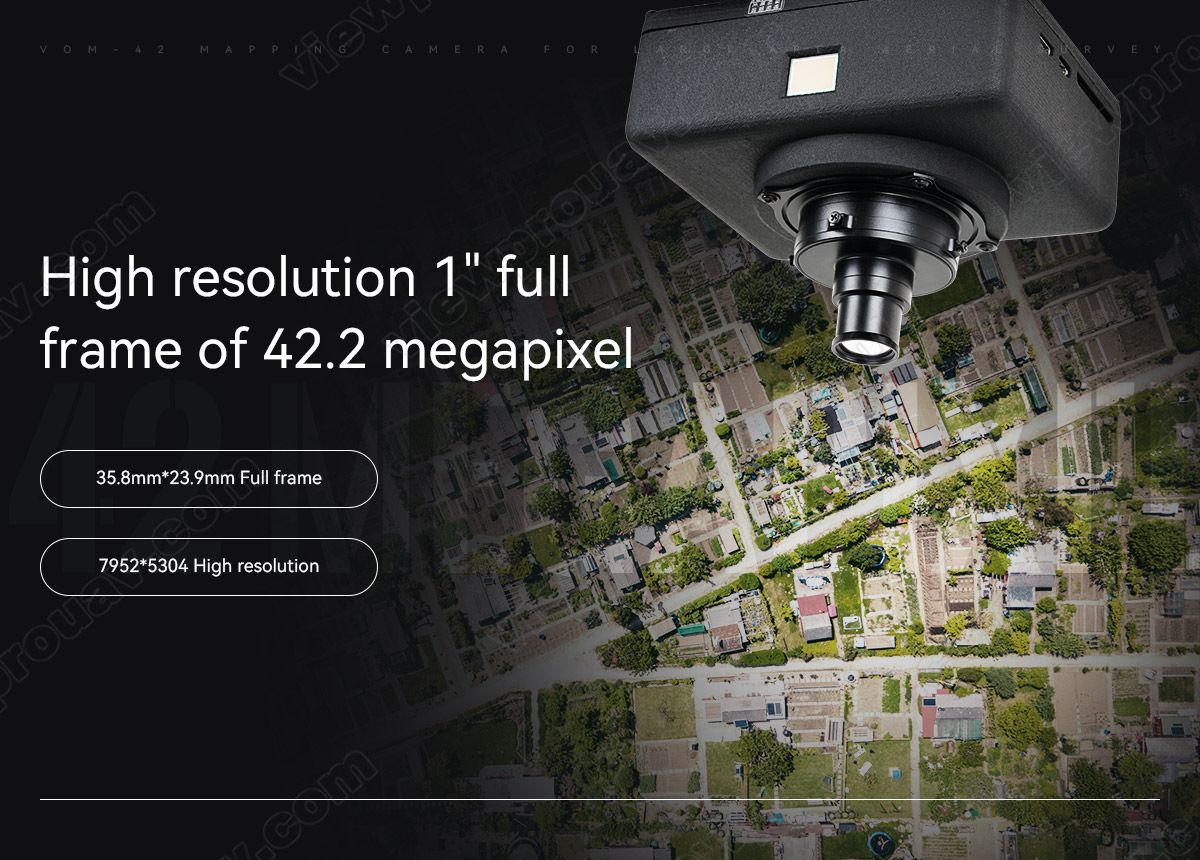

Sensor size35.8*23.9
Hot shoes PPKSupport
Image resolution7952*5304
Focus length40mm
Power9-50V

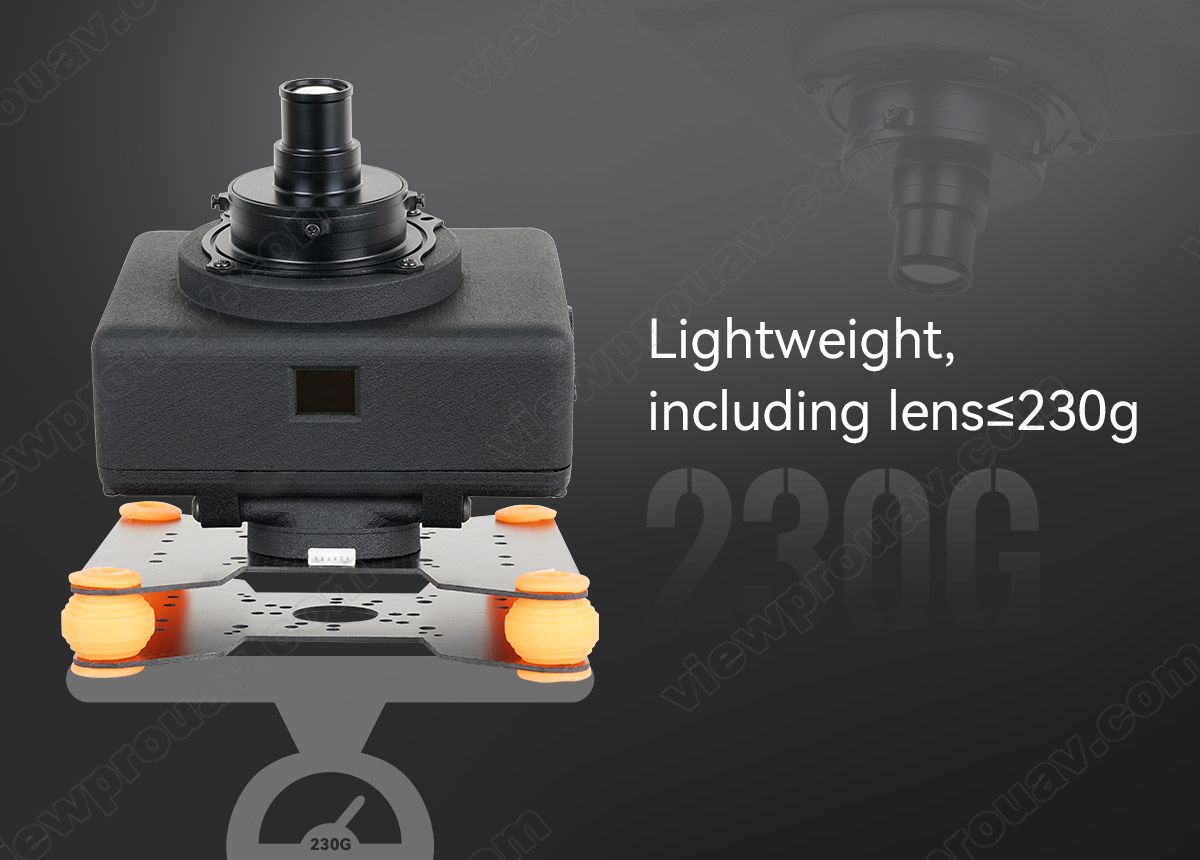

Weight≤233g

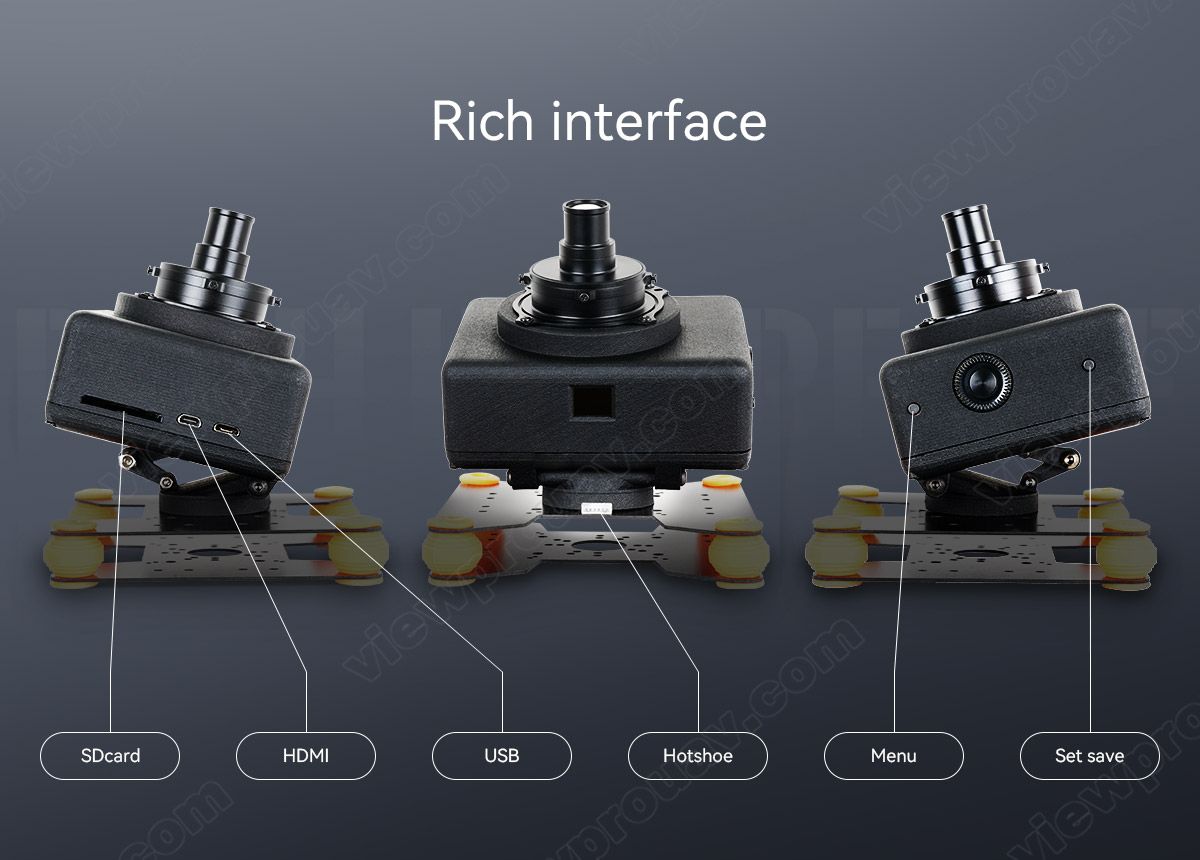

Setting methodAPP or USB
Data copyUSB3.0 or SD card
