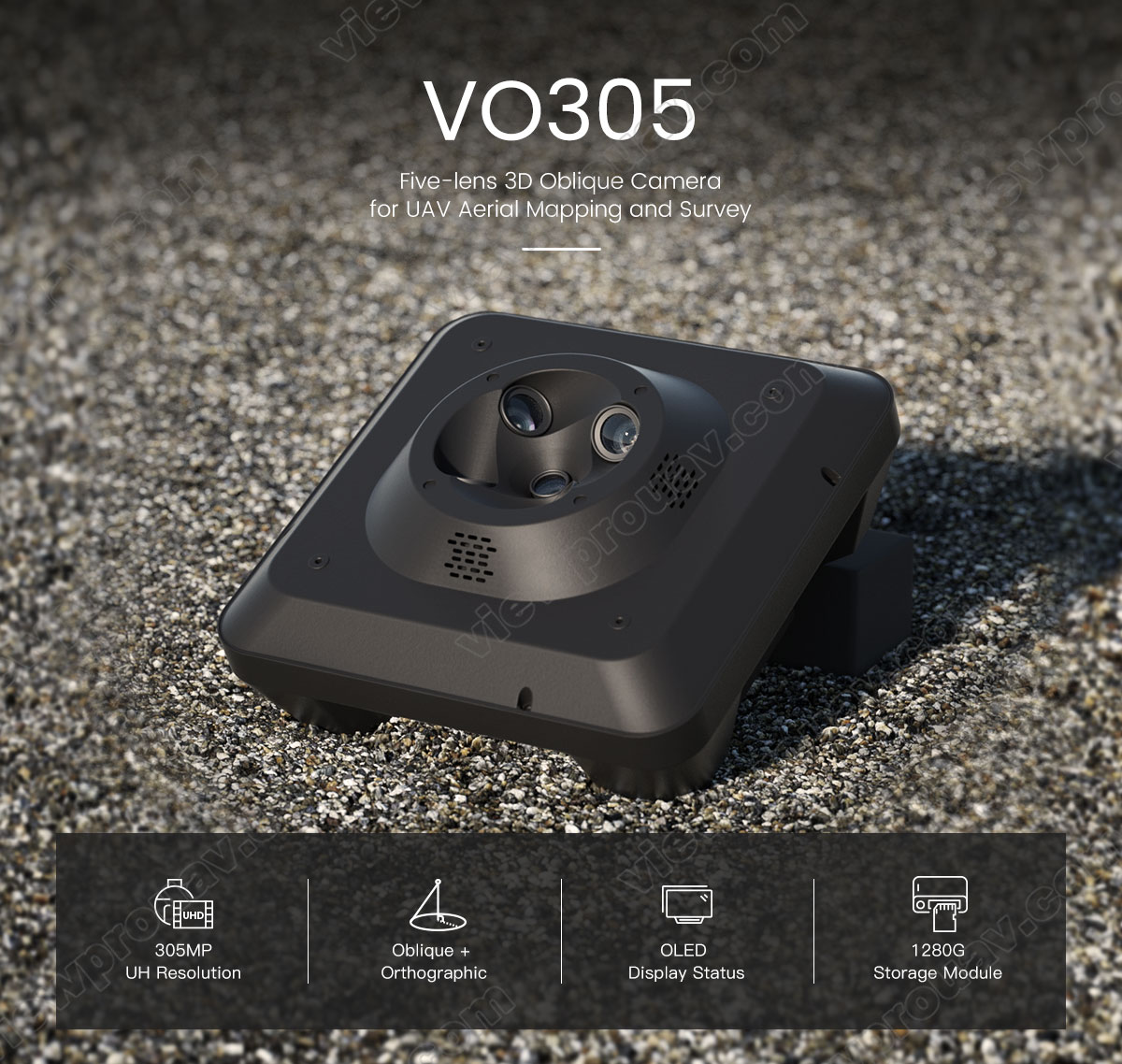

VO305 UH Definition 3D Oblique Camera UAV Aerial Mapping and Surveying
Ultra high definition 5 lenses oblique aerial mapping camera. Designed for profession mapping and survey missions. Support 3D modelling post processing.
Description

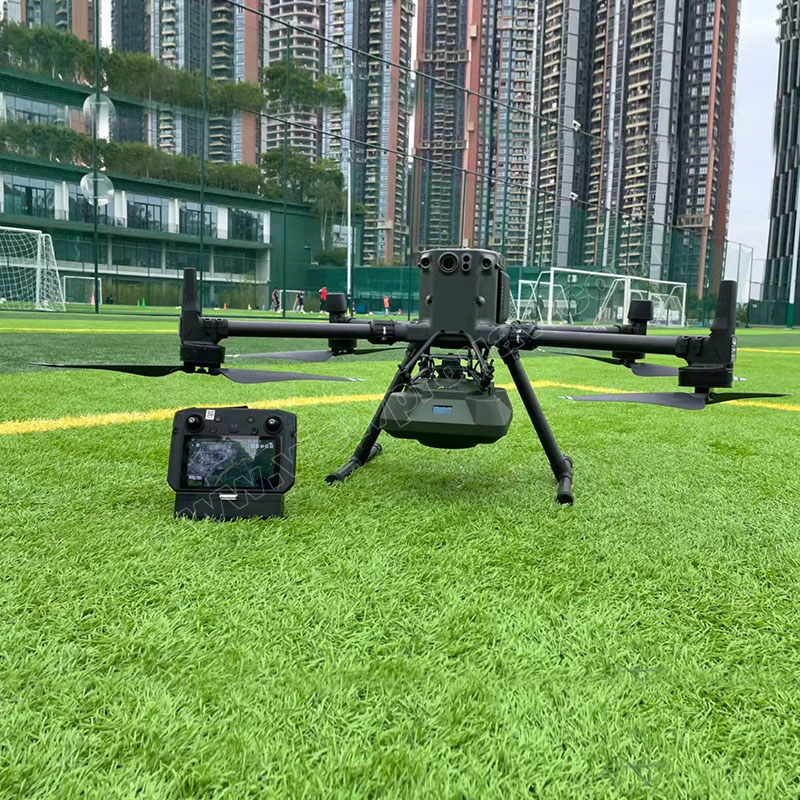

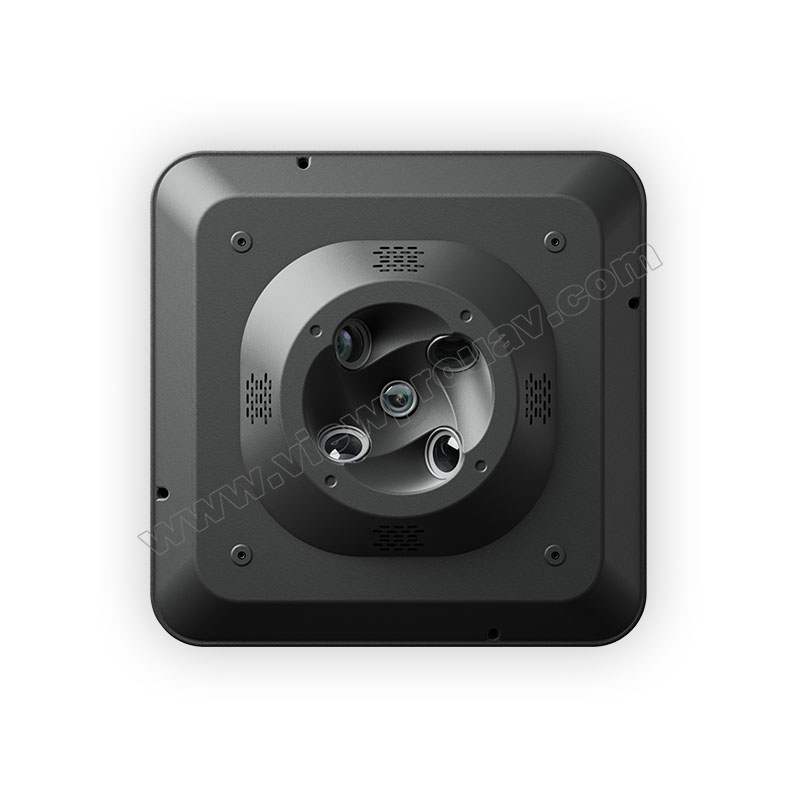

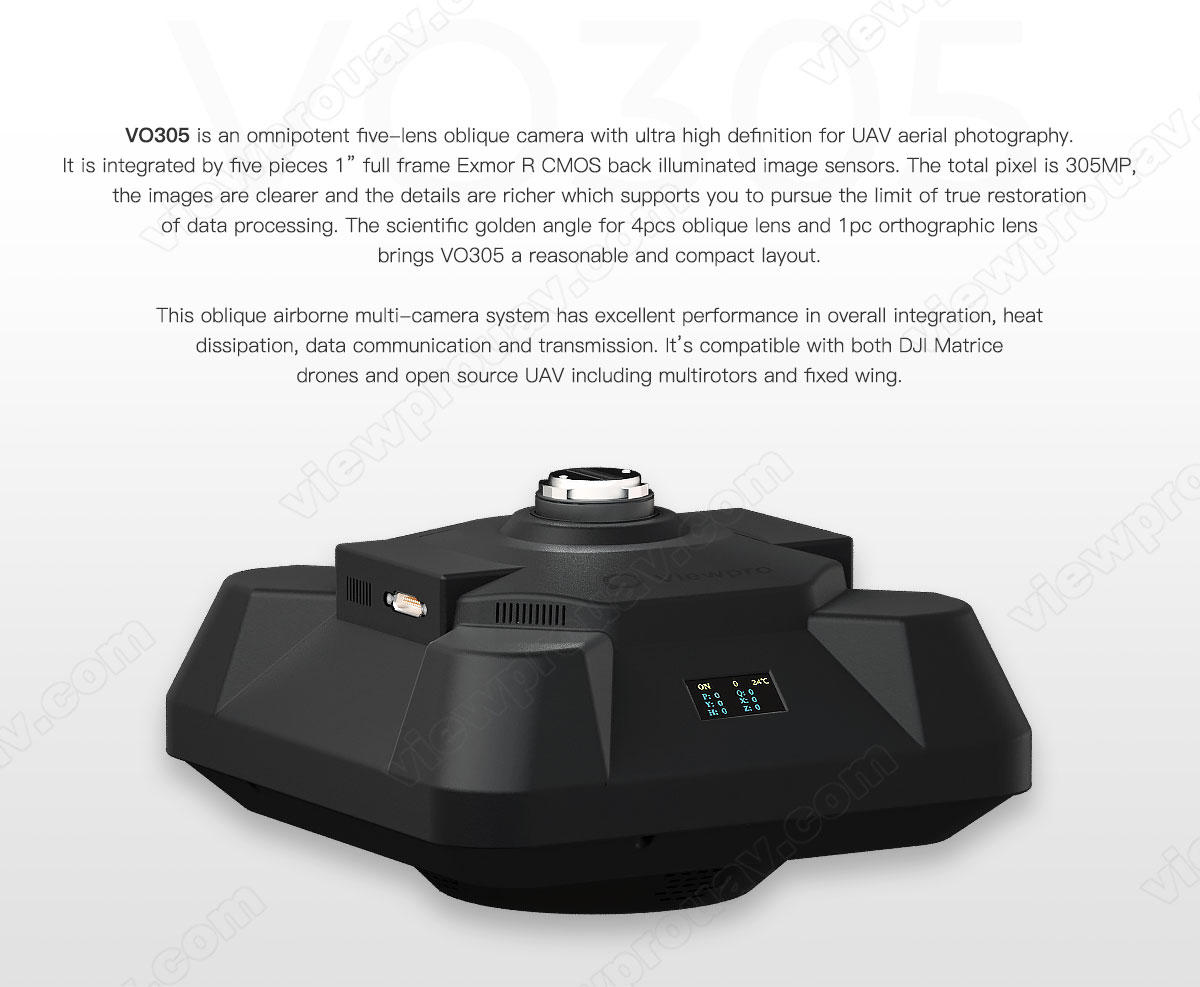

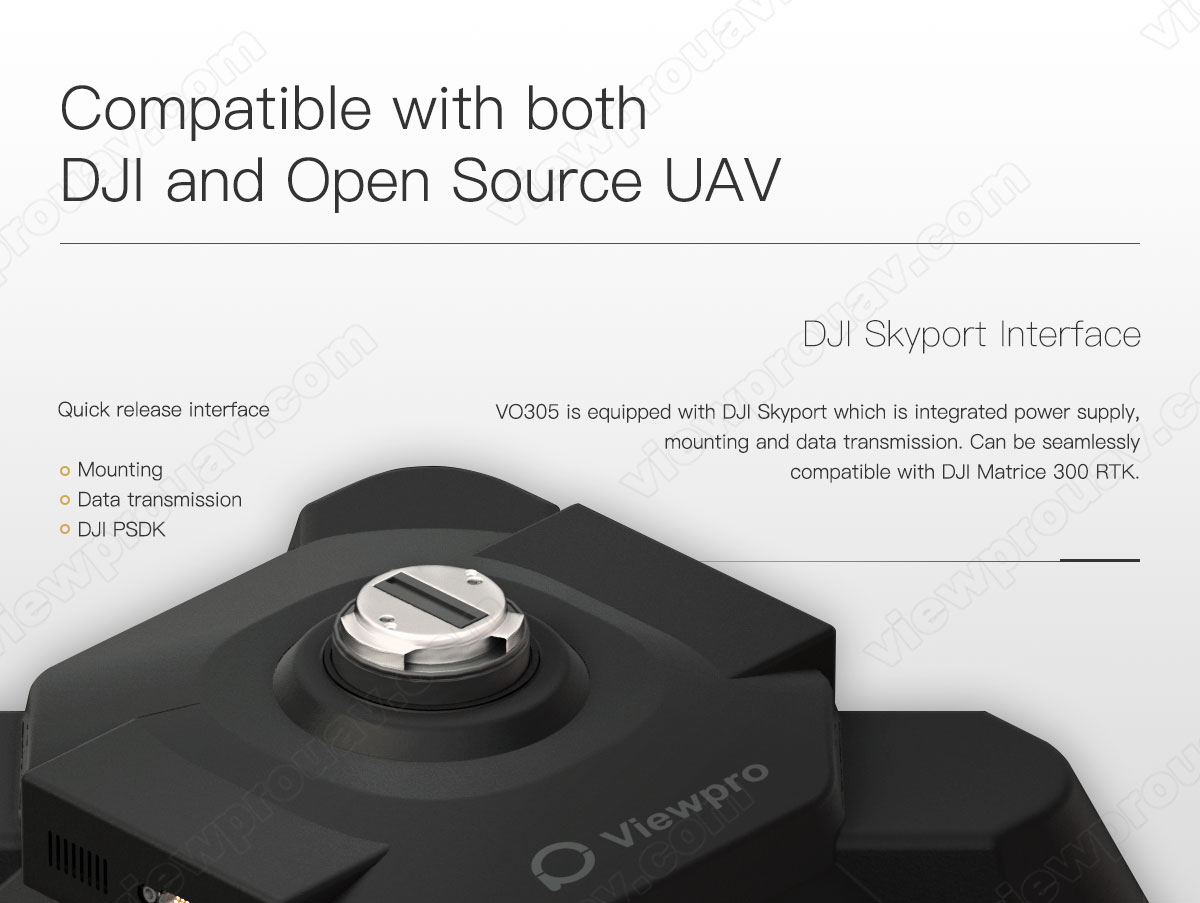

VO305 is an omnipotent five-lens 1” full frame Exmor R CMOS 305MP oblique camera for UAV aerial photography. Integrated with a 1280G high-speed data storage module, VO305 support you to operate faster and safer, without worrying the storage limitation. It’s equipped with a DJI Skyport, compatible with both DJI Matrice drones and open source UAV including multirotors and fixed wing.

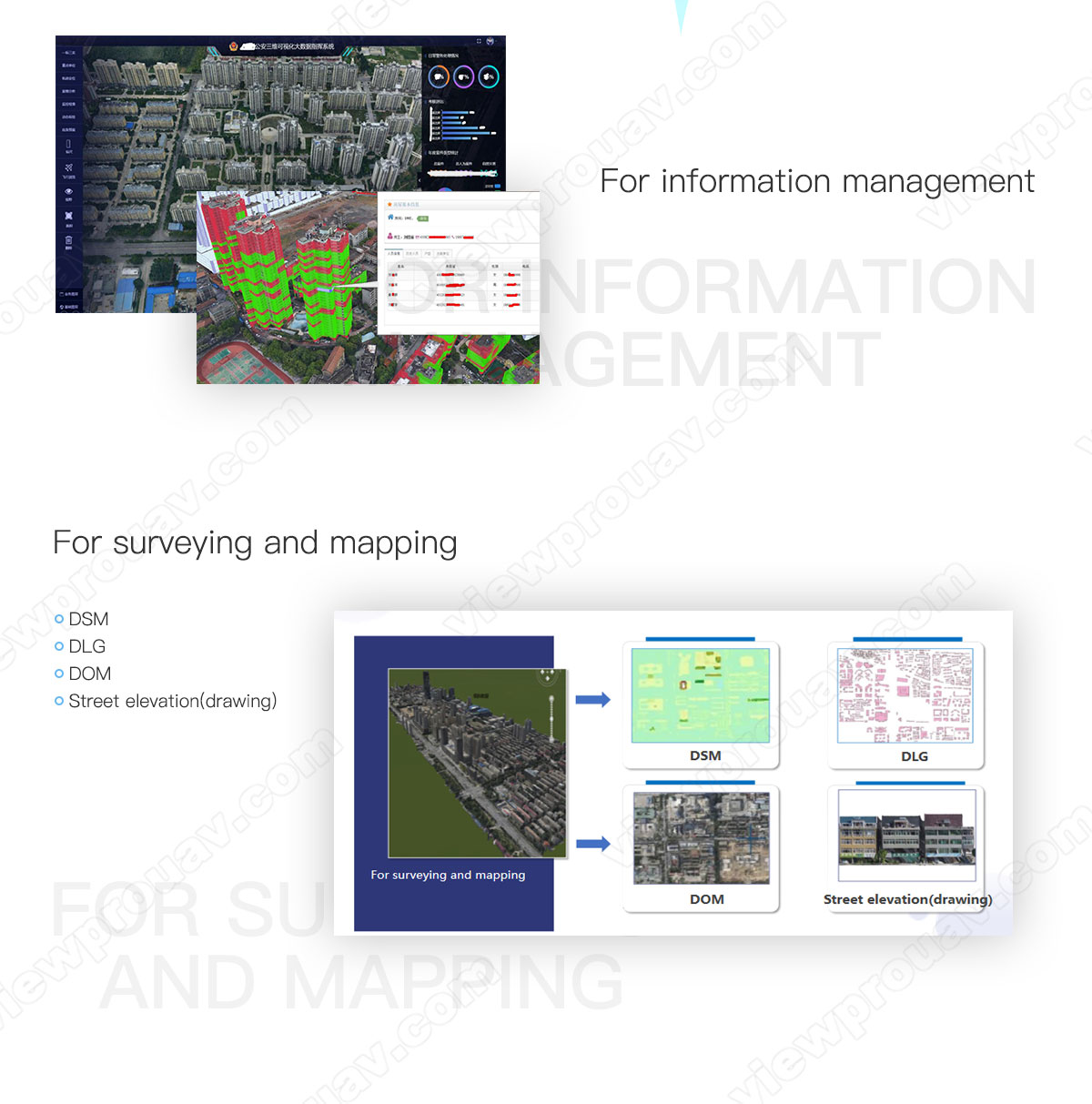

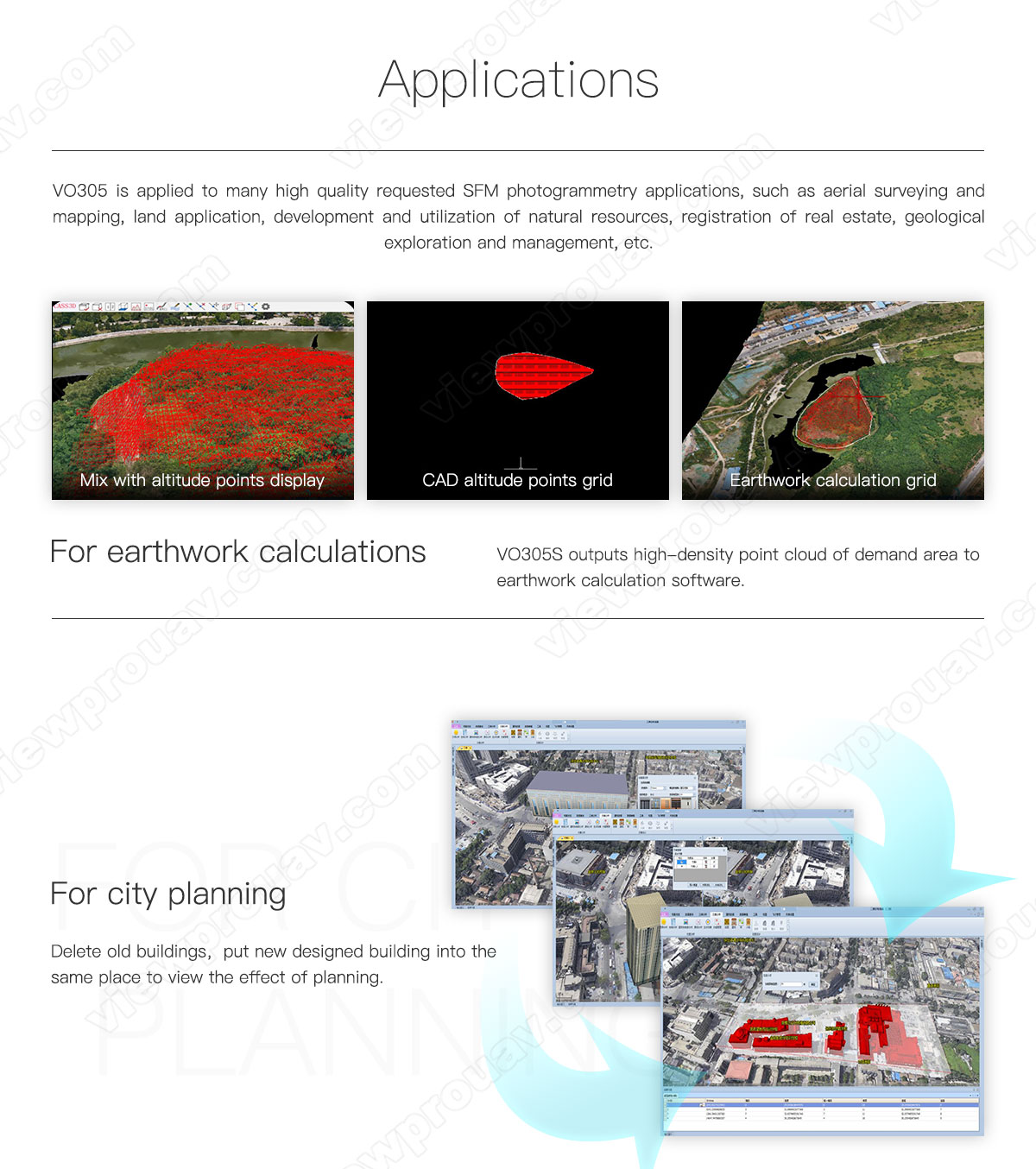

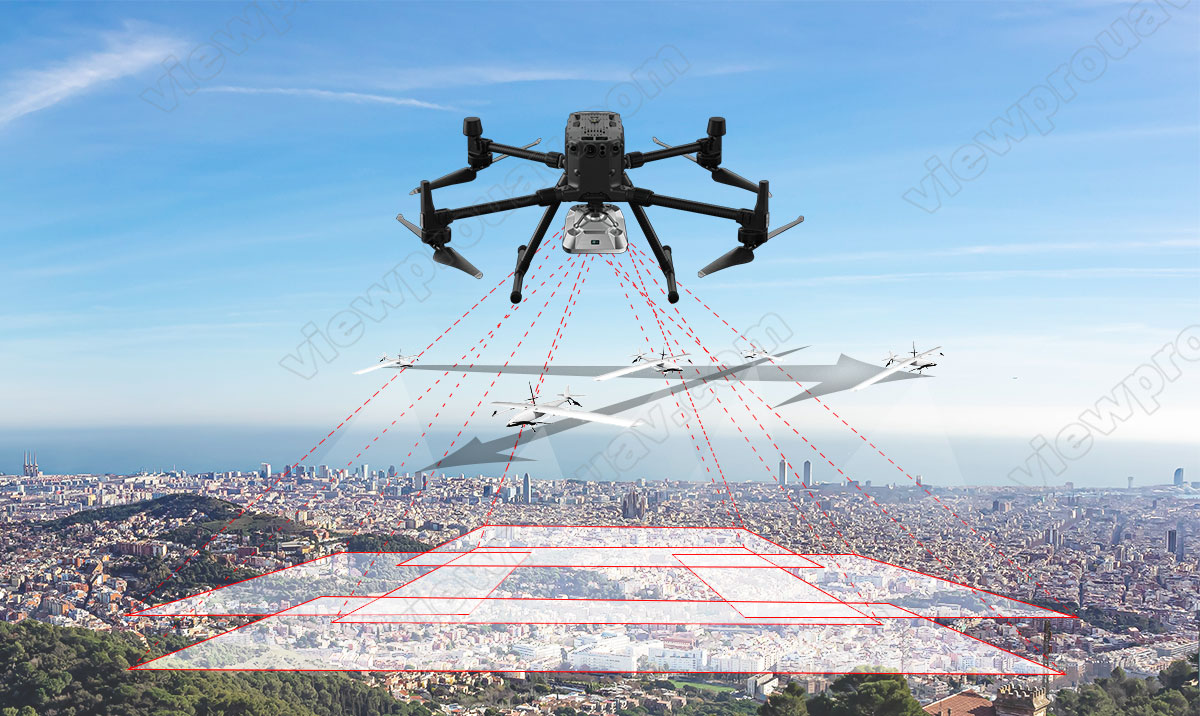

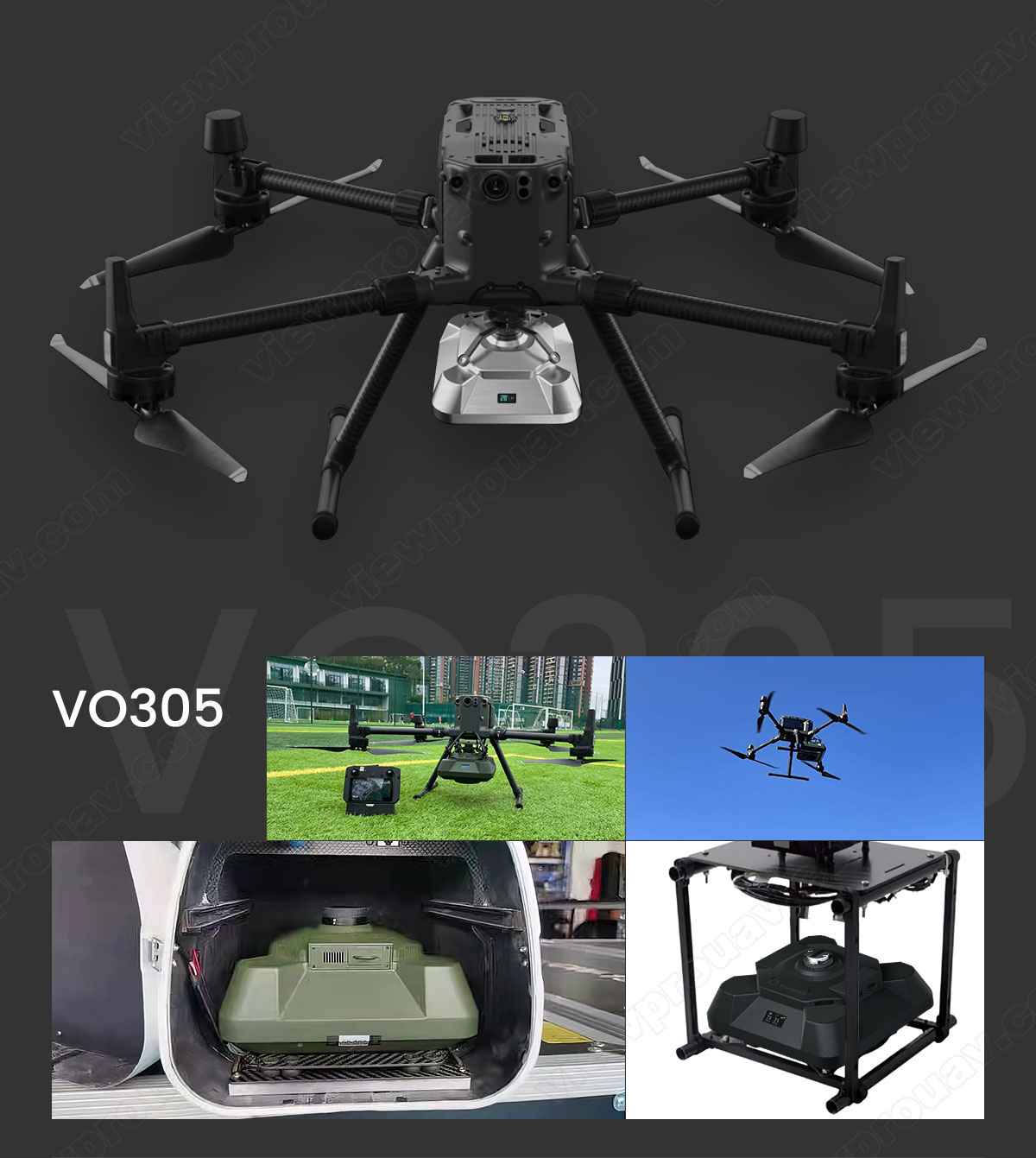

Mounting on Viewpro long endurance drone platforms (Hexacopter M115, Hexacopter ROC4 M160 , VTOL Blue Shark F250, )VO305 can be applied to high quality requested SFM photogrammetry applications, such as aerial surveying and mapping, geological exploration and 3D modelling post processing.
Specification
| Parameter | Value |
|---|---|
| Model No. | VO-305 |
| Total Pixel | **61MP*5 = 305MP** |
| Resolution | 9504*6336 |
| Sensor | Full Frame Exmor R CMOS (35.7*23.8mm) |
| Lens Size | Orthographic 1*40mm + Oblique 4*56mm |
| Oblique Lens Angle | 45° |
| Exposure Time | ≧1.2s |

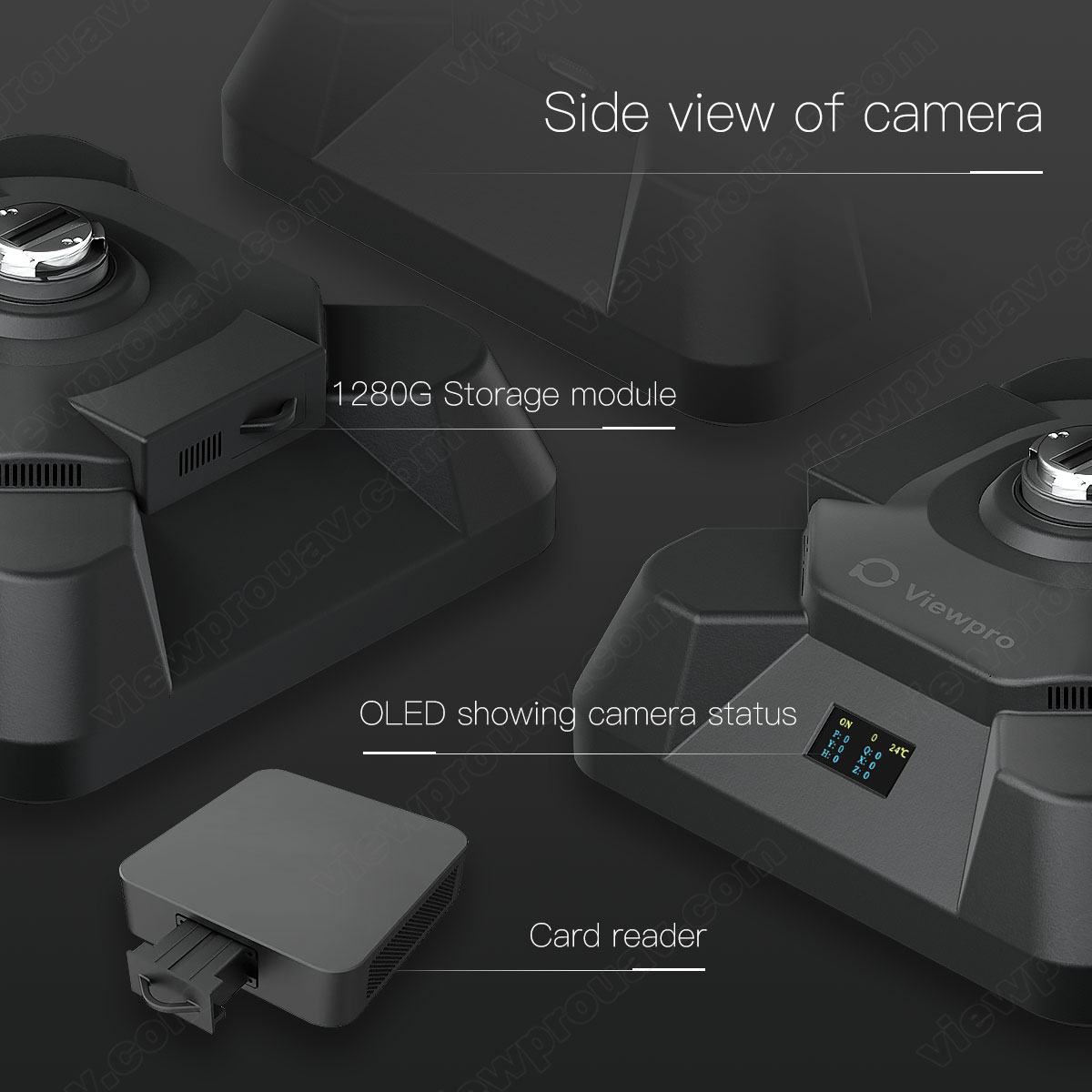

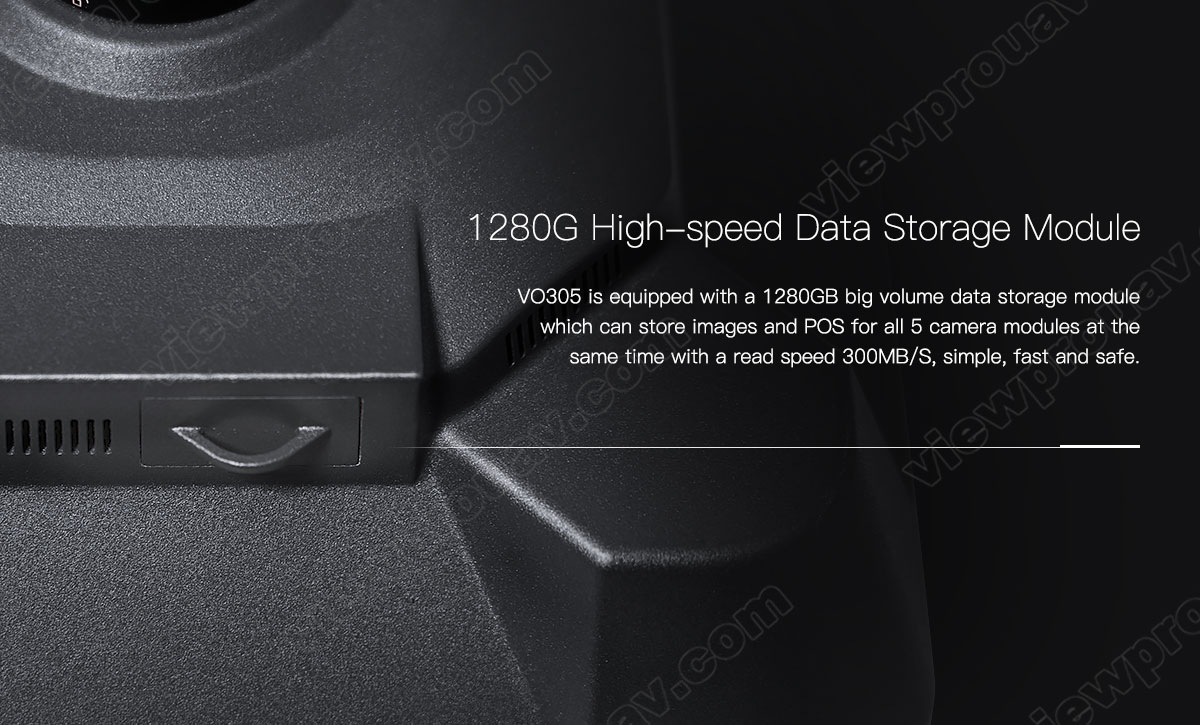

| Data Storage/ Read | 1280GB (256GB*5) Read speed 300MB/S (total) |

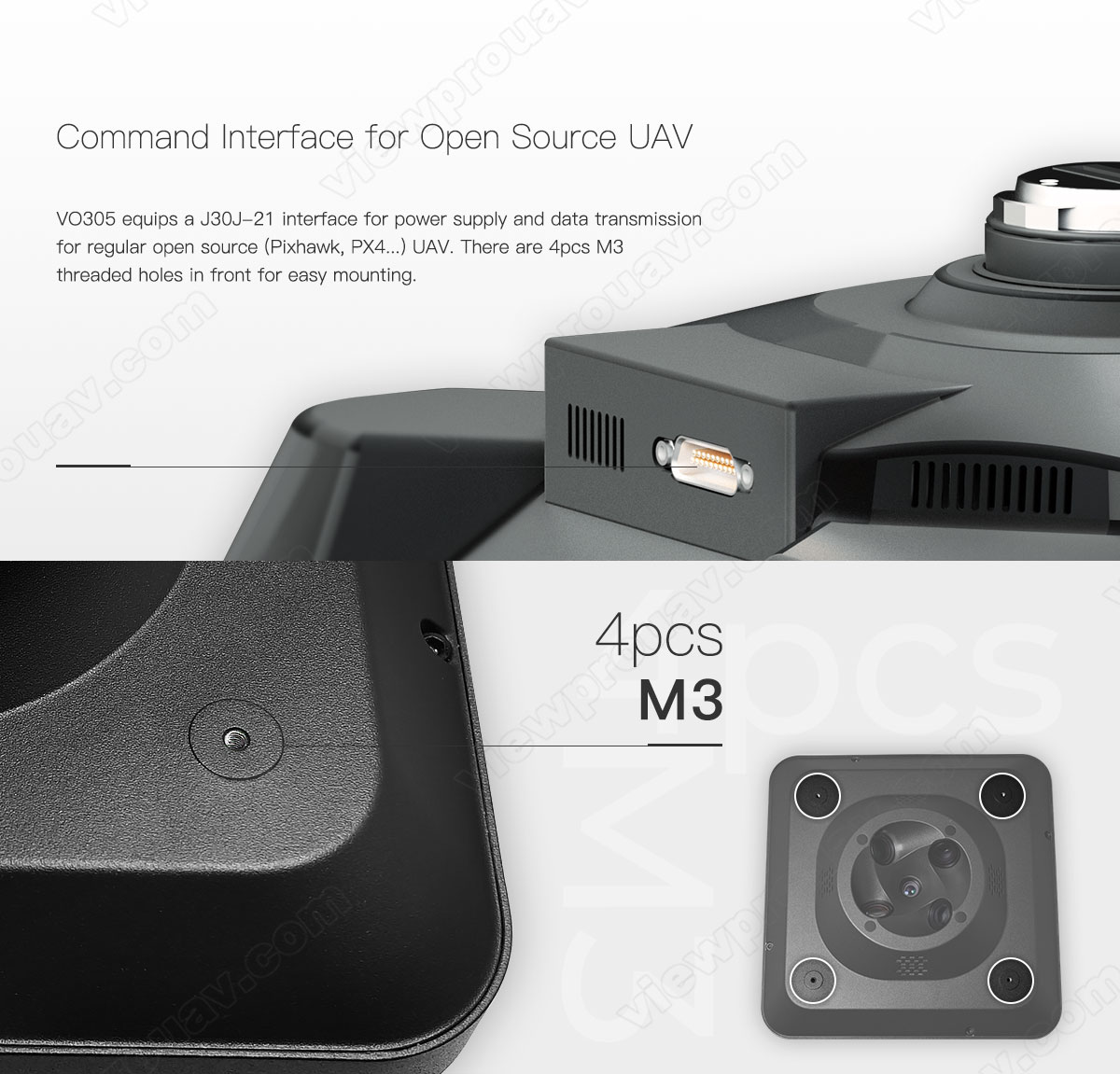

| Interfaces | J30J-21/ Viewport |
| POS | 5 lens POS separately & precisely |
| Power Supply | 10-50V 60W |
| Max. Power Rate | 60W (5 lens all on) |
| Heat Radiation | Intelligence Heat control, Active cooling |
| Working Environment | -10°C - 50°C |

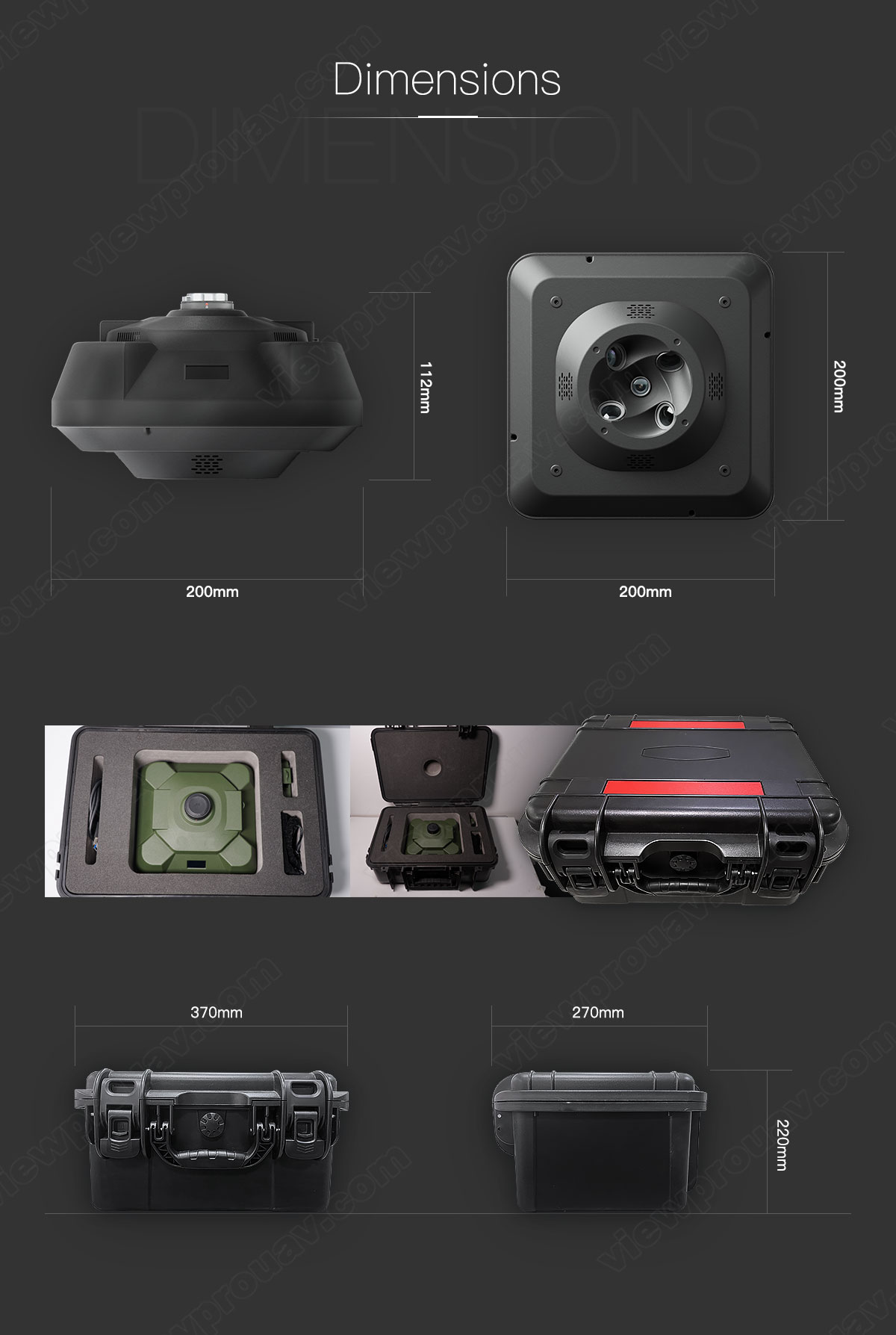

| Camera Dimension | 200*200*112MM |
| Net Weight | 1300g |
| Package Dimension | 370*270*220mm |
Product Images and Diagrams
