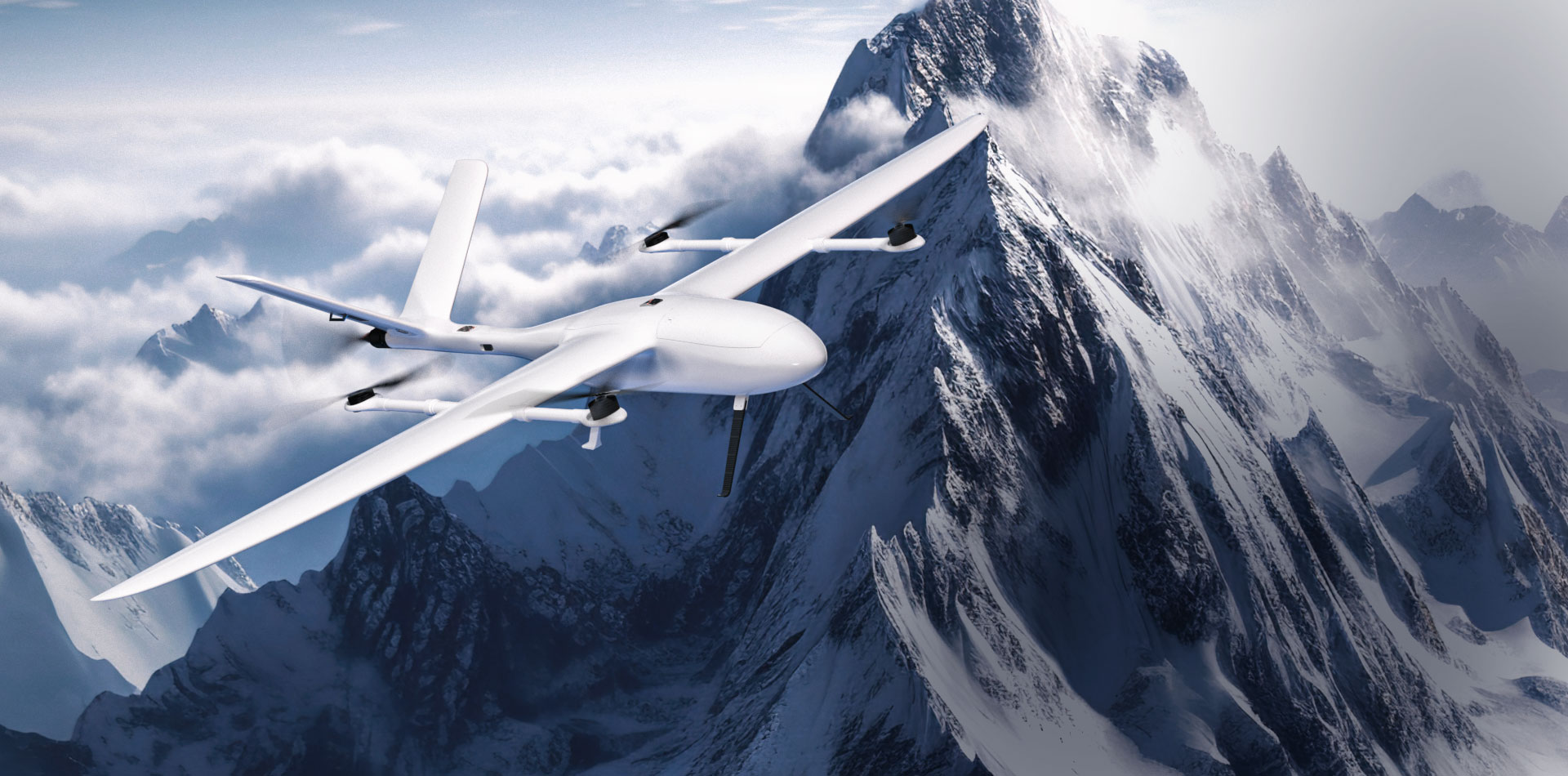

VA25 Fixed Wing VTOL Drone
A long-endurance and VTOL unmanned aircraft. VA25 is a VTOL (vertical take off and landing) UAV platform with highly reliable power system and locking propeller design which greatly prolong the flight time and increase the safety and stability of UAV. It helps accomplish tasks you may require.
High Performance
Up to 210 mins endurance, IP55, and cruising speed is on average 80-90 km/h.
Convenient design

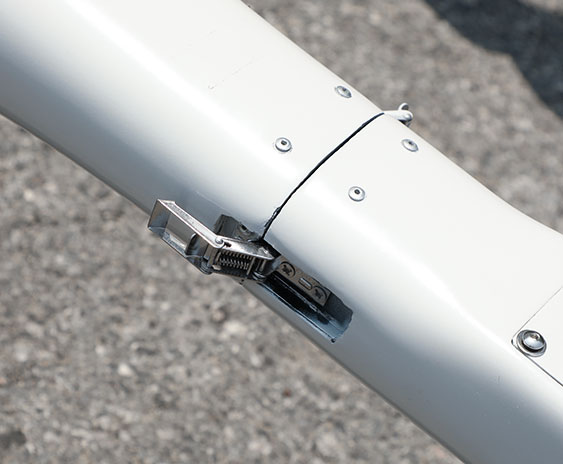

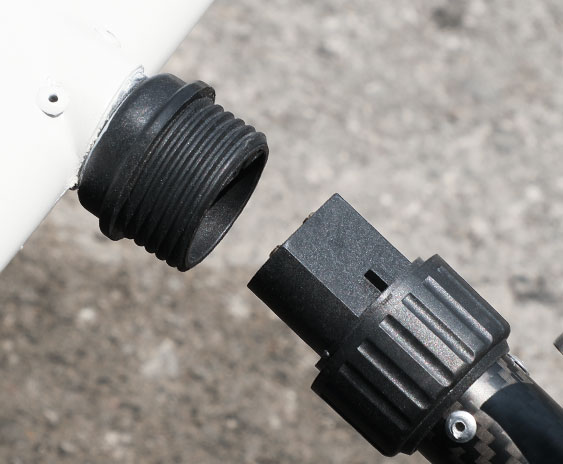

Designed for quick assembly and disassembly, which is easy to complete in 3 minutes.
Diverse payloads
You can choose different payload according to the actual missions including fulfillment of multiple task requirements.
| TEKNİK PARAMETRE | |
|---|---|
| Model | VA25 |
| Frame Length | 1.56m (Pitot Tüpü dahil 1.62m) |
| Frame Weight | <3.5kg |
| Wingspan | 2.5m |
| Take off Weight | 13kg |
| Frame Material | Carbon Fiber Composite PVC |
| Flight Time | 210min (1kg Payload) |
| Wind Resistance | Level 6 |
| Protection | IP55 |
| Working Temperature | -15℃-50℃ |
| Propulsion System | T-MOTOR |
| Recommended Control System | PIXHAWK & CUAV |
| Speed Range | 80-120km/h |
| Cruising Speed | 80-90km/h |
| Payload | <2kg |
| Landing Way | Vertical Takeoff and Landing |
| Batteries | ARES 6S 30000mah *2 PCS |
