Description
| Onboard End (Vehicle/Base Unit) | |
|---|---|

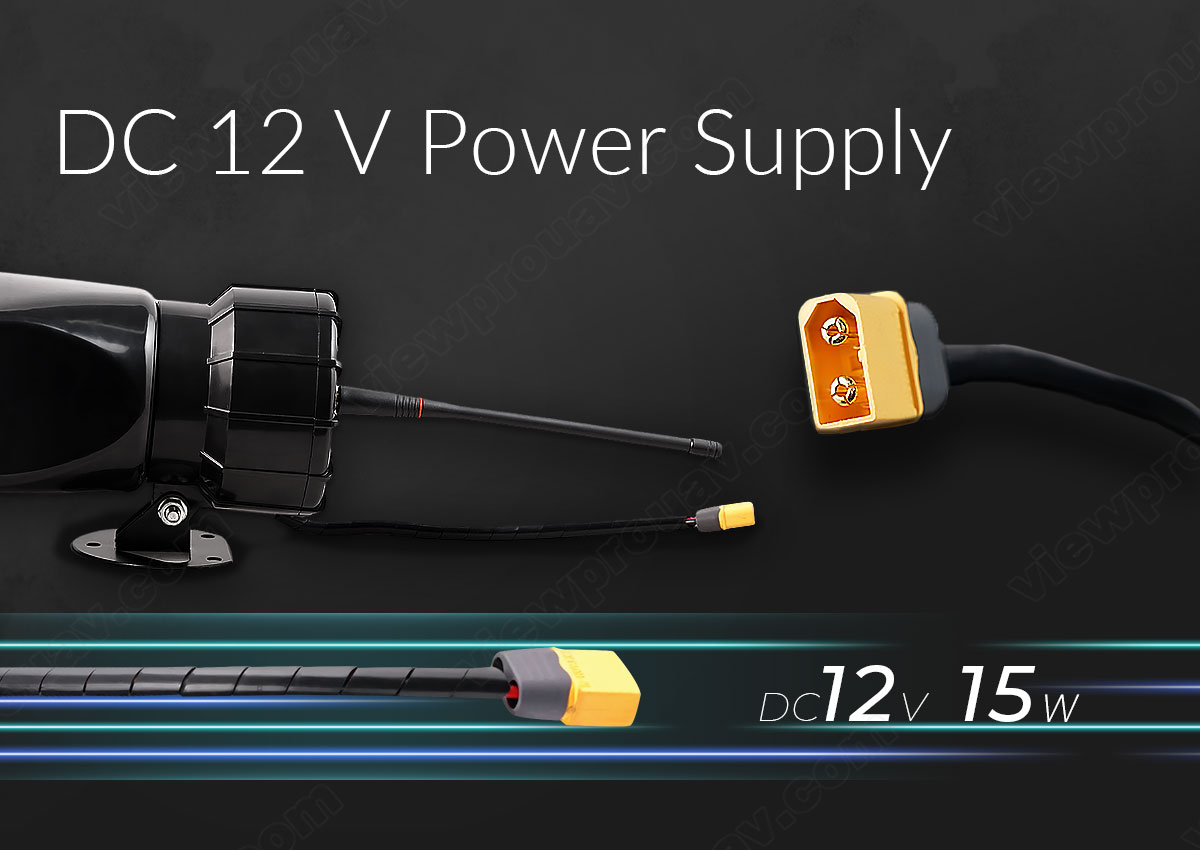

| Power supply range | DC 12V |
| Static Current | 0.13A@12V |
| Working Current | 0.8A~1.6A |
| Audio Distortion | ≤5% |
| Shell Material | ABS resin |
| RF Frequency | 409~470mHz |
| Maximum Current | 2A |
| Volume Adjustment | Nob with power switch |

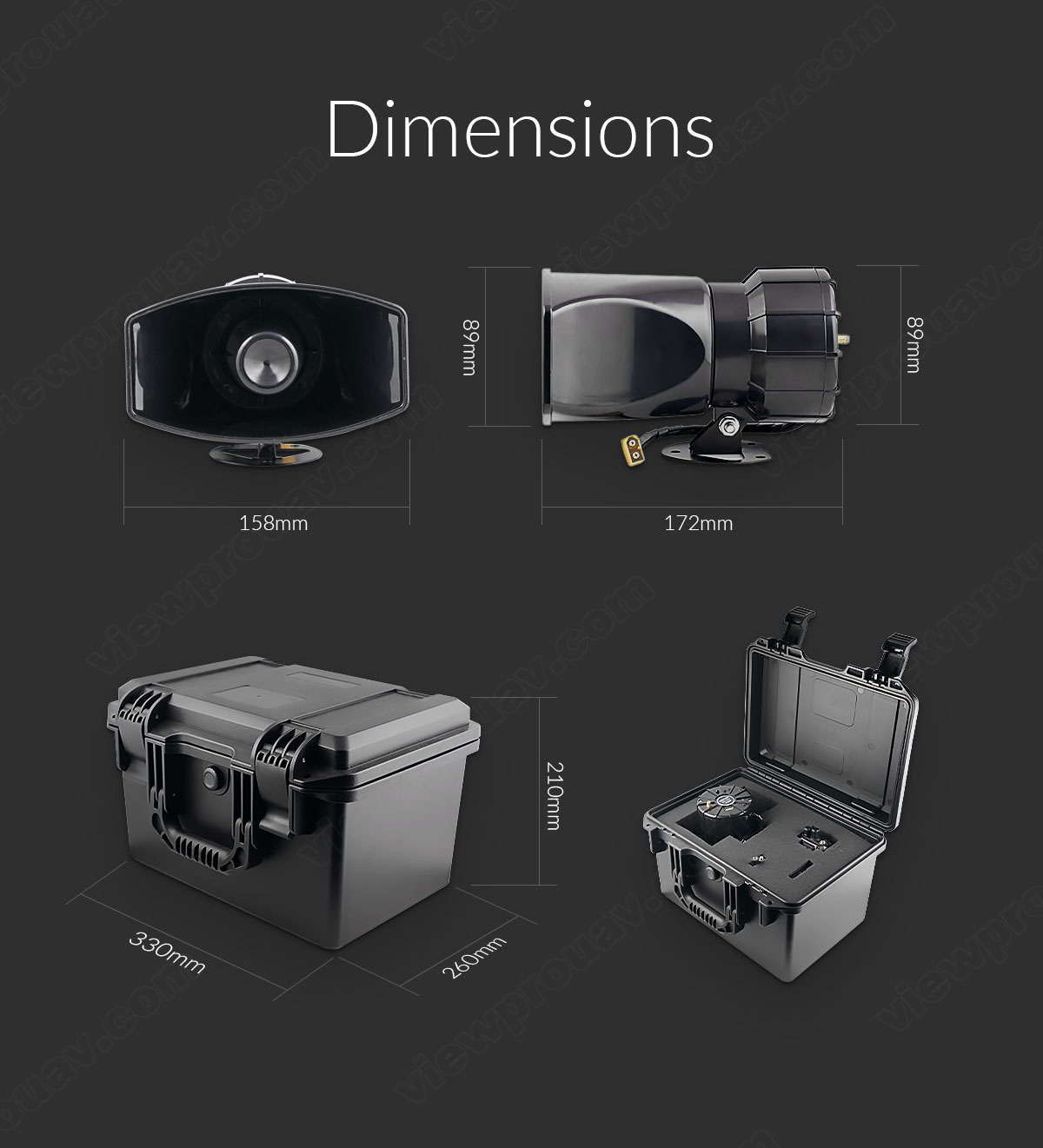

| Size | 17.6×9.4cm |

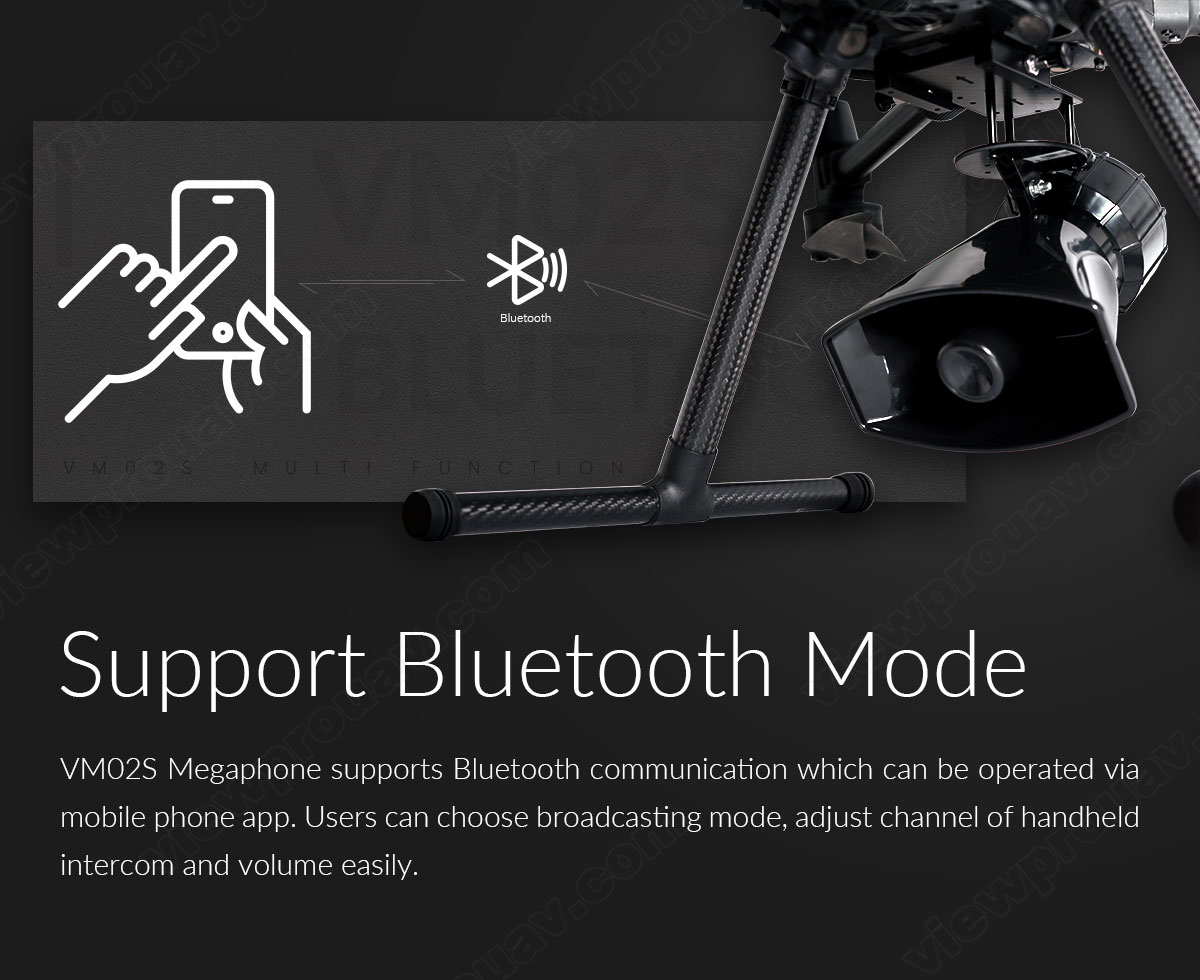

| Audio Input Mode | Interphone/Bluetooth/Tape/U disk |
| Weight | 532g (antenna including) |
| Working Temperature | -20℃~60℃ |

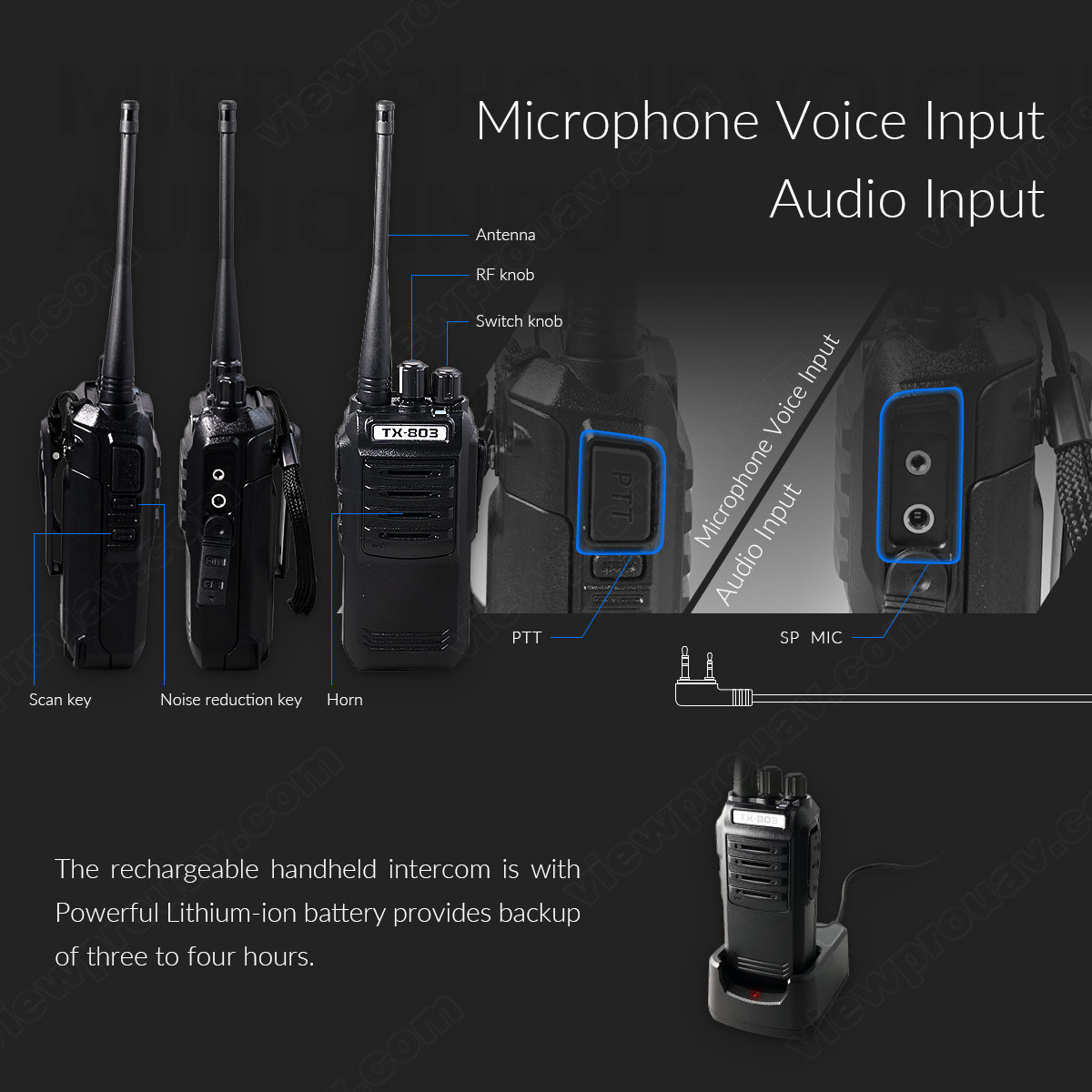

| Handheld End (Portable Unit) | |
| Battery Voltage | 7.4V |
| Battery Capacity | 2600mAh |
| Modulation Method | 16KOF3E(wide)/8k50F3E(narrow) |
| Audio Distortion | ≤5% |
| RF Output Power | High: 5W | Low: 1W |
| RF Frequency | UHF: 400-480mHz |
| Antenna Size | 10.2×1.4cm |
| Volume Adjustment | Nob with power switch |
| Size | 11.7×5.8×4.2cm |
| Weight | 252g (Battery/antenna included) |
| Working Temperature | -20℃~60℃ |
