Description
Technical Specifications (Q7DER)
| Working voltage | 12V(3S) |
|---|---|
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 900~1500mA @ 12V |
| Idle current | 900mA @ 12V |
| Working environment temp. | -20℃~+60℃ |
| Output | IP rtsp (1080p 30fps) |
| Local-storage | SD card (Up to 128G,class 10, FAT32 or ex FAT format) |
| Photo storage format | JPG(1920*1080) |
| Video storage format | MP4 (1080P 25fps) |

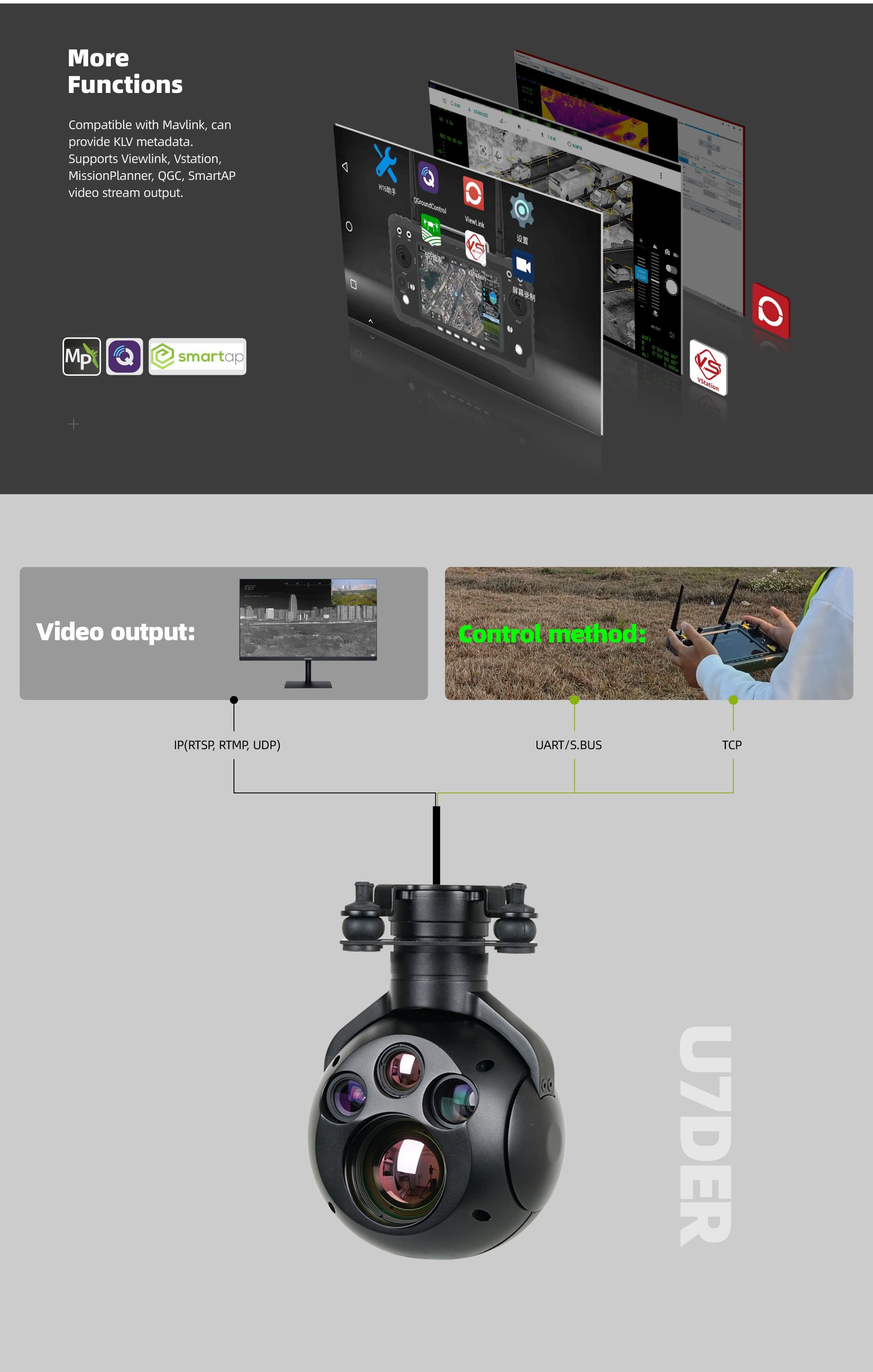

| Control method | TTL / S.BUS/ TCP |
| Angle scope of structure design | Pitch/Tilt: -60°～120°, Yaw/Pan: ±360°*N |
|---|---|
| Angle scope of software design | Pitch/Tilt: -45°～90°, Yaw/Pan: ±360°*N |
| Vibration angle | Pitch/Roll: ±0.02°, Yaw：±0.02° |
| One-key to center | √ |
| Resolution | 1920*1080 @60fps |
|---|---|
| Focus Length | 7.2mm |
| Angle of View | 42.28°*24.54° |
| Resolution | 1920*1080 @60fps |
|---|---|
| Focus Length | 25mm |
| Angle of View | 12.71°*7.17° |

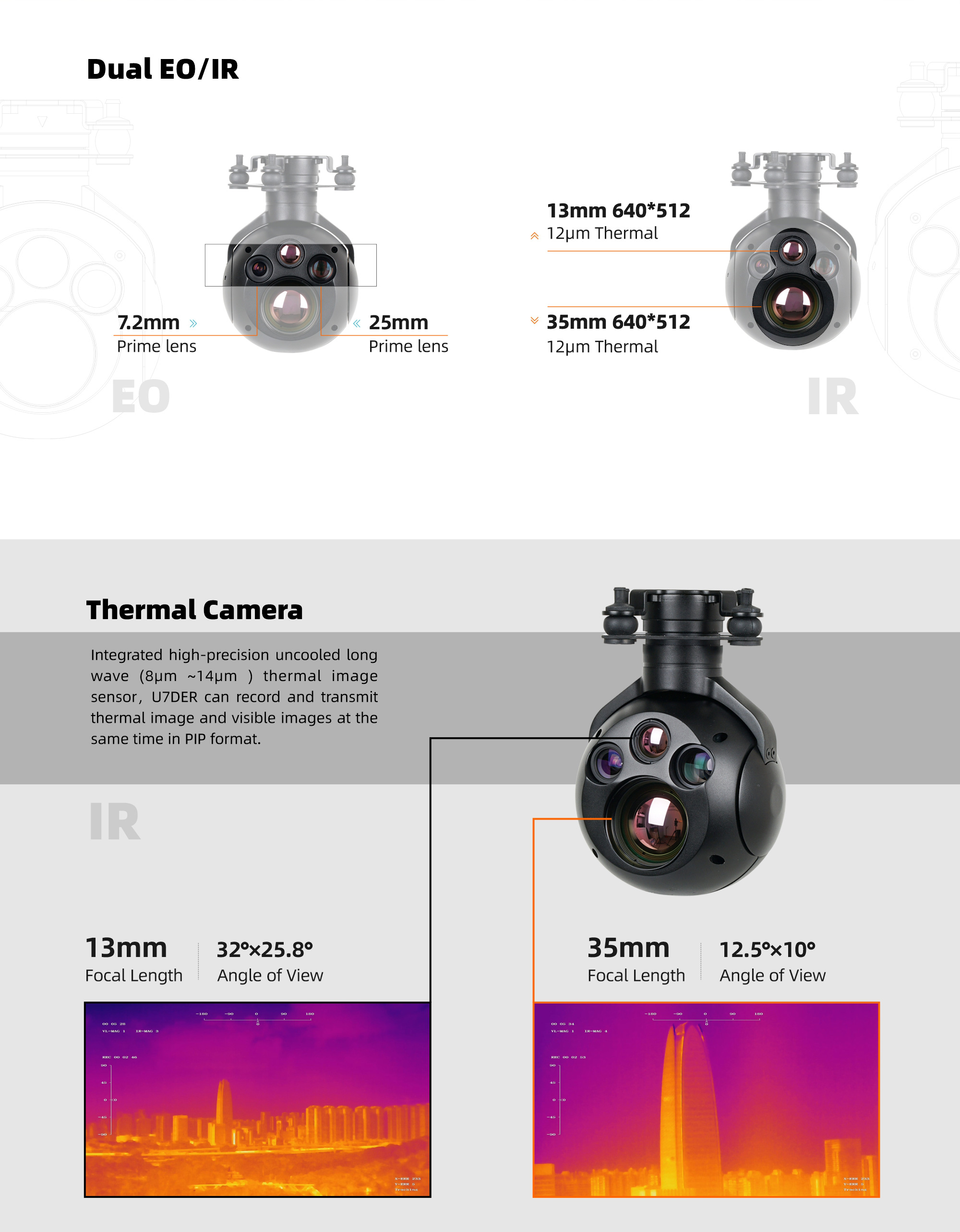

| Angle of View 1 | 32°*25.8° |
|---|---|
| Angle of View 2 | 12.5°*10° |

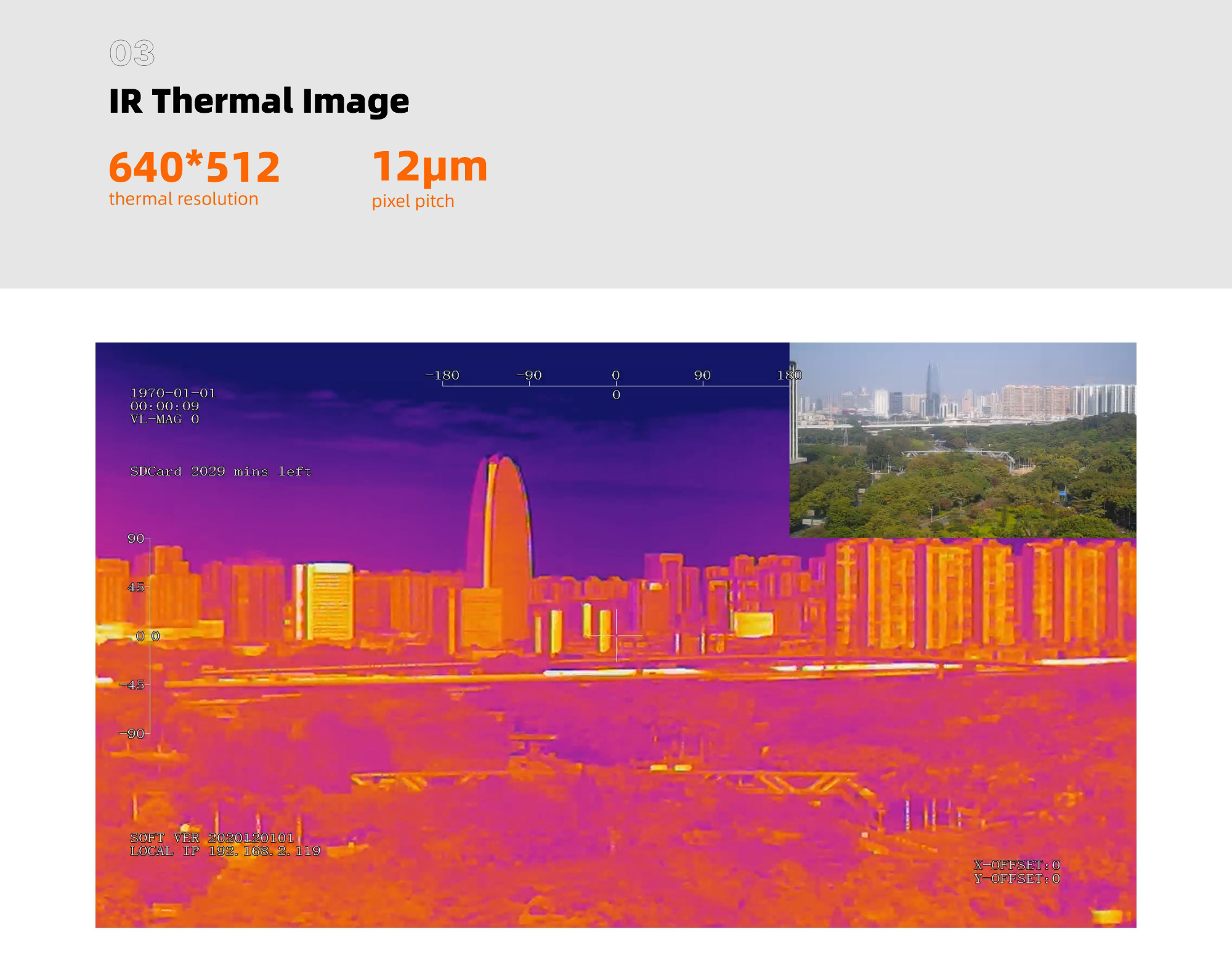

| Working mode | Uncooled VOx long wave (8μm~14μm) thermal imager |
| Detector pixel | 640*512 |
| Pixel size | 12μm |
| Focusing method | Athermal prime lens |
| Color palette | White hot, pseudo color |
| Digital zoom | 1x ~ 4x |
| Sync correct time | Yes |
| Update rate of deviation pixel | 60Hz |
|---|---|

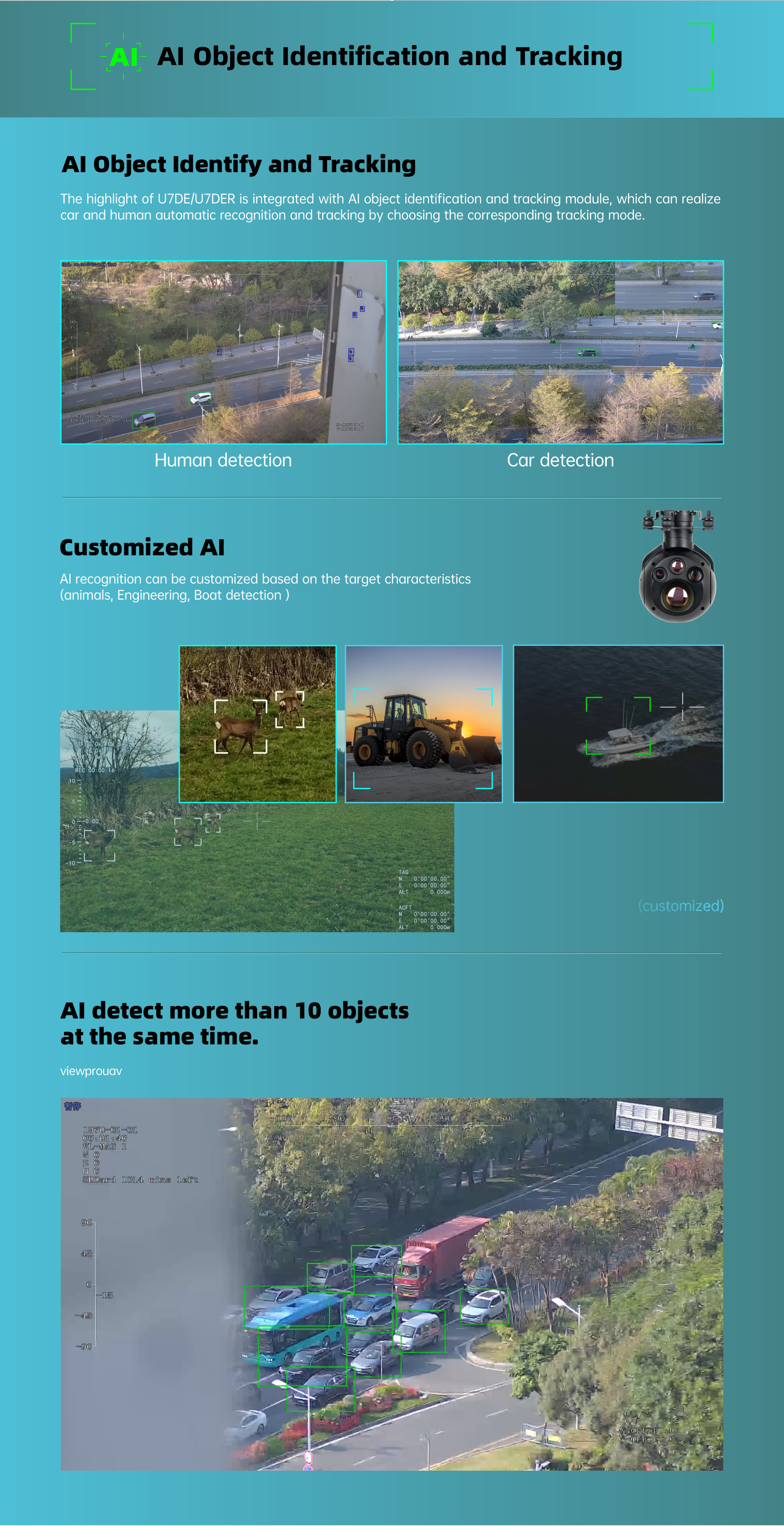

| Minimum object contrast | 5% |
| Minimum object size | 16*16 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | ±48 pixel/frame |
| Object memory time | 100 frames |

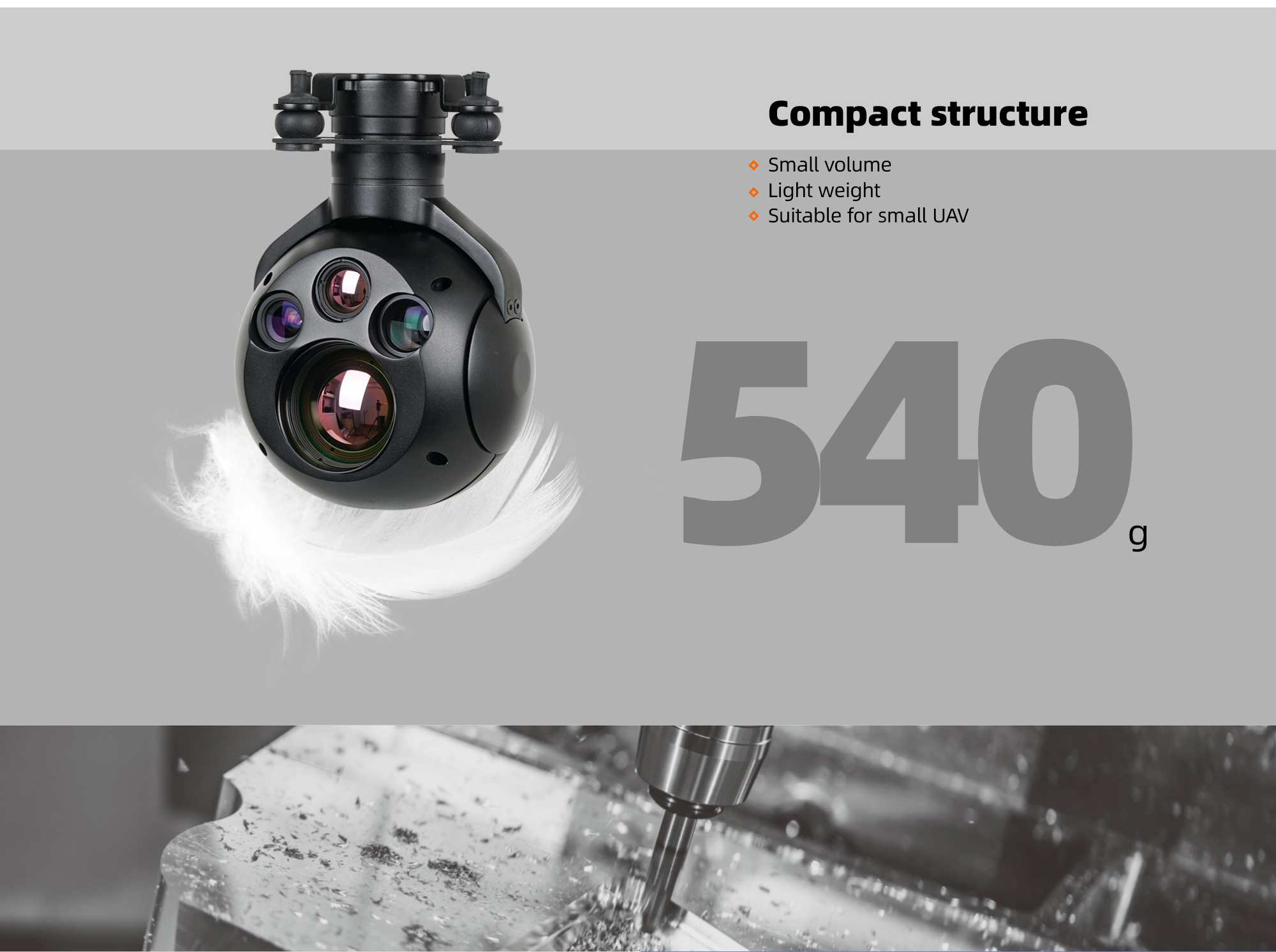

| N.W. | 525g (with damping system) |
|---|---|
| Product meas. | 95.9*86.7*135.6mm |
| Accessories | 1pc gimbal camera device, screws, USB to TTL cable / Hight quality plastic box with foam cushion |
| G.W. | 525g |
| Package meas. | 167*158*120mm |
