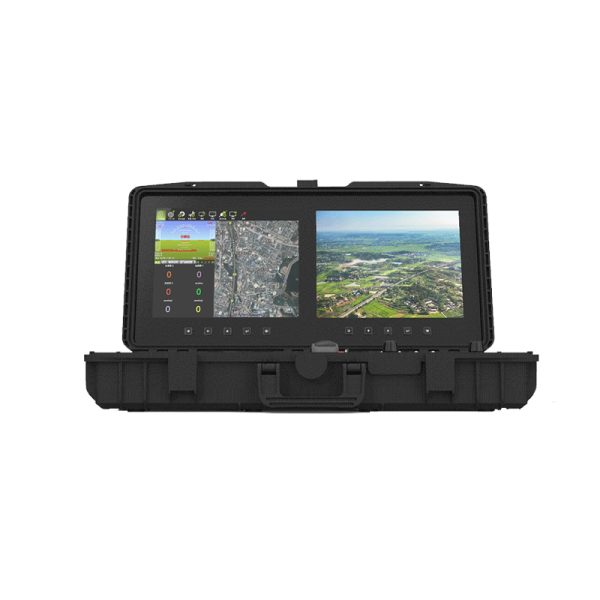

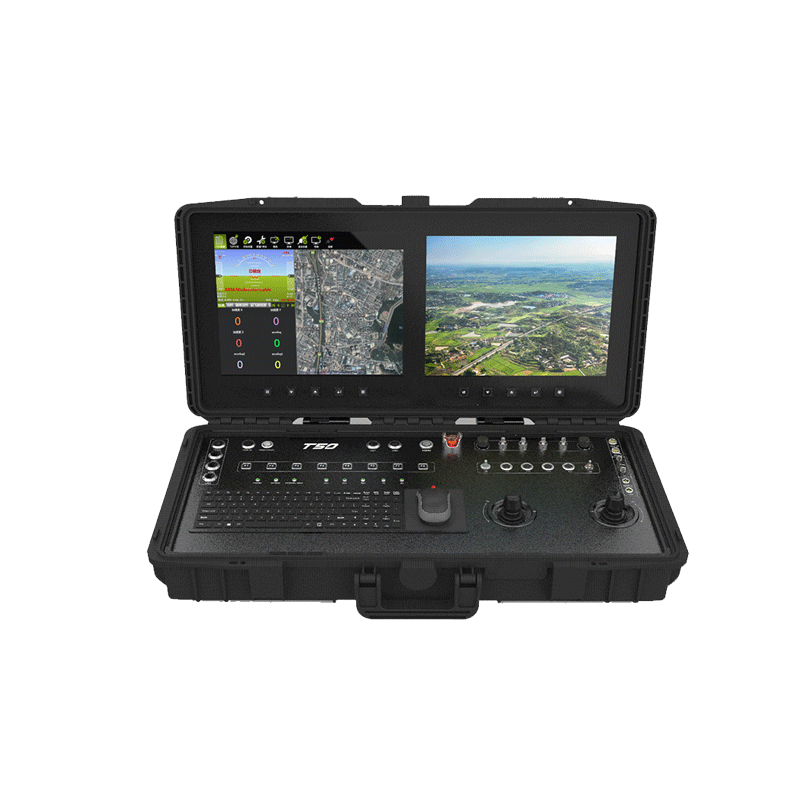

T50 Dual-Screen UAV Ground Control Station
The T50 Dual-Screen Ground Control Station is a highly integrated, industrial-grade solution designed for demanding UAV mission operations. With its dual 17-inch high-brightness displays, the T50 offers simultaneous views for flight telemetry, real-time video, and mission planning. Powered by an Intel i7 processor, 32GB RAM, and a 1TB SSD, it delivers exceptional computing performance to handle complex control tasks and data processing with ease.
The GCS comes equipped with a full set of customizable physical controls, including dual joysticks, multiple knobs, switches, and buttons for intuitive command of both the UAV and its payload. It supports dual SBUS outputs, low-latency communication (40ms), and seamless integration with various UAV systems.
The rugged all-in-one design includes Wi-Fi 6, Bluetooth, and multiple I/O ports, housed in a compact folding chassis with a durable hard case for field deployment. Its long battery life—up to 8 hours—and support for 150km+ wireless data links make it ideal for long-range, high-performance operations in mapping, inspection, defense, and surveillance.
T50 is the go-to choice for UAV professionals who need power, portability, and precision.
Description
Description
The T50 is a high-performance dual-screen Ground Control Station (GCS) designed for professional UAV operations, offering advanced control, real-time video display, and seamless mission planning capabilities. Built for reliability and field versatility, it combines **robust industrial design** with high-end computing performance, making it ideal for both civil and defense UAV applications.
Key Features
- Dual 17″ High-Brightness Screens: Two large 1280×1024 touchscreens for split view (flight control/video display) with **1000 nits** brightness for outdoor visibility.
- Powerful Embedded Computer: Integrated **Intel i7-1260P** processor, **32GB RAM**, and **1TB SSD** (up to 2 TB), running Windows 10 / Linux.
- Integrated Data Links & Controls: Industrial-grade joysticks, switches, and buttons. Supports customizable frequency modules (900MHz, 1.4GHz, 2.4GHz) for C&C and video.
- Highly Portable & Rugged: Compact, folding design housed in a protective hard case for demanding environments.
- Rich I/O Interfaces: Includes HDMI input, USB 3.0, LAN, and Type-C ports for flexible integration.
- Long Battery Life: Dual hot-swappable battery packs (30,000mAh) for up to **8 hours** of continuous field operation.
Applications
- UAV Mission Planning and Control
- Real-time Video Monitoring and Payload Operation
- Industrial Inspection, Surveillance, and Mapping
- Defense and Security Operations
T50 GCS & Integrated Video Transmission Pricing
The T50 GCS can be equipped with advanced V31 or V31 Pro transmission modules for long-range operations.
| Model | Transmission Range |
|---|---|
| T50 (No DataLink) | — |
| T50V31-20KM | 20 km |
| T50V31-30KM | 30 km |
| T50V31Pro-50KM | 50 km |
| T50V31Pro-80KM | 80 km |
| T50V31Pro-150KM | 150 km+ |
Note: All prices include the GCS, integrated video/data link modules, antennas, and essential accessories.
T50 Ground Control Station – Technical Specifications
| Category | Specification |
|---|---|
| Physical & Display | |
| Overall Weight | 20,000 g |
| Overall Dimensions | 850 mm (L) × 425 mm (W) × 160 mm (H) |
| Display Screen | Dual 17-inch, 1280×1024 resolution, 1000 nits brightness |
| Computer System | |
| CPU | Intel i7-1260P (standard) |
| RAM | 32 GB (standard) |
| SSD Storage | 1 TB (standard), up to 2 TB max |
| Operating System | Windows 10 / Linux |
| Touch Pad | Capacitive 10-finger touch screen |
| Network | Wi-Fi 6, Bluetooth, AX211 NIC |
| Interfaces | HDMI input, USB 3.0 ×2, LAN ×3, Type-C |
| Remote Control Interface | |
| Physical Channels | 2× Main joysticks, 6× Knobs, 12× Key buttons, 4× 3-position switches, 2× 2-position switches, 1× Emergency stop button |
| Remote Control Function | Dual SBUS independent output; simultaneous control of UAV and payload |
| Control Latency | 40 ms |
| SBUS Ports | USB IN ×1, SBUS OUT ×2 |
| Battery & Power | |
| Battery Capacity | 25.2V / 30,000mAh (external power supported) |
| Endurance | Up to 8 hours with full battery |
| Charging Port | DC 25.2V |
| Communication Link | |
| Integrated Link | V31 module: 150 km+ range |
| Third-party Links | Compatible with external communication modules |
