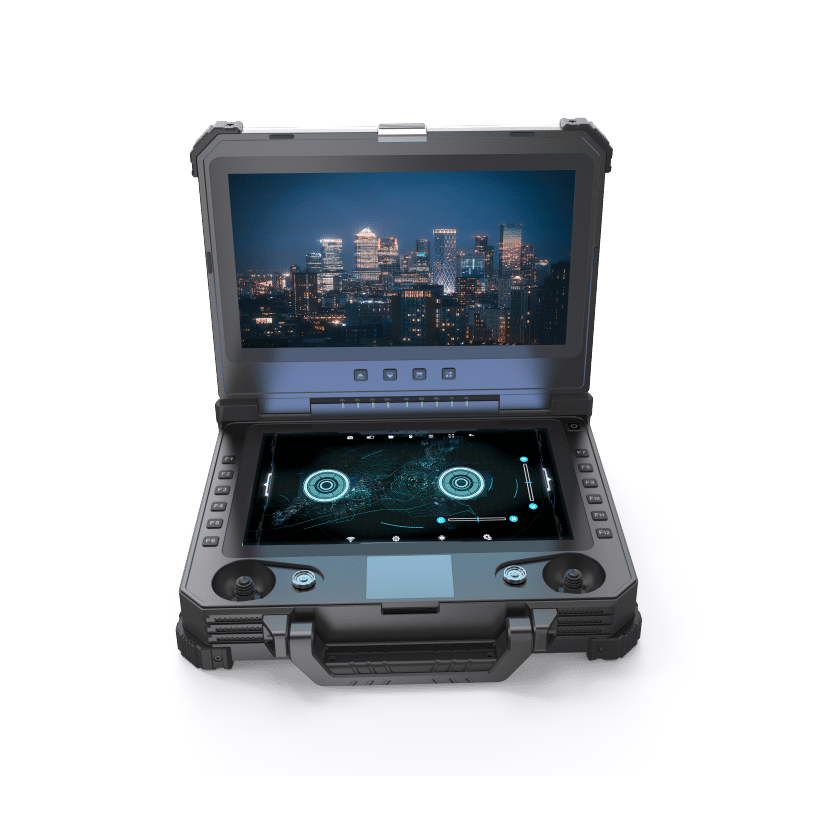

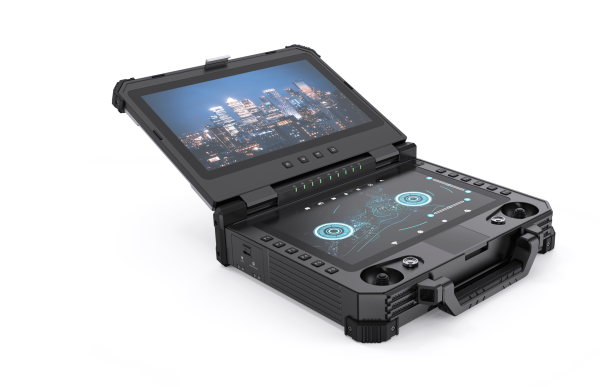

T40 Dual Screen UAV Ground Station
The T40 Ground Control Station is a compact yet powerful solution for professional UAV and UGV operators. To further enhance its field capability, the T40 can be integrated with various wireless video and data transmission systems, enabling long-range real-time telemetry, HD video streaming, and reliable control signal transmission.
Depending on mission requirements, users can choose from several pre-configured transmission modules, including the V21 short-range module and the V31 series supporting 20 km to 30 km ranges. These modules are seamlessly integrated with the T40’s operating system and interface, offering a plug-and-play experience with minimal setup.
Each solution includes a complete set of components such as antennas, internal connections, and software support. Whether used for industrial inspection, mapping, or tactical operations, the T40 with its configurable data links offers a flexible, cost-effective GCS platform for professionals who demand performance, portability, and precision.
Description
T40 Ground Control Station – Compact Power for UAV/UGV Missions
The T40 Ground Control Station is a compact, durable, and highly functional GCS platform tailored for professional UAV and UGV applications. Built into a **rugged aluminum alloy case** with a protective cover and ergonomic design, the T40 delivers powerful command-and-control capabilities in a lightweight and portable form factor.
Equipped with a **10.1-inch high-brightness touchscreen** and industrial-grade dual joysticks, the T40 offers intuitive control over UAV platforms, gimbals, and payload systems. It supports **dual SBUS output** for simultaneous control of flight and payload, while offering customizable channels through a wide array of physical switches, buttons, and knobs.
Ideal for field deployment, the T40 is powered by a built-in computer with an **Intel i5 processor, 8GB RAM, and SSD storage**. Its reliable communication interface and wide compatibility with mainstream autopilot systems make it a versatile choice for operations such as aerial inspection, surveying, mapping, and robotic ground vehicle (UGV) control.
Key Features
- Lightweight and portable all-in-one design
- High-resolution **10.1” touchscreen** with sunlight readability (1000 nits)
- **27 physical control channels**, including dual joysticks, knobs, buttons, and switches
- **Dual SBUS outputs** for separate UAV and payload control
- Integrated industrial-grade computer with **Windows/Linux OS**
- Long battery life with **hot-swappable packs** for field endurance
- Aluminum alloy casing with protective cover and folding handle
Applications
- UAV and UGV field control
- Dual control of aircraft and gimbal/payload
- Autonomous mission planning
- Real-time data display and flight status monitoring
- Aerial surveying, inspection, mapping, and rescue operations
T40 GCS & Transmission System Pricing
The T40 GCS can be equipped with optional video and data transmission systems.
| Model | Transmission Range |
|---|---|
| T40 (No DataLink) | — |
| T40V21 | 15 km |
| T40V31-20KM | 20 km |
| T40V31-30KM | 30 km |
T40 Ground Control Station – Technical Specifications
🔹 Remote Controller & Physical
| Category | Specification |
|---|---|
| Physical | |
| Housing Material | Aluminum alloy with protective cover |
| Dimensions | 410mm (L) × 330mm (W) × 85mm (H) |
| Weight | ≤ 7.5 kg |
| Display | **10.1-inch touchscreen**, 1280×800 resolution, **1000 nits** brightness |
| Operating Temperature | -20°C to +60°C |
| Computer | |
| CPU | Intel Core i5 |
| RAM | 8 GB |
| Storage | SSD (up to 1TB supported) |
| OS | Windows 10 / Linux |
| Interfaces | USB 2.0 ×2, USB 3.0 ×2, HDMI ×1, LAN ×2 |
| Wireless | WiFi, Bluetooth |
| Remote Control | |
| Physical Channels | 2× Joysticks, 4× Knobs, 12× Buttons, 3× 3-position switches, 2× 2-position switches |
| Total Control Channels | **27** |
| Control Output | Dual SBUS independent output |
| Latency | ≤ 40 ms |
| Battery | |
| Power Supply | **Hot-swappable battery packs** (standard), or external DC input |
| Operating Time | 4–6 hours (depending on usage) |
| Charging Port | DC 24V |
