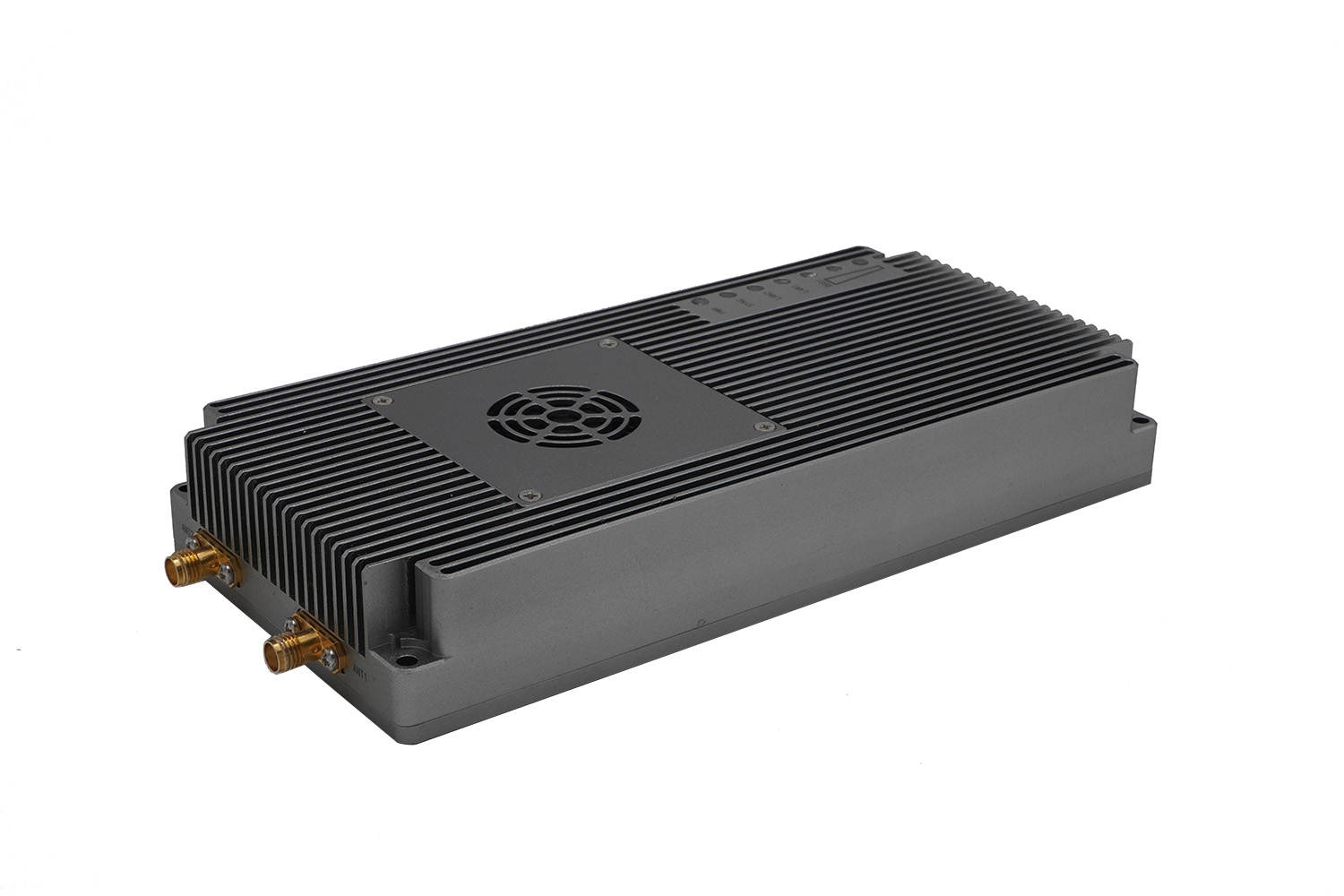

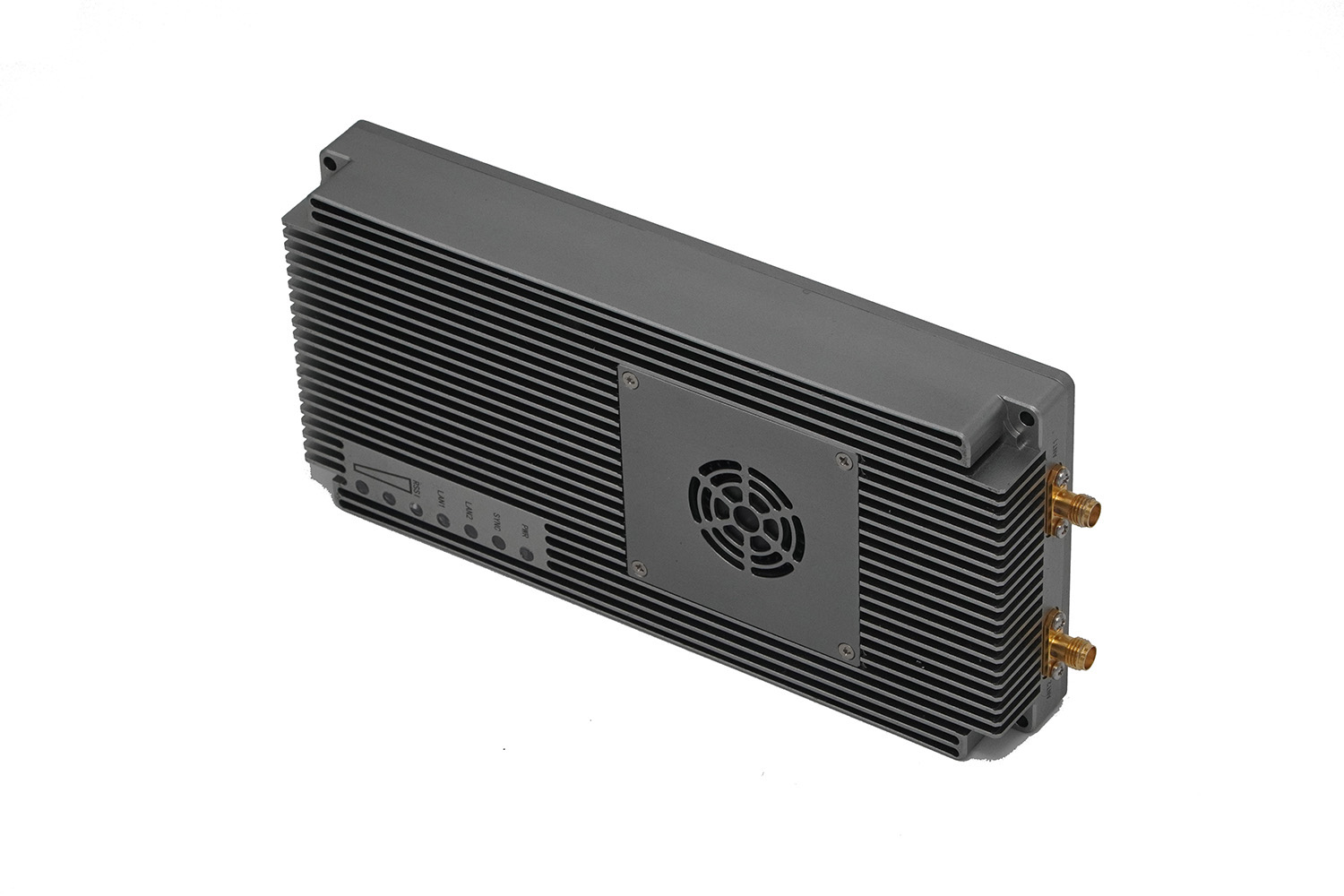

Swiftlink P43 20W 1.4Ghz 200km Wireless Data/Video Transmission System
The Swiftlink P43 is a 20W, 1.4GHz TDD wireless transmission and receiver device, developed using industrial-grade FPGA and transceiver technology. It features real-time interference detection, adaptive channel selection, adaptive channel code rate, automatic retransmission, and automatic power control. These capabilities significantly enhance its resistance to multipath interference and overall anti-interference performance, ensuring high reliability, excellent stability, and low latency. This product is ideal for applications such as firefighting, inspection, monitoring, and drones.
Product Features
Comprehensive solution for video, command and control, and telemetry
Air-to-ground visibility exceeds 150km with omni antennas
Air-to-ground visibility exceeds 200km with directional antennas
Adaptive Channel Selection (ACS)
Real-time interference detection with anti-interference algorithm processing
Automatic Power Control (APC)
Adaptive modulation mode based on Shannon limit (Auto MCS)
High reliability, excellent stability, and low latency
Dual network ports and four serial ports
Description
The **Swiftlink P43** is a **20W, 1.4GHz TDD** wireless transmission and receiver device, developed using industrial-grade **FPGA** and transceiver technology. It features **real-time interference detection**, **adaptive channel selection**, adaptive channel code rate, automatic retransmission, and **automatic power control**. These capabilities significantly enhance its resistance to multipath interference and overall anti-interference performance, ensuring **high reliability, excellent stability, and low latency**. This product is ideal for applications such as firefighting, inspection, monitoring, and drones.
Product Features
- Comprehensive solution for video, command and control, and telemetry
- Air-to-ground visibility exceeds **150km with omni antennas**
- Air-to-ground visibility exceeds **200km with directional antennas**
- **Adaptive Channel Selection (ACS)**
- Real-time interference detection with anti-interference algorithm processing
- **Automatic Power Control (APC)**
- Adaptive modulation mode based on Shannon limit (**Auto MCS**)
- High reliability, excellent stability, and **low latency**
- Dual network ports and four serial ports
Product Parameters
- Working Frequency
- 1350~1470MHz
- Wireless Channel
- 2T2R
- Transmission Power
- 43dBm (**20W**)
- Transmission Distance
- **200km** (directional), **150km** (omni)
- Channel Bandwidth
- 10MHz
- Modulation Mode
- QPSK/16QAM
- Receiving Sensitivity
- -99dBm@10MHz@QPSK1/3
- Data Rate
- Up to 15Mbps@16QAM3/4
- Transmission Delay
- 10ms
Interface Specifications:
- Radio Frequency Interface: SMA*2
- Equipment Interface: Network Port *2 + TTL/RS232 *2 + 422 + SBUS
Electrical Specifications:
- Overall Power Consumption: Air Unit ≤ 90W, Ground Unit ≤ 15W
- Working Voltage: DC 22~30V, Typical value: 28V@4A
Physical Specifications:
- Dimensions (L×W×H): 180mm × 81mm × 28mm
- Weight: 415g
- Working Temperature: -40°C~+65°C
Product Includes
- Swiftlink P43 Wideband Bidirectional Wireless Links (2 units):
-
- Swiftlink P43 bidirectional wireless link, operating frequency range: 1350~1470MHz, transmission power: 20W, power supply: 15~26V, typical 24V.
- Serial port configured to RS232 level.
- Includes power connection cables and J30J cables.
- Airborne Antennas (2 units):
- 29cm small fiberglass antennas for 1.4GHz frequency band.
- Ground Antennas (2 sets):
- 60cm fiberglass antennas for 1.4GHz frequency band, with 2.5-meter extension cables and suction cups.
