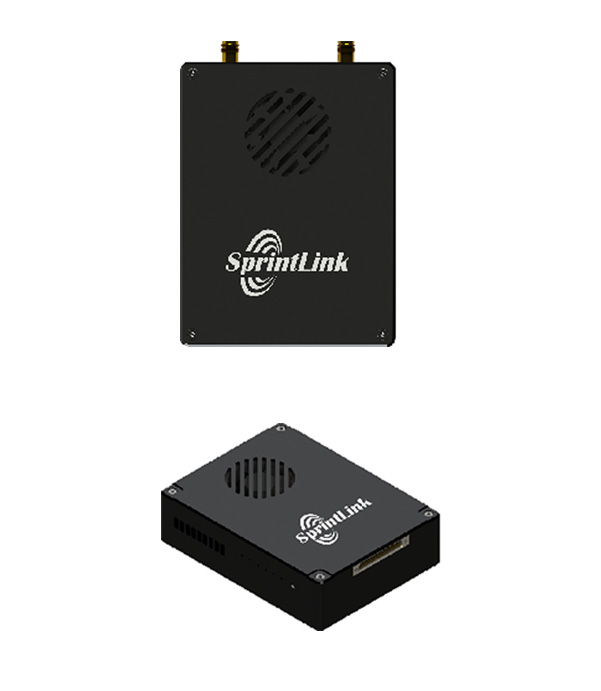

Sprintlink 2W 1.4Ghz 50km Long Range Wireless Video-Data-RC Link

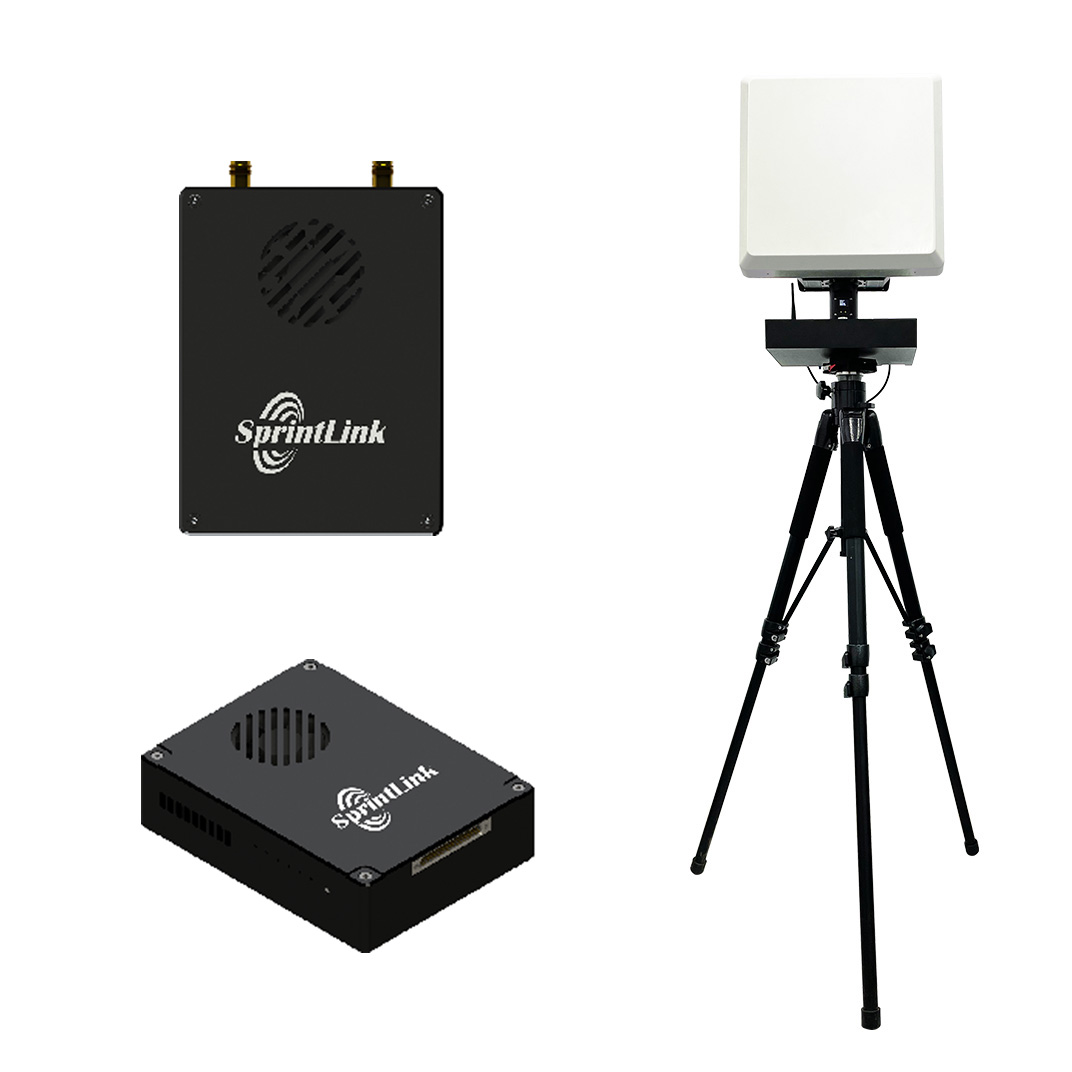

Sprintlink 2W is built especially for the scenario where the communication range is above 50km. With a SprintTracker, its transmission range can be over 80km. Please find our option of Sprintlink 2w with SprintTracker.
Sprintlink 2w adopts private COFDM protocol, features long range transmission, high sensitivity and high throughput.
Its ultra-high bandwidth and stream support can easily handle 4K resolution video data streams. 200ms screen-to-screen low latency and good delay jitter-sensitive control, meeting the end-to-end real-time requirements of video data.
Features:
TDD bi-directional link for video/telemetry/RC communication.
Receiving diversity and dynamic antenna switching for enhanced reception.
H.264 & H.265 video compression for superior video quality.
Low level re-transmission and adaptive frequency hopping for seamless data transfer.
AES128 & AES 256 encryption on FPGA for uncompromising security.
Description
Description
Sprintlink 2W 1.4Ghz 50km Long Range Wireless Video-Data-RC Link is built especially for the scenario where the communication range is above **50km**. With a **SprintTracker**, its transmission range can be even over **80km**.
Sprintlink 2w adopts **private COFDM protocol**, features long range transmission, high sensitivity and high throughput.
Its ultra-high bandwidth and stream support can easily handle **4K resolution** video data streams. **200ms screen-to-screen low latency** and good delay jitter-sensitive control, meeting the end-to-end real-time requirements of video data.
Features:
- **TDD bi-directional link** for video/telemetry/RC communication.
- Receiving diversity and **dynamic antenna switching** for enhanced reception.
- **H.264 & H.265 video compression** for superior video quality.
- Low level re-transmission and **adaptive frequency hopping** for seamless data transfer.
- **AES128 & AES 256 encryption** on FPGA for uncompromising security.
Software Defined Radio (SDR)
The realization of modifiability of the communication underlying protocol gives the system the ability to **continuously evolve and optimize**.
Fully and effectively verify the improvement of chipization, and greatly reduce the risk of tape-out.
Flexible customization to **improve design-win capabilities**.
Orthogonal Frequency Division Multiplexing (OFDM)
Effectively **eliminate multipath interference** under long-distance transmission.
Low Density Check Code (LDPC)
The self-optimized design of QC-LDPC gives the system **excellent error correction performance** and greatly improves the receiving performance.
Private Communication Protocol
Optimized design for video transmission; optimized frame format and pilot frequency greatly **improve the receiving performance** of video transmission.
RC Link Specifications
| Frequency | 1.4GHz (default)/2.4GHz – Please contact us if you need 2.4Ghz |
|---|---|
| Bandwidth | 2.5MHz (uplink); 10MHz(downlink) |
| Power | 33dBm |
| Modulation | OFDM |
| Constellation | BPSK; QPSK; 16QAM |
| FEC | LDPC (1/2, 2/3, 3/4, 5/6) |
| Duplex | TDD |
| Downlink throughput | 2M bps – BM bps |
| Uplink throughput | 300kbps |
| Voltage | 12V-30V |
| Working temperature | -20°C~60°C |
| Size | 125.3 x l08.4 x 23.5mm |
| Weight | 345g |
| Video Interface | Ethernet |
| Other Interface | Serial; PPM/S.bus |
