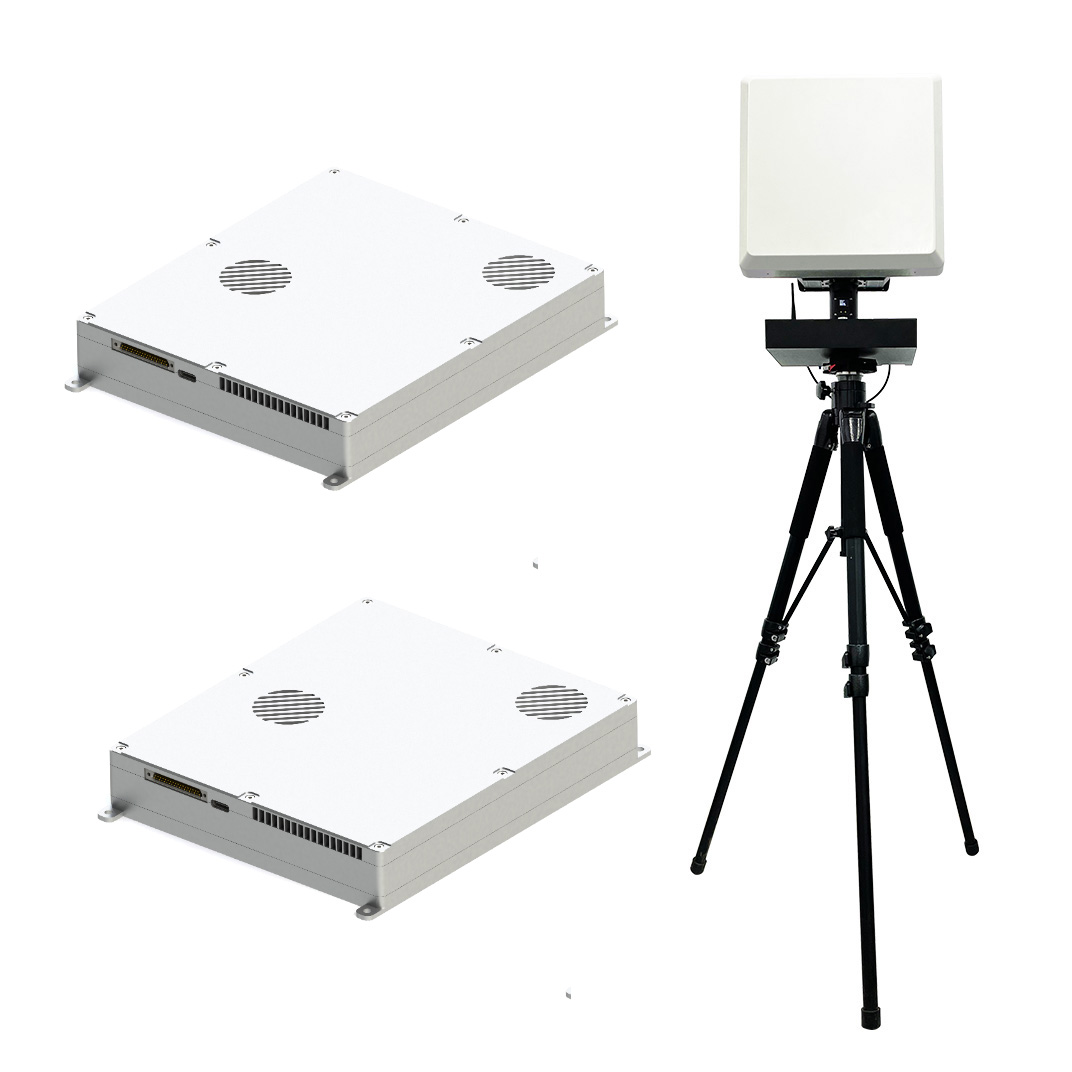

Sprintlink 10W 1.4Ghz 150km Long-Range Wireless Video-Data-RC Link with SprintTracker
The Sprintlink 10W 1.4Ghz sets a new benchmark in wireless communication, offering an unparalleled range exceeding 150km. This state-of-the-art module, when paired with a 16dpi antenna panel and the SprintTracker, ensures consistent and high-quality transmission, even in the most challenging terrains.
A standout feature is its integrated TDD bi-directional link, which harmoniously blends video, telemetry, and RC, providing a comprehensive communication solution. The module incorporates advanced H.264 & H.265 video compression techniques, ensuring efficient and top-tier video data transmission. With AES128 & AES256 encryption protocols on FPGA, data security remains uncompromised. The Sprintlink 10W employs a private COFDM protocol, renowned for long-range transmission, heightened sensitivity, and superior throughput.
Designed to handle 4K resolution video streams with a mere 200ms latency, it meets real-time video data requirements with precision. Ideal for drones, remote sensing, and other long-range applications, the Sprintlink 10W 1.4Ghz stands as the epitome of wireless communication excellence.
Description
Description
The **Sprintlink 10W 1.4Ghz** is a cutting-edge wireless communication solution tailored for scenarios demanding extended communication ranges **exceeding 150km**. When combined with a **16dpi antenna panel** and the ground-based **SprintTracker**, this module can achieve a communication range well beyond 150km, ensuring consistent and high-quality transmission even in challenging environments.
Key Features:
- Integrated TDD Bi-directional Link: This feature offers a harmonious blend of video, telemetry, and RC, providing users with a comprehensive communication toolkit.
- Dynamic Antenna Capabilities: With receiving diversity and dynamic antenna switching, the Sprintlink 10W ensures the best possible signal strength at all times.
- High-End Video Compression: Incorporating both **H.264 & H.265** video compression and decompression techniques, it guarantees efficient and top-tier video data transmission.
- Robust Security: With **AES128 & AES256** encryption protocols embedded on FPGA, data security is never compromised.
Technical Highlights:
The Sprintlink 10W employs a **private COFDM protocol**, known for its long-range transmission, heightened sensitivity, and superior throughput. It’s designed to handle **4K resolution** video data streams effortlessly, boasting a **200ms screen-to-screen low latency**. This ensures real-time, end-to-end video data requirements are met with precision.
Specifications Snapshot:
| Frequency Range | 1420MHz~ 1470MHz |
|---|---|
| Bandwidth | 10MHz (uplink); 20MHz (downlink) |
| Power Output | 40dBm |
| Modulation Technique | OFDM |
| Duplex Mode | TDD |
| Downlink Throughput | 2.3Mbps~8Mbps |
| Uplink Throughput | 600kbps |
| Voltage Range | 3s-6s |
| Operational Temperature | -40°C ~60°C |
| Dimensions | 160X139.3X27.8mm |
| Weight | <700g |
| Interfaces | Ethernet (Video), Serial; PPM/S.bus; USB |
| Communication Range | Up to 150km |
For professionals in the field of drones, remote sensing, and other applications requiring long-range, high-quality, and secure communication, the Sprintlink 10W 1.4Ghz is the **ultimate choice**.
