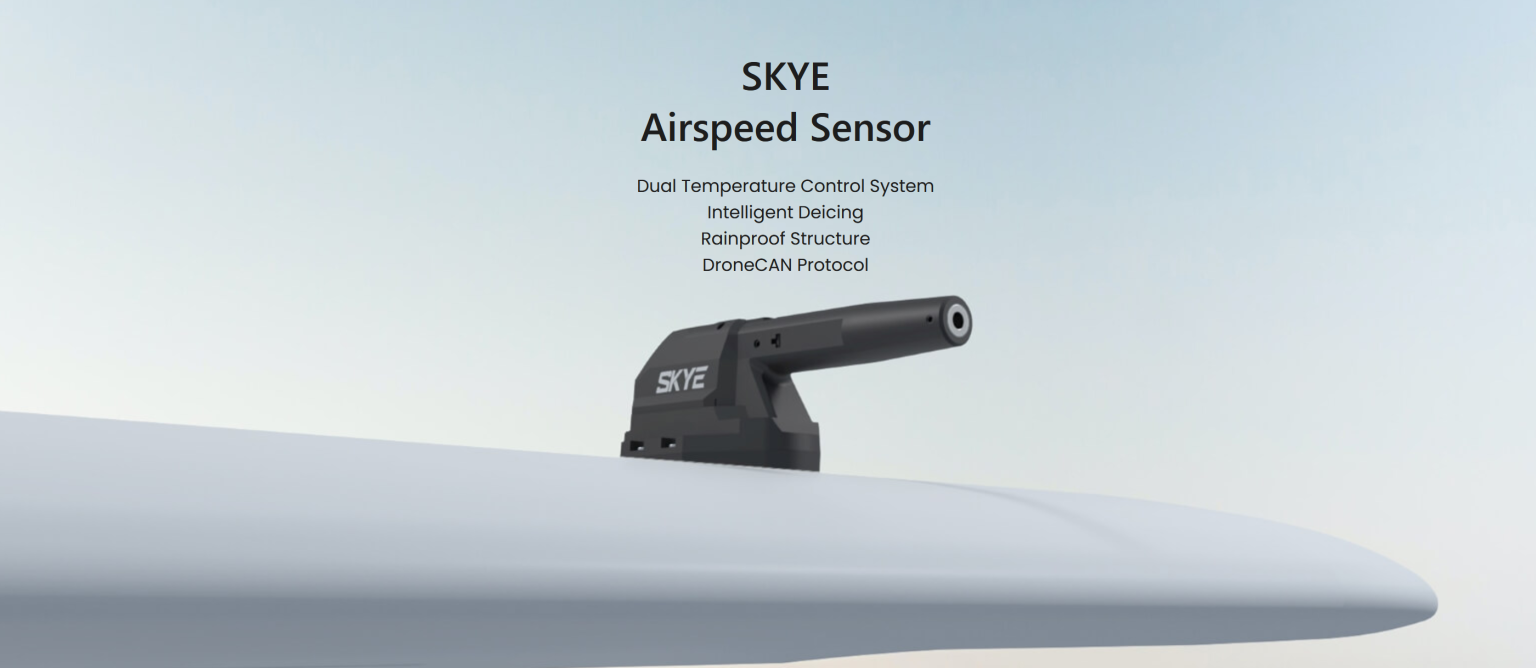

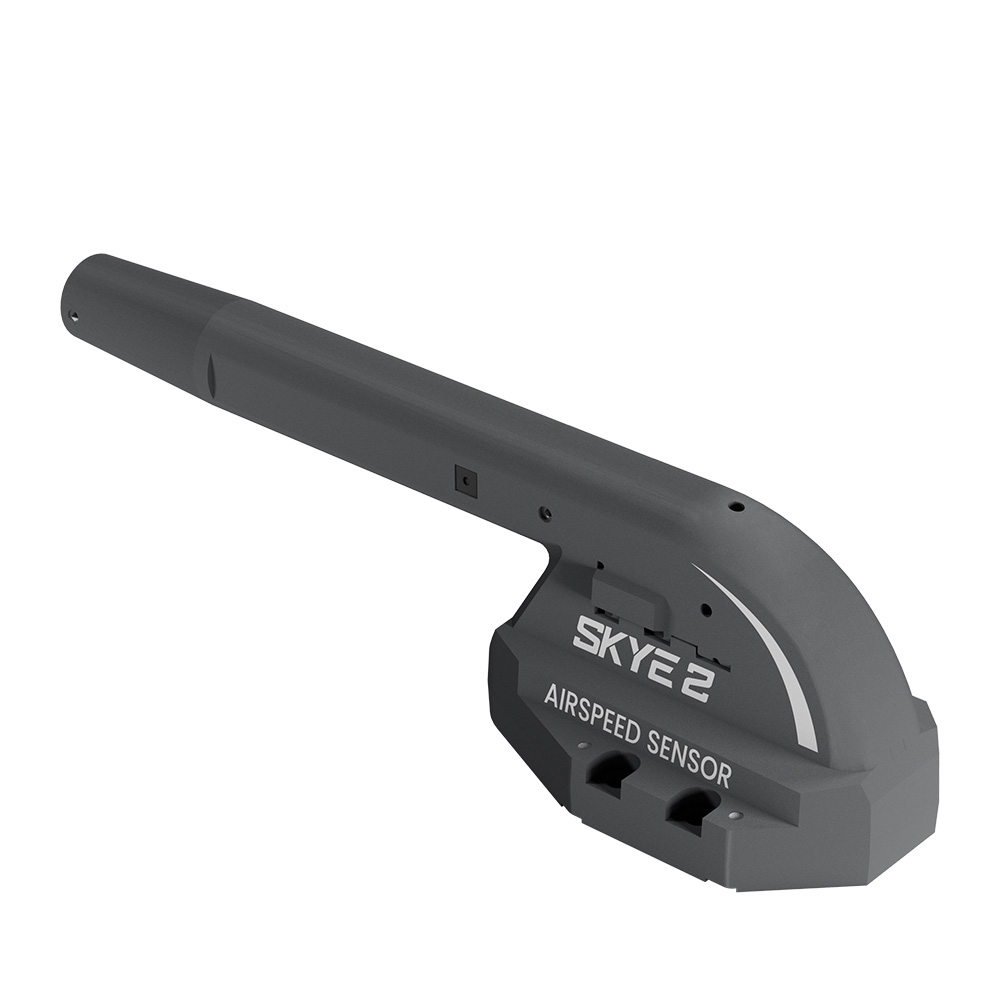

SKYE 2 DroneCAN Intelligent De-icing and Rainproof Airspeed Sensor
The CUAV SKYE 2 DroneCAN Airspeed Sensor is a next-generation UAV airspeed sensor designed for harsh environments. It features an integrated pitot tube, airspeed sensor, temperature and humidity sensor, and an ARM M4 processor, providing high-precision airspeed measurement with intelligent de-icing and rainproof protection.
Equipped with a 35W high-power heating system, the SKYE 2 automatically adjusts heating based on ambient temperature and humidity, preventing ice buildup and ensuring accurate data. Its IP44-rated rainproof design includes drainage holes to eliminate water accumulation during flight.
Supporting the DroneCAN protocol, the SKYE 2 ensures seamless integration with ArduPilot, PX4, and other UAV platforms. With dual temperature compensation and an industrial-grade STM32F4 processor, it provides low-temperature drift and shock-resistant performance.
Description
CUAV SKYE 2 DroneCAN Airspeed Sensor
Next-Generation UAV Airspeed Sensor with Dual Temperature Control & DroneCAN Protocol
The **CUAV SKYE 2 DroneCAN Airspeed Sensor** is an industry-first, highly integrated solution for UAVs. It combines a **pitot tube, airspeed sensor (MS5525), temperature and humidity sensor, ARM M4 processor (STM32F4), and a dual temperature control system** into a single, compact unit. With its **intelligent de-icing, rainproof design, and DroneCAN protocol support**, it ensures accurate and reliable airspeed measurement in challenging weather.
Key Features ✅

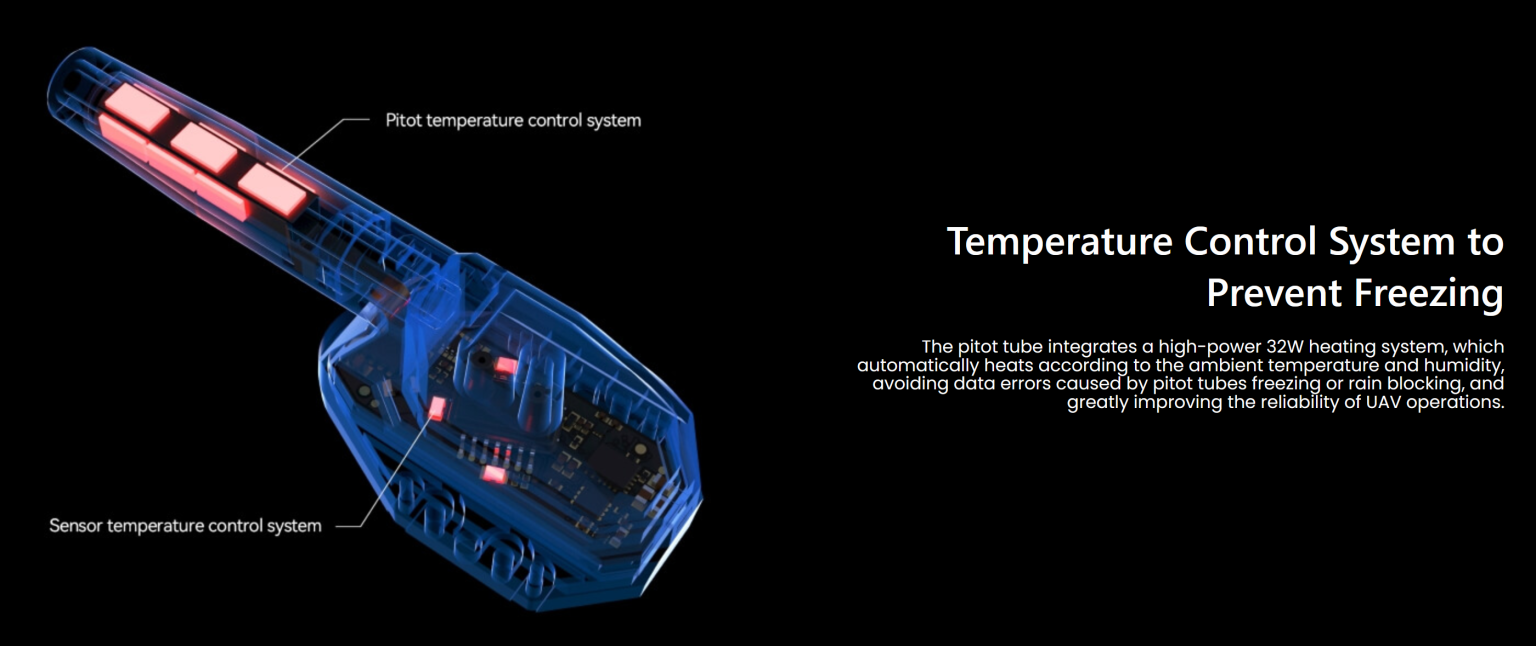

- **Dual Temperature Control System**: Prevents freezing for accurate readings in extreme conditions.
- **Intelligent De-Icing Technology**: Features a **32W pitot tube heating system** that automatically adjusts to ambient temperature and humidity.

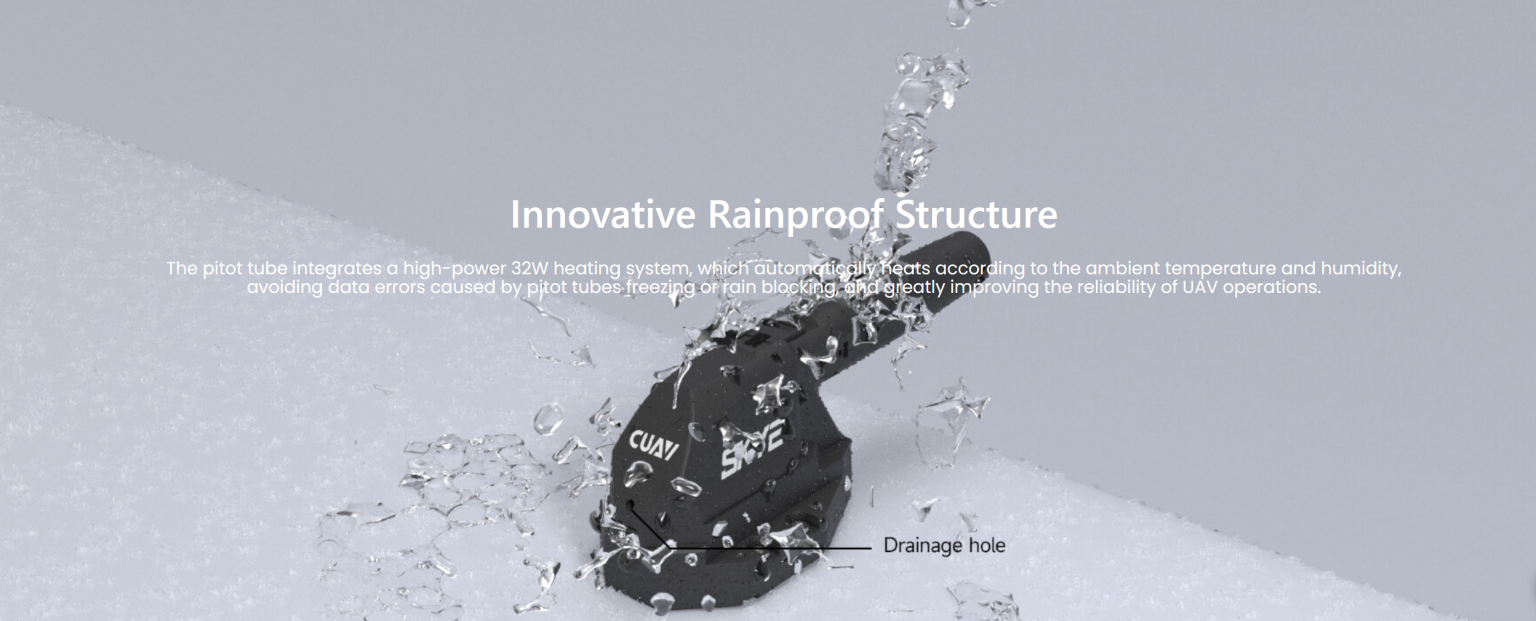

- **Rainproof Structure**: Designed to prevent water and ice buildup, ensuring continuous performance.
- **DroneCAN Protocol Support**: Allows seamless integration with ArduPilot, PX4, and other open-source UAV platforms.

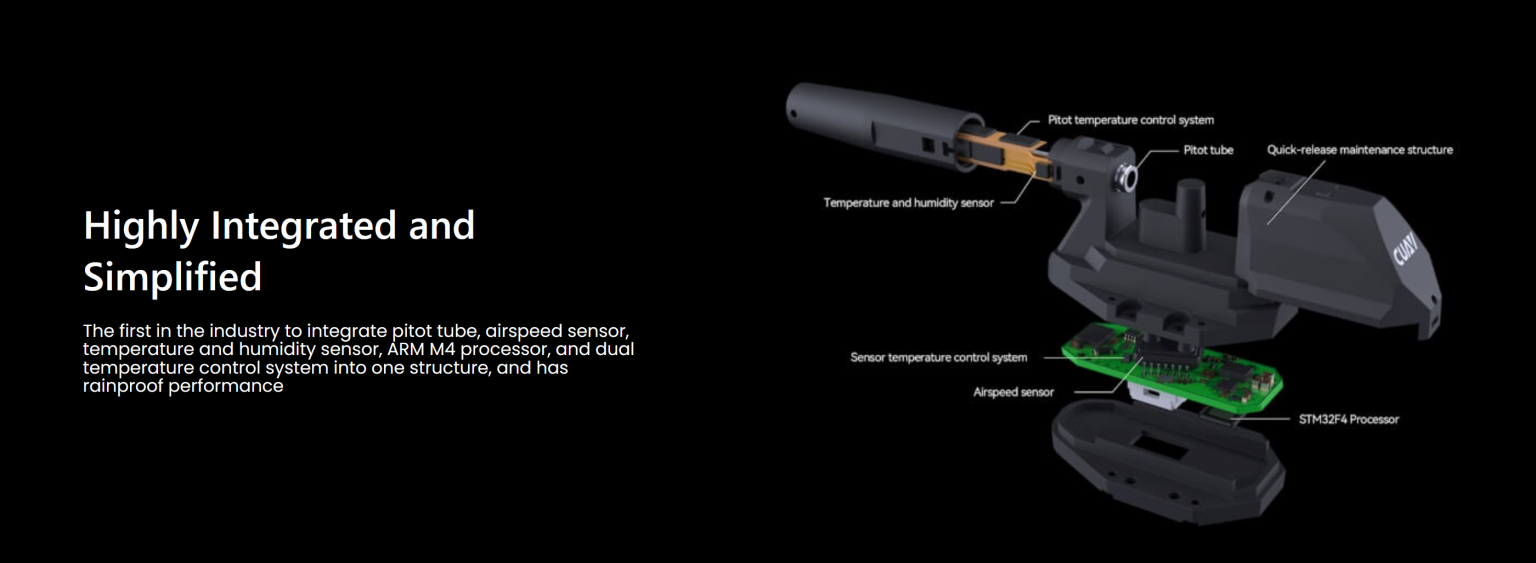

- **Highly Integrated & Simplified Design**: Industry-first single-unit structure combining multiple components.
- **Industrial-Grade STM32F4 Processor**: Provides high-speed data processing for **real-time airspeed compensation**.
- **Low-Temperature Drift & Shock Resistance**: Ensures stable performance under vibration and extreme weather.
- **Enhanced UAV Performance**: Ideal for fixed-wing UAVs, VTOL drones, and industrial drone applications.
Technical Specifications
Main Parameters
| Parameter | Specification |
|---|---|
| Processor | STM32F4 (ARM M4) |
| Protocol | DroneCAN |
| Pitot Tube Temperature Control | Resistance heating |
| Airspeed Sensor | MS5525 |
Sensor Performance
| Parameter | Specification |
|---|---|
| Airspeed Measurement Range | $\pm 500 \text{ km/h}$ |
| Airspeed Accuracy (Pressure) | $\pm 0.69 \text{ Pa}$ |
| Total Error Band | $\pm 2.5\% \text{ FS}$ |
| Temperature Measurement Range | $-20^\circ \text{C} \text{ to } 125^\circ \text{C}$ |
| Humidity Measurement Range | $0\% \text{ to } 100\%$ |
Physical Characteristics
| Parameter | Specification |
|---|---|
| Pitot Tube Heating Power | $35 \text{W}$ |
| Power Input (DC IN) | $12\text{V} \text{–} 36\text{V}$ |
| Operating Temperature (Electronics) | $-20^\circ \text{C} \text{ to } +75^\circ \text{C}$ |
| Size | $82.5 \times 30.4 \times 28.2 \text{ mm}$ |
| Weight | $22\text{g}$ |
| Protection Level | $\text{IP44}$ (optional upgrade) |
