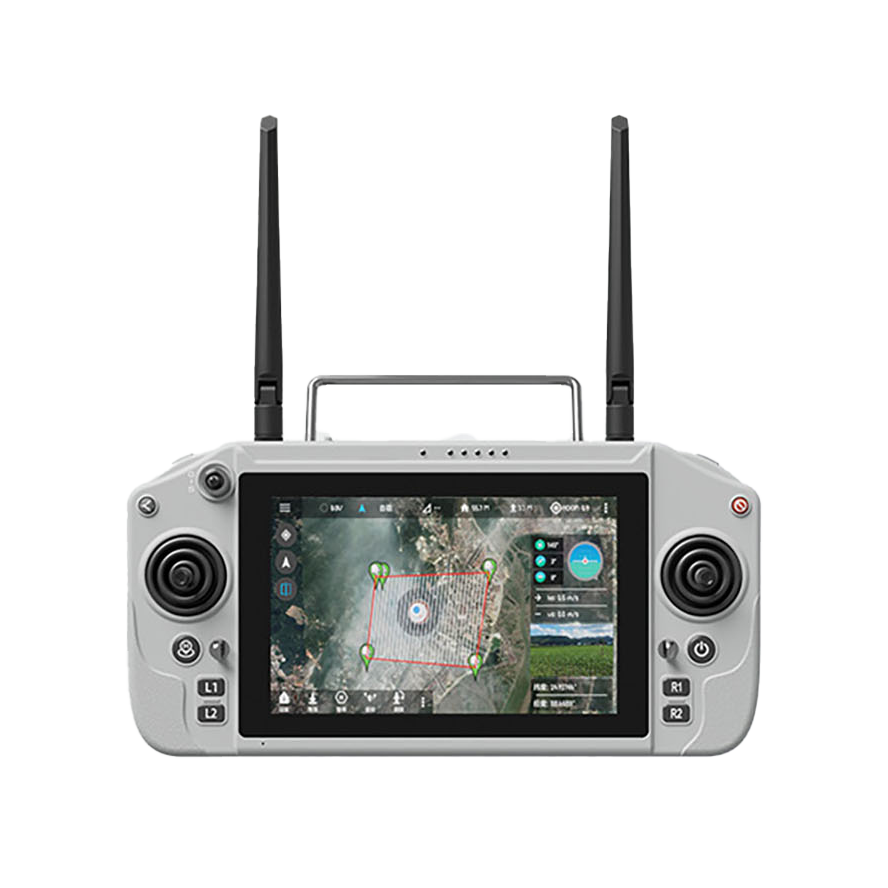

Skydroid G20 Ground Control Station 30km Video Tranmission

The Skydroid G20 is a powerful dual-band remote controller designed for professional UAV applications. Powered by Qualcomm’s latest 6nm processor and running Android 13, it effortlessly supports H264/H265 and 4K video decoding and runs all major ground control software smoothly.

Equipped with a 7-inch high-definition, high-brightness touchscreen, the G20 delivers crystal-clear visuals even under direct sunlight. With Skydroid’s advanced digital link technology, it achieves 30KM image transmission and control range, ideal for demanding long-range missions.

The G20 supports automatic switching between 2.4GHz and 5.8GHz frequencies to ensure strong anti-interference and stable signal transmission in complex environments. Its 8–12 hour battery life and 36W PD fast charging make it a dependable companion for extended field operations.

Designed with versatility in mind, the G20 features a SIM card slot, Type-C, USB, and network ports, while its receiver supports SBUS, PWM, serial, and Ethernet interfaces—making it compatible with a wide range of cameras, gimbals, and flight controllers.

Whether for mapping, inspection, or surveillance, the G20 offers a complete, robust solution for remote UAV control.

Teknik Detaylar

Description

Professional Dual-band 30KM Ground Control Station for UAVs

The Skydroid G20 is a high-end, long-range remote controller tailored for professional UAV operators. Engineered with cutting-edge components, the G20 is equipped with Qualcomm’s latest 6nm 8-core processor and runs on Android 13 (64-bit), delivering ultra-smooth performance and excellent compatibility with mainstream ground station software.

Whether for industrial drone operations, mapping, inspection, agriculture, or defense applications, the G20 provides **real-time HD video transmission, stable control, and flexible connectivity**, all in a rugged and ergonomic form factor.

Key Features

✅ Qualcomm 6nm Processor + Android 13

The G20 features a powerful Qualcomm 6nm chipset, offering hardware decoding support for **H.264/H.265 4K video streams**. With Android 13 OS, users can install and run most mission control apps, such as QGroundControl, Mission Planner, and Skydroid FLY GCS.
✅ 30KM Image Transmission & Control Distance

Skydroid’s proprietary digital link enables **30KM ground-to-air** image and command transmission (LOS). The built-in dual-band module ensures a stable connection even in interference-prone environments.
✅ Dual-band 2.4GHz / 5.8GHz with Auto Switching

G20 supports automatic frequency switching between **2.4GHz and 5.8GHz**, dynamically adjusting according to environmental conditions to optimize communication stability and anti-interference capability.
✅ 7-inch HD High-Brightness Display

Equipped with a **1920×1200 resolution touchscreen**, the G20 ensures visibility under sunlight. Combined with Skydroid’s camera system or third-party RTSP streams, it delivers sharp and low-latency image previews.
✅ 8–12 Hours Endurance + 36W PD Fast Charging

Built with a **20,000mAh high-energy lithium battery**, the G20 can operate continuously for **8 to 12 hours**. It also supports **36W PD fast charging**, minimizing downtime in field conditions.
✅ Rich Interface Options
- SIM card slot for 4G network
- USB and Type-C for charging and data
- Ethernet port for camera access or video sharing. Receivers include multiple **PWM outputs**, **SBUS**, **serial ports**, and **network interfaces**, compatible with mainstream autopilots and gimbals.

Technical Specifications

🔹 Remote Controller

Feature	Specification
Processor	Qualcomm 6nm 8-core
Operating System	Android 13 (64-bit)
Display	7” HD touchscreen (1920×1200)
RAM / Storage	8GB / 128GB
Endurance	8–12 hours
Charging	36W PD fast charging (Type-C)
Transmission Frequency	2.4GHz / 5.8GHz
Transmission Range	Up to 30KM (LOS)
Transmission Power	23dBm @ CE/FCC
Channels	16
Interfaces	USB, Type-C, SIM, Network Port
Weight	1.2kg
Size	277 × 138 × 96 mm
Operating Temperature	-10°C to +55°C

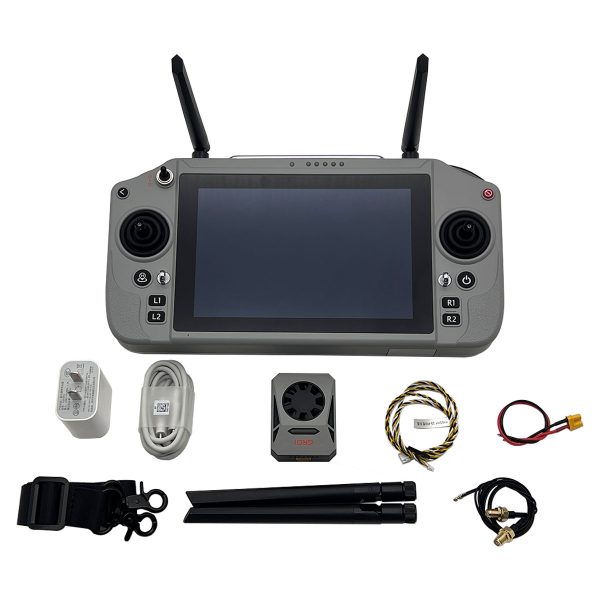

🔹 GR01 Receiver

Feature	Specification
Voltage Input	7.2V – 72V (XT30)
Frequency	2.4G / 5.8G
SBUS Output	1
PWM Channels	3
Data Port	UART + Ethernet
Transmission Rate	20Mbps
RF Power	23dBm @ CE/FCC
Baud Rate	57600 / 115200 / 921600
Operating Temperature	-10°C to +60°C
Dimensions	45.5 × 60 × 21.5 mm
Weight	37g

🔹 G12RX Receiver (Optional)

Feature	Specification
Voltage Input	7.2V – 72V (XT30)
Frequency	2.4G / 5.8G
SBUS Output	1
PWM Channels	2
Data Port	UART + Ethernet
Transmission Rate	20Mbps
RF Power	23dBm @ CE/FCC
Baud Rate	57600 / 115200 / 921600
Operating Temperature	-10°C to +60°C
Dimensions	51 × 40.8 × 23.3 mm
Weight	45g
