Potomac 80km 816/1437MHz Advanced Video/Data Wireless Transmission System

The Potomac 80km 816/1437MHz Video/Data Wireless Transmission System stands as a testament to the future of long-range communication. This system is not just a product but a comprehensive solution tailored for those seeking robust, uninterrupted, and high-quality video and data transmission over vast distances.

At its core, the system is designed for point-to-multipoint broadband access. This means it can seamlessly connect a central hub to up to 16 hosts, making it ideal for expansive networks. Its power is evident with a transmit capability of up to 40dBm, ensuring that data travels clearly and without interference.

One of its standout features is the versatility in bandwidth support, ranging from 1.4MHz to 20MHz. Moreover, users have the flexibility to choose between 816MHz and 1437MHz frequency bands, with customization options available for specific needs.

Beyond its technical prowess, the system boasts intelligent features like automatic power and frequency control. This ensures optimal performance without manual intervention, especially in fluctuating network conditions. Upon activation, the system prioritizes previously used frequency points, but it’s adaptable enough to seek out new frequencies if needed.

Technical Details

Key Features:

  • Broadband Access: Point-to-multipoint connectivity allowing a central hub to connect up to 16 hosts seamlessly.
  • High Transmit Power: Boasts a powerful transmit power of up to 40dBm, ensuring clear and uninterrupted transmission.
  • Versatile Bandwidth Support: Choose from 1.4MHz, 3MHz, 5MHz, 10MHz, and 20MHz bandwidths to suit your specific requirements.
  • Customizable Frequency Bands: Opt between 816MHz and 1437MHz frequency bands, with customization options available.
  • Extended Transmission Range: Achieve a transmission range of up to 80km, with models supporting up to 150km also available.
  • Smart Controls: Features automatic power and frequency control mechanisms for optimal performance.
  • Multiple Ports: Comes equipped with two Ethernet ports and two RS232 serial ports, all with a PH2.0 interface package.

Applications:

Whether it’s for point-to-multipoint mid-range communication, power and hydrological line patrol observation, or emergency communications for fire protection and security, the Potomac 80km system is your go-to solution.

Specifications:

  • Power: 24V±10% Input Voltage with around 30W typical consumption.
  • Temperature Tolerance: Operates efficiently between -20℃ to +55℃, with storage capabilities from -40℃ to +85℃.
  • Humidity Range: Functions optimally between 5% to 95% humidity.

Package Inclusions:

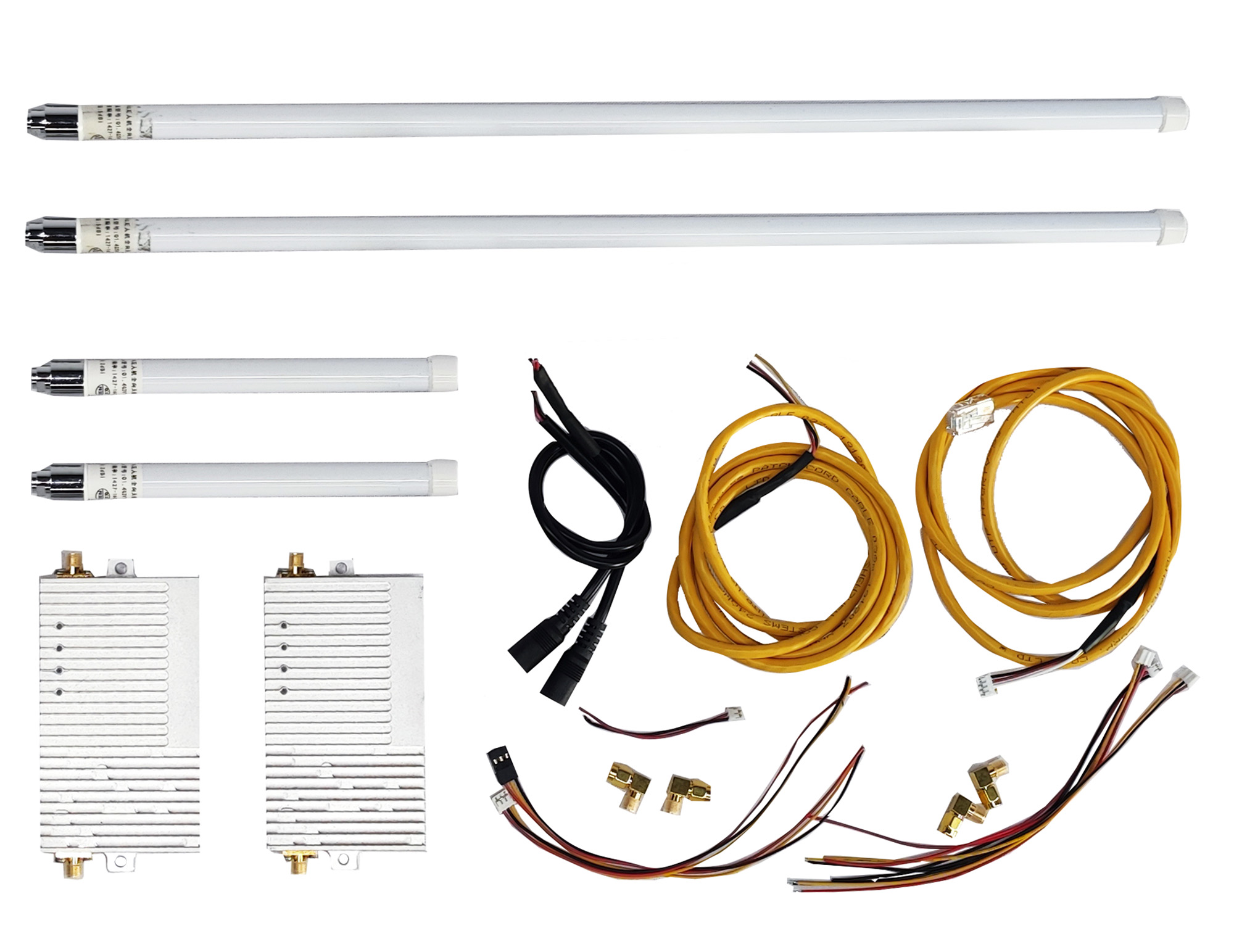

Your purchase includes the Air Unit, Ground Unit, antennas, cables, connectors, and a comprehensive user manual to get you started.

Elevate your transmission capabilities with the Potomac 80km 816/1437MHz Video/Data Wireless Transmission System. Order now for a transformative connectivity experience!

Automatic Frequency Control:

Upon activation, the video/data transmission system will attempt to establish a network using the frequency points saved from its last operation. Should these saved frequencies prove unsuitable for network setup, the system will automatically seek and utilize alternative available frequencies. Once the network is successfully established without any synchronization issues, the operating frequency will remain consistent.

In the event the central hub loses synchronization, it will autonomously choose a new frequency for network establishment. Similarly, if the access node becomes desynchronized, it will commence a fresh network search, continuing until an appropriate frequency for connection is identified.

Automatic Power Control:

The central hub operates at its peak transmission power, while the access node’s transmission power dynamically adjusts based on signal quality.

Bandwidth Configuration:

Supports 1.4M, 3M, 5M, 10M, 20M bandwidth.

Transmission Distance:

Potomac Video/Data wireless transmission system supports the software to limit the distance, you need to choose the appropriate version of 3˜80km according to the actual application scenario.

User Manual:

Potomac 80km/150km Wireless Video/Data Transmission System User Manual (PDF)
