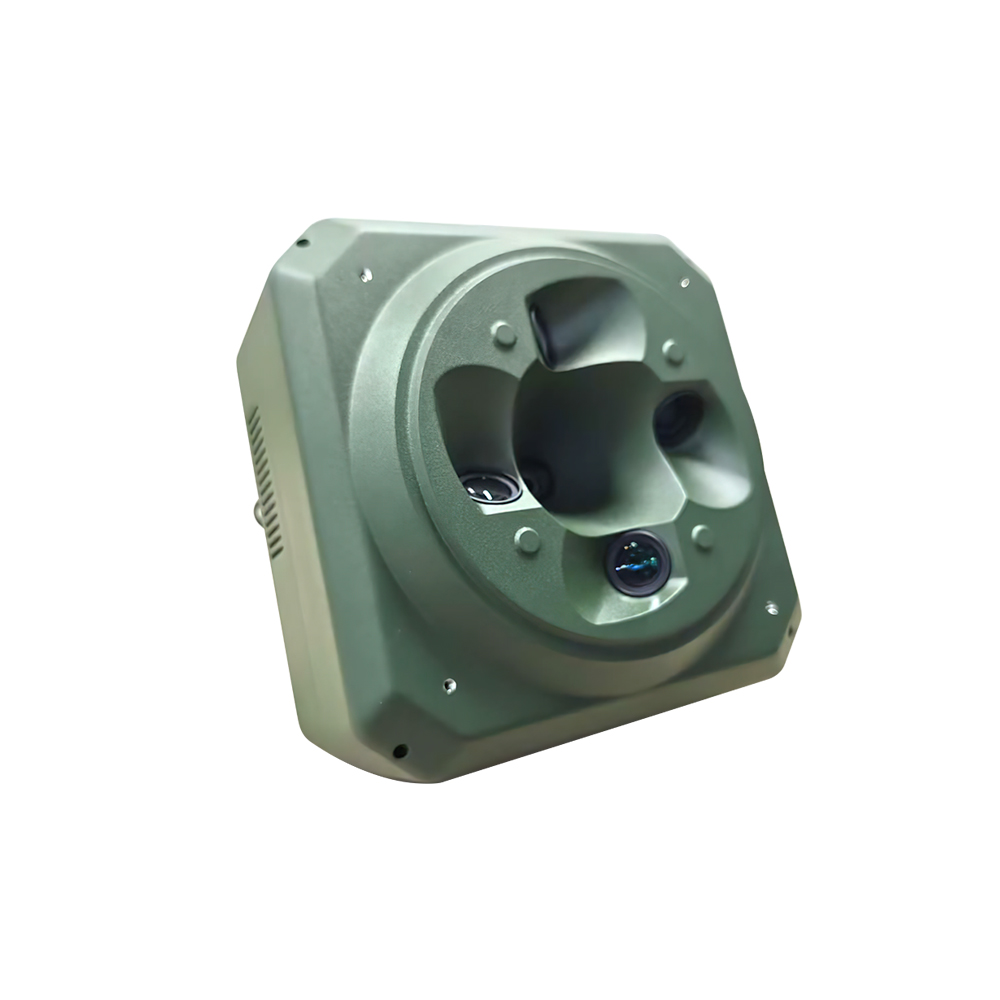

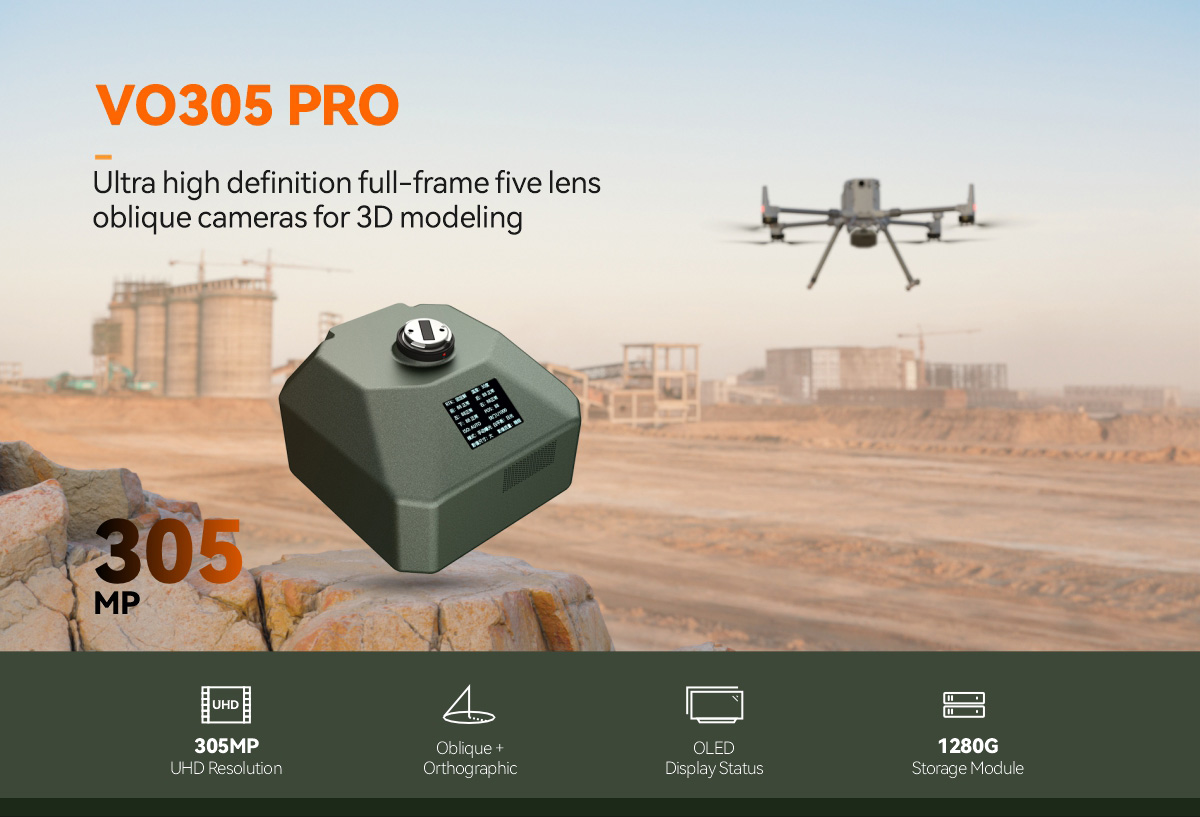

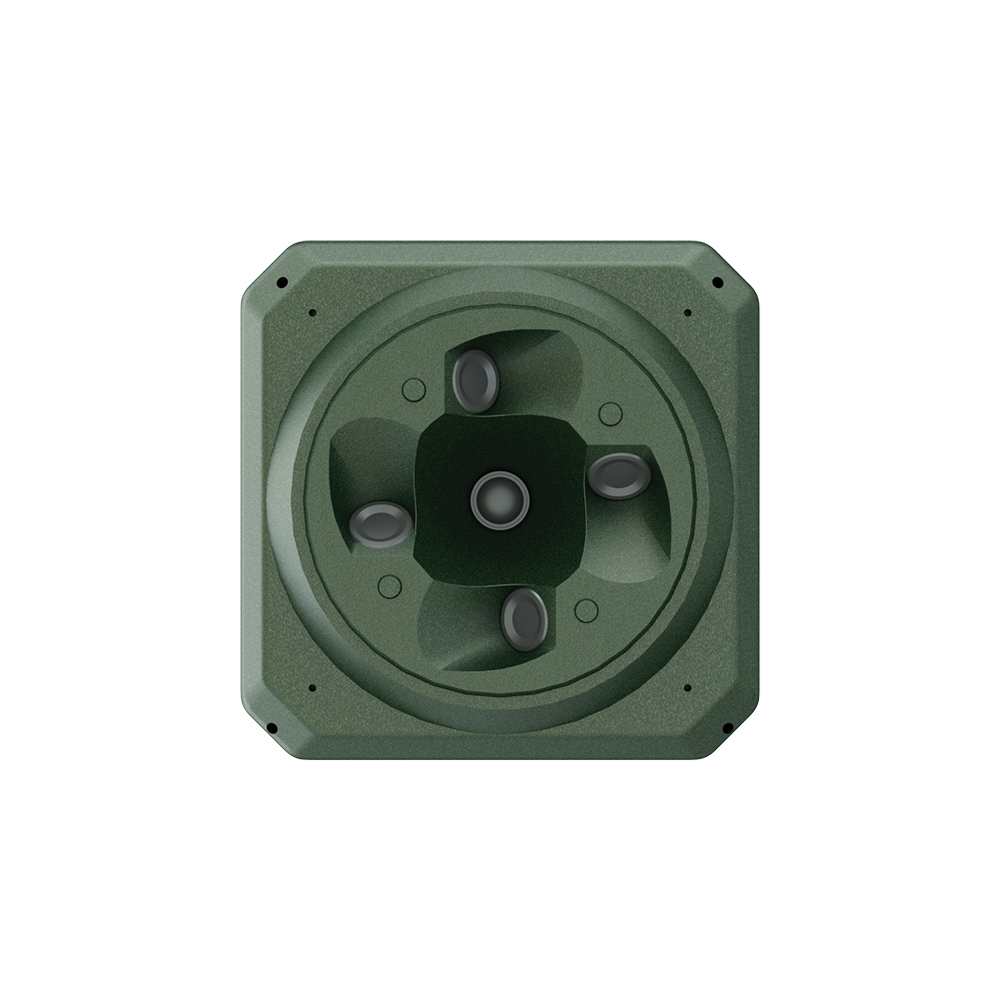

High-Performance Five-Lens Tilt Photography Camera VO305 PRO

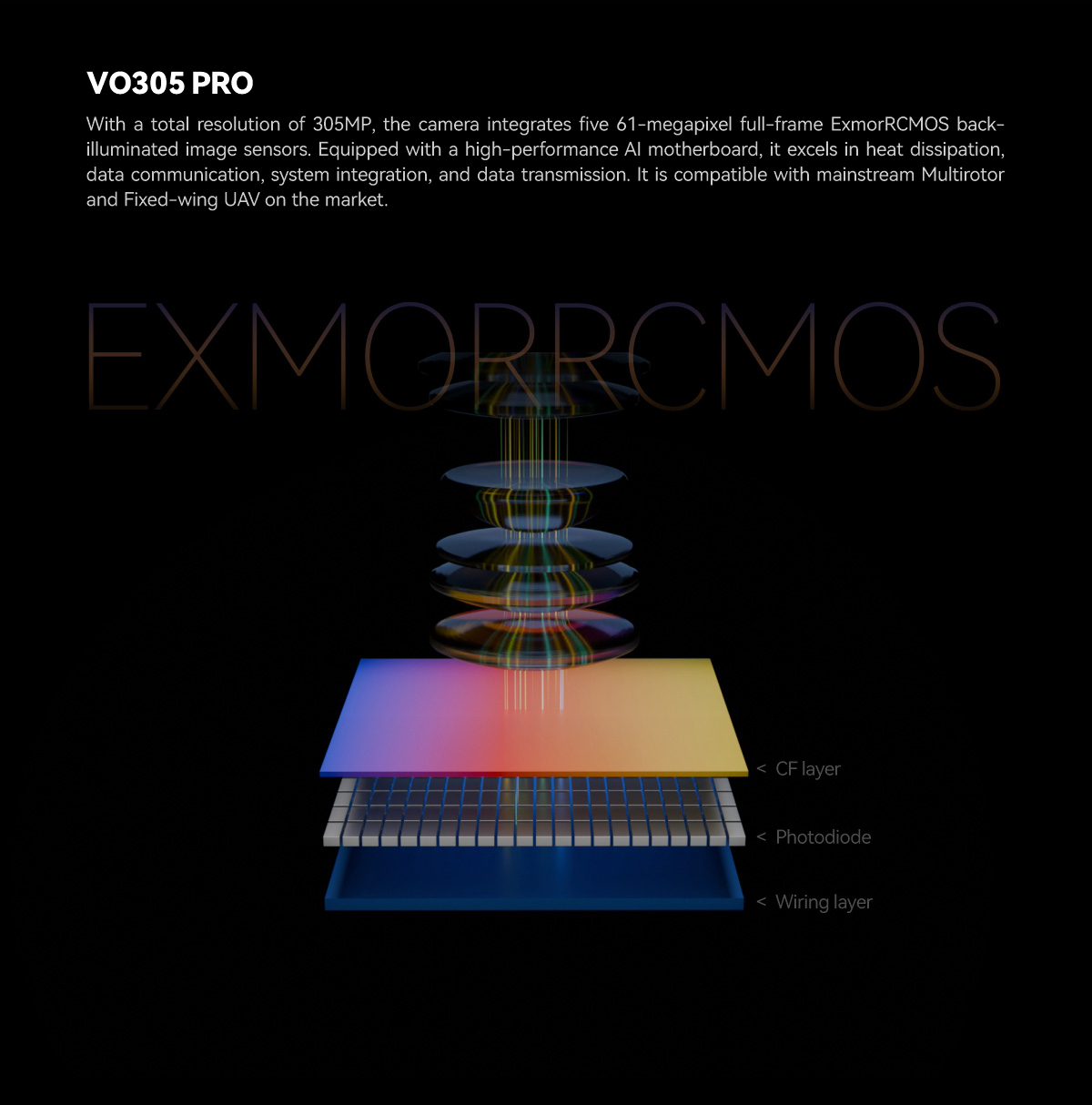

With a total resolution of 305MP, the camera integrates five 61-megapixel full-frame ExmorRCMOS back-illuminated image sensors. Equipped with a high-performance AI motherboard, it excels in heat dissipation, data communication, system integration, and data transmission. It is compatible with mainstream Multirotor and Fixed-wing UAV on the market.
Description
Technical Specifications
| Camera and System Overview | |||
|---|---|---|---|

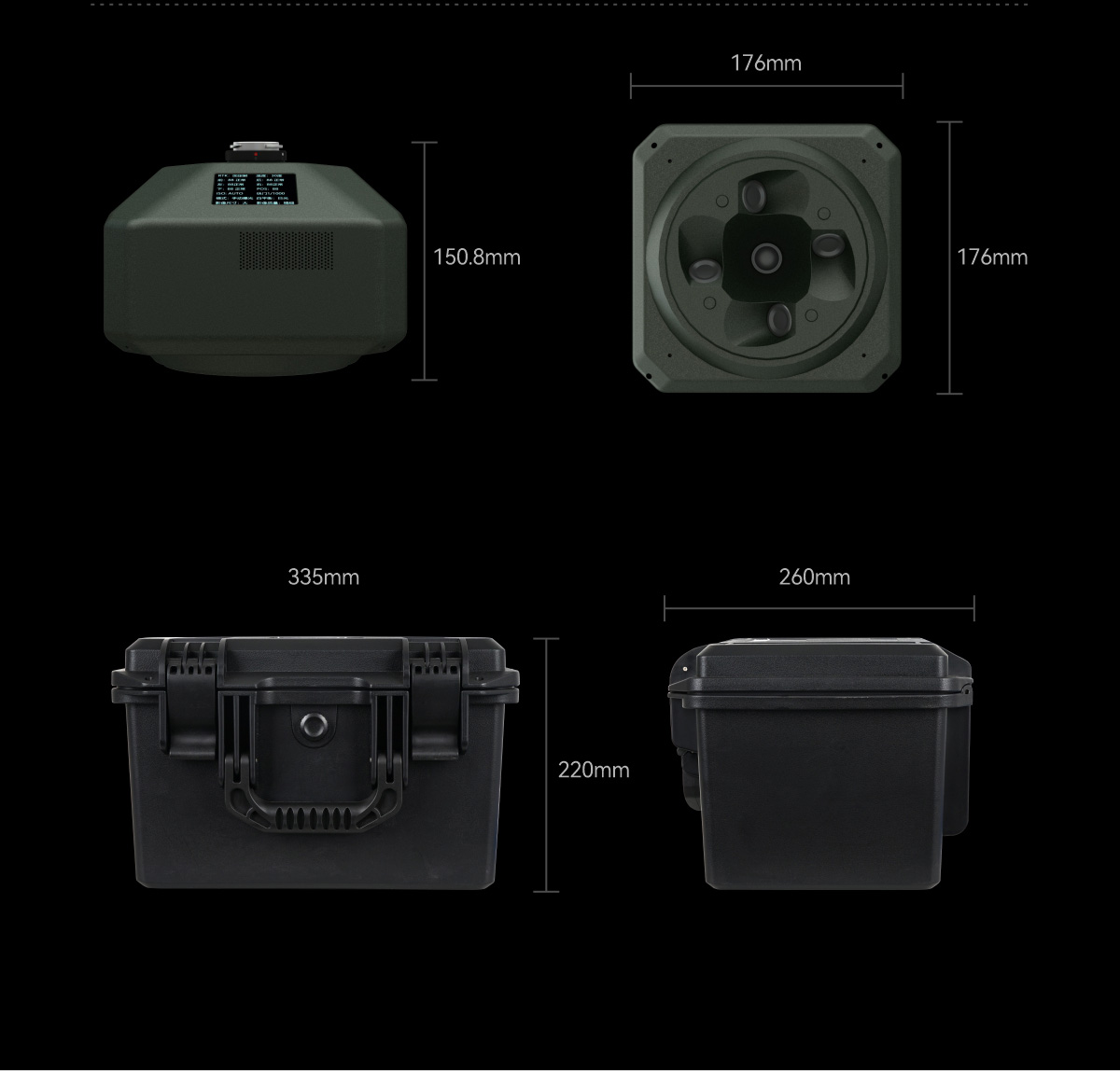

| Dimensions | 175*175*130mm | Weight | Approx. 1400g |
| Total Pixels | **305 million** | Minimum Exposure Interval | **0.8s** |
| Image Resolution | 9504*6336 | Pixel Size | 3.7um |
| Sensor Type | Exmor R CMOS Sensor | Sensor Size | 35.7×23.8 mm |
| Lens Type | Professional Prime Lens | Focal Length | Down: **40mm**, Side: **56mm** |
| Shutter Speed | 1/8000 to 1 second | ISO | Auto/Manual |
| White Balance | Auto/Shade/Cloudy/Daylight | Image Quality | Small/Standard/Fine/ Ultra-fine |
| Image Size | Large/Medium/Small | Structural Performance | Integrated Camera Lens |
| Control and Integration | |||
|---|---|---|---|

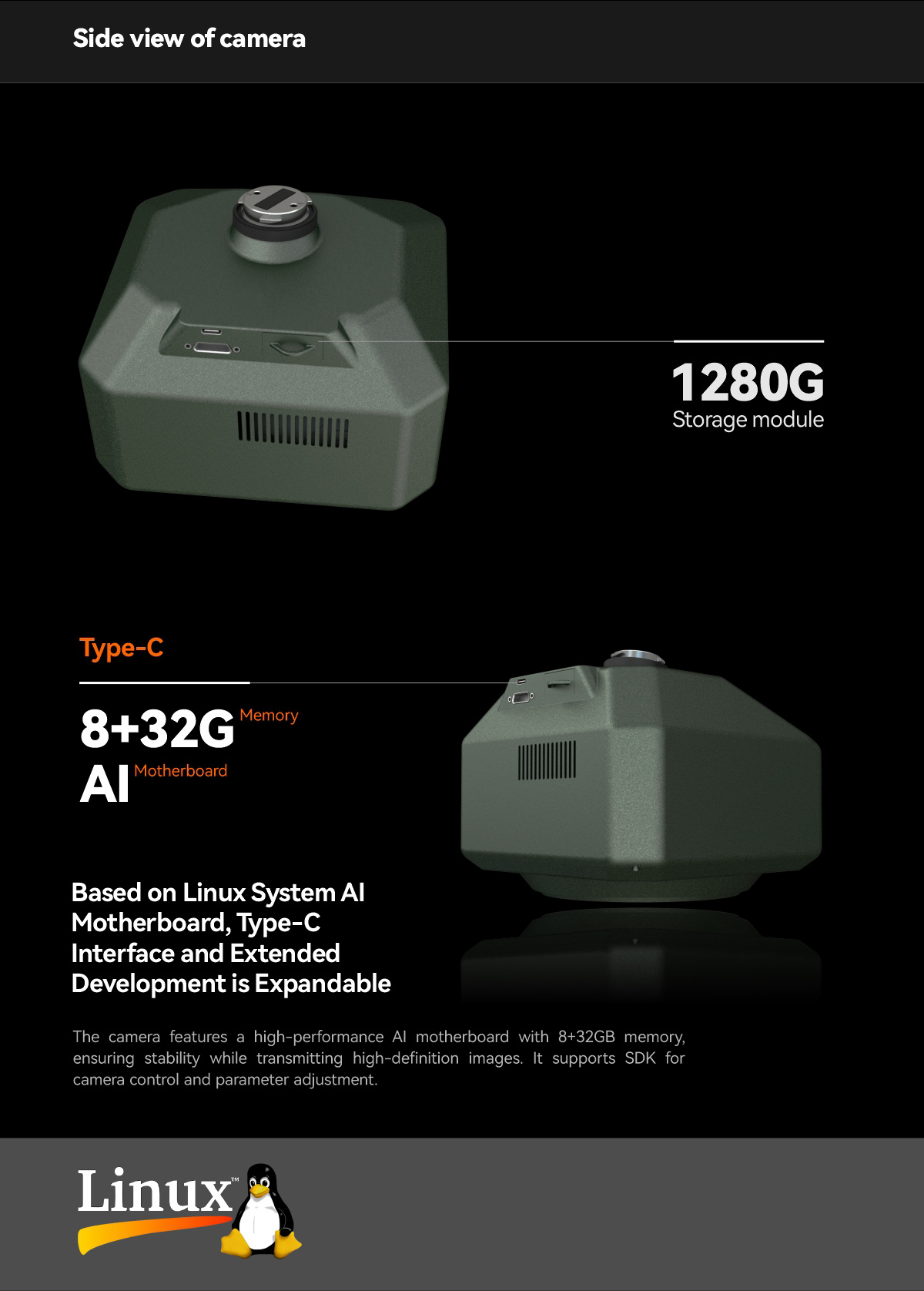

| Data Storage | External 1280GB High-Speed Storage Card | POS Storage | Independent Precise POS for Five Lenses |

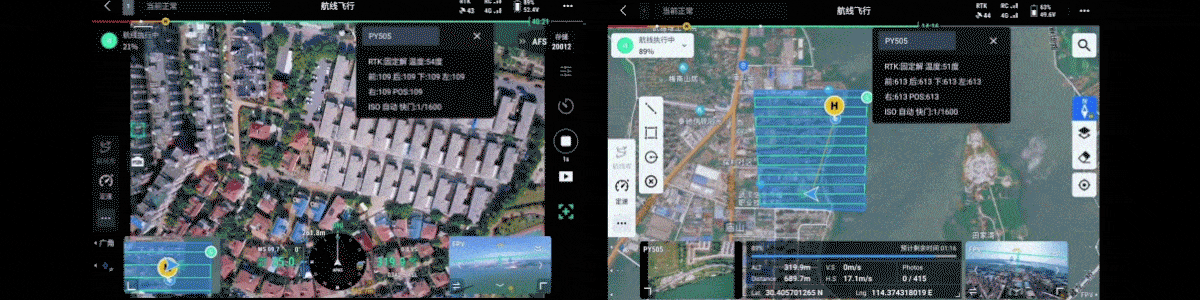

| Power Supply | External 10V-18V | Video Transmission | Dynamic HD Downward Video Transmission |

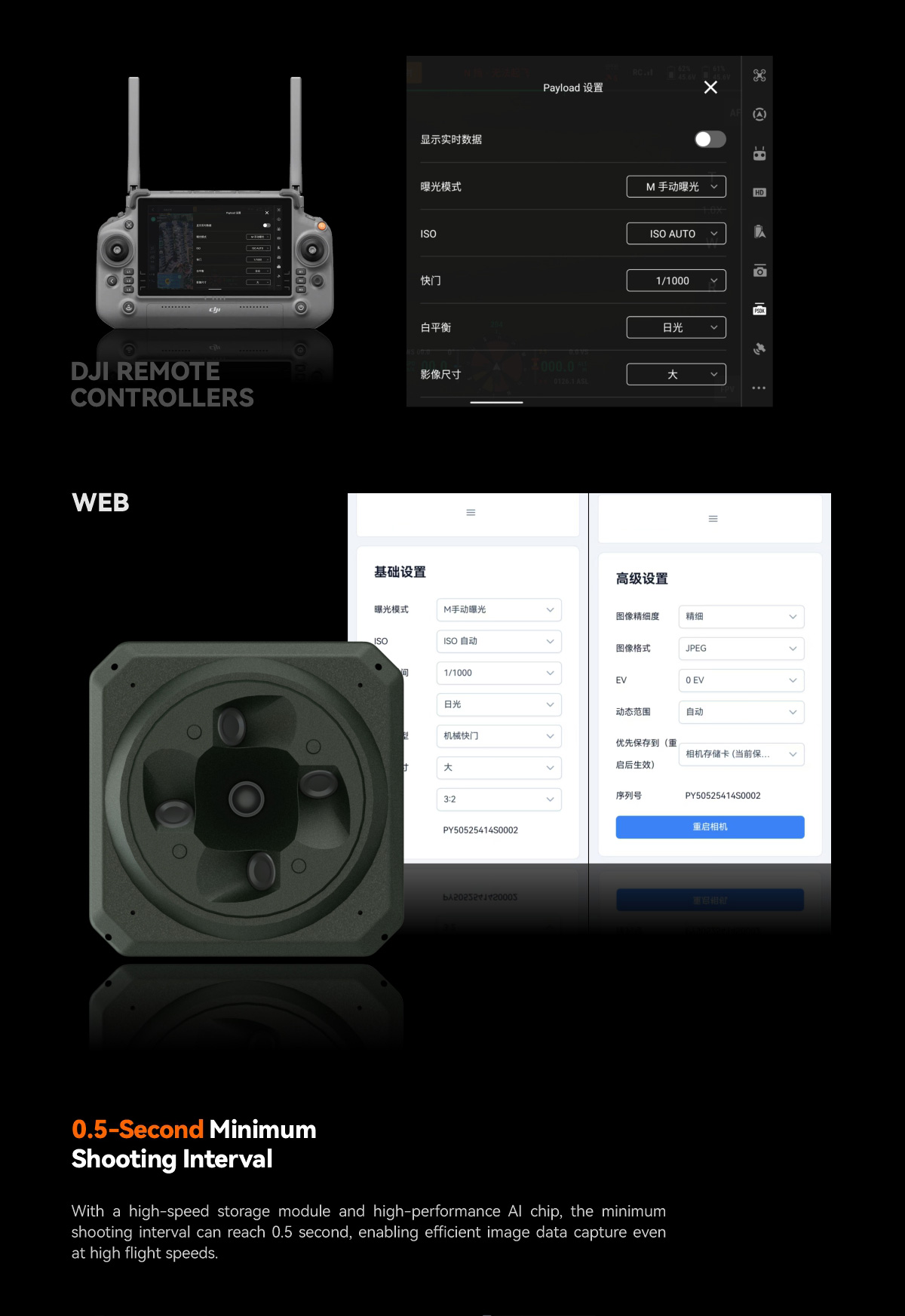

| Trigger Mode | Manual/Auto Trigger | Camera Parameter Settings | Adjust via **DJI Remote Controller** or **WiFi** |

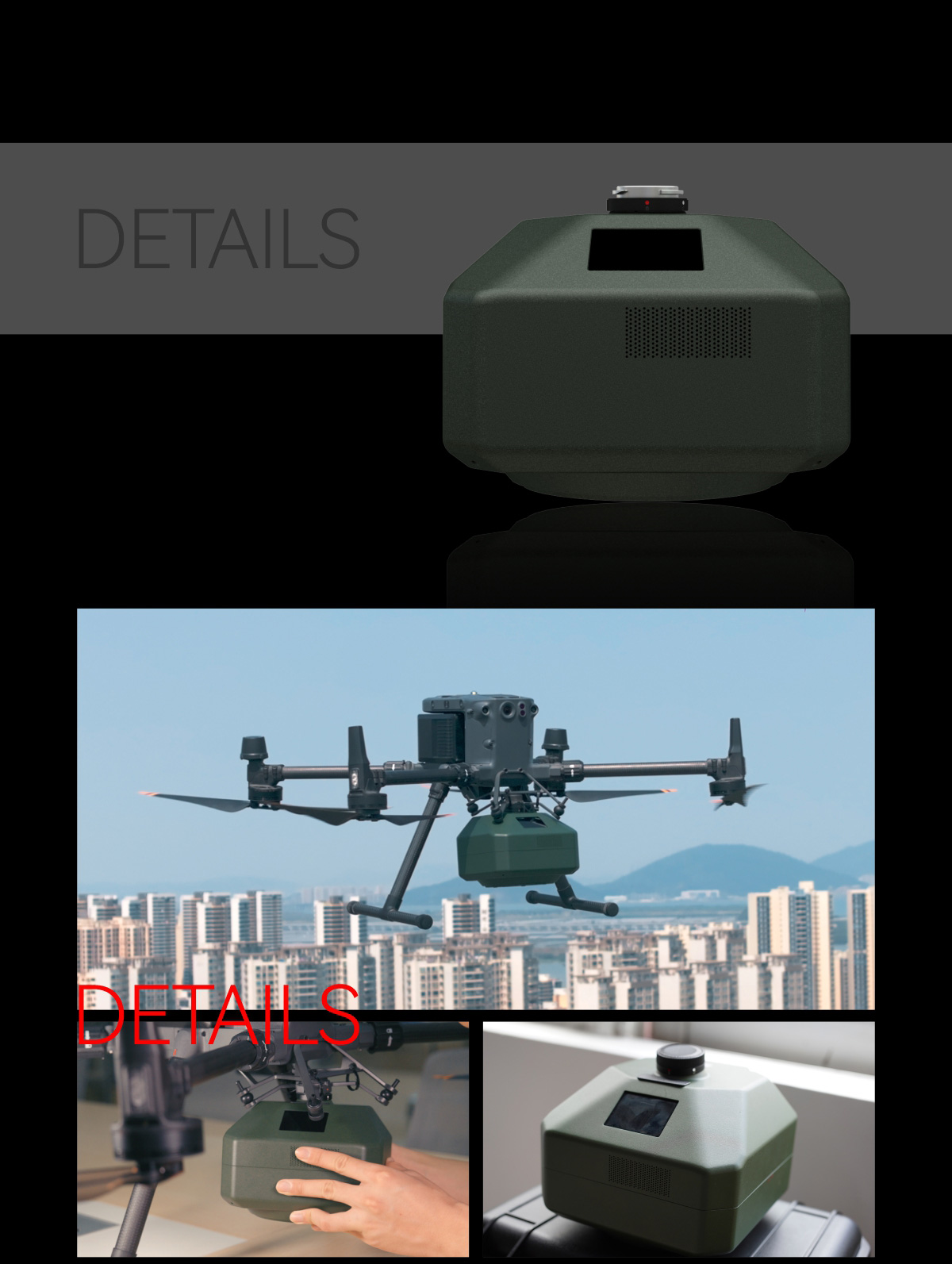

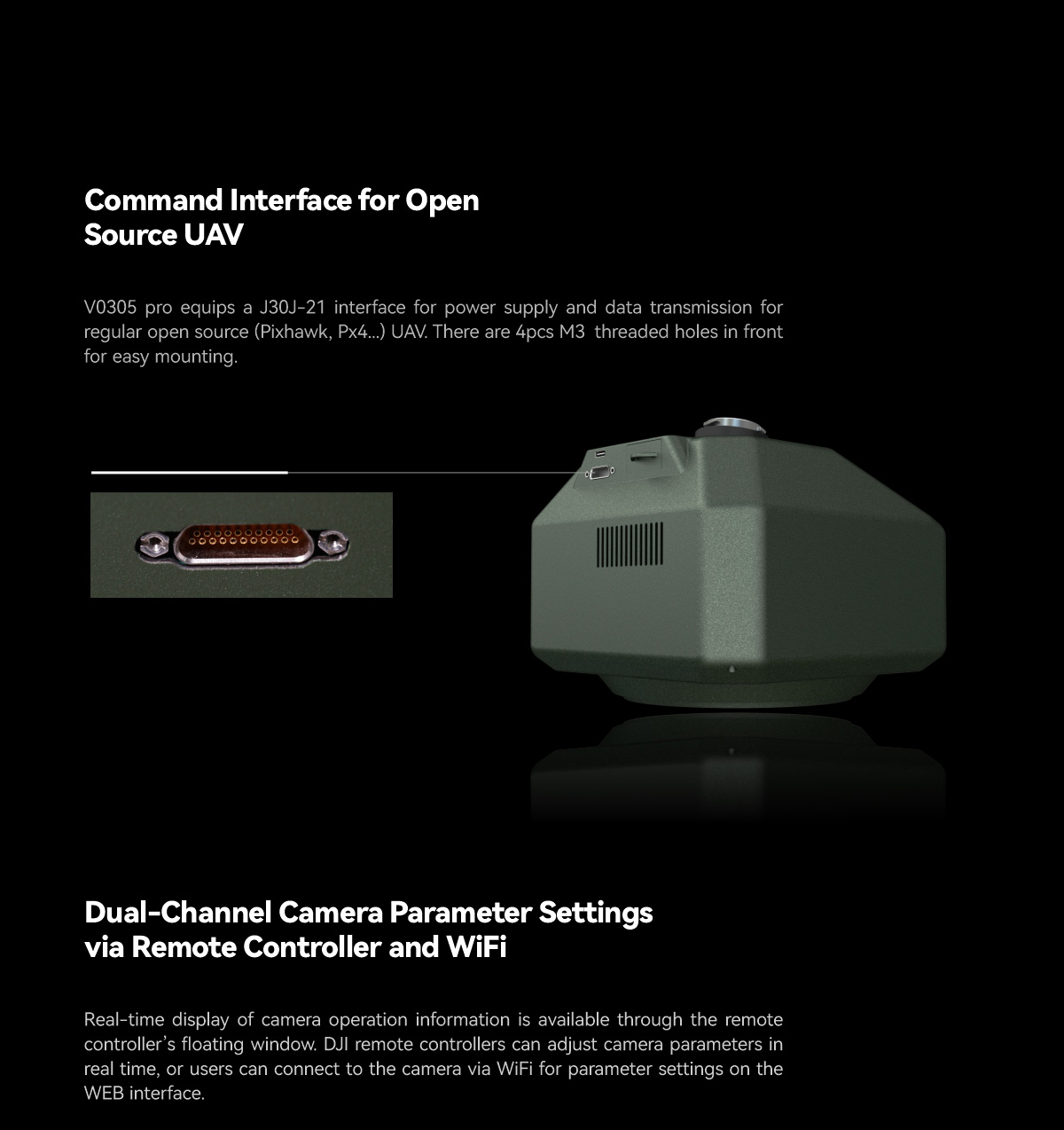

| Supported Drones | DJI M300 Series, Other UAVs | Network Function | Type-C Expandable Network |
| Operating Temperature | -10°C~50°C | Humidity | ≤70% |
Product Details and Features

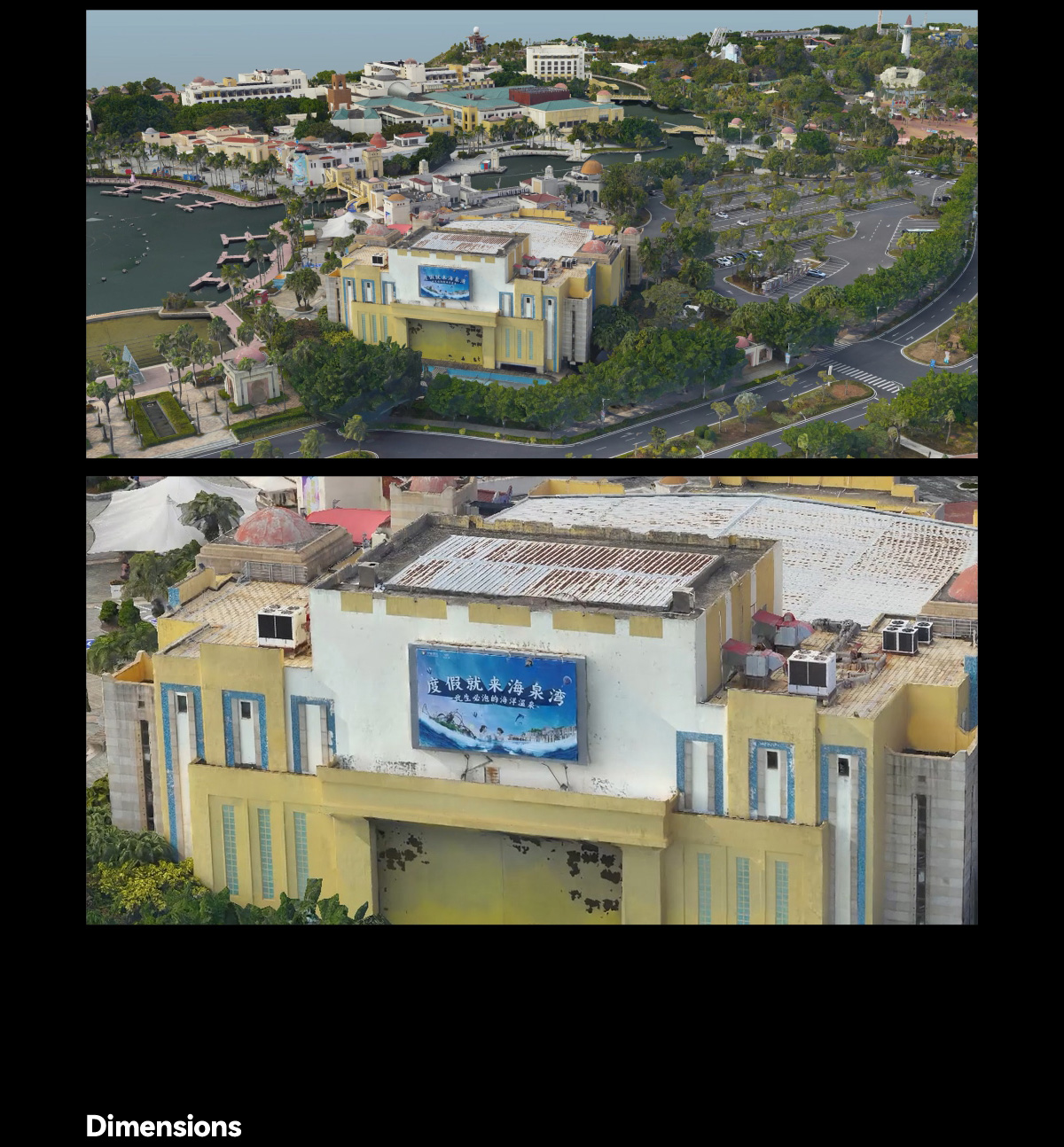

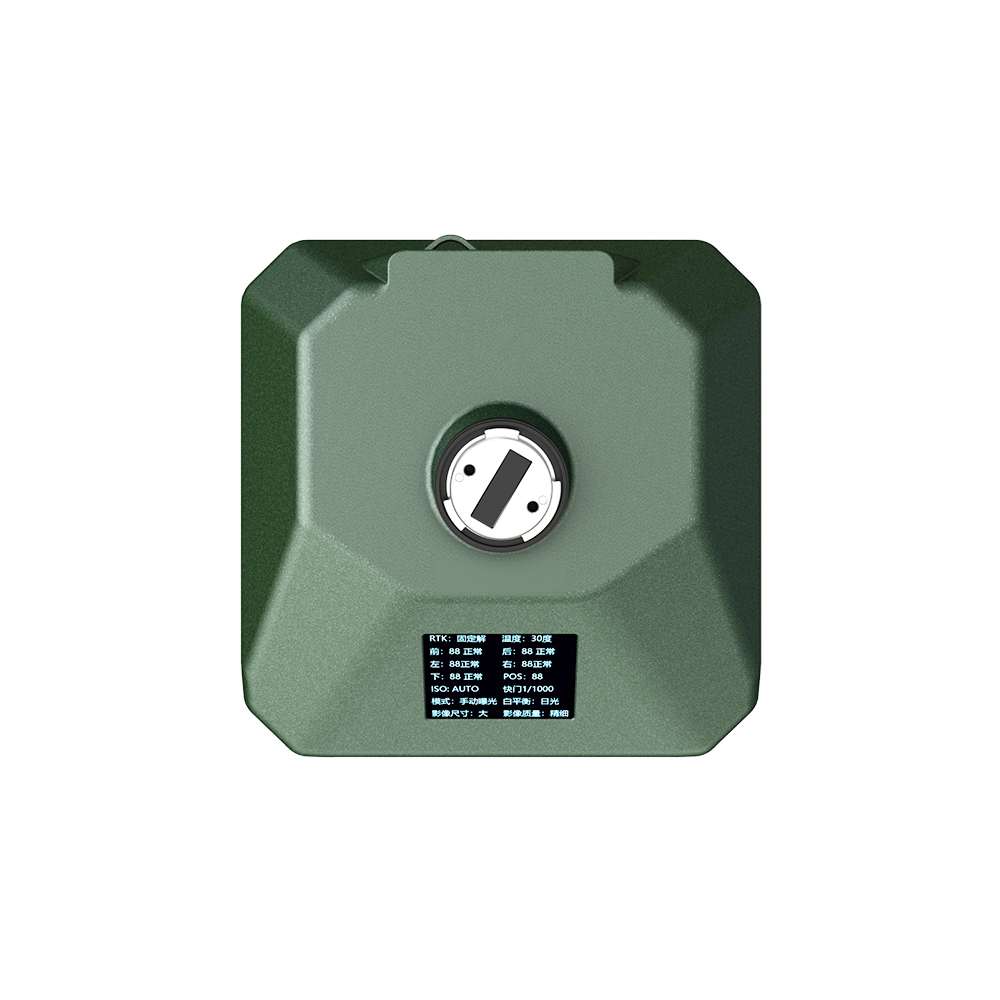

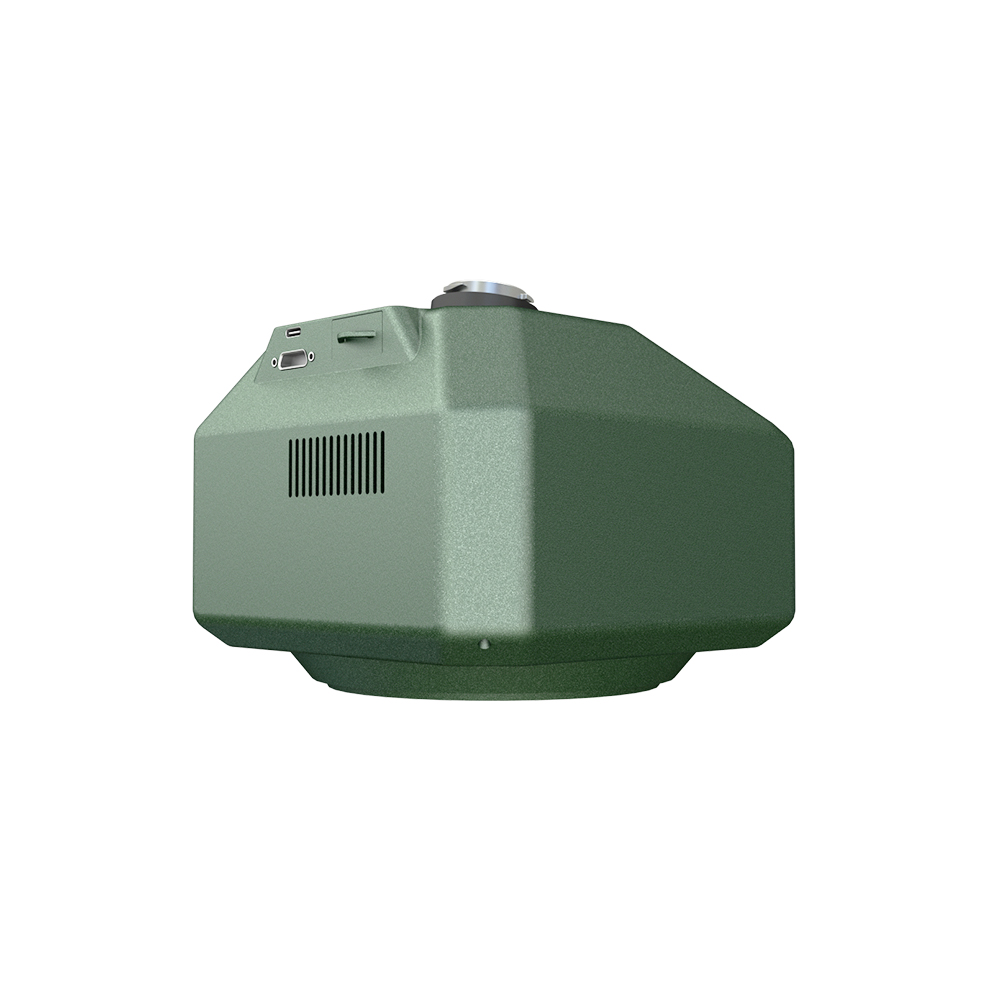

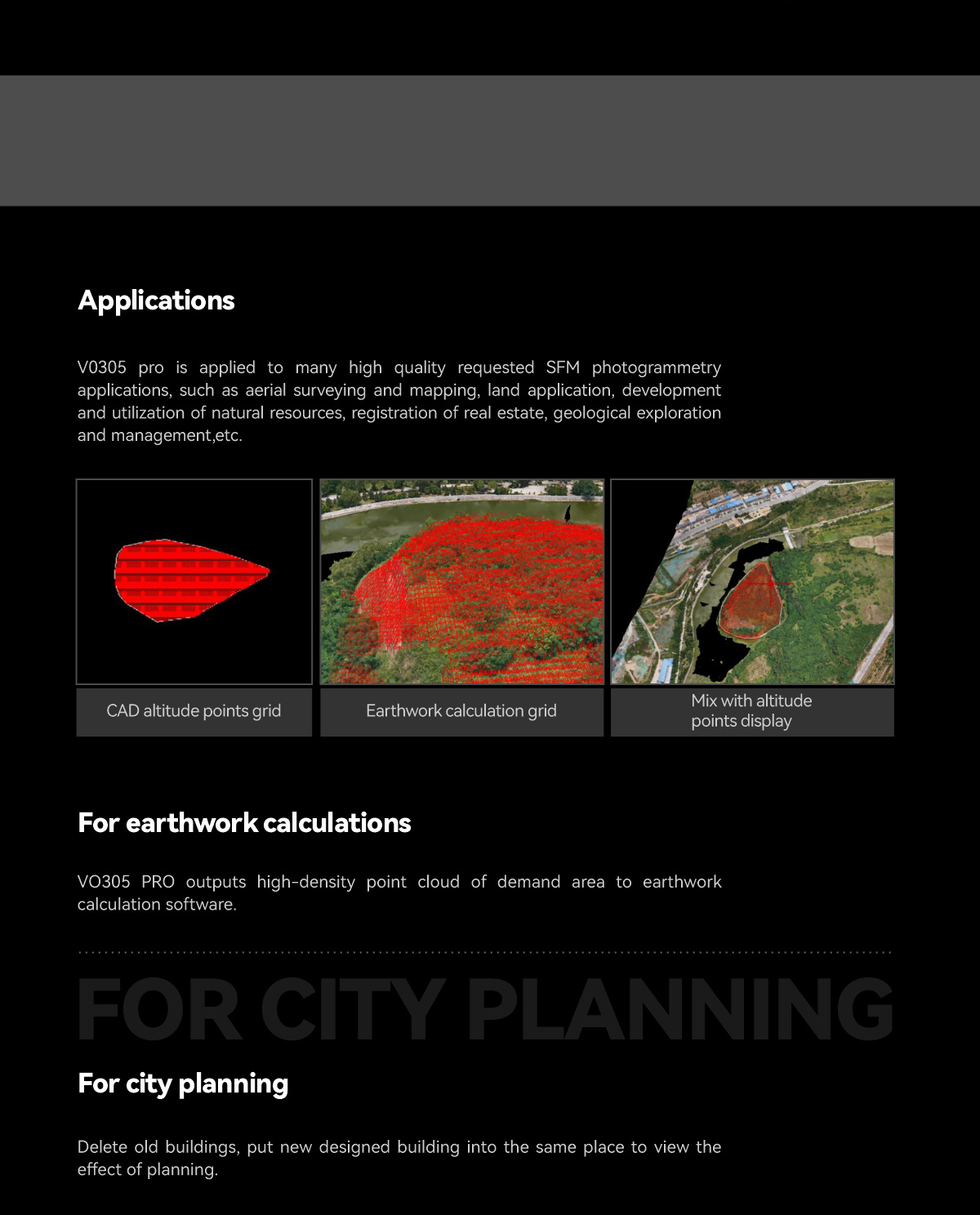

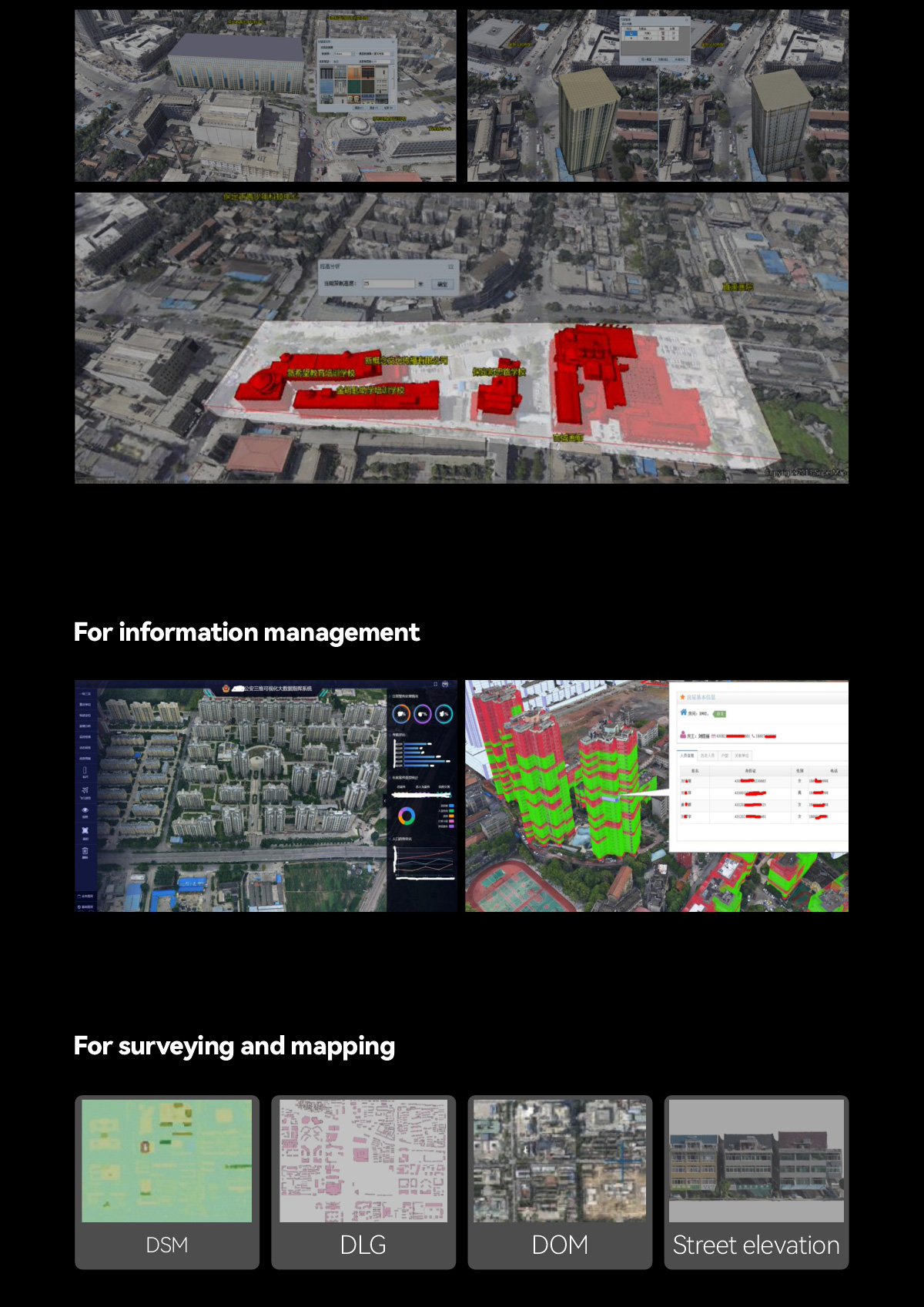

The VO305 PRO system integrates multiple cameras and high-precision components for professional photogrammetry and 3D modeling. Below are the visual details and diagrams for the system:
