Description
| Drone Winch | |
|---|---|
| External Size | 200*105*145mm |
| Package size | 305*269*195mm |
| Net Weight | 1.05KG |
| Installation Type | Quick disassembly type |
| Power supply mode | Supplied by drone |
| Operating voltage | 24V |
| Motor type | Brush DC motor |
| Motor power | 22W |
| Motor revolutions | 6000 rpm |
| Output revolutions | 120 rpm |
| Reduction ratio | 1:50 |
| Setting out speed | 10m / points |
| Rope length | 30M |
| Maximum weight | 5KG |
| Control mode | Independent remote control |
| Signal mode | PWM |
| Control distance | 800M (without blocking) |
| Compatibility | |
| Compatible Models | M600 Pro and wind series (For other independent models, please contact sales first) |
| M600 details | Please contact our sales representative for details. |
Product Overview

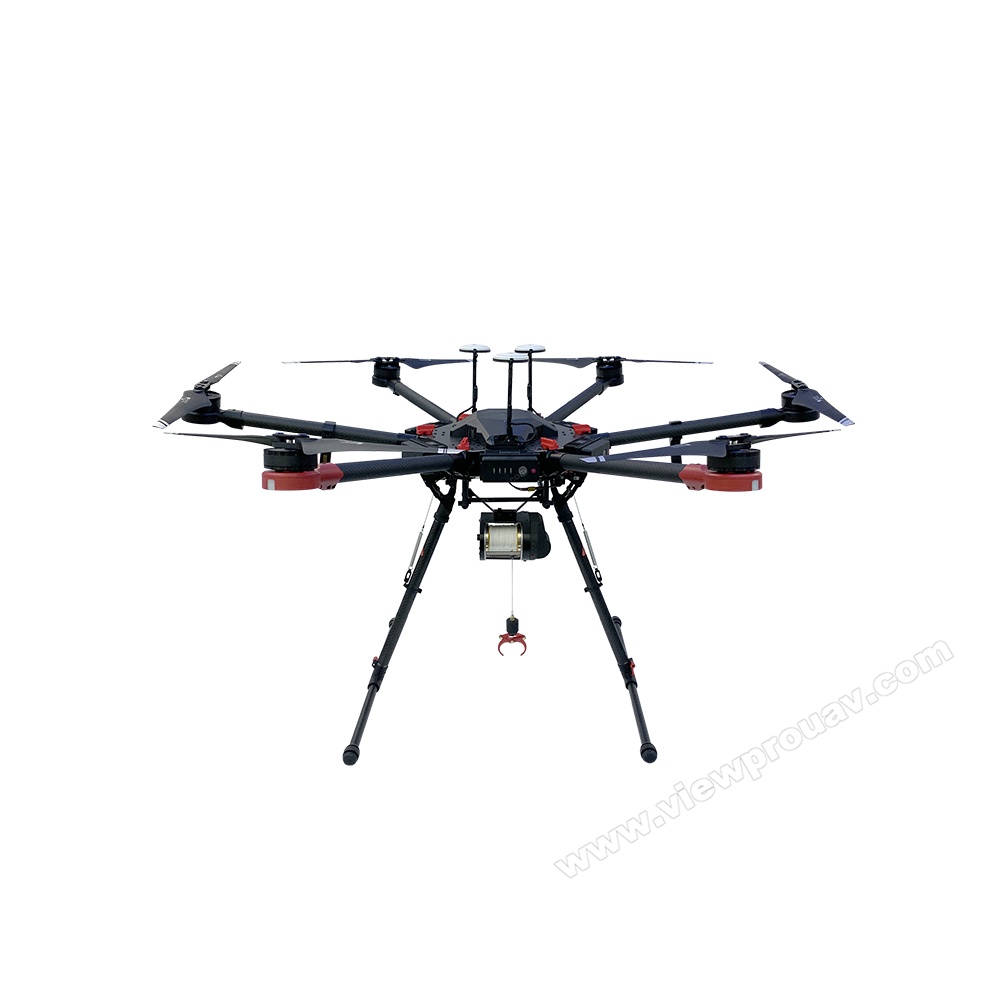

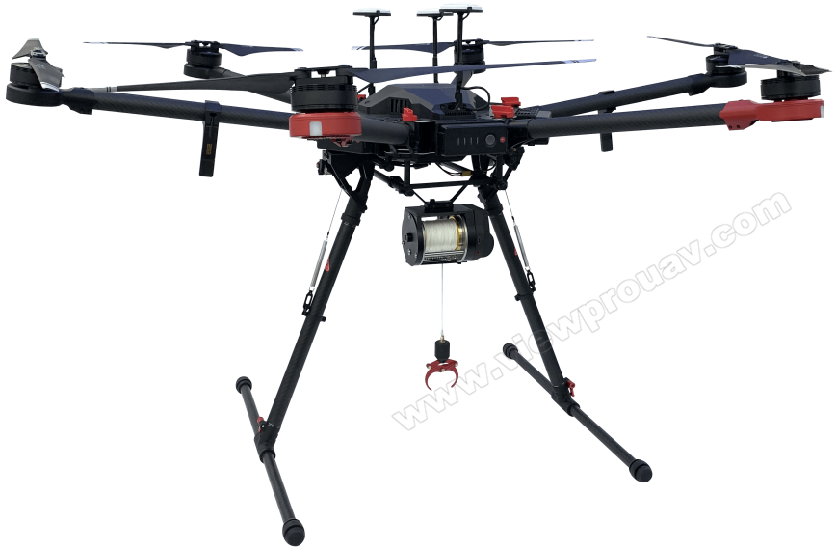

An airborne delivery rope suitable for emergency rescue and air delivery of materials. High-strength structure design, small volume, light weight, good toughness and other characteristics. It can be used in public security, fire fighting, power wiring, material back and forth transportation, disaster relief rescue supplies in isolated areas and other areas.
Industrial Quality

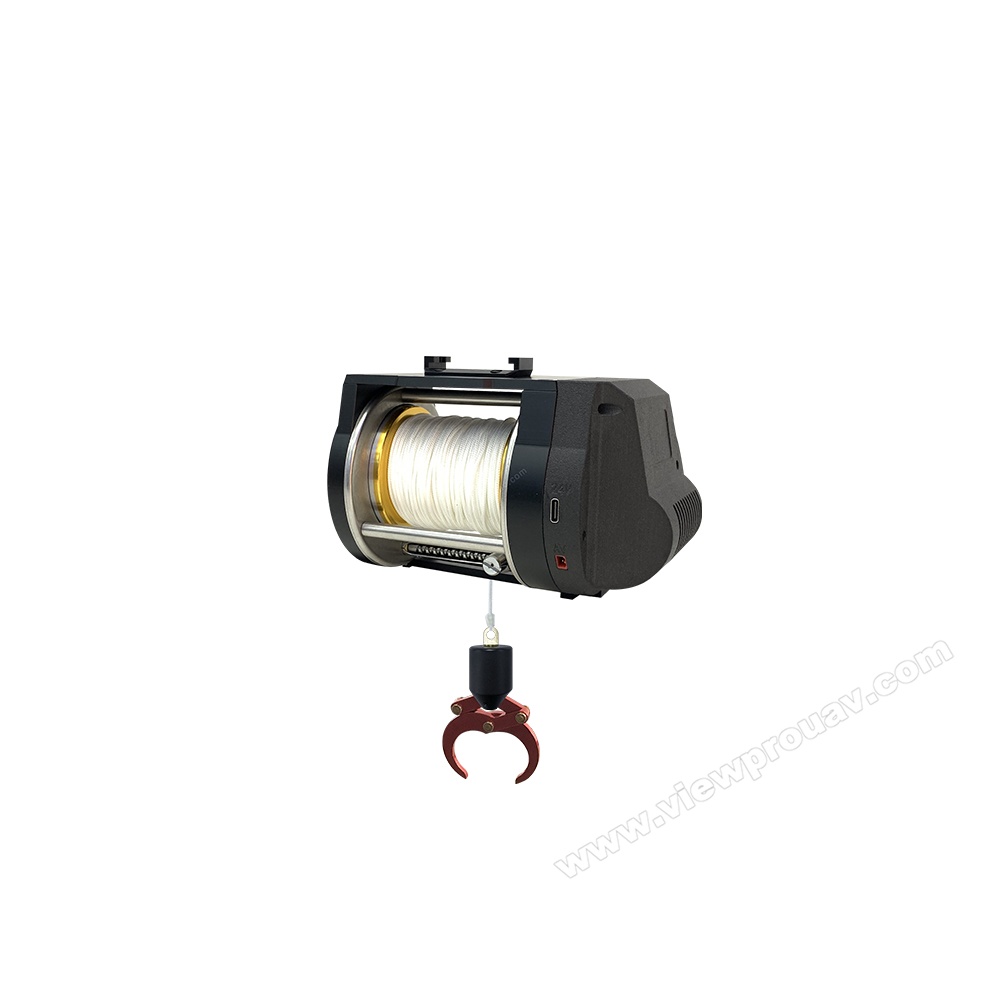

Launch line selected industrial class high strength Dinima rope, high strength, high toughness.

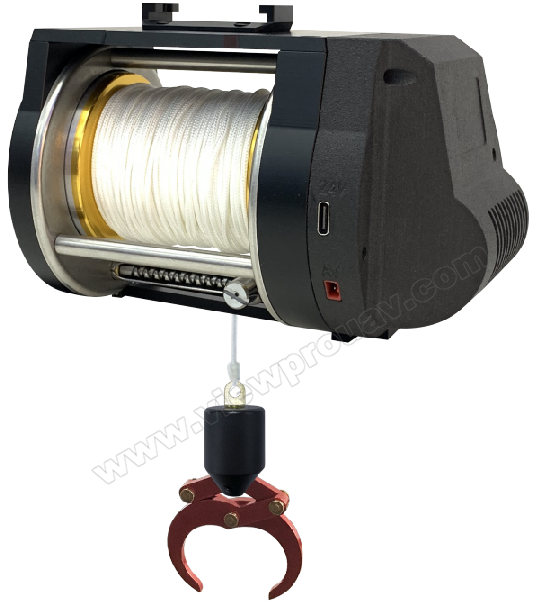

Configure reciprocator to ensure the uniform winding and unwinding line. Gravity hook, mechanical design, not easy to decoupling, safe collection and release.
Convenient Power Supply Mode
One end of the power supply line is inserted into the 24V interface of the delivery rope and the XT30 parallel head of the other end, docking with the XT30 head and the X30 master head under the aircraft, to complete the power supply link.

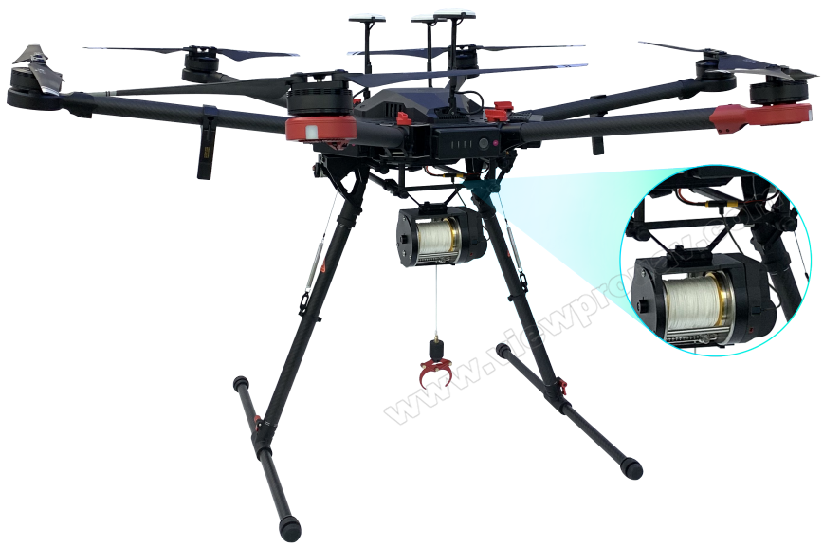

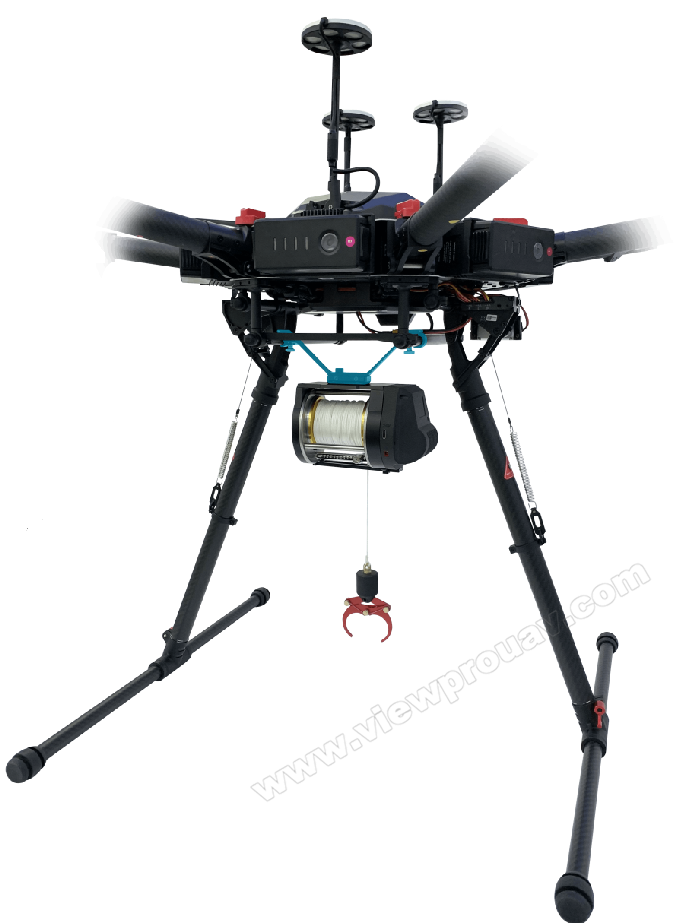

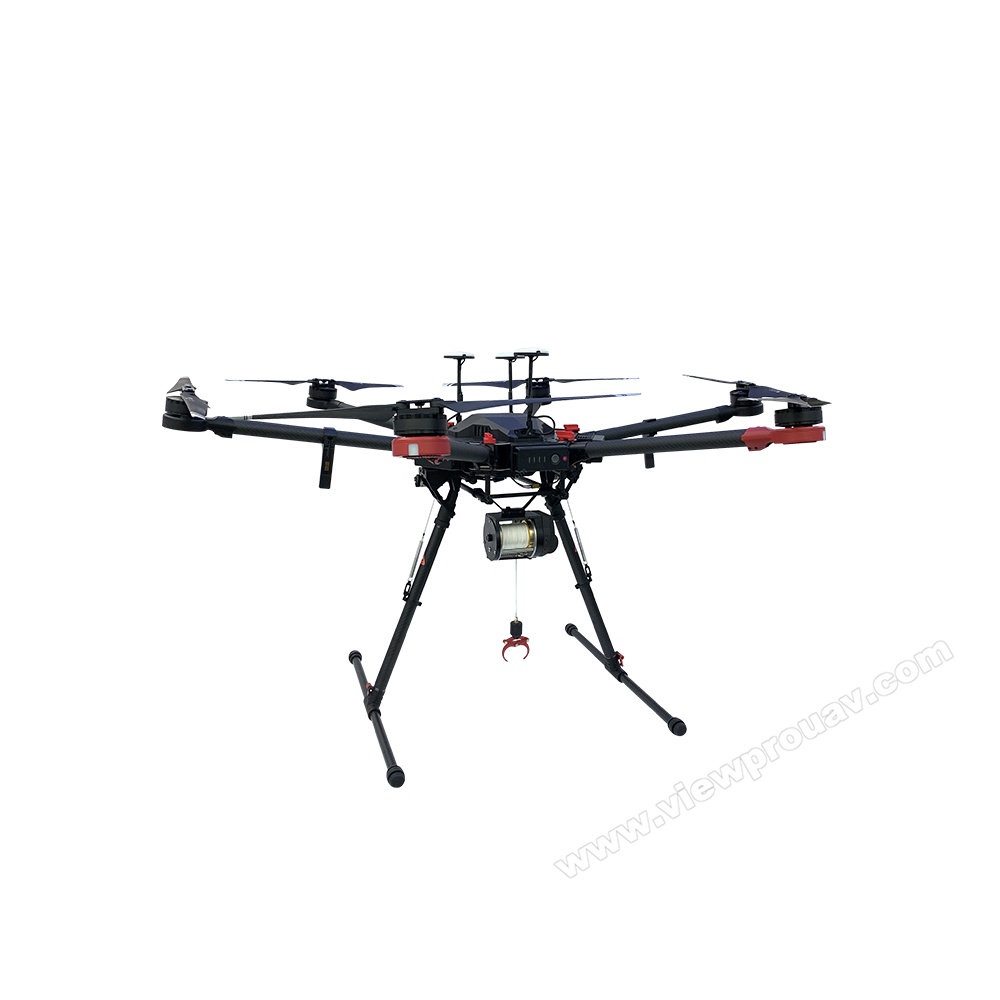

M600 quick demolition and hanger design
High precision universal design can be the same platform as other modules of the company general hand screw screw and the module fixed buckle design, installation without any tools. The hanger adopts aviation aluminum material through CNC processing process and sand blasting anode polarization treatment, with the advantages of high precision, anti-corrosion and wear resistance.
Slide card slot and spring lock button design, to achieve fast load, installation only gently push the spring lock to lock the rope, can complete the load, double protection, safe and reliable.
Remove just press the spring latch and gently push the drop rope to remove the drop rope, convenient and fast.
Module application scenarios
