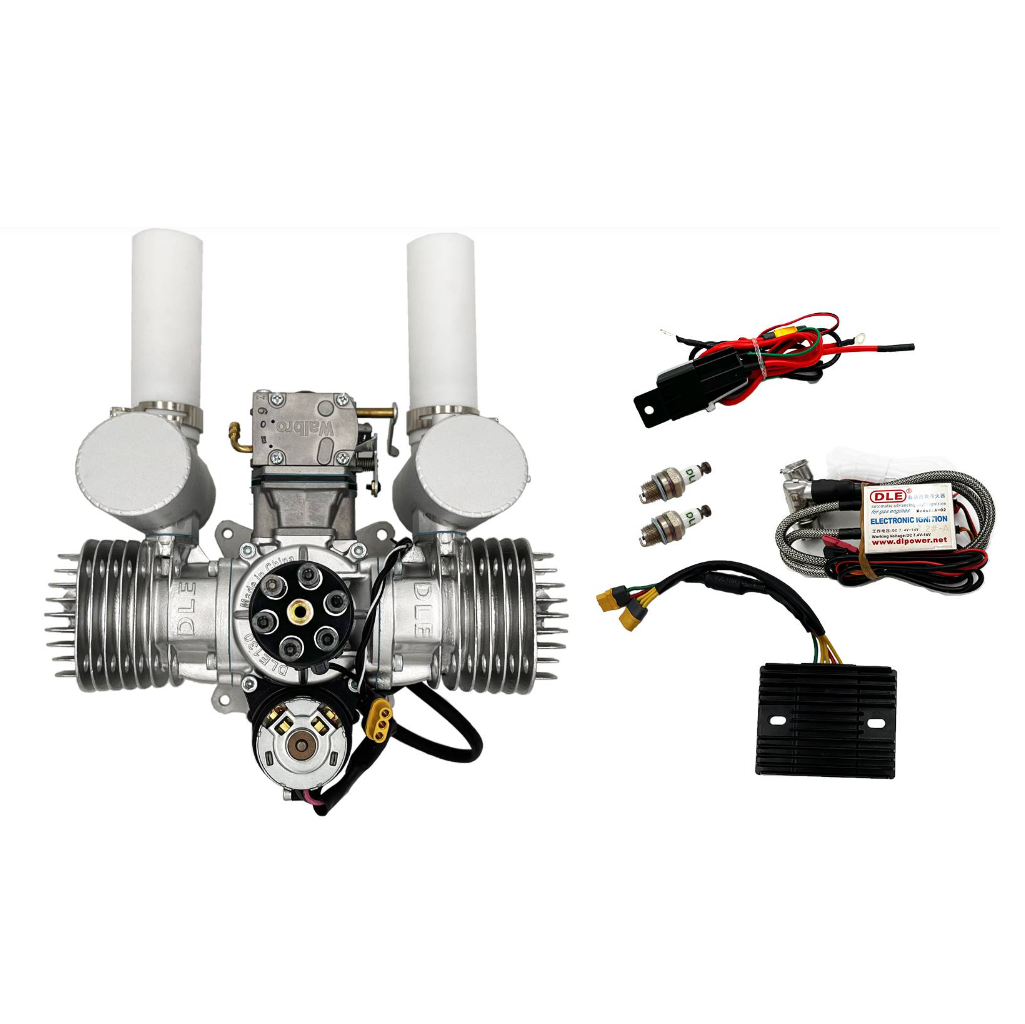

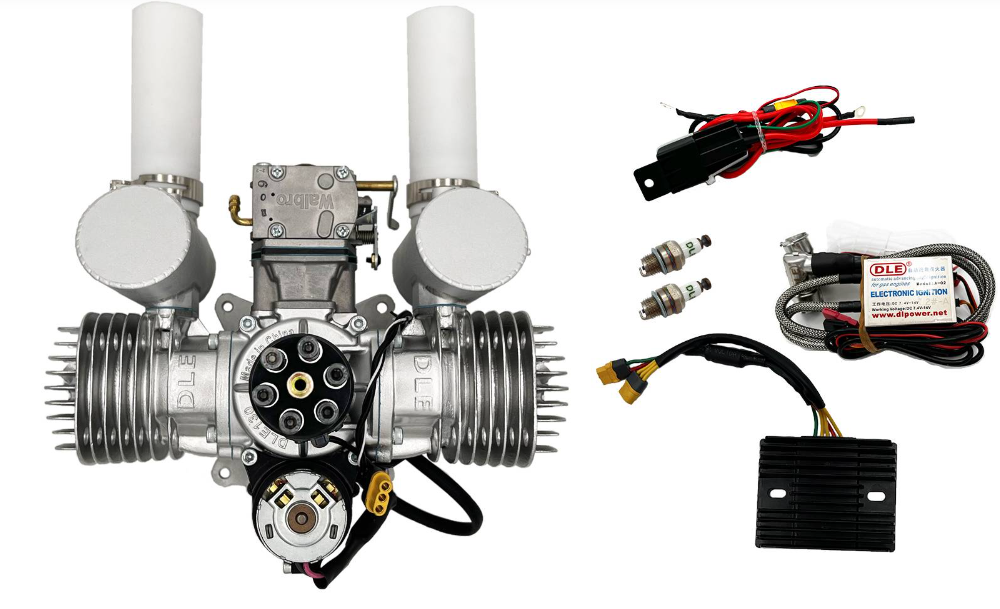

DLE130cc Autostart Gas Engine with Built-in Alternator
The DLE130 Autostart version is a high-performance twin-cylinder gasoline engine designed for large-scale RC aircraft and industrial UAV platforms. Equipped with an integrated electric starter and powerful 14V 350W alternator, it offers superior functionality, faster ignition, and reliable energy output for onboard systems.
This upgraded version adopts a planetary gear-driven starter system, which ensures higher starting torque and a smoother start-up process. The alternator allows real-time power generation during flight, supporting additional onboard electronics such as flight controllers, video transmitters, or lighting systems. With a compact and lightweight design, this engine is ideal for applications requiring efficient power and quick deployment.
Description
Key Features:
- **13HP at 8,500 RPM** with smooth twin-cylinder performance
- **Built-in electric starter** for fast, hands-free engine ignition
- Integrated **14.5V / 350W alternator** for stable in-flight power supply
- **Planetary gear drive** for smoother starts and reduced engine wear
- CNC-machined components with **excellent heat dissipation**
- Suitable for fixed-wing aircraft, **VTOL UAVs**, and heavy-lift drones
Technical Specifications:
| Displacement | 130cc |
|---|---|
| Bore x Stroke | $47\text{mm} \times 37.5\text{mm}$ |
| Power Output | 13HP @ 8500RPM |
| Compression Ratio | 9.2:1 |
| Oil Ratio | 30:1 (high-quality 2-stroke oil) |
| Propeller Compatibility | 27×12, 28×10, 28×11, 29×9 |
| Spark Plug | DLE CM6 / NGK CM6 |
| Starter Input | 12V / 400W |
| Alternator Output | 14.5V / 350W |
| Weight: |
|
Application Scenarios:
- Long-endurance UAV platforms
- High-altitude mapping & surveying drones
- Agriculture spraying VTOLs
- Heavy-lift RC airplanes
