DLE 130cc Twin Cylinder Gas Engine

The DLE 130cc Twin Cylinder Gas Engine is the ultimate power solution for large-scale RC aircraft, delivering up to 13 horsepower at 8,500 RPM. Designed for performance and reliability, this 2-stroke gasoline engine features a lightweight twin-cylinder design, advanced electronic ignition system, and a high-efficiency V-type reed valve carburetor. It offers smooth throttle response, excellent fuel economy, and reduced vibration—perfect for 3D aerobatics, heavy-lift drones, and giant-scale planes.

Compatible with a wide range of two-blade and three-blade propellers, the DLE 130cc engine is built with CNC-machined components and includes dual mufflers, NGK spark plugs, a pump carburetor, and aluminum standoffs. Whether you’re building an RC stunt plane or a professional UAV platform, this high-performance RC gas engine offers unmatched power, precision, and durability.

Upgrade your aircraft with the DLE 130 and experience professional-grade performance in every flight.

Technical Details

Description

The DLE 130cc Twin Gas Engine is a high-performance power unit designed for large-scale RC aircraft. With a powerful **13 horsepower** output at 8,500 RPM, it provides unmatched power and reliability for demanding 3D maneuvers and precision flight.

Key Features:

  • High Performance: Delivers a powerful 13 HP at 8,500 RPM, providing maximum thrust and efficiency for dynamic flight maneuvers.
  • Precision Engineering: Advanced CNC machining ensures a precise fit and finish, providing optimal performance and long-lasting durability.
  • Electronic Ignition System: Modern electronic ignition supports battery voltages from 4.8V to 12V, ensuring stable idling and smooth transitions during operation.
  • Efficient Carburetion: Features a V-type reed valve carburetor with two blades that optimizes the air-fuel mixture for efficient combustion and superior engine response.
  • Durable Construction: Includes a cast aluminum manifold for extra strength and a three-bearing crankshaft design to minimize vibration and extend engine life.

Technical Specifications:

  • Displacement: 129.94 cc (7.93 cu in)
  • Bore x Stroke: 47 mm x 37.5 mm (1.85″ x 1.47″)
  • Compression Ratio: 9.2:1
  • Idling Speed: 1,300 RPM
  • Static Thrust: 28.5 kg at approximately 100 meters altitude
  • Recommended Propellers: 27×12, 28×10, 28×11, 29×9 (two-blade); 25×12, 26×10 (three-blade)
  • Fuel Mixture Ratio: 30:1 with high-quality 2-stroke oil (use mineral-based oil during break-in; switch to 40:1 high-quality synthetic oil afterward)
  • Recommended Fuel: 93 octane gasoline
  • Ignition Battery Requirement: 4.8V to 12V, minimum 1,200 mAh
  • Spark Plug Type: DLE-6 (compatible with NGK CM6)
  • Engine Weight: 2,540.1 g (5.59 lbs)
  • Total Weight (including ignition and mufflers): 3,152.3 g (6.94 lbs)

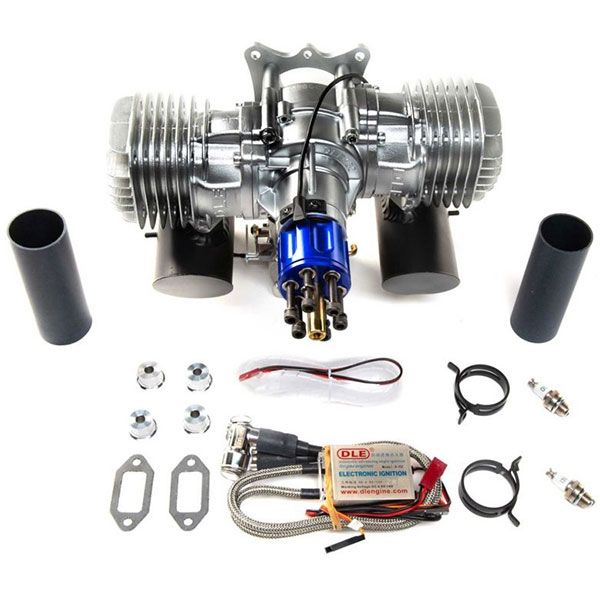

Package Contents:

  • DLE 130cc Twin Cylinder 2-Stroke Gasoline Engine
  • Two mufflers with smoke inlets, gaskets, bolts, extensions, and clamps
  • Two NGK CM6 spark plugs
  • Electronic ignition system with spiral cable wraps (compatible with 4.8V to 12V)
  • DLE pump carburetor with throttle arm extension
  • Alloy mounting plate fixed to the engine
  • Four machined aluminum standoffs
  • Two safety clips
  • Two-year factory warranty

Take your RC flight experience to the next level with the DLE 130cc Twin Gas Engine, designed to deliver exceptional power, precision, and reliability for large-scale aircraft enthusiasts. 🚀

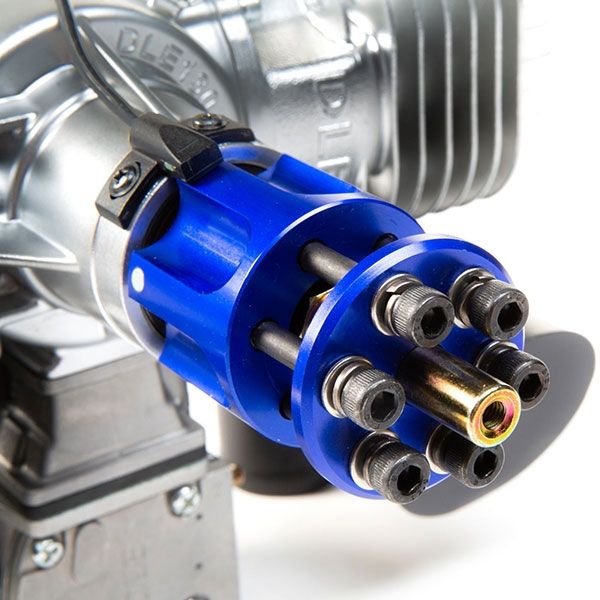

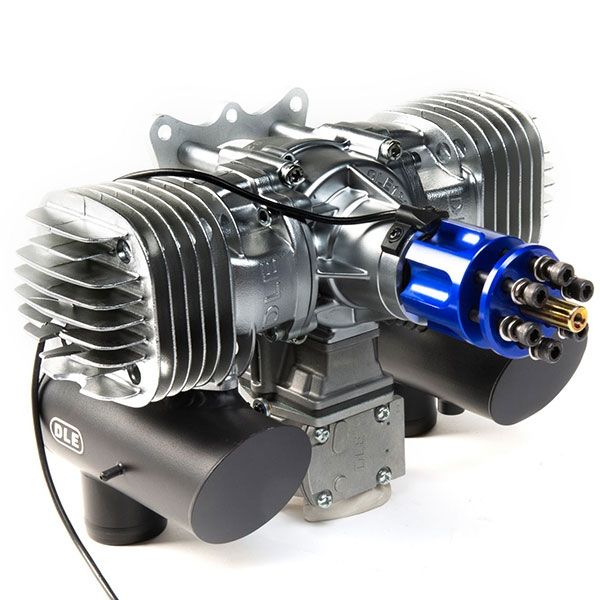

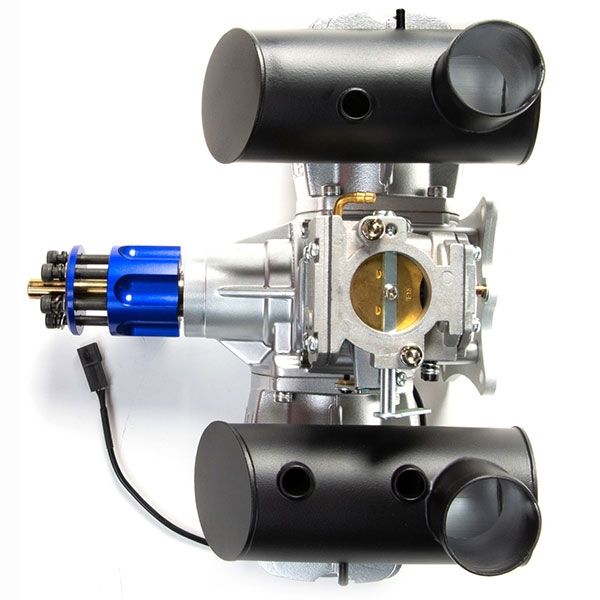

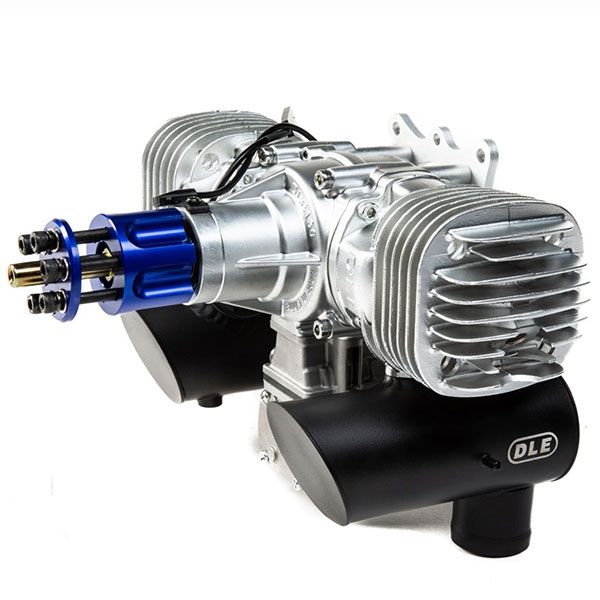

Product Images
