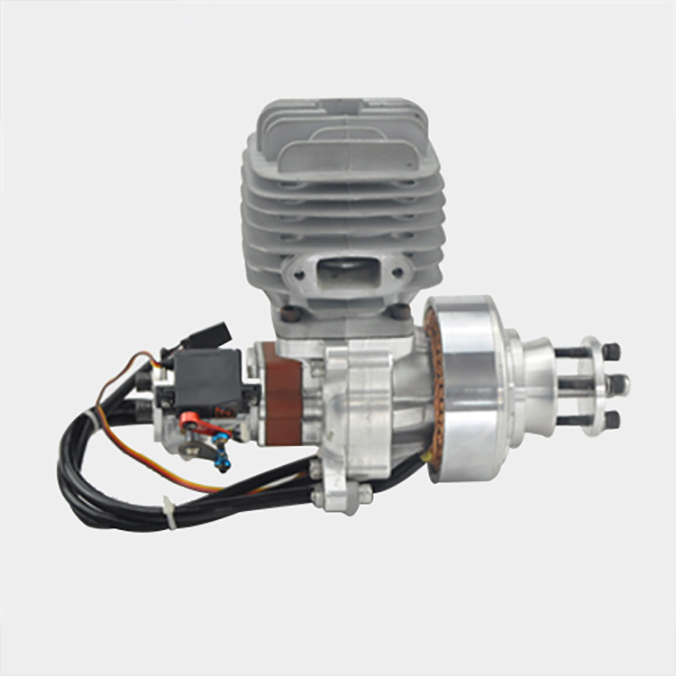

DLA58 58cc EFI Engine w/ Auto Starter & Alternator
The DLA58 EFI engine (DLA58UAE) is ideal for fixed-wing UAVs with a maximum take-off weight (including gasoline) of 18kg. It offers several advantages for UAVs:
The EFI system provides reliable fuel injection and is suitable for high altitude flying.
The engine features an auto-starter and alternator, a two-in-one system that outputs 400W of power, providing reliable and consistent power to your UAV.
Electrical parts are fitted with aviation plugs, making them more durable and reliable, ensuring that the engine performs consistently in demanding environments.
The engine is manufactured using improved materials and machining technology, providing excellent durability and resistance to wear and tear.
Please note that in order to achieve optimal engine performance, the fuel pulse width must be calibrated on a special test bench according to the corresponding propeller size.
Choose the DLA58 EFI engine for a high-performance, reliable engine that can meet the demands of even the most challenging UAV applications.
Description
DLA58 EFI Motoru (DLE58UAE)
DLA58 EFI motoru (DLE58UAE), maksimum kalkış ağırlığı (benzin dahil) 18 kg olan sabit kanatlı İHA'lar için idealdir.
İHA'lar İçin Temel Avantajlar:
- 1. EFI Sistemi: Güvenilir yakıt enjeksiyonu sağlar ve yüksek irtifa uçuşu için uygundur.
- 2. Auto-Starter ve Alternatör: 400W güç çıkışı sağlayan iki-bir-arada sistem, İHA'nıza güvenilir ve tutarlı güç temini sağlar.
- 3. Havacılık Fişleri: Elektrikli parçalar havacılık fişleriyle donatılmıştır, bu da onları daha dayanıklı ve güvenilir hale getirerek zorlu ortamlarda tutarlı motor performansı sağlar.
- 4. Dayanıklı Üretim: Geliştirilmiş malzeme ve işleme teknolojisi kullanılarak üretilmiştir, mükemmel dayanıklılık ve aşınma direncine sahiptir.
En zorlu İHA uygulamalarının gereksinimlerini karşılayabilecek yüksek performanslı ve güvenilir bir motor için DLA58 EFI motorunu seçin.
Teknik Özellikler
| Hacim | 58cc |
| Çıkış Gücü (Output) | 6.0 HP |
| Silindir Çapı/Strok | 46MM / 35MM |
| Hız Aralığı | 1600 - 6700 RPM |
| Çekme Kuvveti | 14.5 KG / 1000 Metre İrtifa |
| Silindir Düzeni | Tek (Single) |
| Yakıt | Benzin + 2T Sentetik Yağ |
| Yağlama Oranı | 25:1 ~ 30:1 (Alıştırma Dönemi) |
| 40:1 ~ 50:1 (Normal Uçuş) | |
| Yakıt Tipi | 92# / 93# Benzin |
| Sıkıştırma Oranı | 8:01 |
| Önerilen Pervaneler | 22×10, 23×10, 23×8, 24×8 |
| Buji | DLA CM6, Iridium |
| Voltaj (Tavsiye Edilen) | 6.6v-8.4v (2 LiPo pil önerilir) |
| Ağırlık | Ana Motor: 1400g / Egzoz Borusu: 127g / Ateşleme: 133g / Destekler: 32×4g |
| Özelleştirme | Talep Üzerine Mevcut |

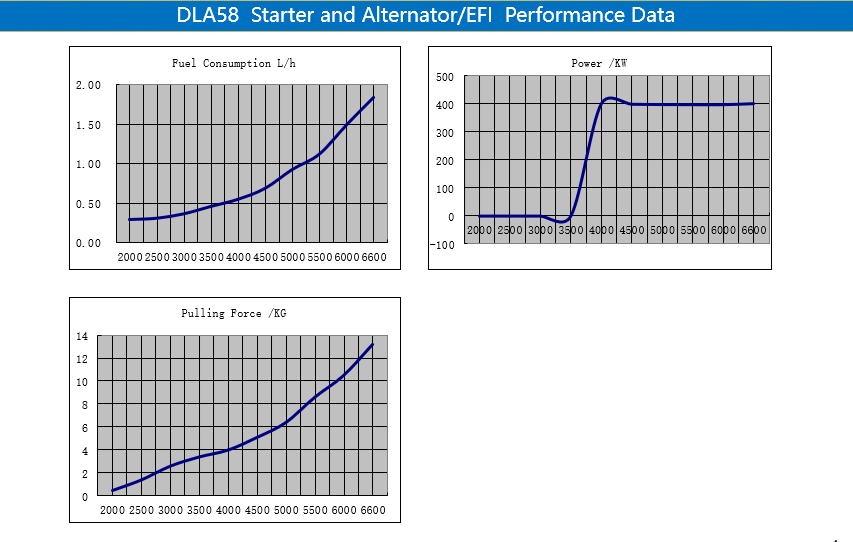

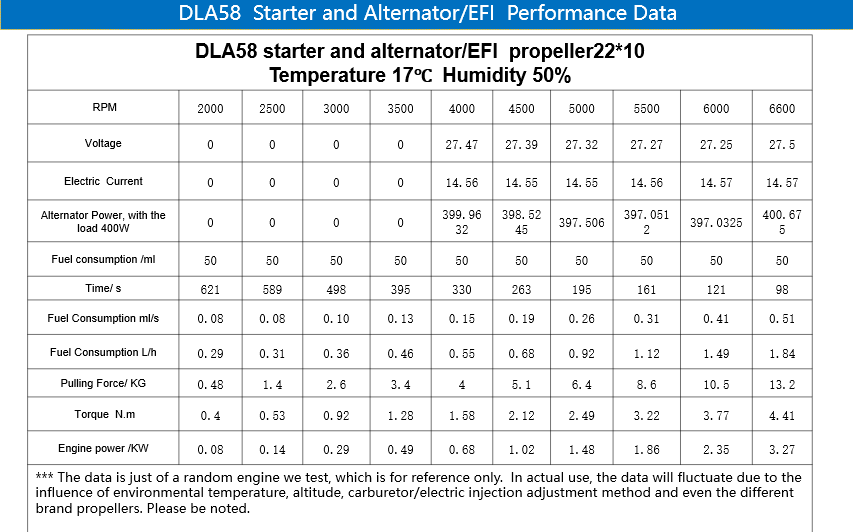

Performans ve Test Verileri
