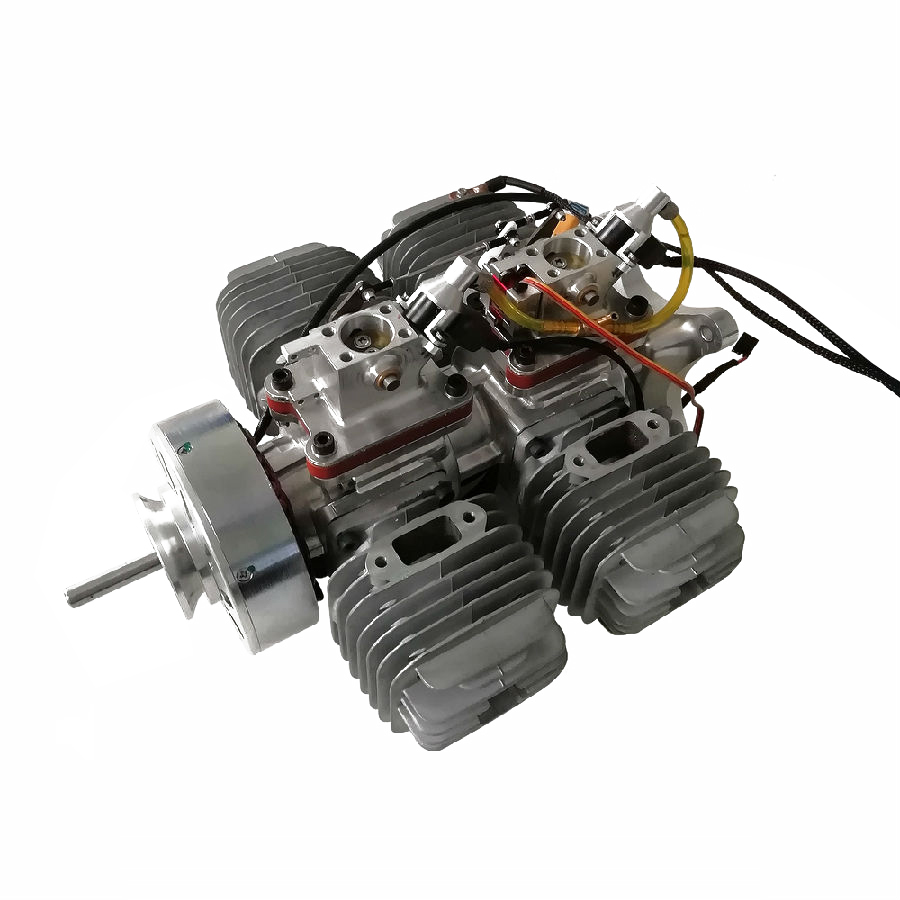

DLA232 EFI Engine with Starter & Alternator

Experience the next level of drone technology with the DLA 232cc EFI Engine. This high-performance engine is specifically engineered to enhance the reliability and power of your drones, making it ideal for high altitude flying.

The DLA 232cc EFI Engine is a breakthrough in drone technology, designed with an emphasis on power, reliability, and adaptability. It’s built to deliver superior performance, transforming the way drones operate in high altitude environments.

The engine features an optional Electronic Fuel Injection (EFI) system, which ensures optimal engine performance even in challenging conditions. This advanced system allows for precise control of fuel injection, resulting in improved efficiency, increased power output, and a smoother, more reliable operation.

In addition to its high-performance features, the DLA 232cc Engine also offers a one key start-auto starter, simplifying drone operation and reducing the time from startup to takeoff. The generator, with an impressive output power of 400W or 600W, ensures your drone has the power it needs for any mission.

All electrical parts are equipped with aviation plugs, ensuring solid and reliable connections for uninterrupted drone operation. This attention to detail extends to every aspect of the engine, reflecting our commitment to quality and durability.

Technical Details

Description

DLA 232cc İHA Motoru

DLA 232cc EFI Motoru, model uçaklar için özel olarak tasarlanmış, dört silindirli bir benzinli motordur. Bu yüksek performanslı motor, 22 HP güç ve 50m irtifada etkileyici 45 kg çekme kuvveti sunarak model uçak sektöründe fark yaratır.

Marş motoru ve alternatör ile donatılmış olup kolay çalıştırma ve güvenilir güç kaynağı sağlar. Gelişmiş Elektronik Yakıt Enjeksiyonu (EFI) sistemi ile DLA 232cc EFI Motoru, üstün yakıt verimliliği ve performansı sunarak model uçak deneyiminizi yeni zirvelere taşır.

Anahtar Özellikler:

  1. Yüksek Performanslı EFI Sistemi
    Opsiyonel EFI sistemi sayesinde zorlu koşullarda bile optimum motor performansı sağlanır.
  2. Tek Tuşla Çalıştırma - Oto Marş/Jeneratör
    Tek tuşla çalıştırmalı oto marş ile drone operasyonunuzu basitleştirin. Jeneratör, herhangi bir görev için gereken gücü sağlayan etkileyici bir 400W veya 600W çıkış gücü sunar.
  3. Güvenilir Bağlantılar
    Tüm elektrikli parçalar, kesintisiz drone çalışması için sağlam ve güvenilir bağlantılar sağlayan havacılık fişleri ile donatılmıştır.
  4. Özelleştirilebilir Seçenekler
    Giriş voltajı, dönüş yönü, jeneratör gücü ve su soğutmalı versiyon seçenekleriyle DLA 232cc Motoru, özel ihtiyaçlarınıza göre uyarlanabilir.

Teknik Özellikler:

  • Motor Tipi: Dört silindirli benzinli motor
  • Hacim (Exhaust): 232CC
  • Rölanti Hızı: 2000 rpm
  • Çap/Strok: 46 mm * 35 mm
  • Maks. Yakıt Tüketimi (32*10): 10.2 L/saat
  • Çekme Kuvveti (50m irtifa): 45 kg
  • Sıkıştırma Oranı: 8:1
  • Buji: İridyum Buji * 4
  • Başlatma Güç Kaynağı: 12S Lipo Batarya
  • Yağlama Oranı: 30:1 (alıştırma), 45:1 (normal uçuş)
  • Yakıt / Yağ: Benzin / Tam Sentetik 2T Yağı
  • Ağırlıklar: Motor – 5968 g, Ateşleme – 232 g, Güç Yöneticisi – 400 g

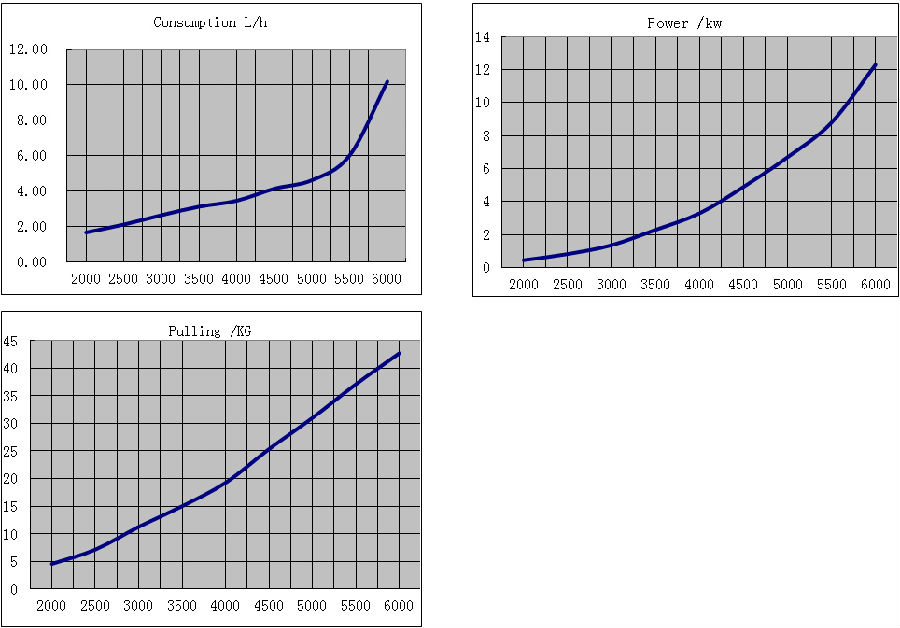

Performans Test Verileri

DLA232 EFI w/ Marş ve Alternatör (28V)

İtme Pervanesi 34*10 (Sıcaklık 27℃, Nem %50)

RPM 2000 2500 3000 3500 4000 4500 5000 5500 6000
Tüketim (L/s) 1.69 2.13 2.66 3.14 3.47 4.16 4.64 6.04 10.20
Çekme Kuvveti (KG) 4.54 7.13 11.25 15.00 19.25 25.34 31.00 37.10 42.70
Tork (N.m) 1.97 3.13 4.21 6.10 7.90 10.20 12.60 15.57 19.60
Güç (KW) 0.46 0.83 1.37 2.30 3.30 4.90 6.70 8.80 12.30
***Bu veriler yalnızca rastgele test edilen bir motora ait olup sadece referans amaçlıdır. Gerçek kullanımda, veriler ortam sıcaklığı, irtifa, karbüratör/elektrik enjeksiyon ayar yöntemi ve farklı marka pervanelerden etkilenecektir.

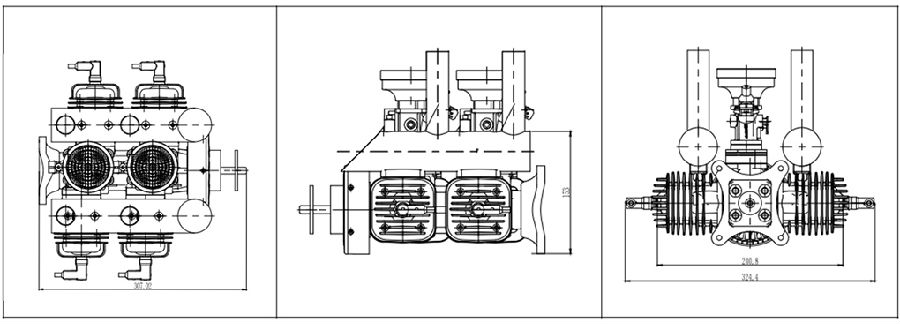

Motor Şemaları
