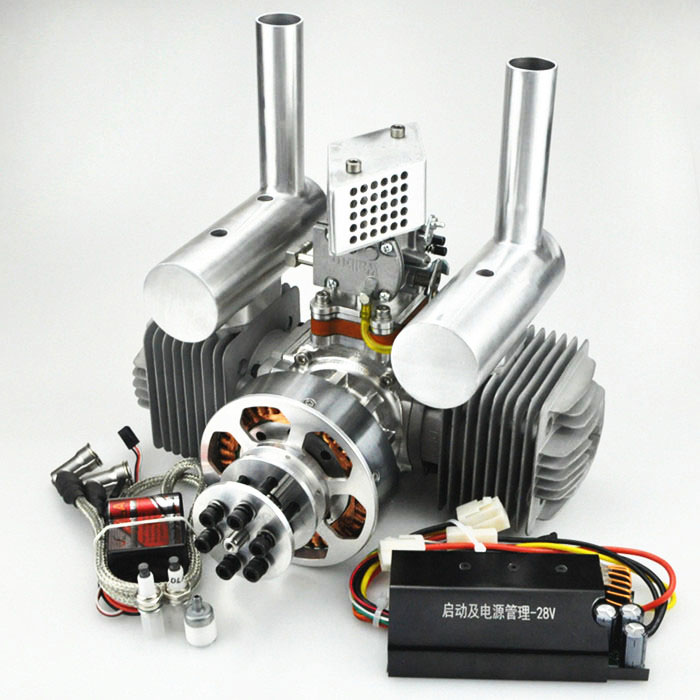

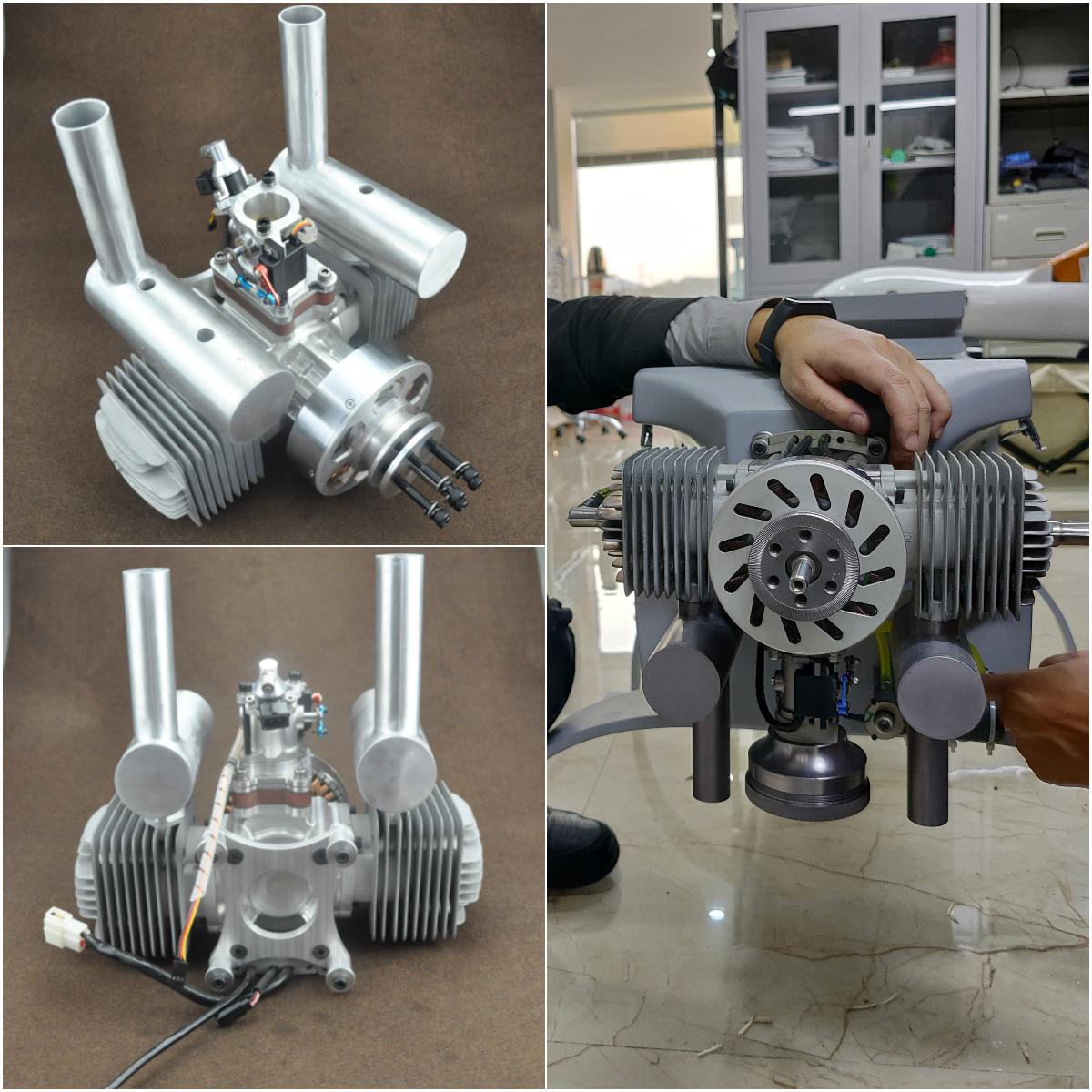

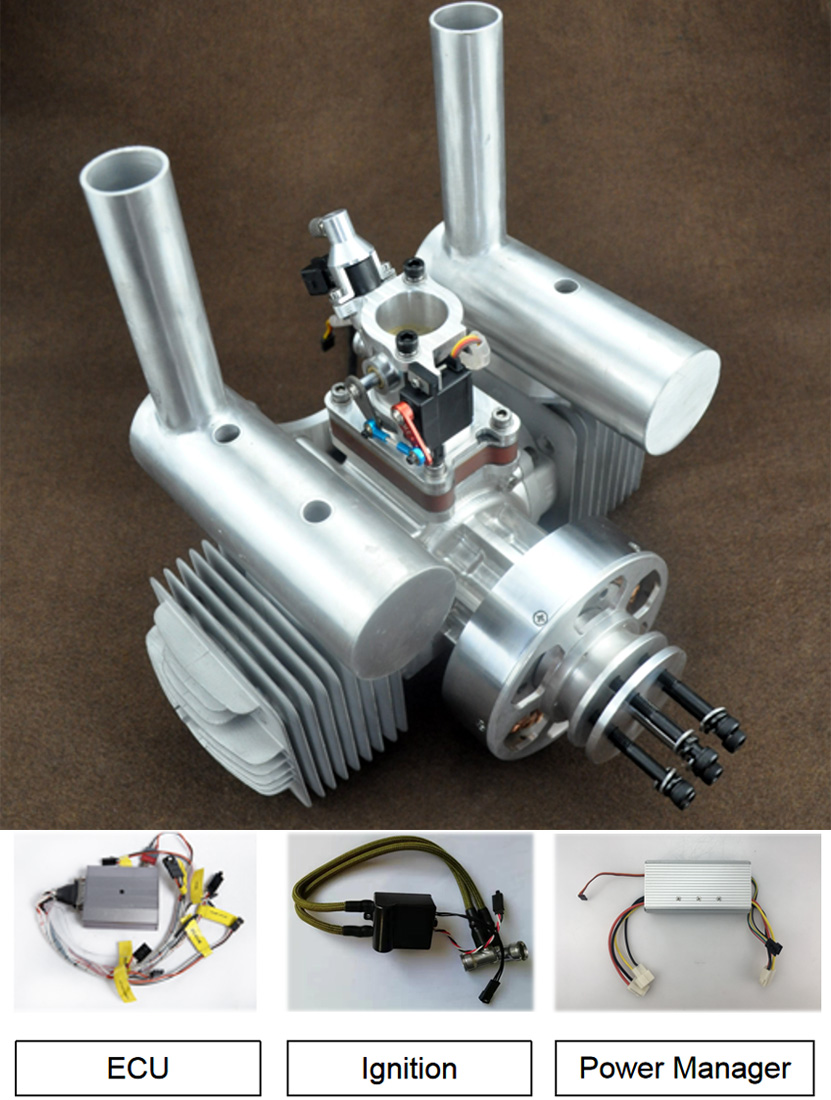

DLA180 180cc EFI UAV Engine with Starter & Alternator
The DLA 180cc EFI UAV Engine is designed for large fixed-wing and VTOL drones. It now comes equipped with an EFI version of the starter and alternator. The EFI engine is more advanced in many aspects, including higher power, fuel efficiency, low noise, less prone to stalling, and requires only a single ignition. The ECU can automatically adjust the ignition timing, fuel injection amount, and idle control based on the engine temperature and altitude.
Key Features
EFI System: Suitable for high-altitude flight.
Automatic Starter and Alternator: 2-in-1, with an output power of 400W/600W.
Aviation Plug: Electrical components use aviation plugs, which are more robust and reliable.
Improved Materials and Processing Techniques: Ensures durability and longevity.
Description
Overview
The DLA 180cc EFI UAV Engine is designed for large fixed-wing and VTOL drones. It now comes equipped with an EFI version of the starter and alternator. The EFI engine is more advanced in many aspects, including higher power, fuel efficiency, low noise, less prone to stalling, and requires only a single ignition. The ECU can automatically adjust the ignition timing, fuel injection amount, and idle control based on the engine temperature and altitude.
Key Features
-
EFI SystemSuitable for high-altitude flight.
-
Automatic Starter and Alternator2-in-1, with an output power of 400W/600W.
-
Aviation PlugElectrical components use aviation plugs, which are more robust and reliable.
-
Improved Materials and Processing TechniquesEnsures durability and longevity.

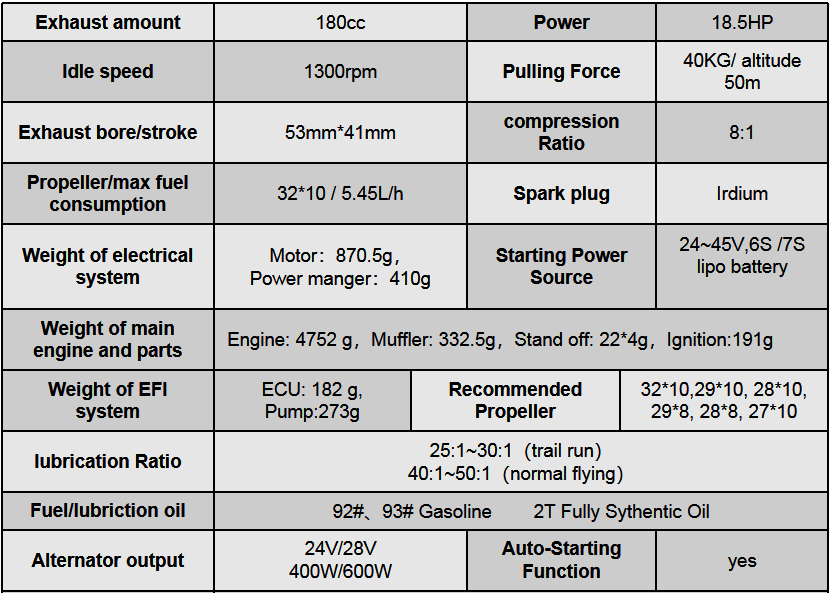

Specifications
| Attribute | Value |
|---|---|
| Displacement | 180CC |
| Output | 18.5HP |
| Bore/Stroke | 53mm/41mm |
| Speed Range | 1600-6900 RPM |
| Thrust | 40kg at 50 meters above sea level |
| Cylinder Arrangement | Twin exhaust |
| Fuel | Gasoline + 2T synthetic oil |
| Lubrication Ratio | 25:1~30:1 (during trial run) |
| Compression Ratio | 8:1 |
| Recommended Propellers | 29*10, 28*10, 29*8, 28*8, 27*10 |
| Spark Plug | DLA CM6, Iridium |
| Voltage | Generator output: 24V/28V, 400W/600W |
| Weight | Main engine: 2200g, Generator and starter: 1000g |
Additional Information
The user manual is available upon request, it includes assembly instructions, information on the generator and injection systems, engine starting and maintenance, problem shooting, and warranty policy. For more detailed information, please refer to the user manual.
