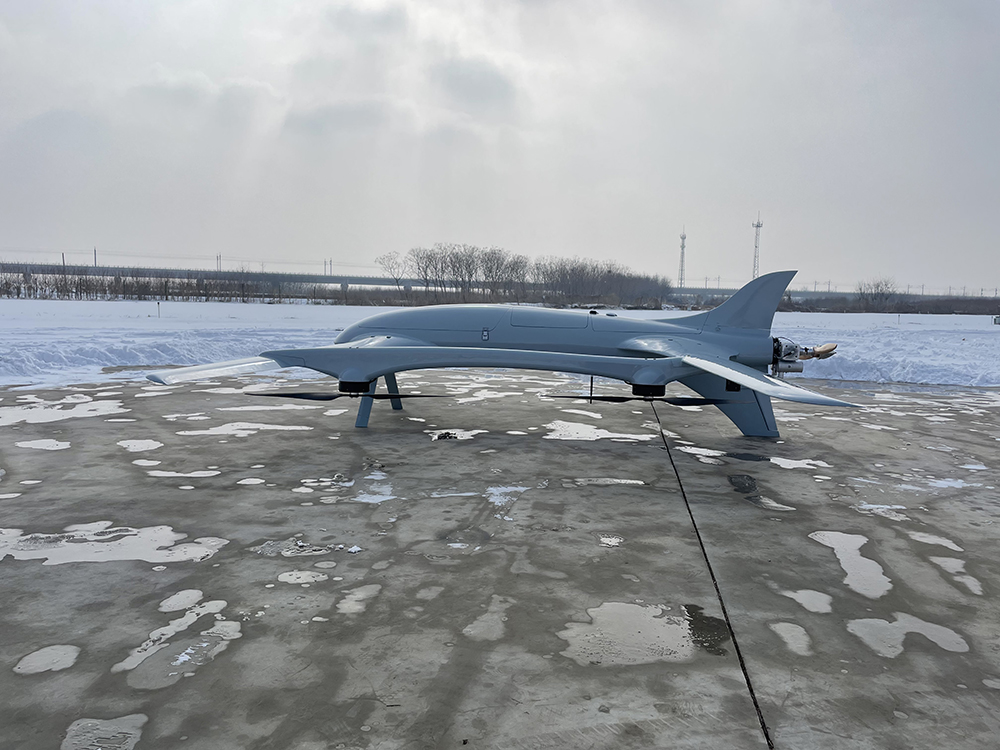

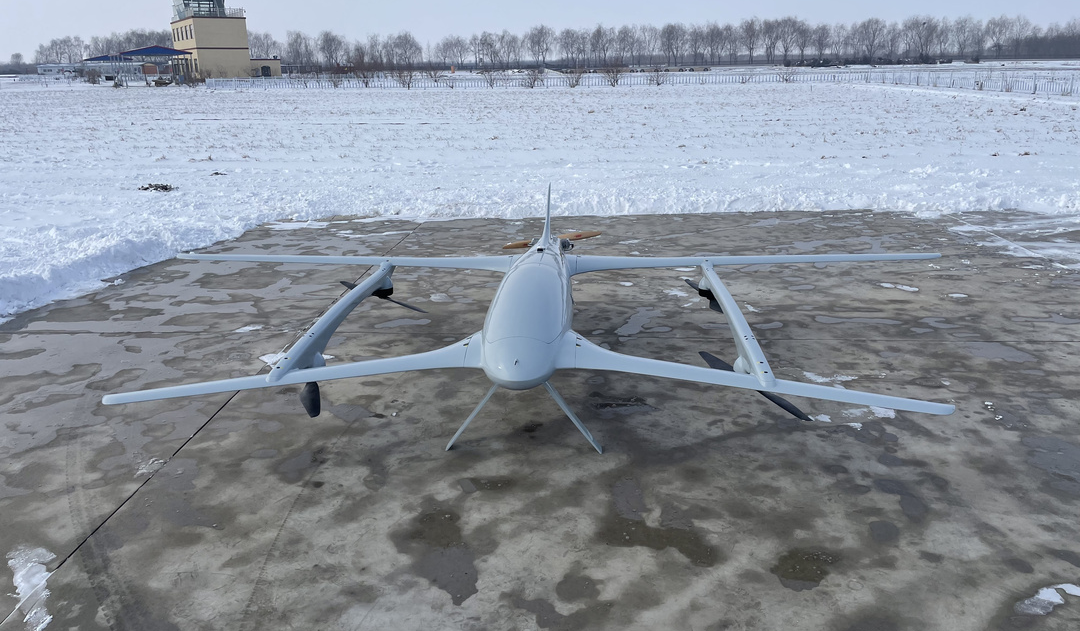

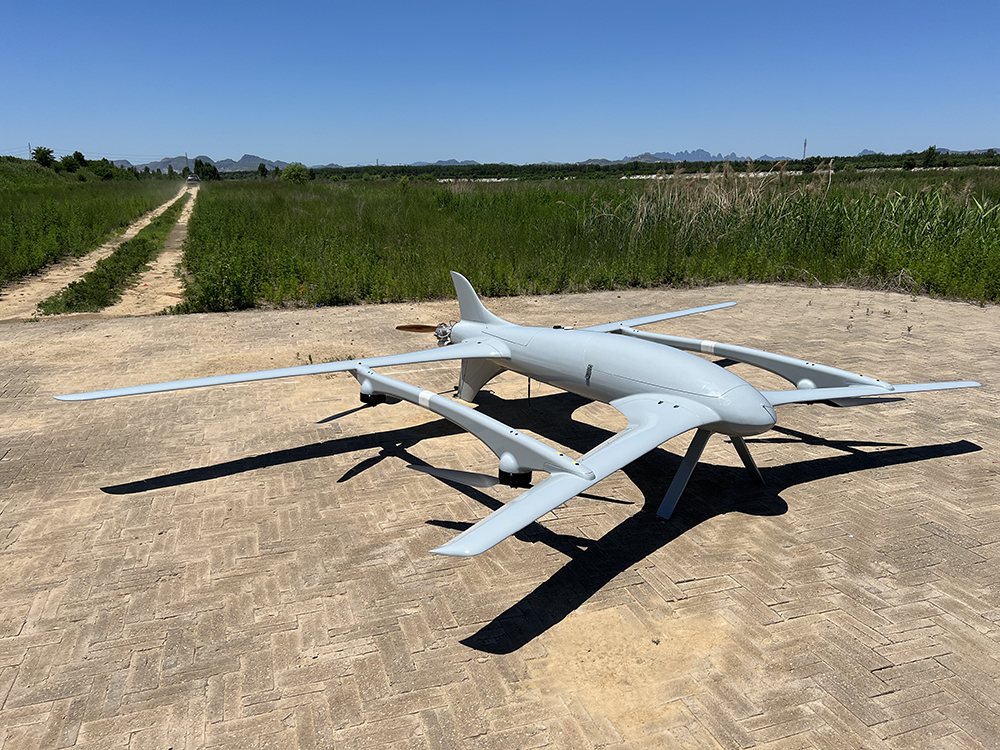

ARM VT510 Heavy-Load VTOL UAV

The ARM VT510 is a robust tail-thrust tandem-wing VTOL drone designed for demanding industrial applications requiring long endurance and heavy payloads. This UAV combines advanced aerodynamics and modern aesthetics with a high-aspect ratio design, achieving an efficient balance between power and precision. Constructed with carbon fiber composite material, the ARM VT510 ensures both high strength and low weight, making it ideal for large-scale surveying, mapping, and delivery tasks.

Key Features

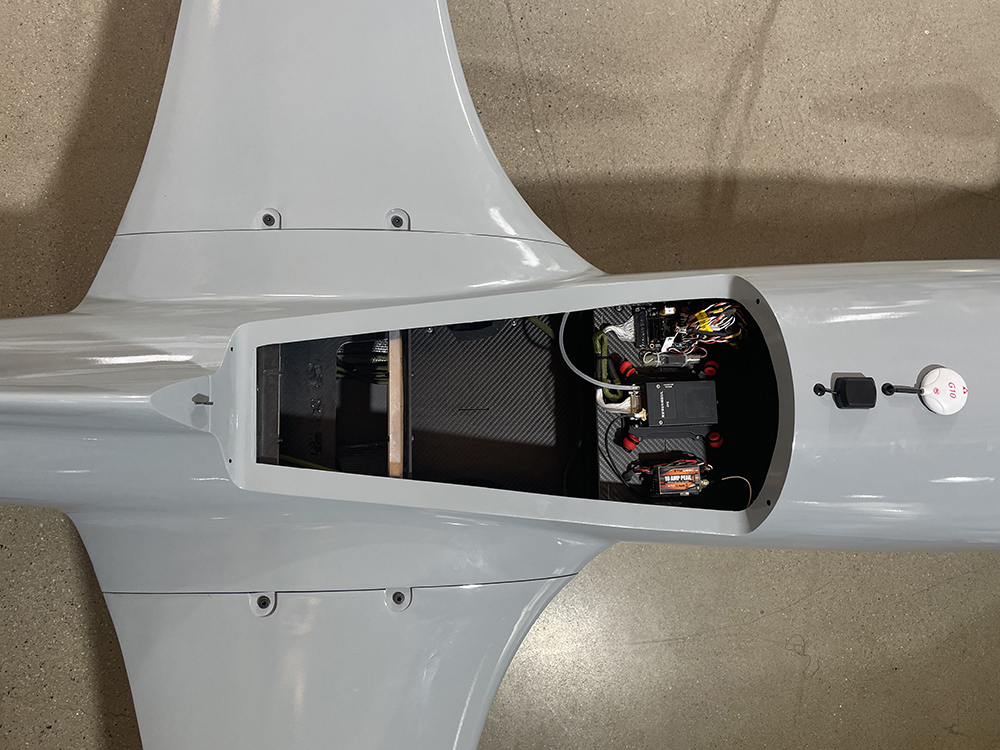

Impressive Payload Capacity: With a maximum load capacity of 45 kg, the ARM VT510 can support a wide variety of payloads, including high-precision instruments. The spacious fuselage features mounting brackets, allowing for easy integration of additional equipment.

Efficient Modular Design: The propulsion system’s modularity allows for flexibility, accommodating either a gasoline piston or heavy oil engine in the tail power compartment, suited to mission needs.

Quick Assembly: With a convenient plug-in structure, the ARM VT510 can be assembled in under 10 minutes, despite its take-off weight of 100 kg.

Technical Details

Description

Technical Specifications:

Dimensions:
- Length: 2566 mm (excluding engine) / 2905 mm (including engine)
- Height: 930 mm
- Wingspan: 5100 mm
Airframe Material: Carbon fiber composite
Engine Type: Gasoline piston or heavy oil engine options
Fuel Tank Capacity: 25 liters
Maximum Payload: 45 kg (including fuel and payload)
Maximum Take-Off Weight: 100 kg
Typical Flight Endurance: 4h@30kg, 6h@20kg.

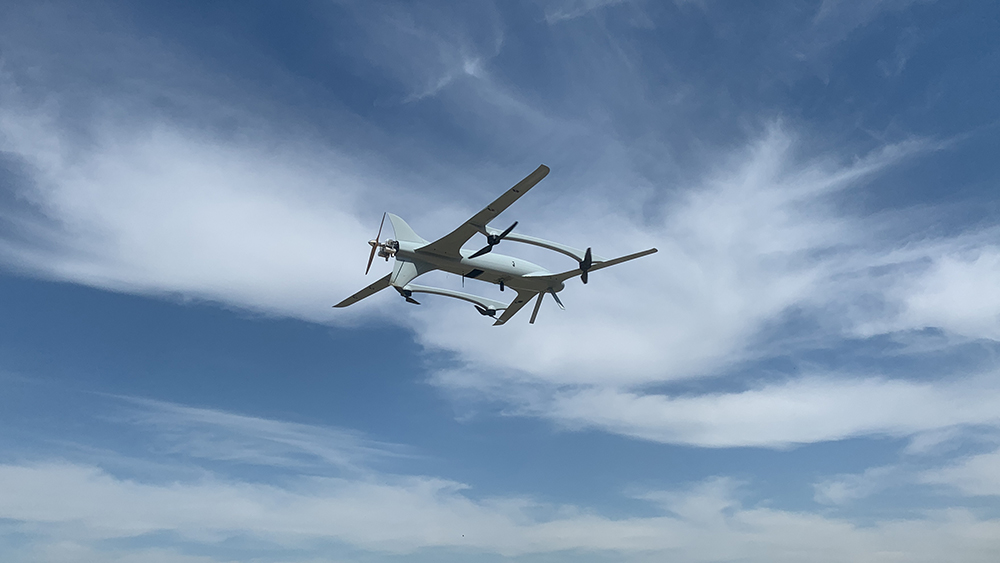

Flight Performance:
- Level Speed: 28-50 m/s
- Cruising Speed: 30 m/s
- Fuel Consumption:
  - Gasoline: 4-5.5 liters per hour
  - Heavy oil: 1.8-2.5 liters per hour (under conditions of no wind and good weather.)
- Stall Speed: 25 m/s
- Climb Rate: 4-6 m/s
- Operational Altitude: Up to 5000 m
- Operating Temperature: -30℃ to 50℃
- Wind Resistance: Level 5 for takeoff/landing; Level 6 in cruising
Storage and Transportation:
- Box Dimensions & Weight: 3050*800*950 mm / 107 kg
Protection Rating: IPX4

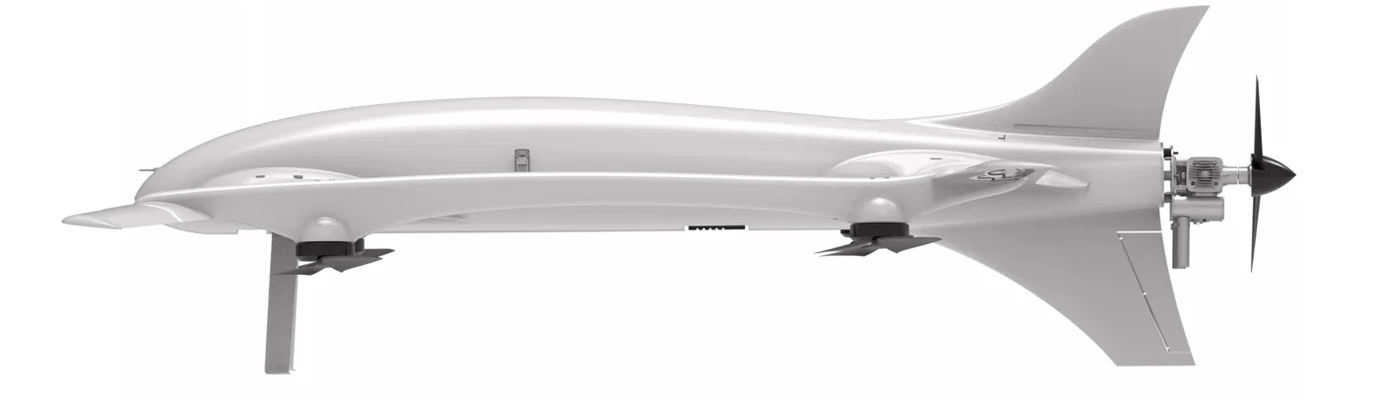

Advantages of Tandem-Wing VTOL Layout:

The tandem-wing design reduces the overall footprint, making it easier to install vertical lift rotors. This structure allows the UAV to expand its internal cargo space while enhancing its aerodynamic efficiency. Over 70% of the ARM VT510 is crafted from carbon fiber composites, ensuring lightweight durability and reliability. Advanced analysis and stringent quality control in manufacturing further optimize load-bearing points and stress areas, ensuring stable and secure performance.
