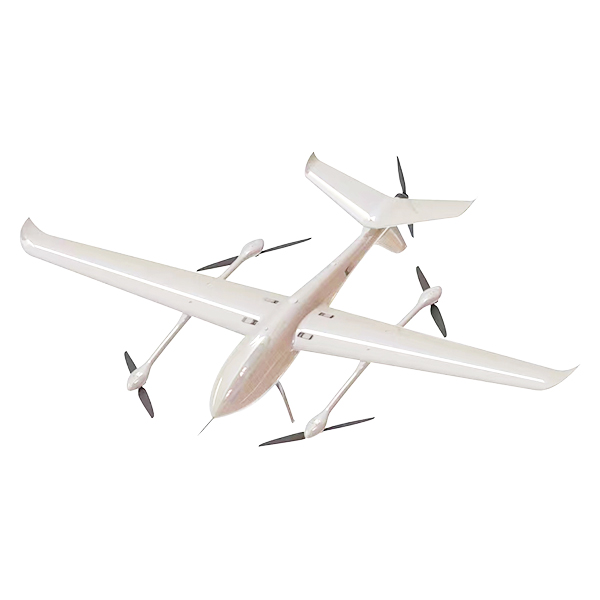

ARM-V32 Full Electric Long Endurance VTOL UAV
4.5 hours flight time when unloaded.
Over 3 hours of endurance with a 3kg payload.
3 hours 15 minutes endurance with a 2kg payload.
3 hours 48 minutes endurance with a 1kg payload.

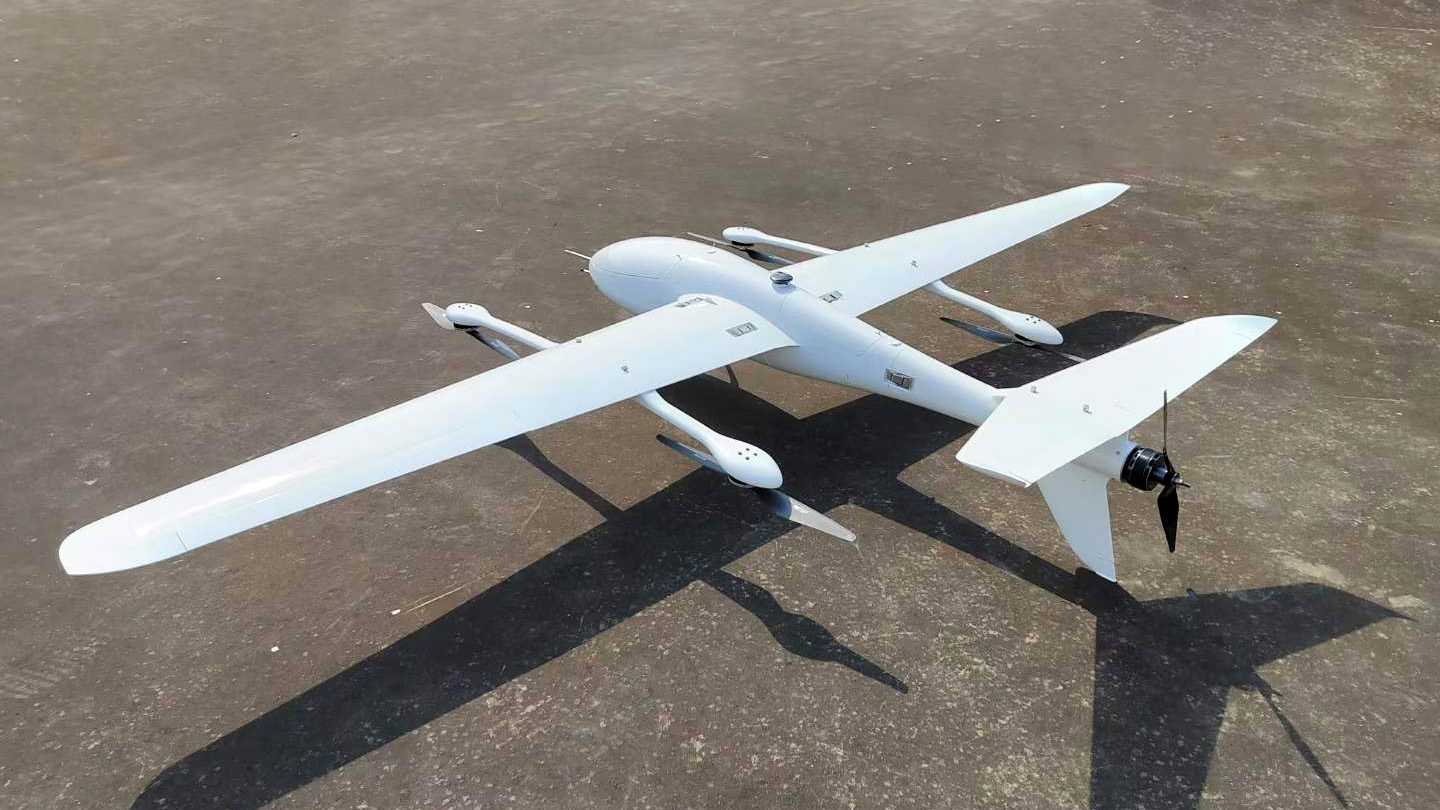

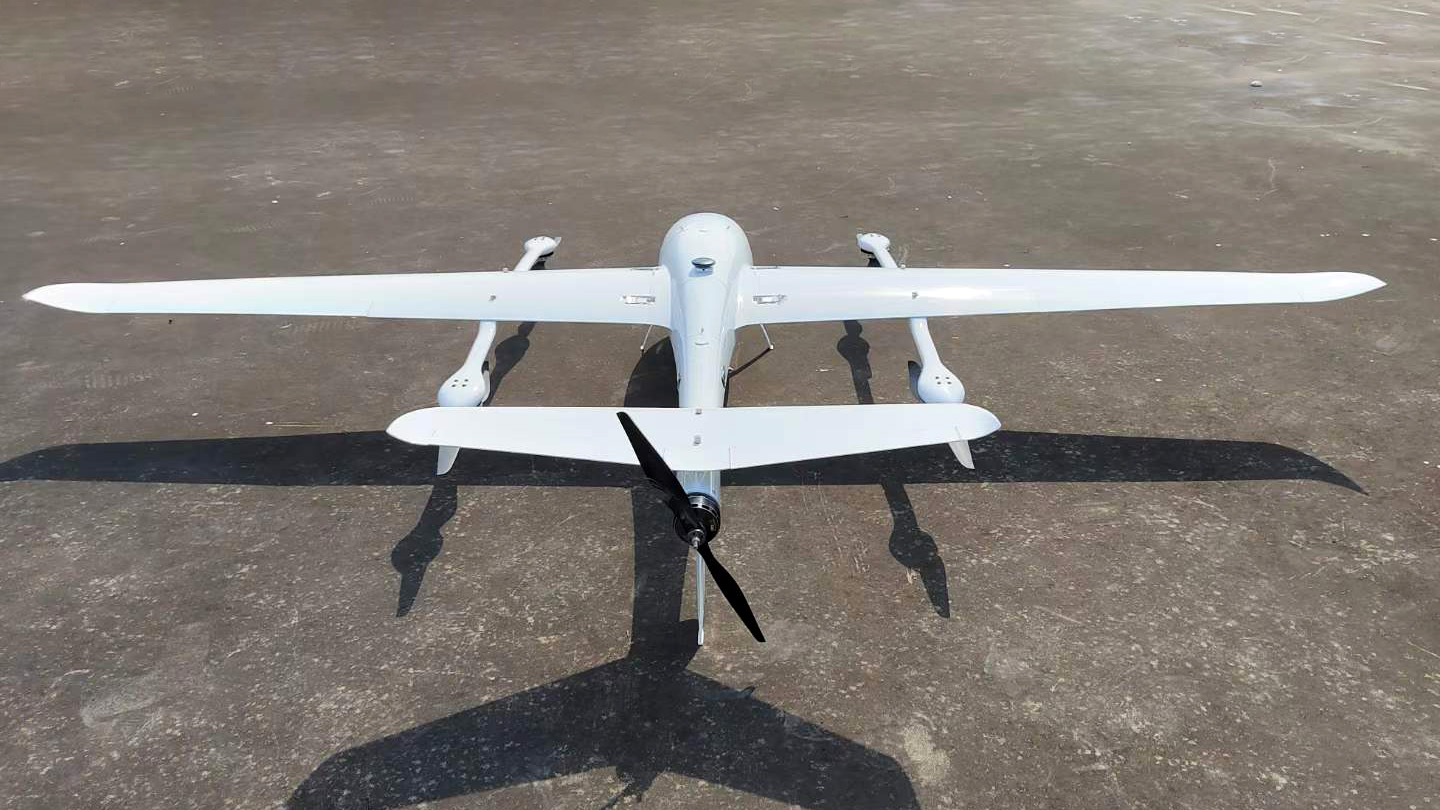

The ARM V32 is a high-endurance tail-push vertical take-off and landing (VTOL) fixed-wing UAV, meticulously designed for long-range inspection and surveying missions. With an impressive endurance of up to 4.5 hours when unloaded, the V32 can handle a maximum payload of 5kg. It achieves more than 3 hours of flight time with a 3kg payload, making it a versatile choice for extended operations requiring significant payload capacity.
Specifications
- Body Length: 1260mm
- Wingspan: 3200mm
- Landing Gear Height: 190mm
- Structure Weight: Approximately 6450g (including all structural components and mounting parts)
- Wing Loading: Approximately 250g/dm²
-
Endurance:
- 228 minutes @ 1kg payload
- 108 minutes @ 5kg payload
-
Maximum Control Range:
- Manual Control: 0.5km-1km
- Ground Station: 5km-30km
- Standard Cruise Speed: 20m/s @ 23.5kg (21m/s recommended for mountainous operations)
- Maximum Cruise Speed: 93.6km/h (26m/s)
-
Standard Battery Configuration:
- 22.8V/32Ah * 2 (45.6V)
- 22.8V/25Ah * 4 (45.6V)
- Never-Exceed Speed: 122km/h (approximately 34m/s)
- Stall Speed: 17m/s @ 23.5kg (16m/s @ roll 25°/pitch 15°)
- Minimum Turning Radius: 150m @ 20m/s (roll 18°) (safe turning radius not less than 200m at high altitudes)
- Maximum Flight Altitude: 5000m above sea level
-
Wind Resistance:
- Fixed-Wing Mode: Up to Beaufort scale 6 (gusts up to 7)
- Rotor Take-off and Landing Mode: Up to Beaufort scale 4 (gusts up to 6)
- Operating Environment: -20°C to 45°C; capable of safe operation in light rain (greater than 10 minutes safe operation time)
- Rotor Emergency Operation Time: Not less than 6.5 minutes (with independent rotor battery, non-standard power configuration)
- Take-off and Landing Method: Vertical take-off and landing
- Rotor Propeller Size: 22-24 inches (recommended)
- Fixed-Wing Tail-Push Propeller: 19-21 inches (recommended)
- Fixed-Wing Maximum Thrust-to-Weight Ratio: Approximately 0.6 (standard configuration)
- Safe Voltage When Entering Landing Pattern: Loaded voltage not less than 44.4V (Gens Ace high-voltage batteries)
- Wing Installation Angle: 2°
- Pitot Tube Installation: 2 (standard configuration includes a single pitot tube opening)
- Standard Empty Takeoff Weight: Approximately 17kg
