Description
TECHNICAL PARAMETER
| Parameter | Value |
|---|---|
| Model | MX860 |
| Wheelbase | **860mm** |
| Weight of Drone (With Battery) | 9.96kg |
| Weight of Battery | 5.2kg (Two Ares 6S 30Ah batteries or ARES 6S 36Ah batteries) |

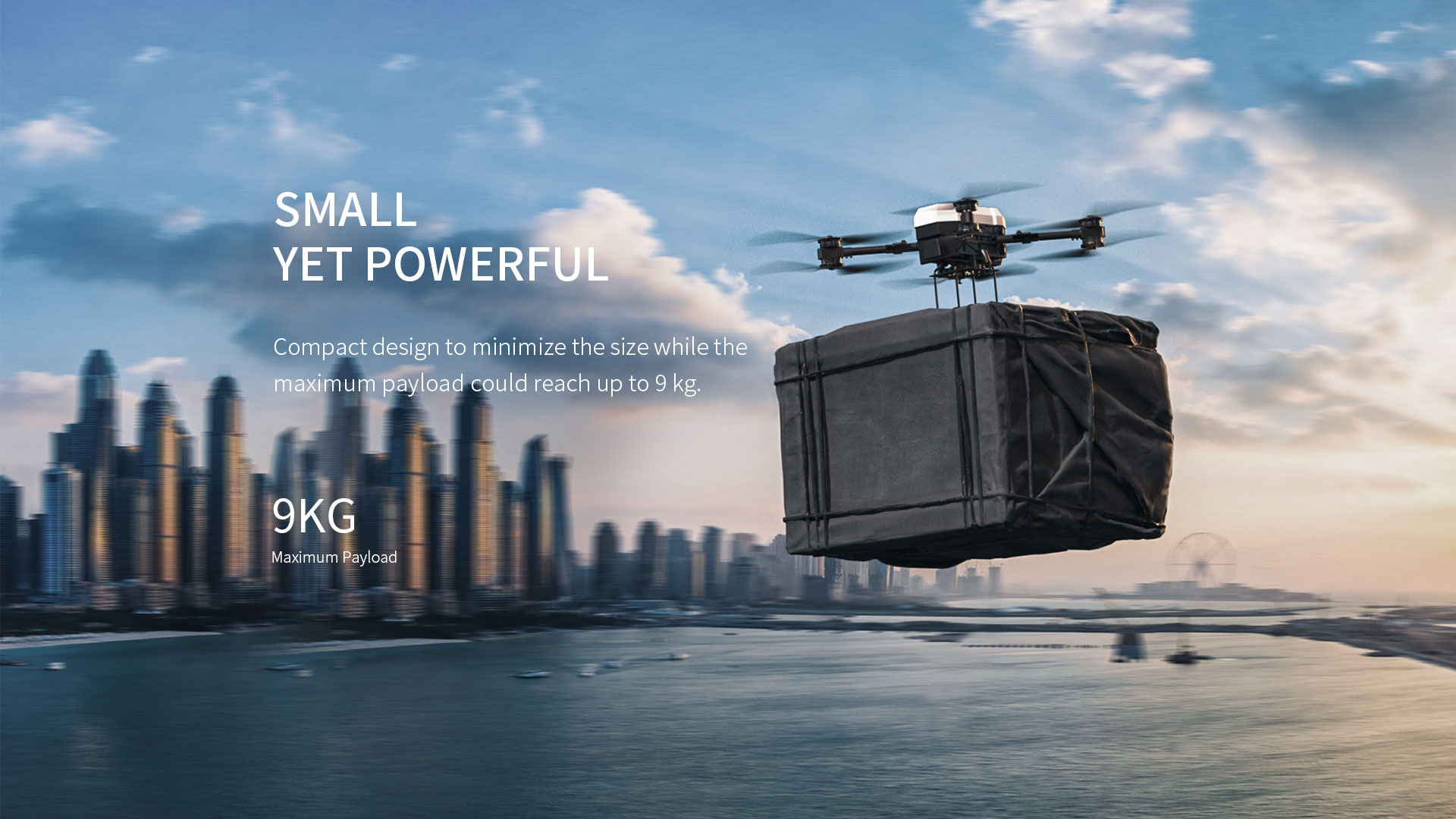

| Max Take-off Weight | **19.96kg** |
| Maximum Ascent Speed | 5m/s |
| Maximum Descending Speed | 3m/s |
| Maximum Horizontal Flight Speed | **20m/s** |
| GPS Hover Accuracy | Vertical: +0.2m; Horizontal: +0.1m (without RTK) |

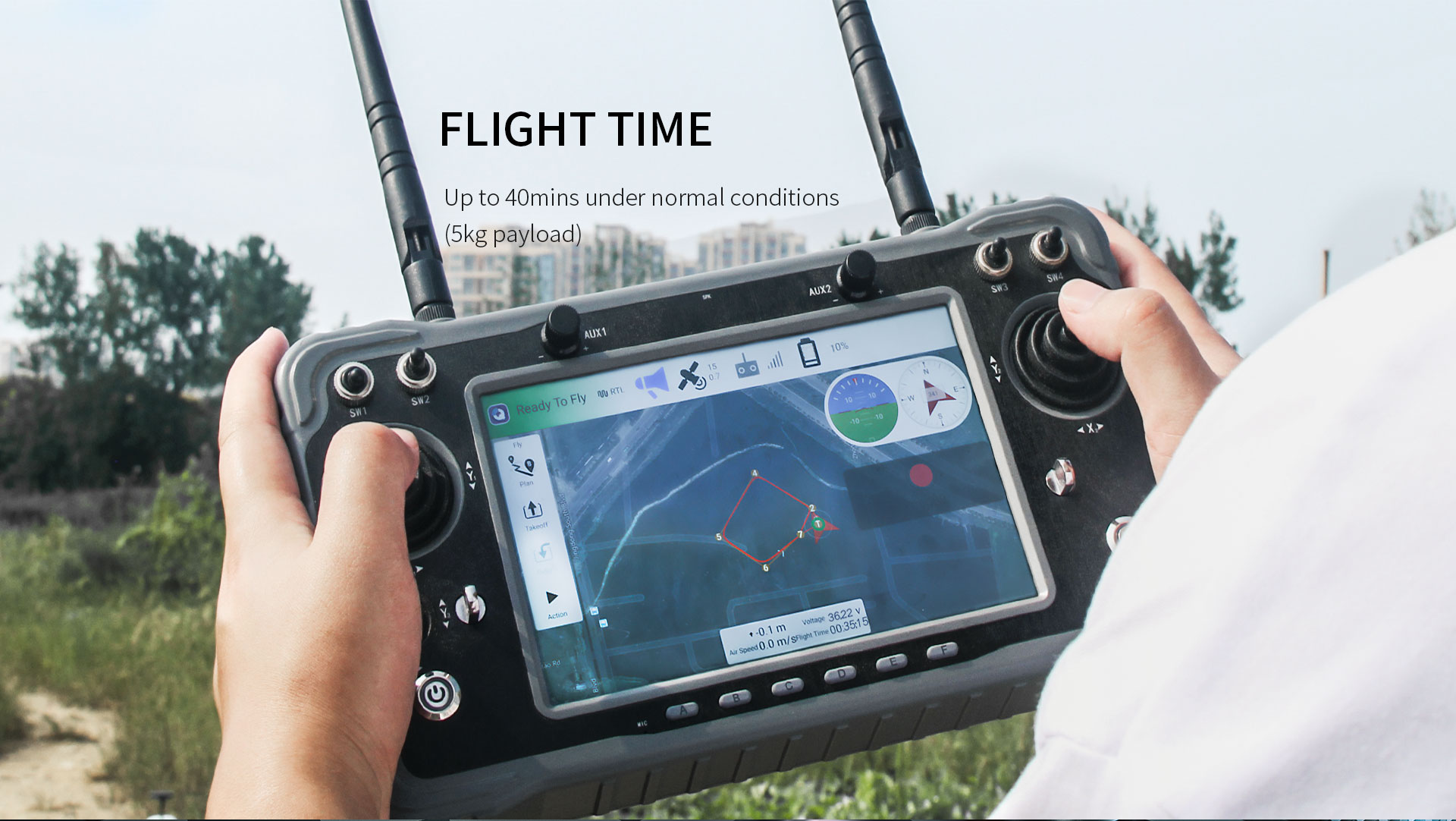

| Hover Time | 3kg ≥ 49mins; **5kg ≥ 40mins**; 9kg ≥ 24mins |

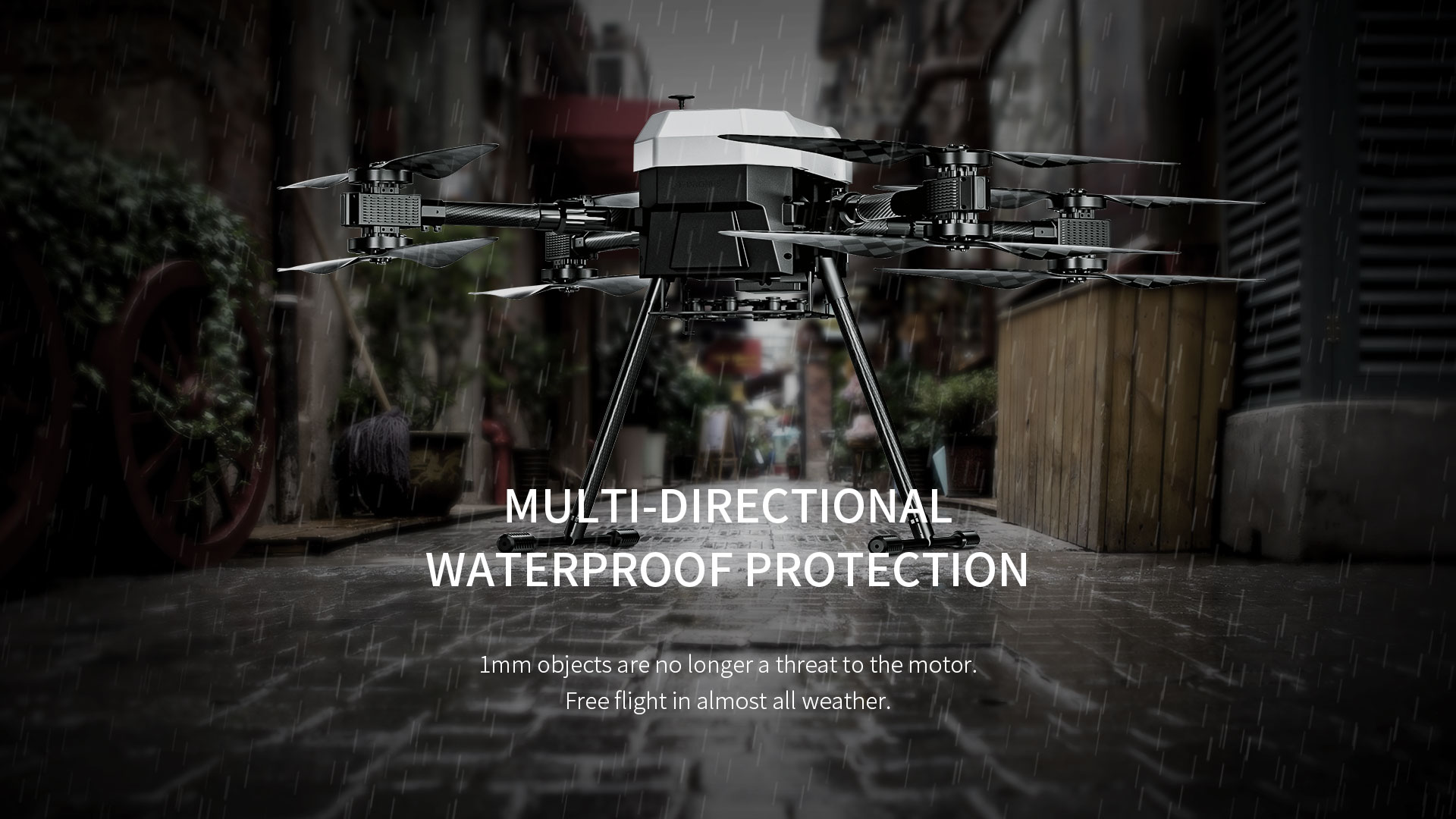

| Protection | **IP52** |
| Maximum Tolerable Wind Speed | **14m/s** |
| Working Temperature | -15℃~50℃ |
| Propulsion System | T-MOTOR |

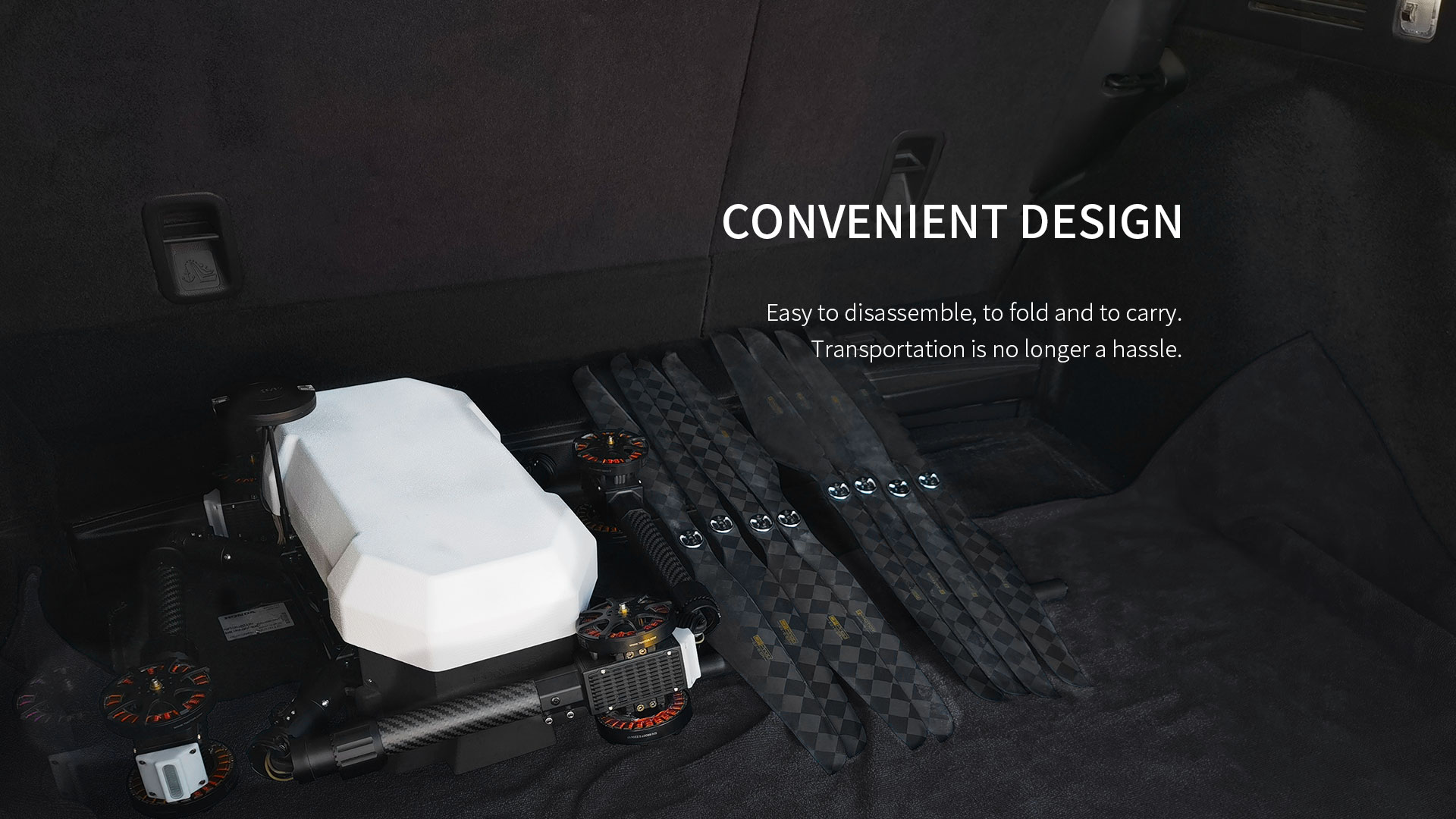

| Dimensions Folded | 433*413.5*250mm (With Landing Gear, Without Props) |
| Packing Size | 520*515*385mm |
| Shipping Weight | 8.5kg (With Packaging) |
