Description
Specification
| Working voltage | 16V |
|---|---|
| Input voltage | 4S ~ 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 1200~2500mA @ 16V |
| Working environment temp. | -20°C ~ +60°C |
| Video Output | micro HDMI (1080P 30/60fps) / IP Rtsp (720P/1080P 30fps) |
| Local-storage | SD card (Up to 128G,class 10, FAT32 or ex FAT format) |
| Photo storage format | JPG (1920*1080) |
| Video storage format | MP4 (1080P 30fps) |
| Network reader | HTTP reading |

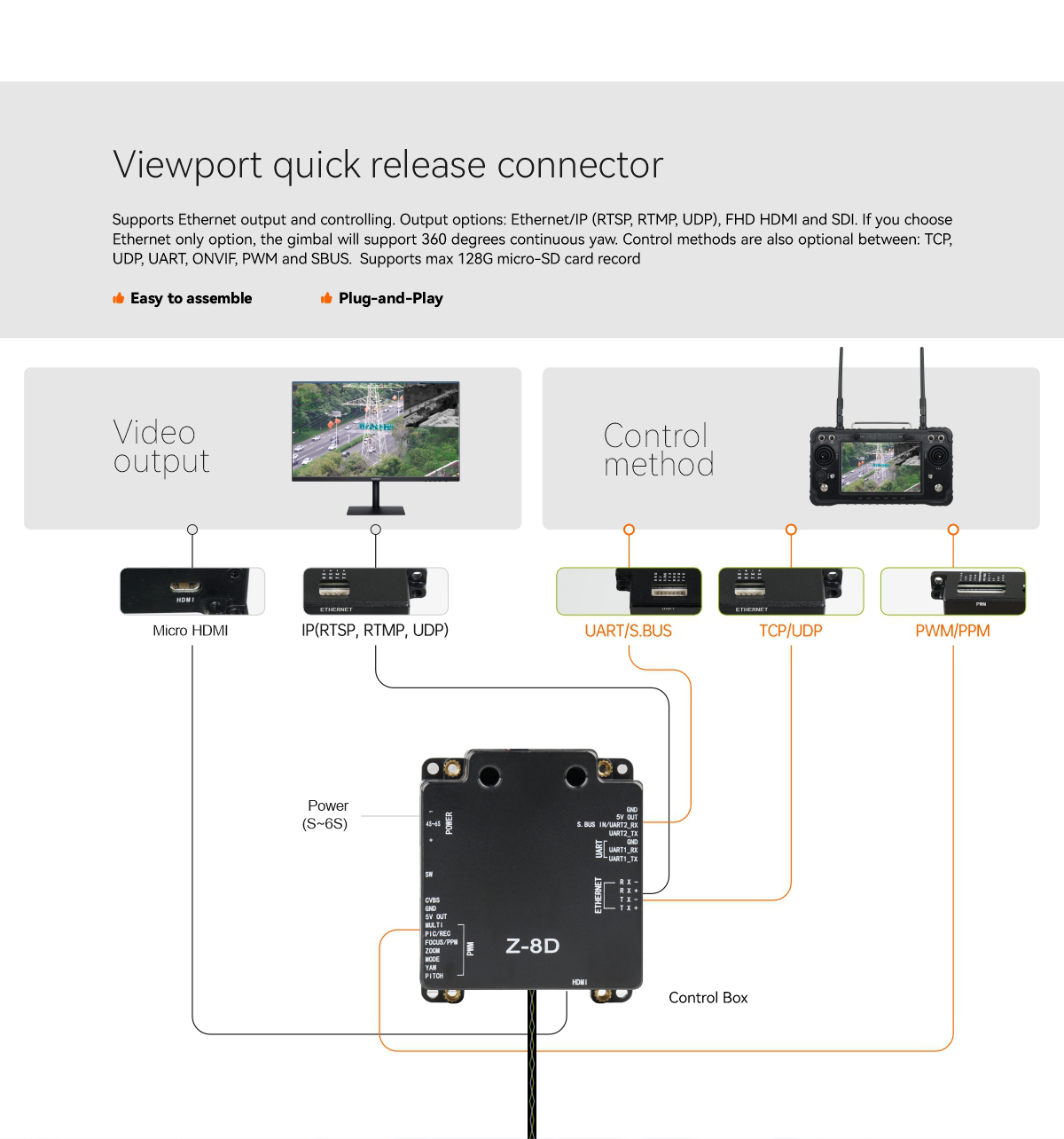

| Control method | PWM / S.BUS / TTL / TCP(IP output version) / UDP(IP output version) |
| Mechanical Range | Pitch/Tilt: -60°～130°, Roll: ±40°, Yaw/Pan: ±300° / ±360°*N (IP output version) |
|---|---|
| Controllable Range | Pitch/Tilt: -45°～90°, Yaw/Pan: ±290° / ±360°*N (IP output version) |
| Vibration angle | Pitch/Roll/Yaw：±0.02° |
| One-key to center | √ |
| Imager Sensor | 1/2.8" Sony CMOS |
|---|---|
| Effective pixel | 5.13 MP |

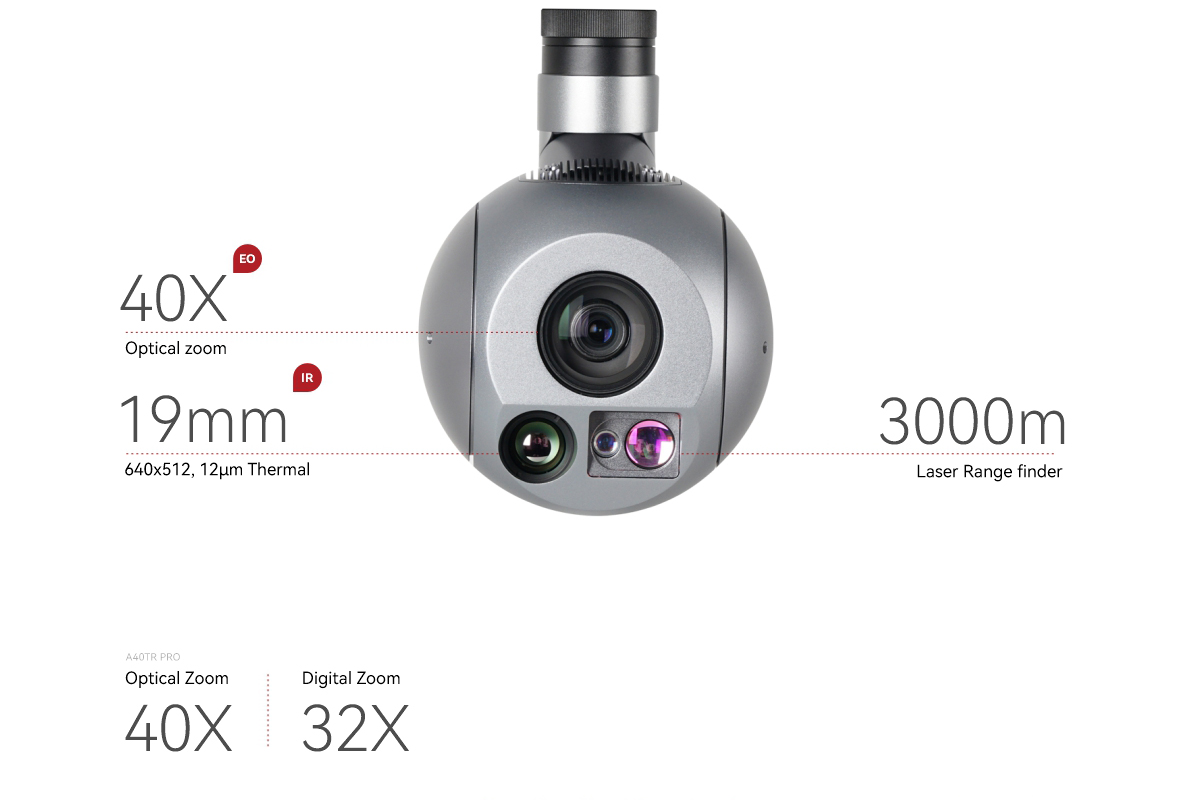

| Lens | Optical zoom: 40x f = 4.25 mm (Wide), 170 mm (Tele) F1.6 to F4.95 |
| Digital zoom | 32x |
| Angle of view ( H ) | 66.35°(Wide) ~ 1.9°(Tele) |
| Min. object distance | 0.1 / 1.5 / 3.0 / 5.0 / 10.0 m |
| Focus | Auto / One-click auto focus / Manual |
| White balance | Auto / Indoor / Outdoor / One-key / Manual |
| Shutter speed | 1/1 to 1/30,000 S |
| Exposure control | Auto / Manual / Priority mode ( Shutter priority / Aperture priority ) |
| Sync system | Internal |
| Back light compensation | Yes |
| Auto ICR | Yes |
| Progressive scan | Yes |
| Image stabilizer | Yes |
| Defog mode | Yes |
| Focus Length | 19mm |
|---|---|
| Coating Film | DLC |
| Horizontal FOV | 22.9° |
| Vertical FOV | 18.4° |
| Diagonal FOV | 29.0° |

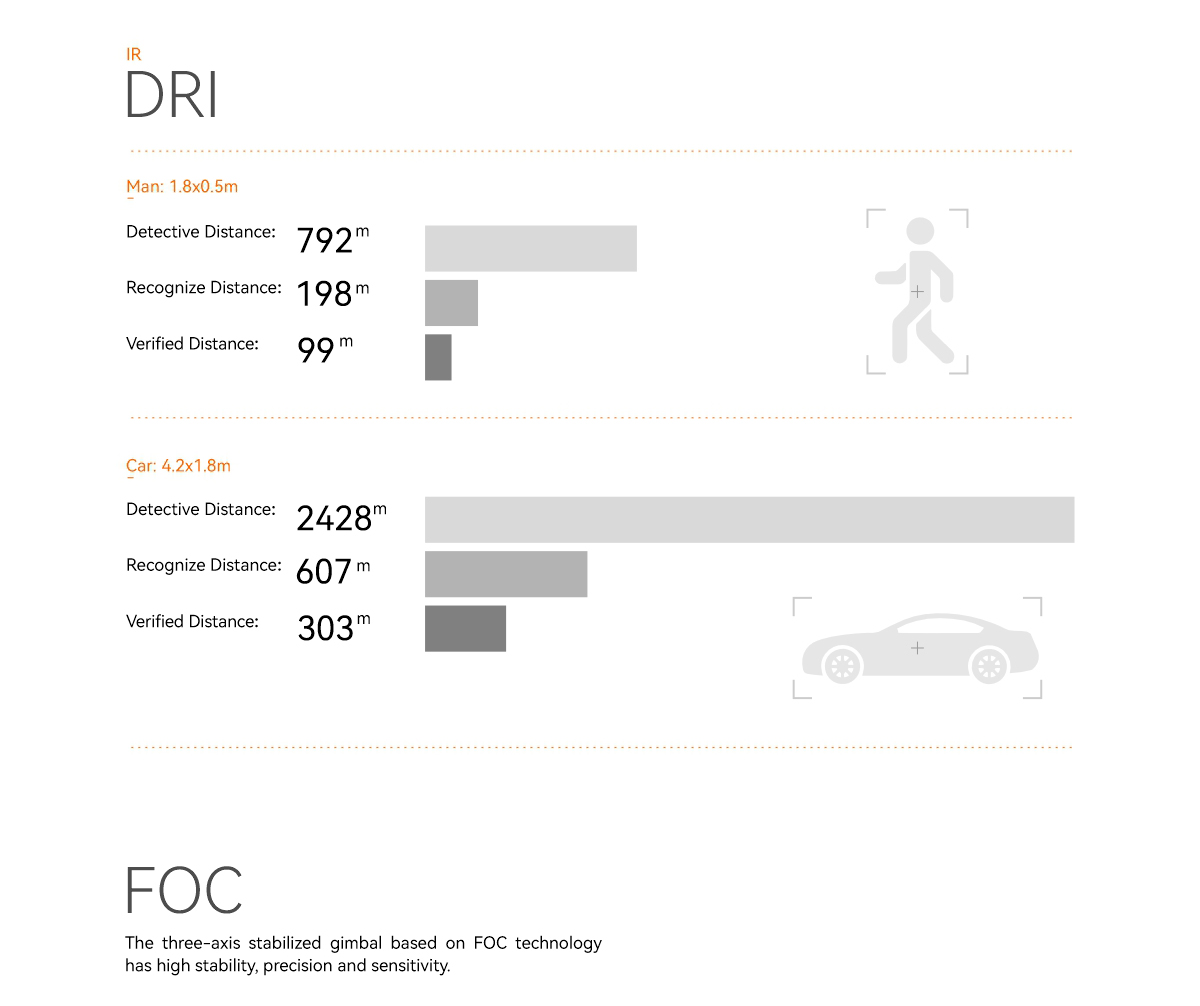

| Detective Distance (Man: 1.8x0.5m) | 792 meters |
| Recognize Distance (Man: 1.8x0.5m) | 198 meters |
| Verified Distance (Man: 1.8x0.5m) | 99 meters |
| Detective Distance (Car: 4.2x1.8m) | 2428 meters |
| Recognize Distance (Car: 4.2x1.8m) | 607 meters |
| Verified Distance (Car: 4.2x1.8m) | 303 meters |
| Working mode | Uncooled long wave (8μm~14μm) thermal imager |
| Detector pixel | 640*512 |
| Pixel size | 12μm |
| Focusing method | Athermal prime lens |
| NETD | ≤50mK @F.0 @25℃ |

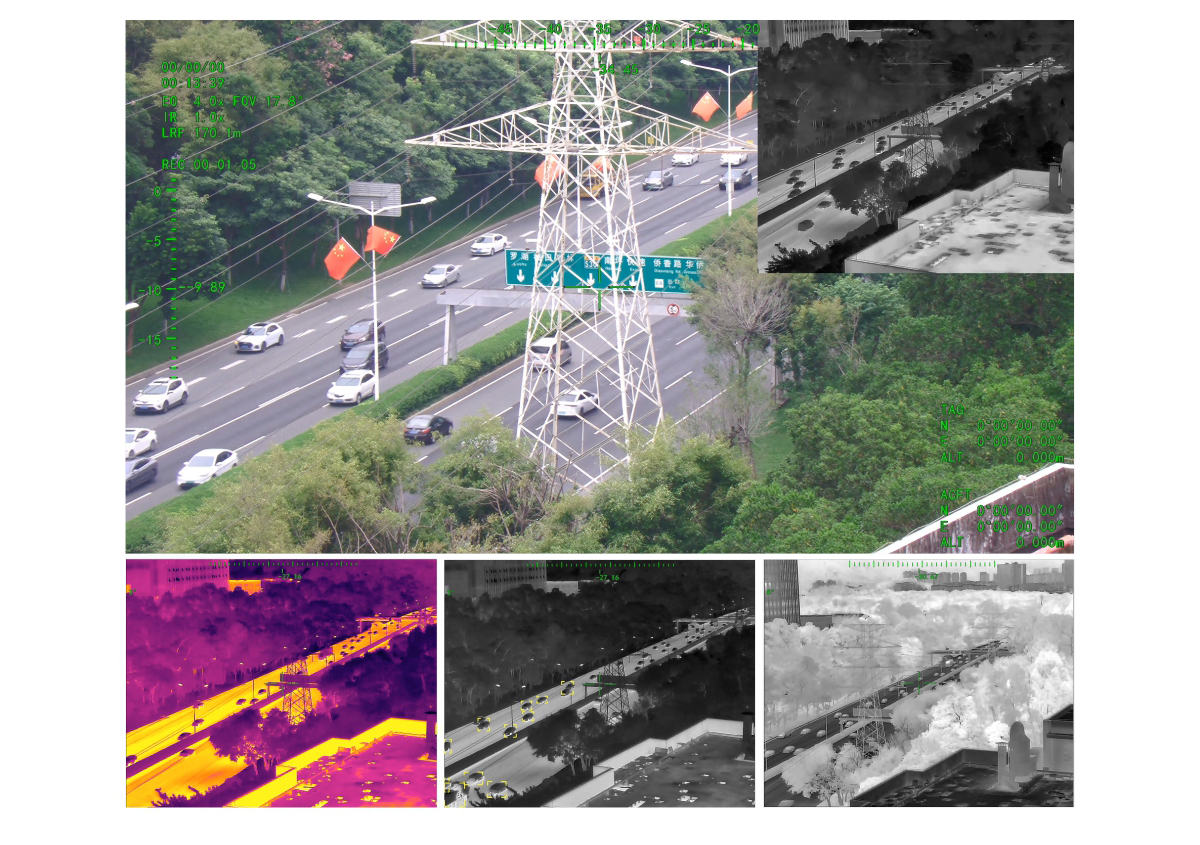

| Color palette | White hot, black hot, pseudo color |
| Digital zoom | 1x ~ 8x |
| Sync correct time | Yes |
| Update rate of deviation pixel | 30Hz |
|---|---|
| Output delay of deviation pixel | <30ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 16*16 pixel |
| Maximum object size | 256*256 pixel |
| Tracking speed | 48 pixel/frame |
| Object memory time | 100 frames |
| AI Tracking Linkage | Yes |

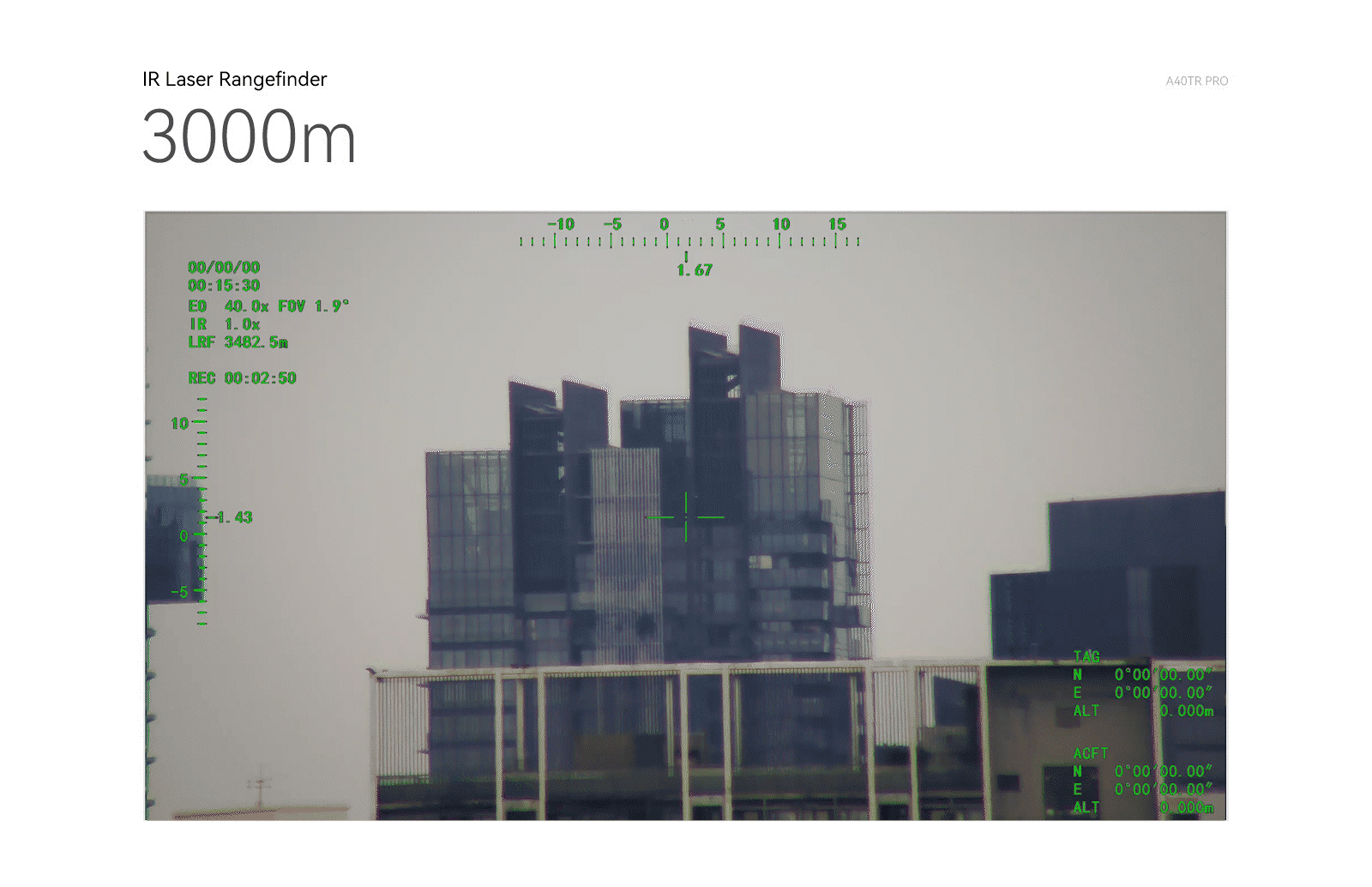

| Laser Rangefinder Parameters | |
|---|---|
| Effective range | For Vehicle≥3000m For human≥2000m |
| Minimum range of measurement | 15m |
| Range accuracy | ±1m |
| Range frequency | 1~10Hz |
| Wave length | 1535±5nm |
| Divergence angle | ~0.6mrad |
| Coordinate resolve | Logitude and latitude of target |
| Measurement | Measure distance from center of object to laser rangefinder sensor |

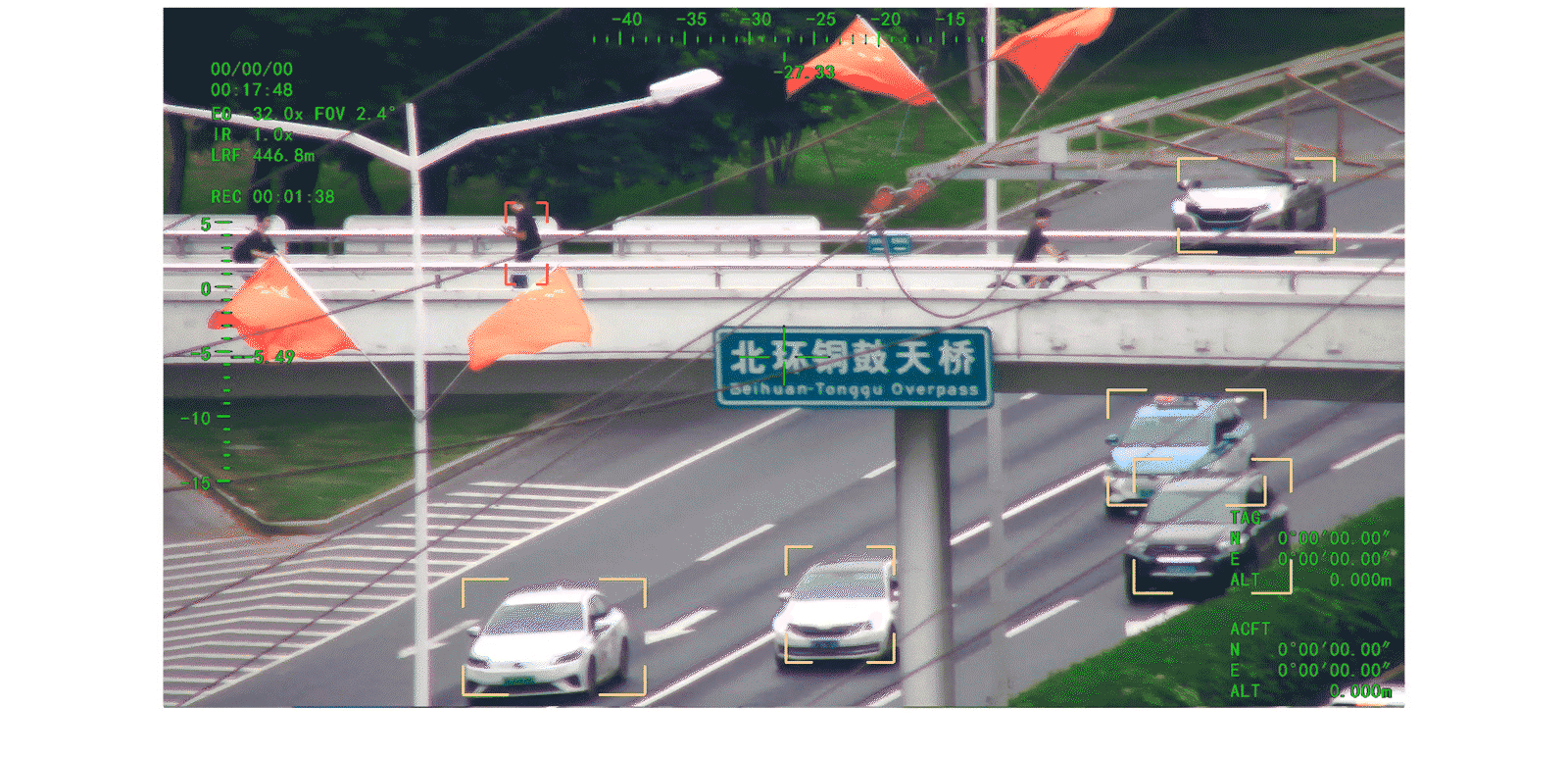

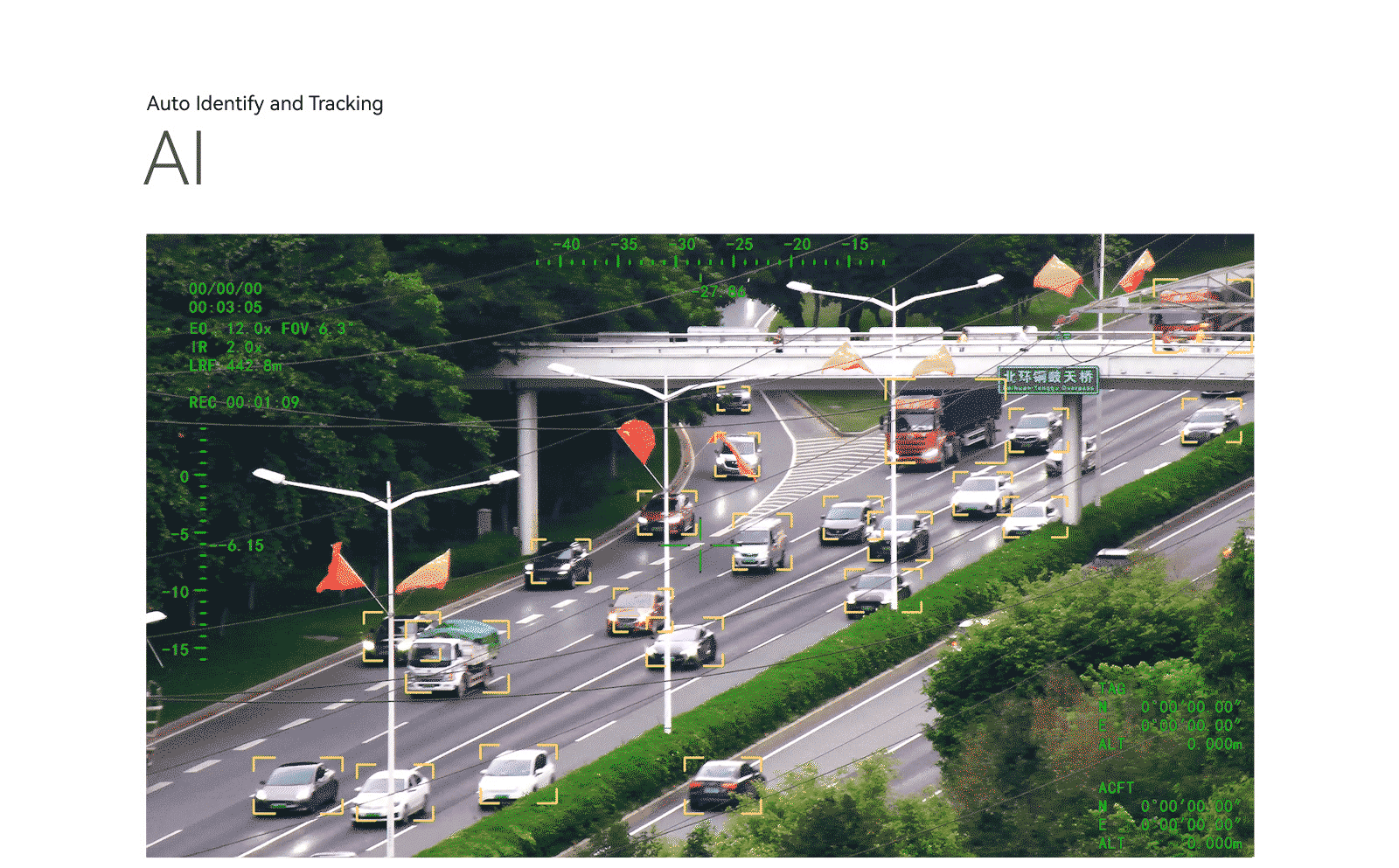

| Camera AI Recognition Performance Parameters | |
| Target type | Vehicle, Human |
| Simultaneous detection quantity | ≥10 targets |
| Contrast ratio | ≥5% |
| Minimum size of target | 5 X 5 pixel |
| Vehicle detection ratio | ≥85% |
| False alarm ratio | ≤10% |
| N.W. | 1136g (Viewport Version) |
|---|---|

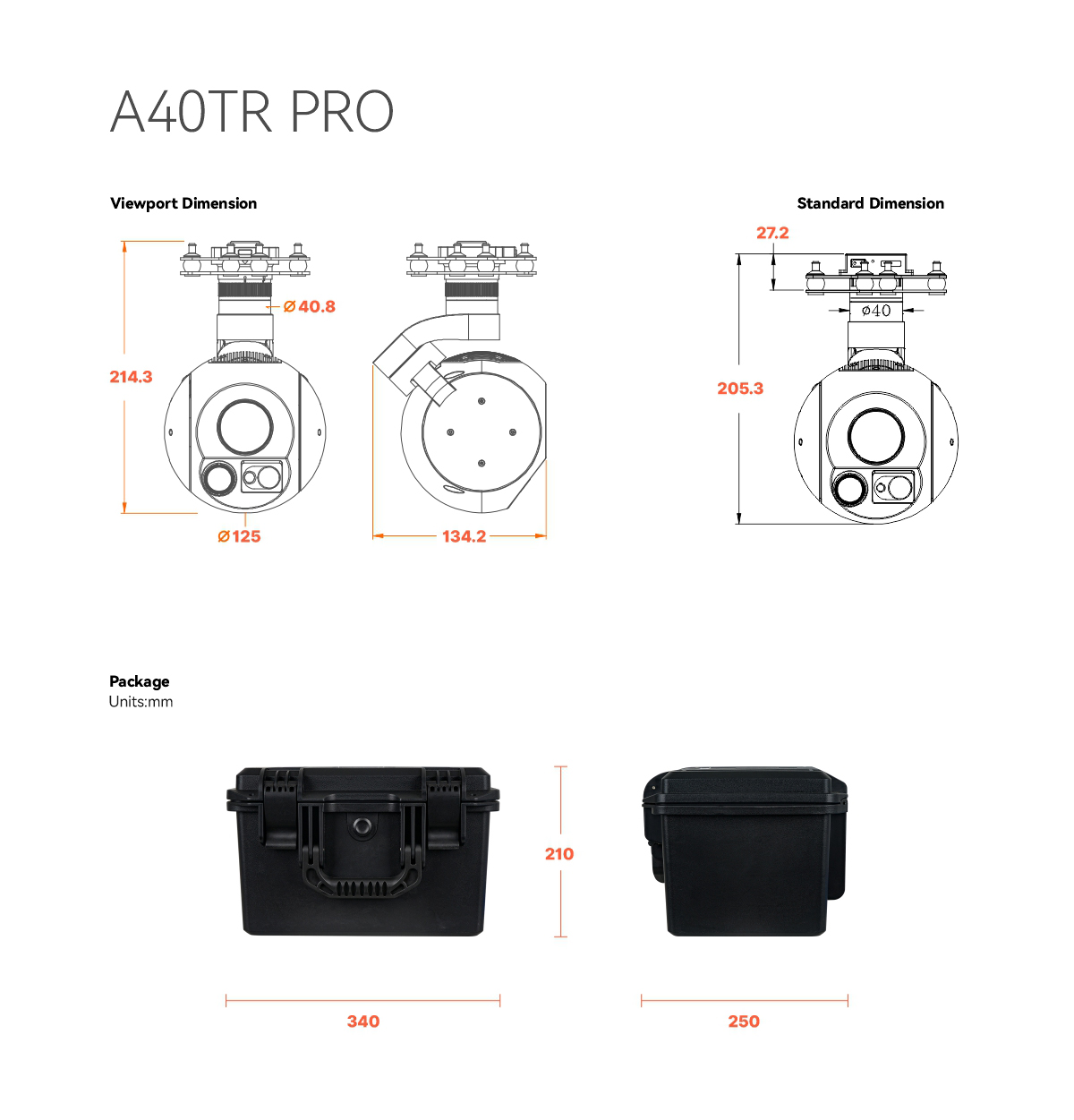

| Product meas. | 134.2*125*210.4mm（Viewport Version） |
Product Showcase
